HEDMAN HEDDERS ELITE HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
        Hedman Hedders

        HEDMAN HEDDERS ELITE HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

        Part Number:68298

        Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

        This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures. ELITE models have a MATTE-SILVER ceramic finish that looks great and keeps more heat in the tubes, and underhood temperatures down.

        These LONG-TUBE headers fit a variety of popular 1971-1993 Chevy Passenger cars, including Impala, Caprice and Bel Air; 1970-1977 Monte Carlo (A-Body) , and 1964-1977 Chevy Chevelle, Malibu and El Camino models fitted with a SB Chevy (Gen 1) engine. The smooth 1-5/8 in. tube design provides ample exhaust flow to let your 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.

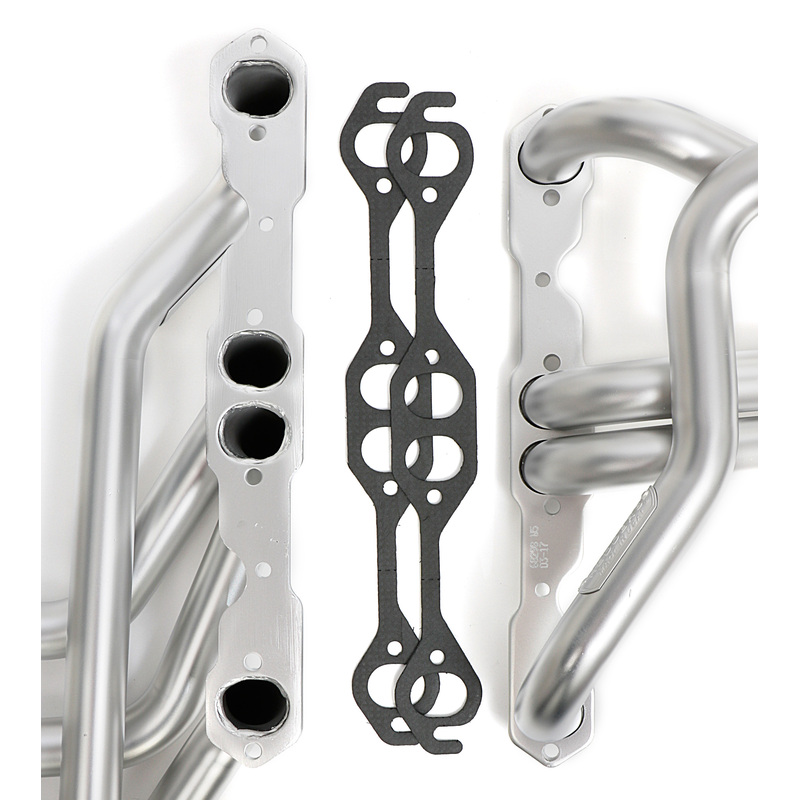

        Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, MATTE-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.

        • Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
        • Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

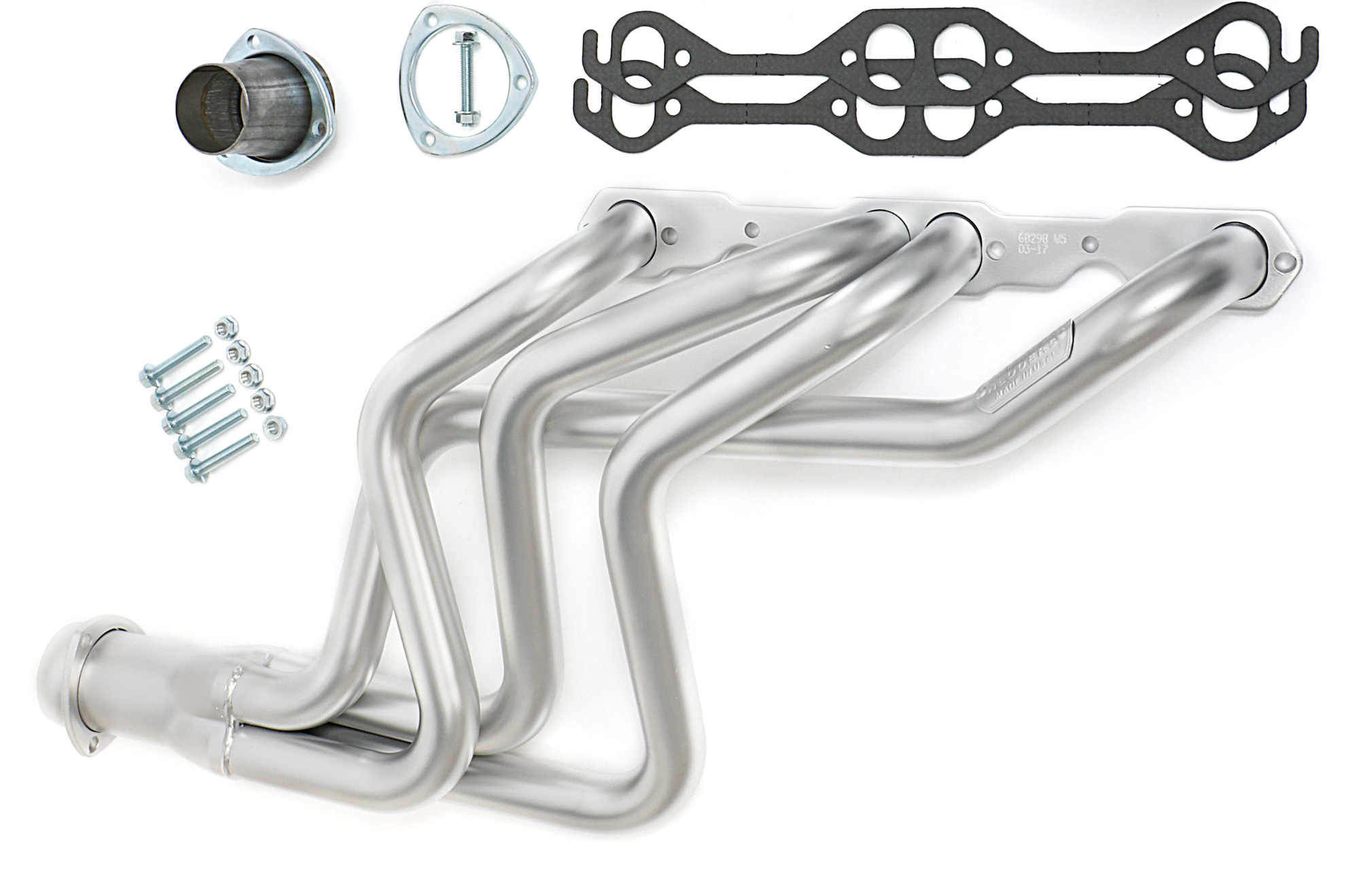

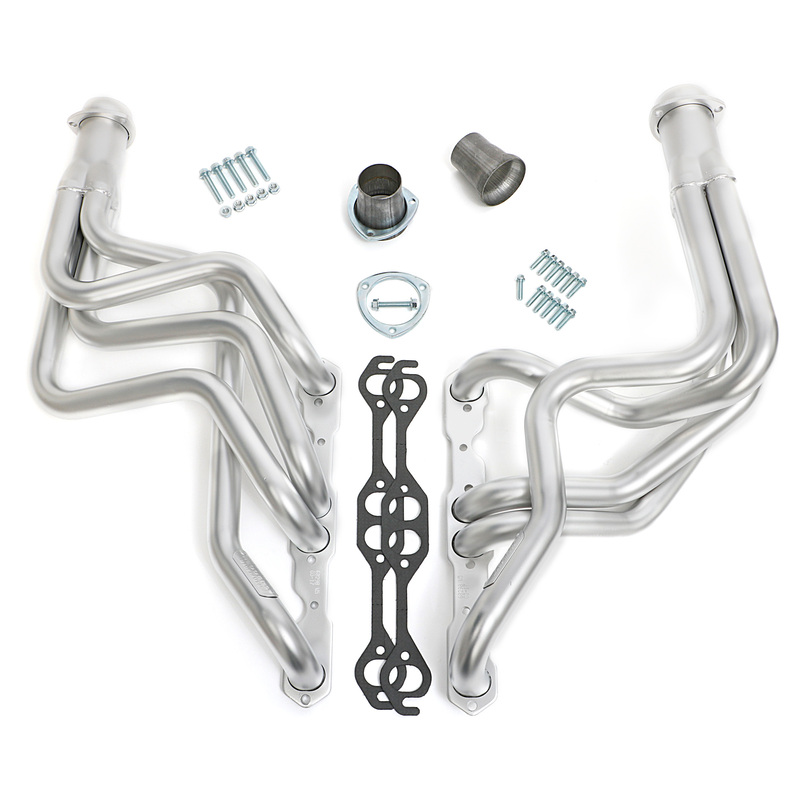

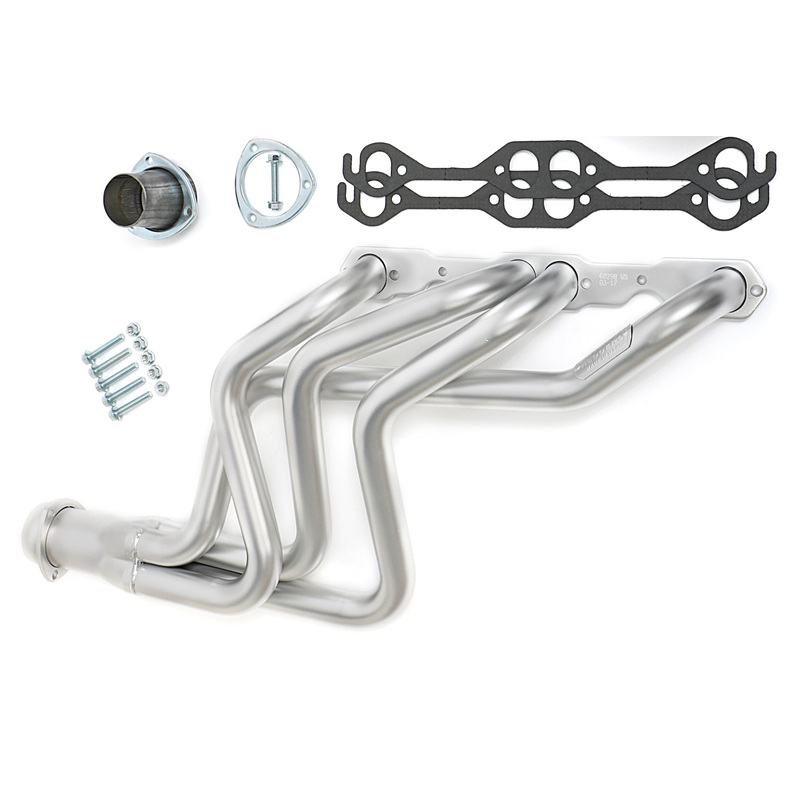

        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $1,640.68
        Features
        • SKU
          68298
        • Brand
          Hedman Hedders
        • 50-State Street Legal
          Please Refer to Vehicle Fitment Data for CARB EO Information
        • Air Conditioning
          Yes
        • Air Conditioning Notes
          70-Up: LARGE compressor use Hedman 20110; SMALL compressor, modify OE bracket.
        • Alternate Variation Part Number
          68296, 68298
        • Automatic Transmission - Column
          Yes
        • Automatic Transmission - Floor
          Yes
        • Collector Diameter
          3.0 in.
        • Collector Style
          Ball and Socket (Gasketless)
        • Cylinder Head Port Shape
          Oval
        • Exhaust System Diameter
          2.5 in.
        • Feature Note
          Without A.I.R.
        • Finish
          Matte Silver Ceramic-Metallic
        • Fitment Note
          64-77 A-Body, 71-93 Chevrolet Pass. Car 283-400
        • Fitment Note
          Fits Stock Profile Heads
        • Flange Style
          Standard
        • Flange Thickness
          0.375 in.
        • Header Style
          Long Tubes
        • Includes Bolts/Studs
          Yes
        • Includes Catalytic Converters
          No
        • Includes Collector Bolts
          Yes
        • Includes Crossover Pipe
          No
        • Includes Gasket/Seal
          Yes
        • Includes Header Fasteners
          Yes
        • Includes Motor Mounts
          No
        • Includes Mounting Hardware
          Yes
        • Includes Reducers
          Yes
        • Includes Y-Pipe
          No
        • Manual Transmission - Column
          No
        • Manual Transmission - Floor
          Yes
        • Material
          Elite Heavy-Duty Mild Steel
        • Material
          Mild Steel
        • Package Contents
          Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
        • Package Contents
          Headers, New Bolts, Gaskets to Head, Reducers and Hardware, Instructions.
        • Primary Tube Diameter
          1.625 in.
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Reducer Outlet Size
          2.5 in.
        • Replacement Head Flange Gasket Part Number
          27520
        • Replacement Manifold Gasket Part Number
          27520
        • Sold As
          Pair
        • Title
          HEDMAN HEDDERS ELITE HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
        • Tube Design
          Standard
        • Tube Diameter
          1.625 in.
        • Tube Size
          1.625 in.
        • Tube Thickness
          14 ga
        • Tuned
          No
        • Weld-Up
          No
        • With A.I.R. System
          No
        • With EGR
          No
        • With Power Steering
          Yes
