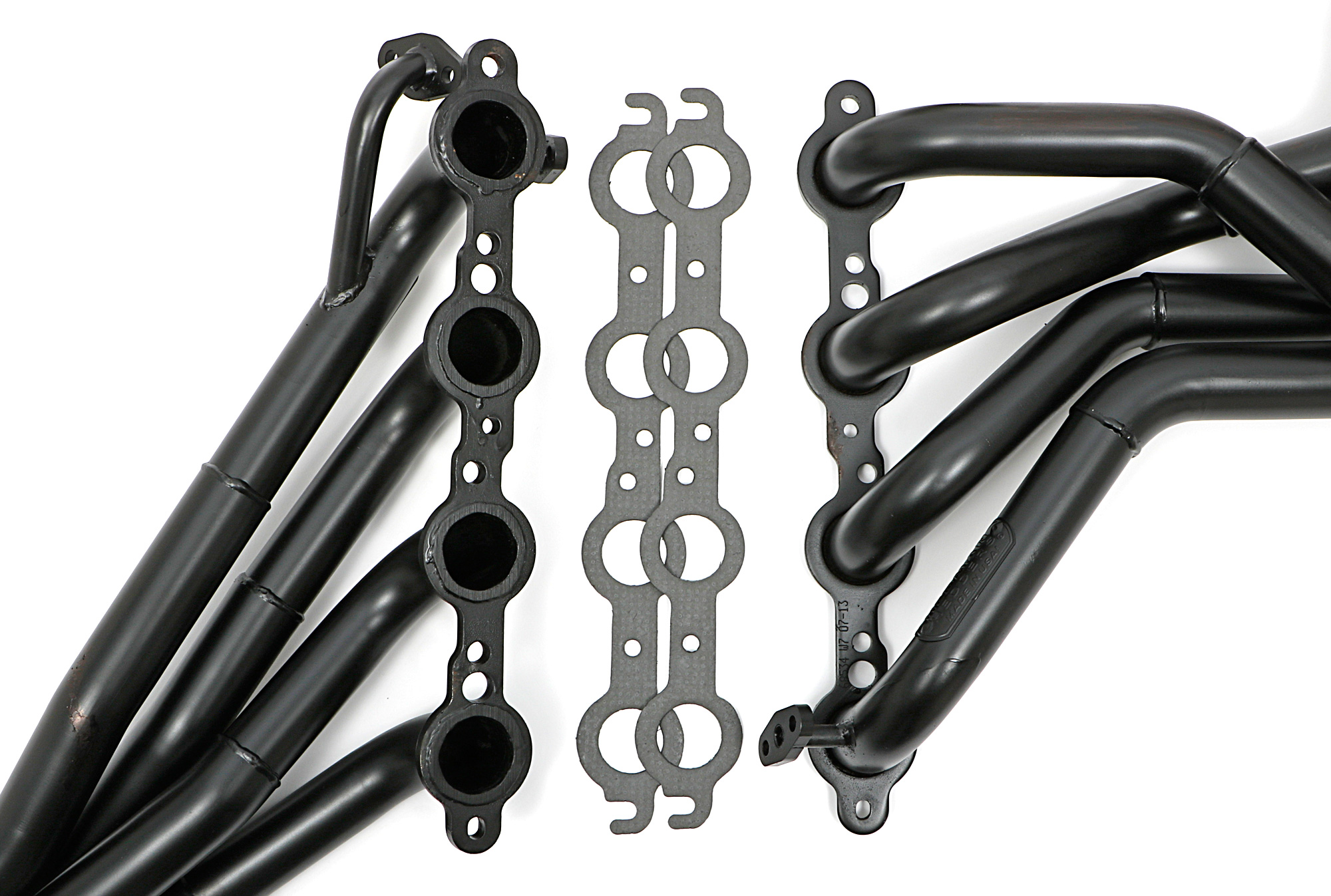

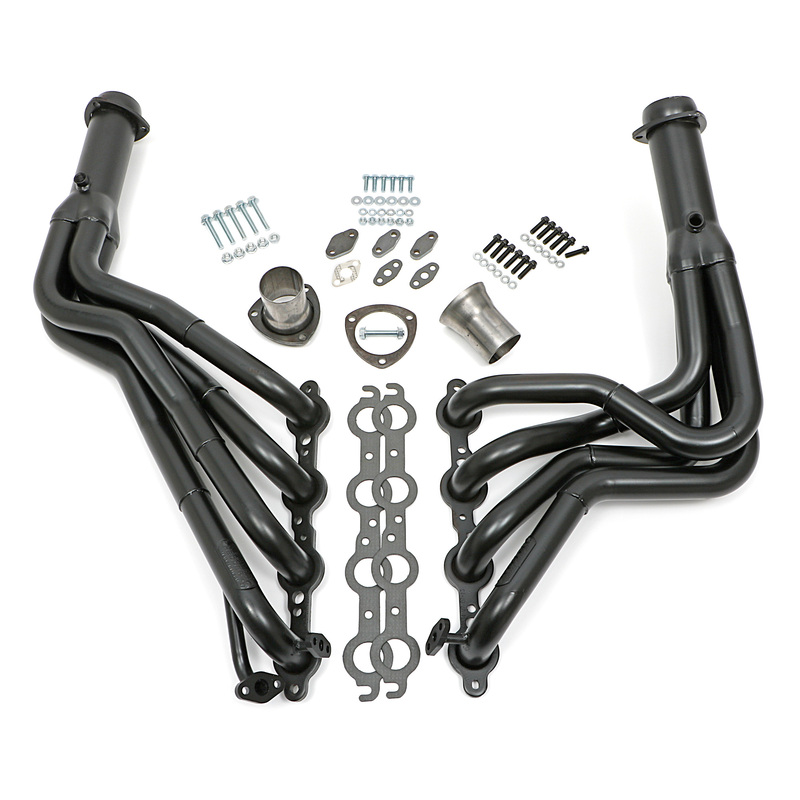

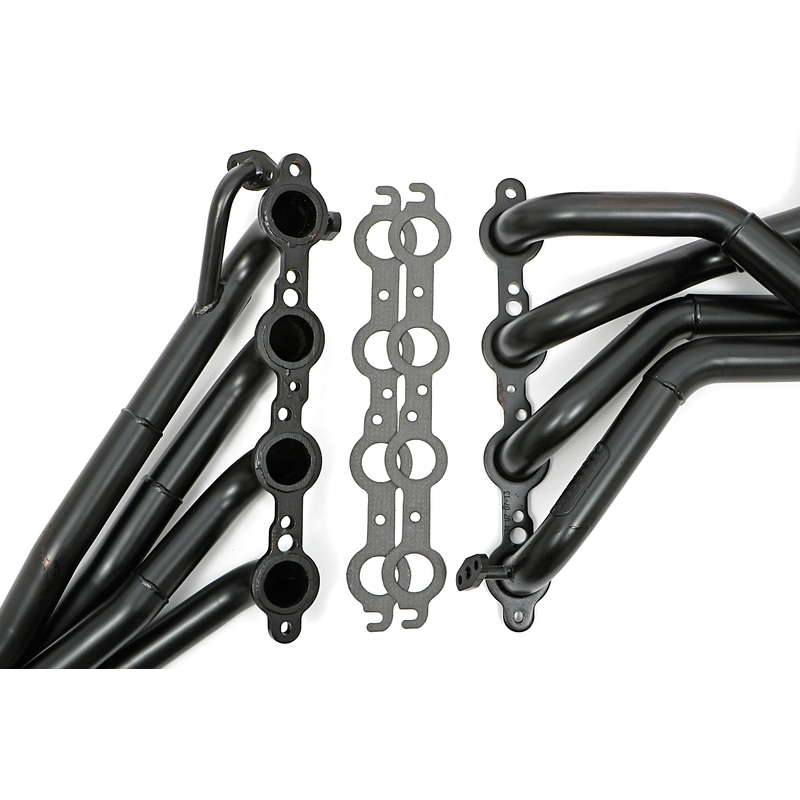

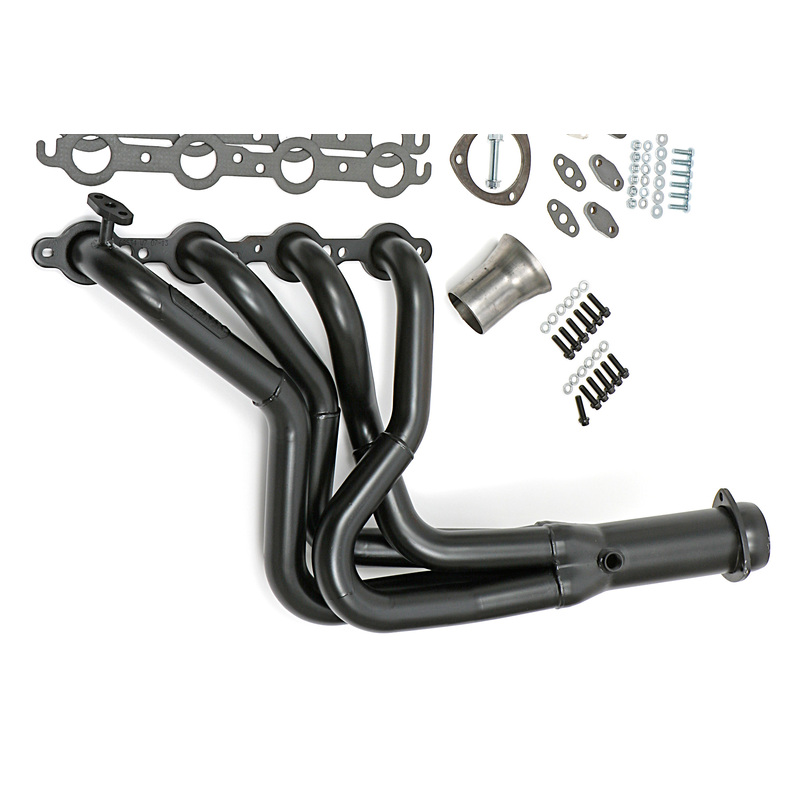

Exhaust Header - 68534

Part Number:68534

Handcrafted, Mild Steel Construction.
STEPPED, Long Tube Header Design Is a Race-Proven Configuration. The Primary Tubes on This Header Step Up In Diameter To Provide Excellent Horsepower and Torque Increases Across The Entire RPM Range.
Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
Proud To Say, Made In The USA, Since 1954!

Retail price

Features
Fitment
Installation
More Detail
Videos

Features

- SKU
  68534
- Brand
  Hedman Hedders
- Air Conditioning
  Yes
- Alternate Variation Part Number
  66534
- Automatic Transmission - Column
  No
- Automatic Transmission - Floor
  Yes
- Collector Diameter
  3.0 in.
- Collector Diameter
  3.0 in.
- Collector Diameter
  3.0 in.
- Collector Style
  Ball and Socket (Gasketless)
- Cylinder Head Port Shape
  Round
- Cylinder Head Port Shape
  Round
- Cylinder Head Port Shape
  Round
- Exhaust System Diameter
  2.5 in.
- Finish
  Uncoated
- Finish
  Uncoated
- Fitment Note
  Fits Stock Profile Heads
- Fitment Note
  98-02 Camaro, Firebird, T/A LS1
- Fitment Note
  Y-Pipe Available and Recommended for an Easier Install.
- Flange Style
  Standard
- Flange Thickness
  0.375 in.
- Header Style
  Long Tubes - Stepped
- Header Style
  Long Tubes
- Header Style
  Long Tubes
- Includes Bolts/Studs
  Yes
- Includes Collector Bolts
  Yes
- Includes Crossover Pipe
  No
- Includes Gasket/Seal
  Yes
- Includes Header Fasteners
  Yes
- Includes Motor Mounts
  No
- Includes Y-Pipe
  No
- Manual Transmission - Column
  No
- Manual Transmission - Floor
  Yes
- Material
  Standard-Duty Mild Steel
- Material
  Mild Steel
- Material
  Mild Steel
- O2 Provision
  Yes
- Package Contents
  Headers, New Bolts, Gaskets to Head, Reducers and Hardware, Instructions.
- Package Contents
  Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
- Primary Tube Diameter
  1.625 in. x 1.75 in.
- Prop 65 - Short Label
  WARNING: Cancer - www.p65warnings.ca.gov
- Reducer Outlet Size
  2.5 in.
- Reducers Included
  Yes
- Replacement Head Flange Gasket
  27470
- Replacement Manifold Gasket Part Number
  27470
- Sold As
  Pair
- Tube Design
  Stepped Tubes
- Tube Diameter
  1.625 in. x 1.75 in.
- Tube Size
  1.625 in. x 1.75 in.
- Tube Thickness
  16 ga
- Tube Thickness
  16 ga
- Tuned
  No
- Weld-Up
  No
- With A.I.R. System
  No
- With EGR
  No
- With Power Steering
  Yes

Fitment

Make	Model	Submodel	Year
No Results

Installation

68534.pdf

More Detail

Videos
