HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN

Part Number:68609
Mid-Length D-Port Headers For 67-81 Camaro, Nova, G-Body 283-400
  • Handcrafted, Mild Steel Construction.
  • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
Retail price
  • $811.93
Features
  • SKU
    68609
  • Brand
    Hedman Hedders
  • 50-State Street Legal
    Please Refer to Vehicle Fitment Data for CARB EO Information
  • Alternate Variation Part Number
    68609, 66609, 63609.
  • Automatic Transmission - Column
    Yes
  • Automatic Transmission - Floor
    Yes
  • Collector Diameter
    3.0 in.
  • Collector Style
    Ball and Socket (Gasketless)

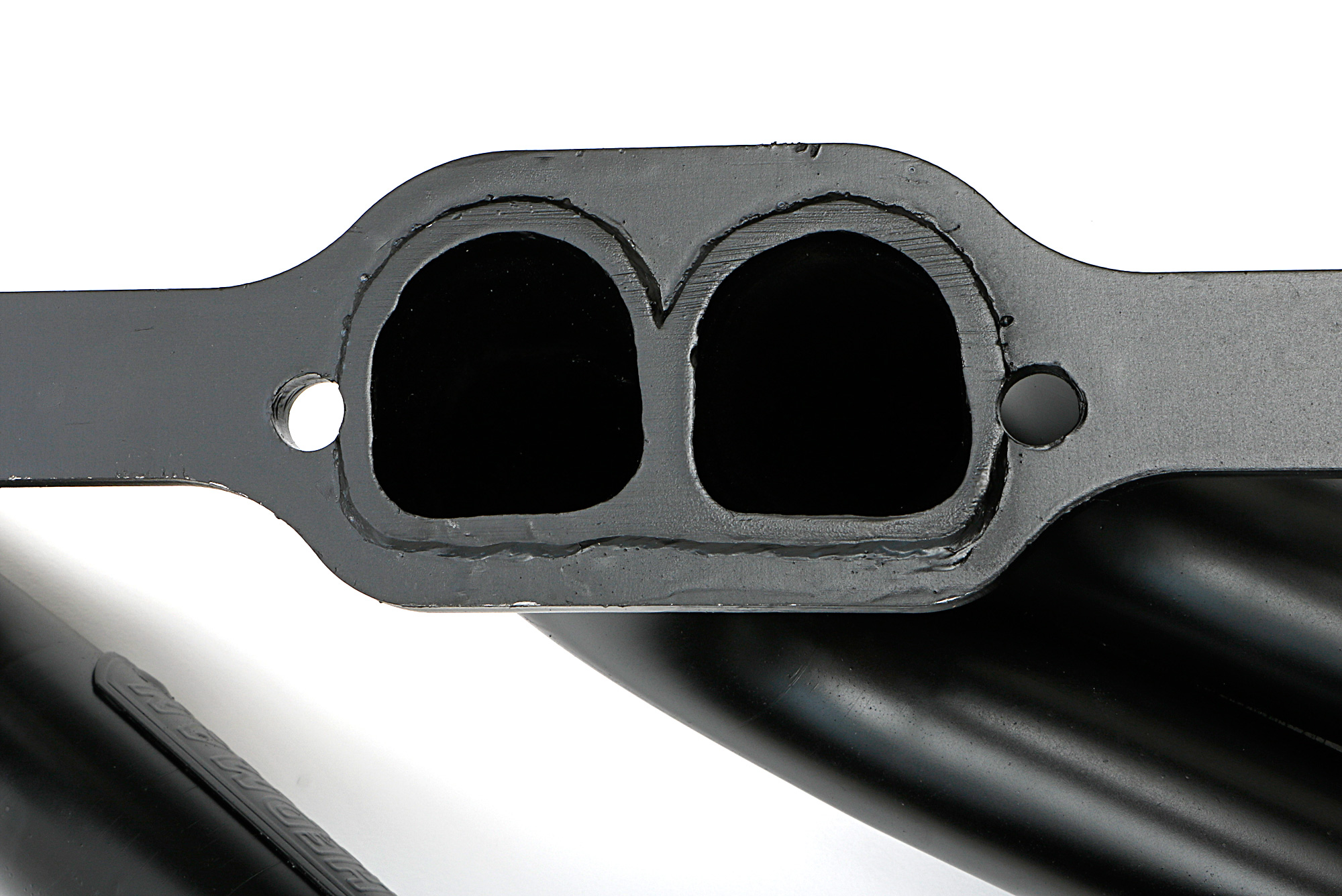

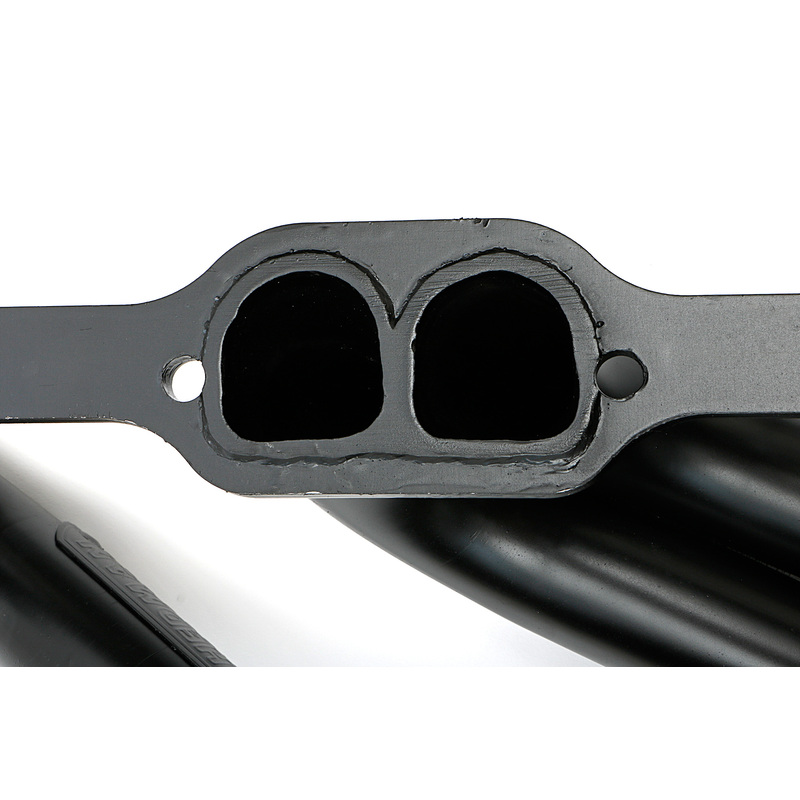

  • Cylinder Head Port Shape
    D-Port
  • Engine Fitment
    D-Port
  • Exhaust System Diameter
    2.5 in.
  • Feature Note
    D-Port Heads
  • Finish
    Uncoated
  • Fitment Note
    67-81 F; 64-83 A, 82-88 G; 68-79 X; 71-94 B; 84-04 Astro 283-400
  • Fitment Note
    Fits Stock Profile Heads
  • Flange Style
    Standard
  • Flange Thickness
    0.3125 in.
  • Header Style
    Mid-Length
  • Includes Bolts/Studs
    Yes
  • Includes Catalytic Converters
    No
  • Includes Collector Bolts
    Yes
  • Includes Crossover Pipe
    No
  • Includes Gasket/Seal
    Yes
  • Includes Header Fasteners
    Yes
  • Includes Mounting Hardware
    Yes
  • Includes Reducers
    Yes
  • Includes Y-Pipe
    No
  • Manual Transmission - Column
    No
  • Manual Transmission - Floor
    No
  • Material
    Mild Steel
  • Material
    Standard-Duty Mild Steel

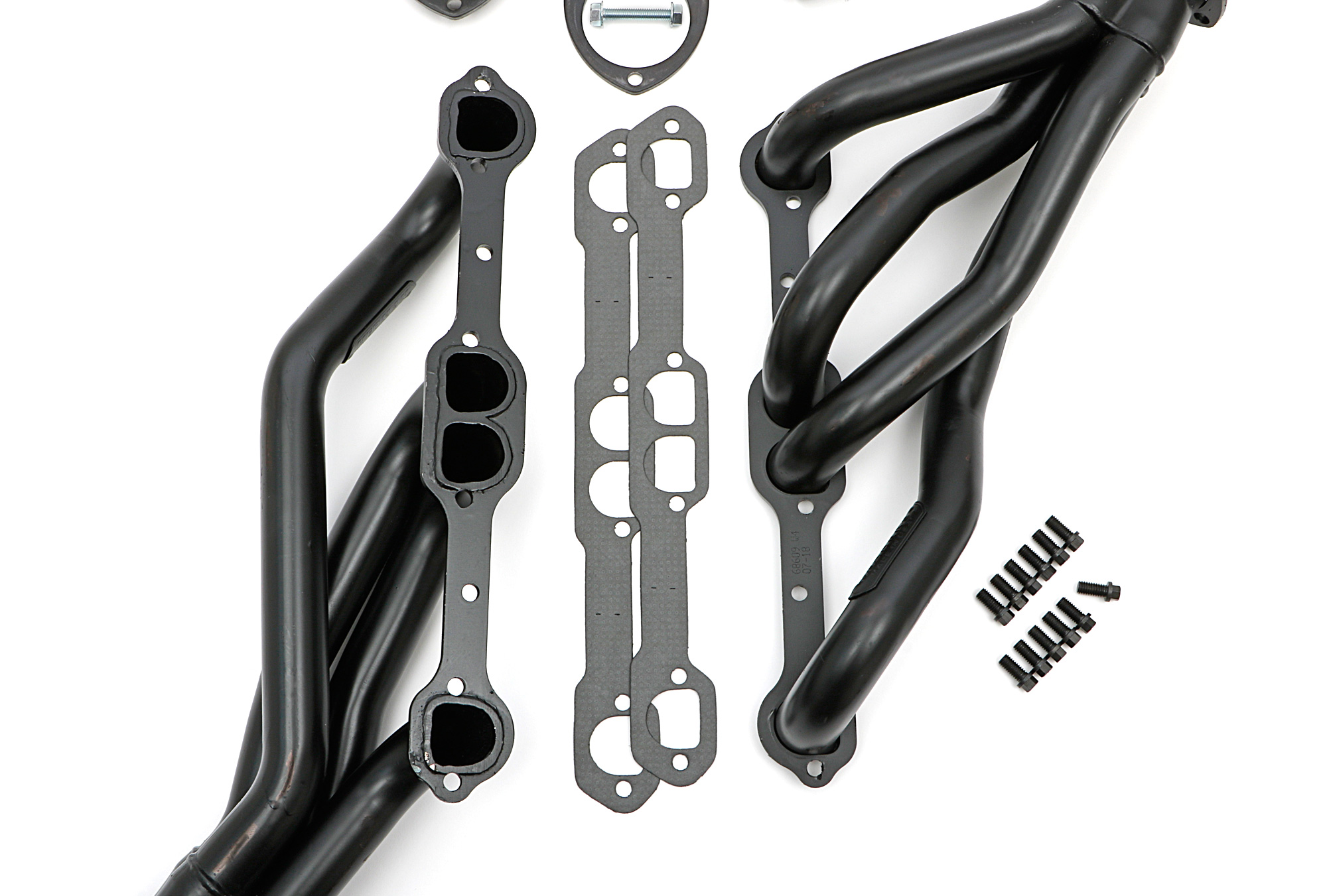

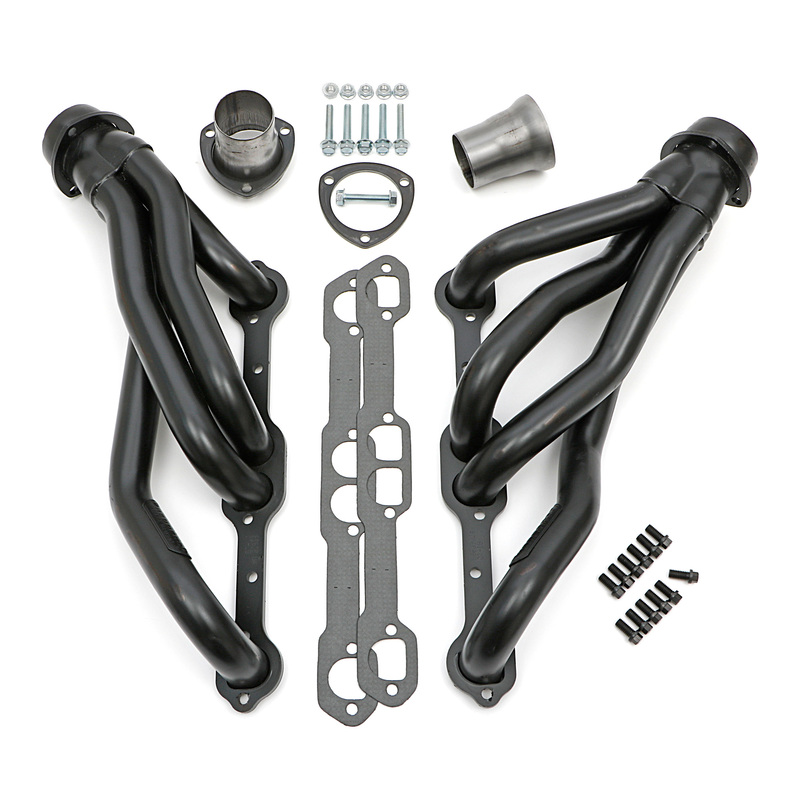

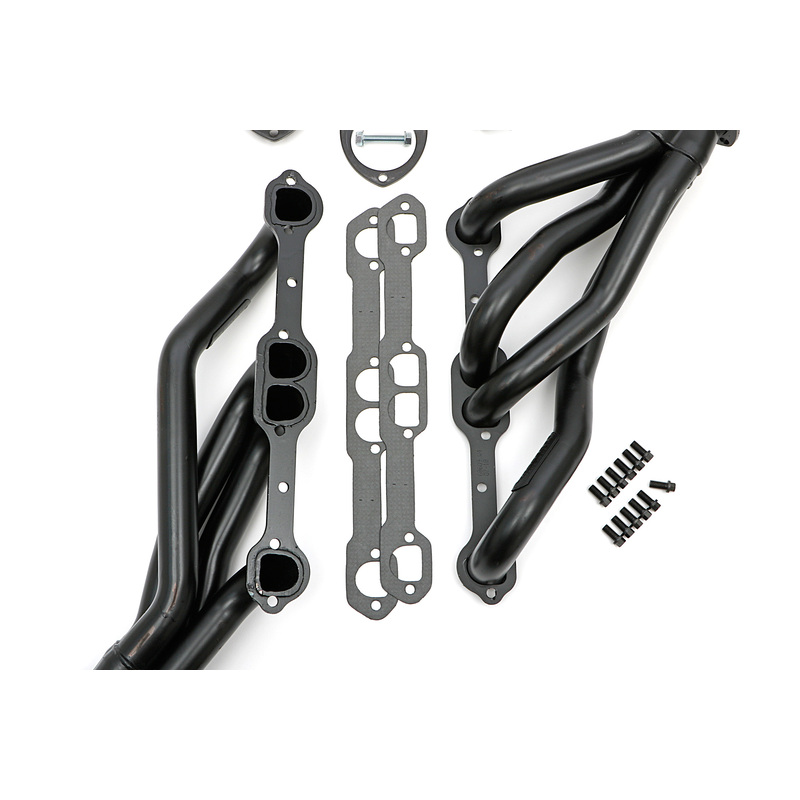

  • Package Contents
    Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
  • Primary Tube Diameter
    1.625 in.
  • Prop 65 - Short Label
    WARNING: Cancer - www.p65warnings.ca.gov
  • Reducer Outlet Size
    2.5 in.
  • Replacement Manifold Gasket Part Number
    27690
  • Sold As
    Pair
  • Tube Design
    Standard
  • Tube Diameter
    1.625 in.
  • Tube Size
    1.625 in.
  • Tube Thickness
    16 ga
  • Tuned
    No
  • Weld-Up
    No
  • With A.I.R. System
    No
  • With EGR
    No
  • With Power Steering
    Yes
