        HEDMAN HEDDERS HEDMAN HEADERS 1982-04 CHEVY/GMC S10/S15 (2WD) LS SWAP HEADERS; 1-1/2 IN. LONG TUBE; 3 IN. BALL/SOCKET COLLECTOR- HTC SILVER CERAMIC CO

        Part Number:69056
        Silver Long-Tube LS Engine Swap Headers For 2WD S10/S15 Trucks
        • Handcrafted, Mild Steel Construction.
        • Long Tube, Under Chassis Header Design Provides Excellent Top-End Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Under Chassis Design
        • Proud To Say, Made In The USA, Since 1954!
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        Retail price
        • $1,634.37
        Features
        • SKU
          69056
        • Brand
          Hedman Hedders
        • 50-State Street Legal
          Please Refer to Vehicle Fitment Data for CARB EO Information
        • Air Conditioning
          Yes
        • Alternate Variation Part Number
          69050, 69053, 69056
        • Automatic Transmission - Column
          No
        • Automatic Transmission - Floor
          Yes
        • Collector Diameter
          3.0 in.
        • Collector Style
          Ball and Socket (Gasketless)
        • Cylinder Head Port Shape
          Round
        • Engine Fitment
          Chevy LS Series
        • Exhaust System Diameter
          2.5 in.
        • Finish
          HTC Polished Silver Ceramic-Metallic
        • Fitment Note
          Chevy/GMC S10/S15 Family; 1982-04
        • Fitment Note
          Fits 2WD
        • Fitment Note
          Fits Stock Profile Heads
        • Fitment Note
          Requires Trans-Dapt Engine Swap Mount Kit 4516 (Rubber) Or 4530 (All Steel)
        • Flange Style
          Standard
        • Flange Thickness
          0.375 in.
        • Head Type
          Factory Heads
        • Header Style
          Long Tubes
        • Includes Bolts/Studs
          Yes
        • Includes Catalytic Converters
          No
        • Includes Collector Bolts
          Yes
        • Includes Crossover Pipe
          No
        • Includes Gasket/Seal
          Yes
        • Includes Header Fasteners
          Yes
        • Includes Motor Mounts
          No
        • Includes Mounting Hardware
          Yes
        • Includes Reducers
          Yes
        • Includes Y-Pipe
          No
        • Manual Transmission - Column
          No
        • Manual Transmission - Floor
          Yes
        • Material
          Mild Steel
        • Material
          Standard-Duty Mild Steel
        • Package Contents

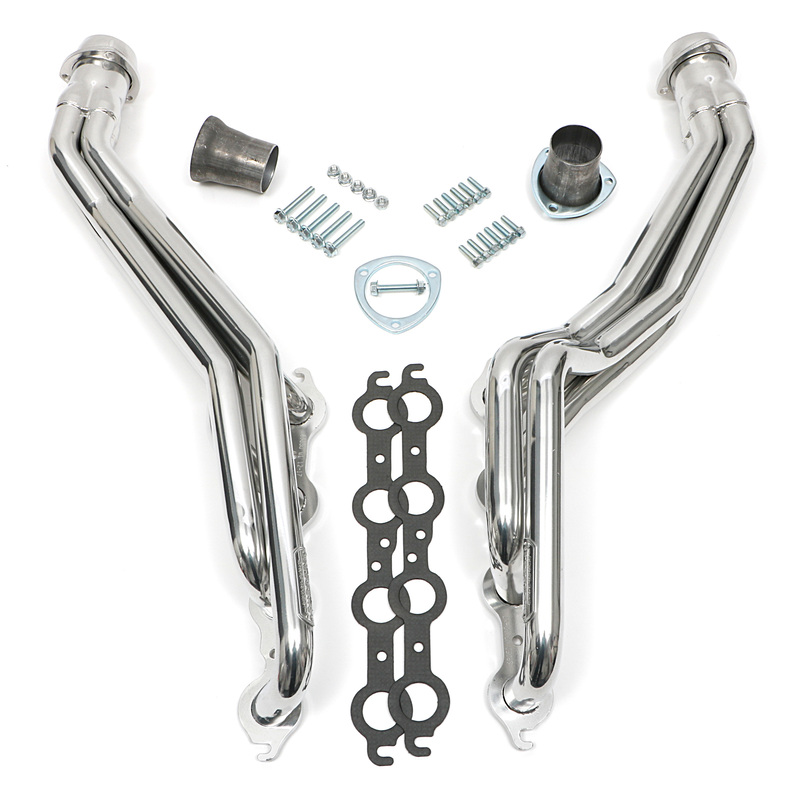

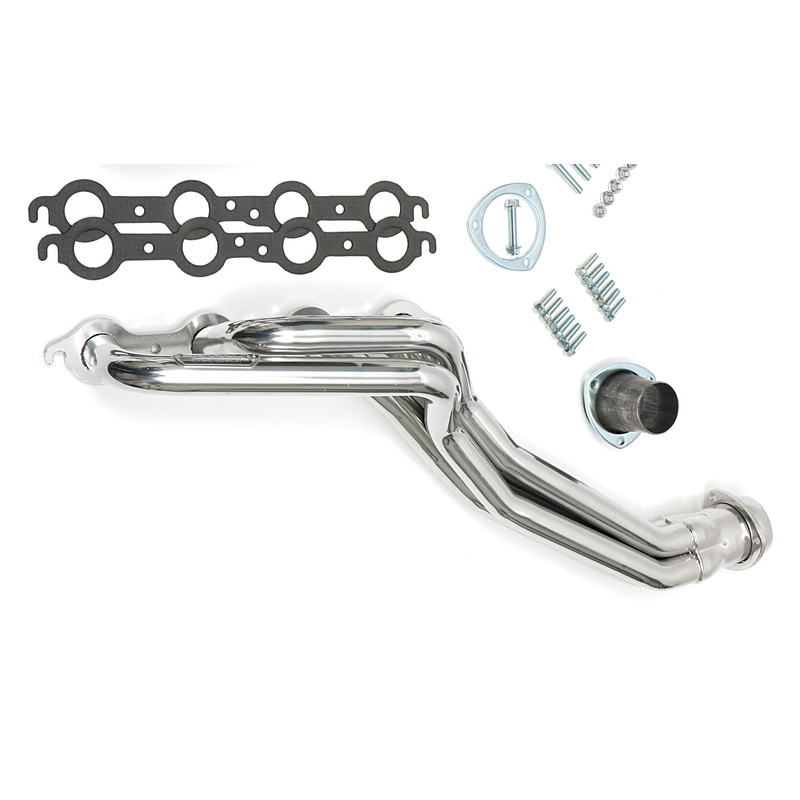

          Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
        • Package Contents

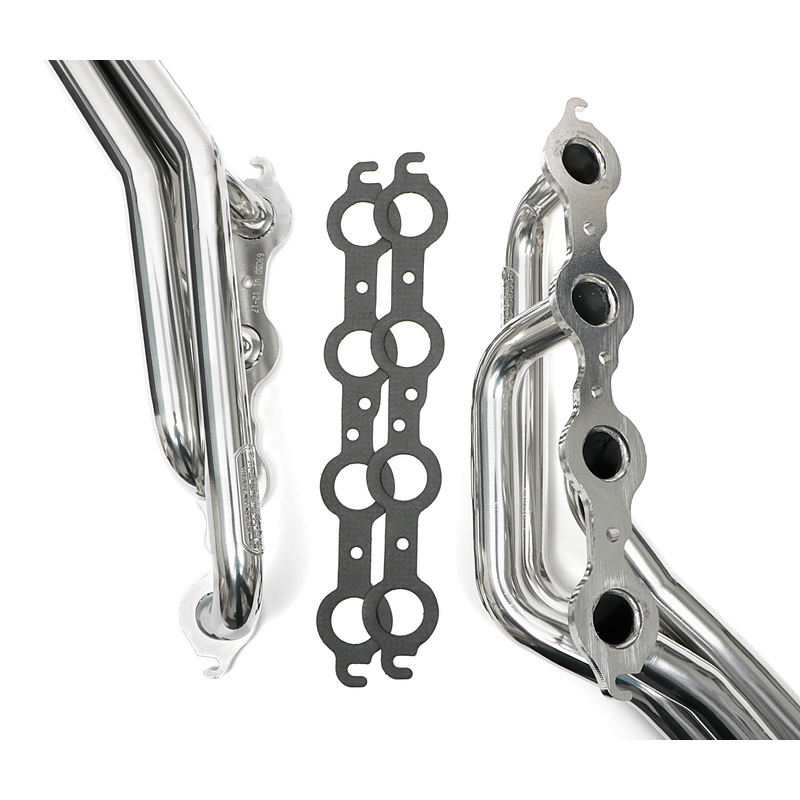

          Headers, Collector Flange Gaskets, Collector Bolts.
        • Primary Tube Diameter
          1.50 in.
        • Product Type
          Headers
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Reducer Outlet Size
          2.5 in.
        • Replacement Head Flange Gasket Part Number
          27470
        • Replacement Manifold Gasket Part Number
          27470
        • Sold As
          Pair
        • Title
          HEDMAN HEDDERS HEDMAN HEADERS 1982-04 CHEVY/GMC S10/S15 (2WD) LS SWAP HEADERS; 1-1/2 IN. LONG TUBE; 3 IN. BALL/SOCKET COLLECTOR- HTC SILVER CERAMIC COATED
        • Tube Design
          Standard
        • Tube Diameter
          1.5 in.
        • Tube Size
          1.5 in.
        • Tube Thickness
          16 ga
        • Tuned
          No
        • Weld-Up
          No
        • With A.I.R. System
          No
        • With EGR
          No
        • With Power Steering
          Yes
