HEDMAN HEDDERS S10 / SB CHEVY ENGINE SWAP HEADERS 1-3/4 IN.- UNCOATED
        Hedman Hedders

        HEDMAN HEDDERS S10 / SB CHEVY ENGINE SWAP HEADERS 1-3/4 IN.- UNCOATED

        Part Number:69560

        Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Chevy S10, GMC S15, V8 engine swap specific headers for over 20 years. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next.

        These uncoated, MID-LENGTH TUBE headers are designed specifically for installing a Small Block Chevy 283-400 (Gen 1) engine into 1982-2004 Chevy S10/Blazer, GMC S15/Jimmy 2WD trucks. Fits both manual and automatic transmission trucks. The large, smooth 1-3/4 in. tube design provides excellent exhaust flow to let your transplanted 283-400 SB Chevy engine breathe easy, and produce additional horsepower and torque over factory manifolds.

        These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

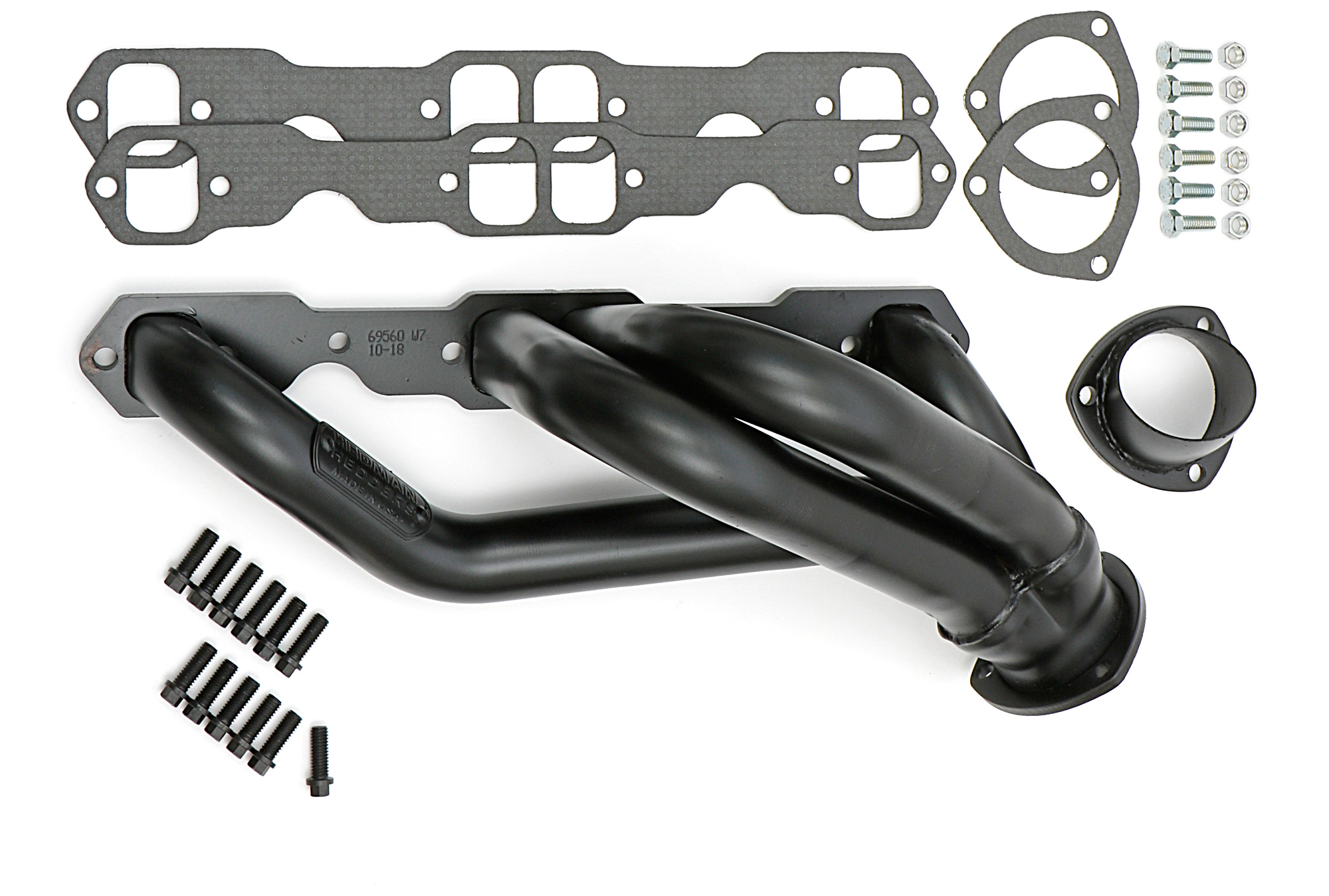

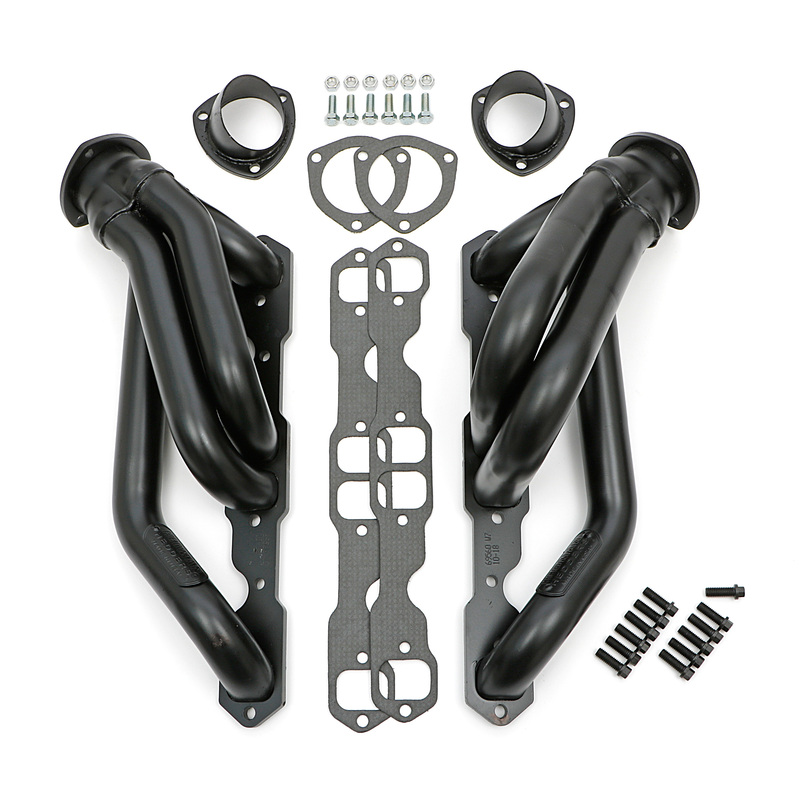

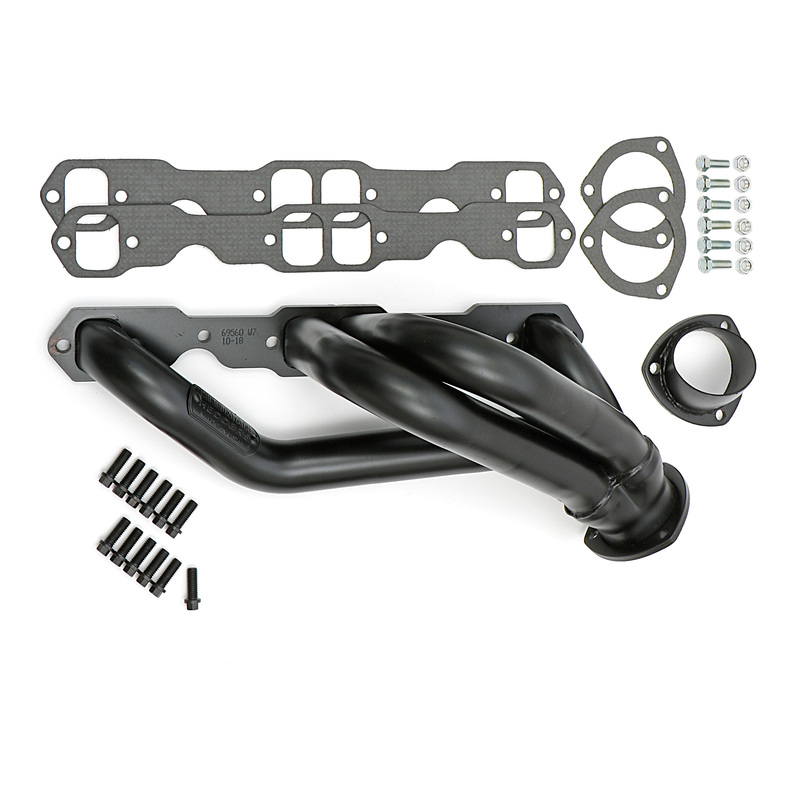

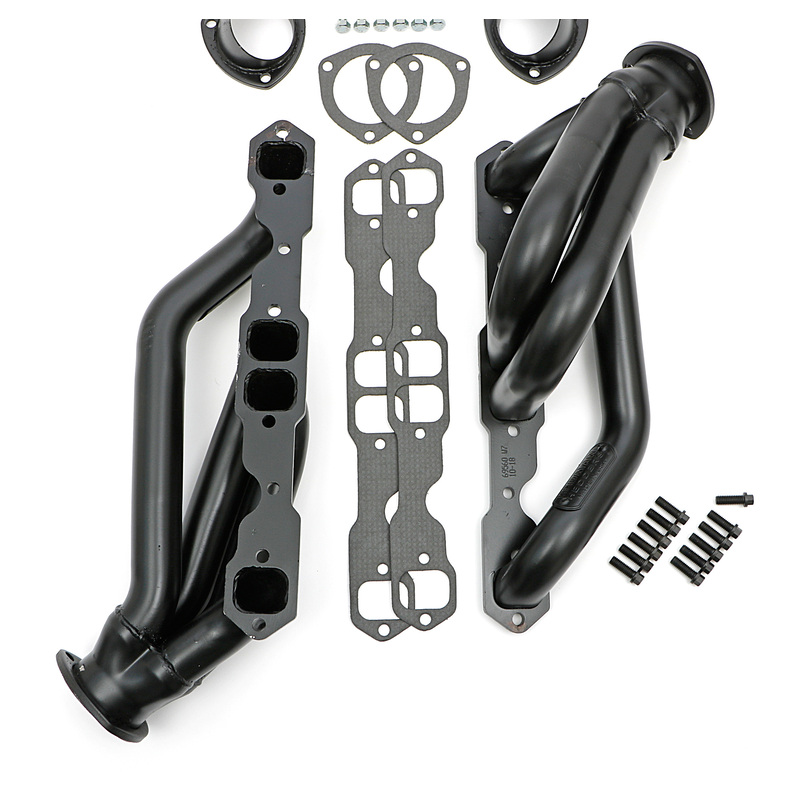

        Each set includes a pair of header and collector gaskets, header flange bolts and collector bolts.

        Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

        • Handcrafted, Mild Steel Construction.
        • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
        • Classic 3-Bolt Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $1,006.16
        Features
        • SKU
          69560
        • Brand
          Hedman Hedders
        • 50-State Street Legal
          Please Refer to Vehicle Fitment Data for CARB EO Information
        • Air Conditioning
          Yes
        • Alternate Variation Part Number
          69566
        • Automatic Transmission - Column
          No
        • Automatic Transmission - Floor
          Yes
        • Collector Diameter
          3.0 in.
        • Collector Style
          3-Bolt Gasket Style Flange
        • Cylinder Head Port Shape
          Square
        • Engine
          Chevy SB 283-400 (Gen 1) 1958-86
        • Exhaust System Diameter
          3.0 in.
        • Finish
          Uncoated
        • Finish Type
          UNCOATED Mild Steel! Shipped with Temporary Paint.
        • Fitment Note
          Fits 2WD
        • Fitment Note
          Fits Stock Profile Heads
        • Fitment Note
          Straight plug cylinder heads Only
        • Flange Style
          Standard
        • Flange Thickness
          0.3125 in.
        • Head Type
          Factory Heads
        • Header Style
          Mid-Length
        • Includes Bolts/Studs
          Yes
        • Includes Catalytic Converters
          No
        • Includes Collector Bolts
          Yes
        • Includes Crossover Pipe
          No
        • Includes Gasket/Seal
          Yes
        • Includes Header Fasteners
          Yes
        • Includes Motor Mounts
          No
        • Includes Mounting Hardware
          Yes
        • Includes Reducers
          Yes
        • Includes Y-Pipe
          No
        • Manual Transmission - Column
          No
        • Manual Transmission - Floor
          Yes
        • Material
          Mild Steel
        • Material
          Standard-Duty Mild Steel
        • Package Contents
          Headers, Collector Flange Gaskets, Collector Bolts.
        • Package Contents
          Headers, Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
        • Primary Tube Diameter
          1.75 in.
        • Product Note
          Motor Mount Kit available (Part 9906)
        • Prop 65 - Short Label
          WARNING: Cancer - www.p65warnings.ca.gov
        • Reducer Outlet Size
          3.0 in.
        • Replacement Head Flange Gasket Part Number
          27560
        • Replacement Manifold Gasket Part Number
          27560
        • Sold As
          Pair
        • Title
          HEDMAN HEDDERS S10 / SB CHEVY ENGINE SWAP HEADERS 1-3/4 IN.- UNCOATED
        • Tube Design
          Standard
        • Tube Diameter
          1.75 in.
        • Tube Size
          1.75 in.
        • Tube Thickness
          16 ga
        • Tuned
          No
        • Weld-Up
          No
        • With A.I.R. System
          No
        • With EGR
          No
        • With Power Steering
          Yes
