HEDMAN HEDDERS STAINLESS STEEL HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; SHORTY DESIGN- UNCOATED
        Hedman Hedders

        HEDMAN HEDDERS STAINLESS STEEL HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; SHORTY DESIGN- UNCOATED

        Part Number:82400

        Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford Mustang headers for nearly as long as Mustangs have been on the road. This premium construction header is manufactured using 100% T304 stainless steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical. The stainless steel construction of these headers makes them virtually indestructible, and they can take all the punishment a high-performance SB Ford engine can throw at it. Hedman's unique, gasketless ball and socket collector design allows your SB Ford's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

        These uncoated stainless, MID-LENGTH TUBE headers fit the most iconic passenger cars to come out of Ford and Mercury between 1964-1977, with a 260-302W. Among this prestigious list is 1964-73 Ford Mustang and Falcon, '66-73 Ranchero & Torino, '69-77 Maverick, '66-70 Fairlane, '67-73 Mercury Cougar and'70-73 Comet models fitted with a 260-302W engine. These headers fit automatic transmission equipped vehicles only. The smooth 1-1/2 in., rectangle port tube design provides superior exhaust flow over factory manifolds to let your Ford Windsor block engine breathe better, and produce more low-end torque and horsepower.

        These headers ship from the factory with an unfinished stainless surface. To lower underhood temperatures or match the look of your engine, these headers are also available with a polished silver or satin-black ceramic-metallic finish.

        Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

        Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

        • 100% Premium T304 Stainless Steel Flange and Tube Construction.
        • T304 Stainless Material Is more Durable, Heat Resistant and Corrosion Resistant Than The 409 Stainless Steel Typically Used To Manufacture Exhaust Products.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

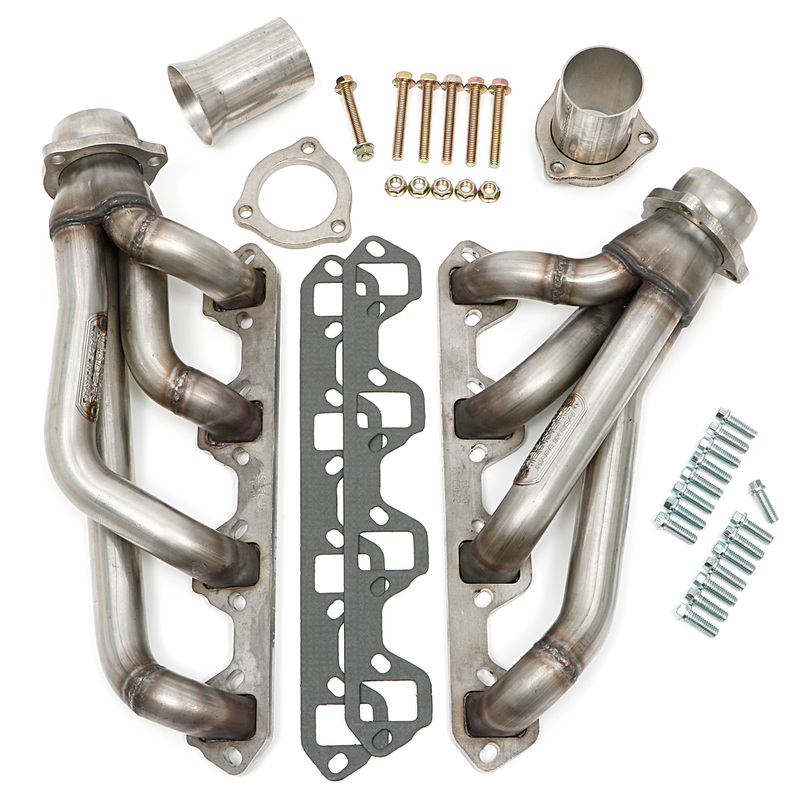

        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $2,441.41
        Features
        • SKU
          82400
        • Brand
          Hedman Hedders
        • 50-State Street Legal
          Please Refer to Vehicle Fitment Data for CARB EO Information
        • Air Conditioning
          Yes
        • Alternate Variation Part Number
          88406, 88408, 82406
        • Automatic Transmission - Column
          No
        • Automatic Transmission - Floor
          Yes
        • Collector Diameter
          2.5 in.
        • Collector Style
          Ball and Socket (Gasketless)
        • Cylinder Head Port Shape
          Square
        • Engine Fitment
          Ford Windsor Block (W)
        • Exhaust System Diameter
          2.5 in.
        • Finish
          Uncoated
        • Fitment Note
          66-73 Ford Mustang 260-302W
        • Fitment Note
          Fits Stock Profile Heads
        • Flange Style
          Standard
        • Flange Thickness
          0.375 in.
        • Flange Thickness
          0.38 in.
        • Header Style
          Mid-Length
        • Header Style
          Short Tubes
        • Header Style
          Shorty
        • Includes Bolts/Studs
          Yes
        • Includes Catalytic Converters
          No
        • Includes Collector Bolts
          Yes
        • Includes Crossover Pipe
          No
        • Includes Gasket/Seal
          Yes
        • Includes Motor Mounts
          No
        • Includes Mounting Hardware
          Yes
        • Includes Reducers
          Yes
        • Includes Y-Pipe
          No
        • Manual Transmission - Column
          No
        • Manual Transmission - Floor
          No
        • Material
          T-304 Stainless Steel
        • Package Contents
          Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
        • Package Contents
          Headers, New Bolts, Gaskets to Head, Reducers and Hardware, Instructions.
        • Primary Tube Diameter
          1.50 in.
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Reducer Outlet Size
          2.5 in.
        • Replacement Head Flange Gasket Part Number
          27340
        • Replacement Manifold Gasket Part Number
          27340
        • Sold As
          Pair
        • Title
          HEDMAN HEDDERS STAINLESS STEEL HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; SHORTY DESIGN- UNCOATED
        • Tube Design
          Standard
        • Tube Diameter
          1.5 in.
        • Tube Size
          1.5 in.
        • Tube Thickness
          16 ga
        • Tuned
          No
        • Weld-Up
          No
        • With A.I.R. System
          No
        • With EGR
          No
        • With Power Steering
          Yes
