HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
        Hedman Hedders

        HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

        Part Number:99190

        Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Jeep headers for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these GEN-3 AMC V8 headers, even if it is not perfectly aligned with the header collectors.

        These uncoated, LONG-TUBE, Fenderwell-Exit headers fit 1972-1986 Jeep CJ5, CJ6 and CJ7 models with a 304-401 AMC V8. They are compatible with both manual and automatic transmission setups, and the long, smooth 1-3/4 in. tube, Dog-Leg port design provides excellent exhaust flow to let your CJ's Tall-Deck, AMC V8 engine breathe freely, and produce maximum torque to power you through virtually any trail.

        These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

        Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

        Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

        • Handcrafted, Mild Steel Construction.
        • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $779.81
        Features
        • SKU
          99190
        • Brand
          Hedman Hedders
        • 50-State Street Legal
          Please Refer to Vehicle Fitment Data for CARB EO Information
        • Air Conditioning
          Yes
        • Alternate Variation Part Number
          99196, 99198
        • Automatic Transmission - Column
          Yes
        • Automatic Transmission - Floor
          Yes
        • Collector Diameter
          3.0 in.
        • Collector Style
          Ball and Socket (Gasketless)
        • Cylinder Head Port Shape
          Dog-Leg
        • Exhaust System Diameter
          2.5 in.
        • Finish
          Uncoated
        • Finish Type
          UNCOATED Mild Steel! Shipped with Temporary Paint.
        • Fitment Note
          72-86 Jeep CJ5, CJ6, CJ7 304-401
        • Fitment Note
          Fits Stock Profile Heads
        • Flange Style
          Standard
        • Flange Thickness
          0.3125 in.
        • Header Style
          Long Tubes
        • Header Style
          Long Tubes - Fenderwell Exit
        • Includes Bolts/Studs
          Yes
        • Includes Catalytic Converters
          No
        • Includes Collector Bolts
          Yes
        • Includes Crossover Pipe
          No
        • Includes Gasket/Seal
          Yes
        • Includes Header Fasteners
          Yes
        • Includes Motor Mounts
          No
        • Includes Mounting Hardware
          Yes
        • Includes Reducers
          Yes
        • Includes Y-Pipe
          No
        • Manual Transmission - Column
          Yes
        • Manual Transmission - Floor
          Yes
        • Material
          Mild Steel
        • Material
          Standard-Duty Mild Steel

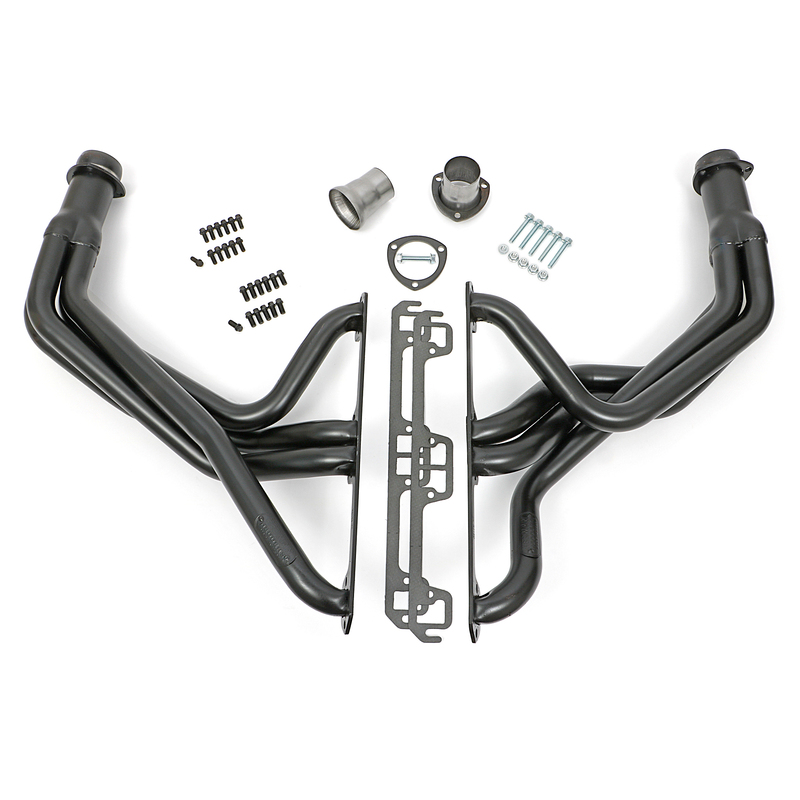

        • Package Contents
          Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
        • Package Contents
          Headers, Collector Flange Gaskets, Collector Bolts.
        • Primary Tube Diameter
          1.75 in.
        • Prop 65 - Short Label
          WARNING: Cancer - www.p65warnings.ca.gov
        • Reducer Outlet Size
          2.5 in.
        • Replacement Head Flange Gasket Part Number
          27850
        • Replacement Manifold Gasket Part Number
          27850
        • Sold As
          Pair
        • Title
          HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
        • Tube Design
          Standard
        • Tube Diameter
          1.75 in.
        • Tube Size
          1.75 in.
        • Tube Thickness
          16 ga
        • Tuned
          No
        • Weld-Up
          No
        • With A.I.R. System
          No
        • With EGR
          No
        • With Power Steering
          Yes
