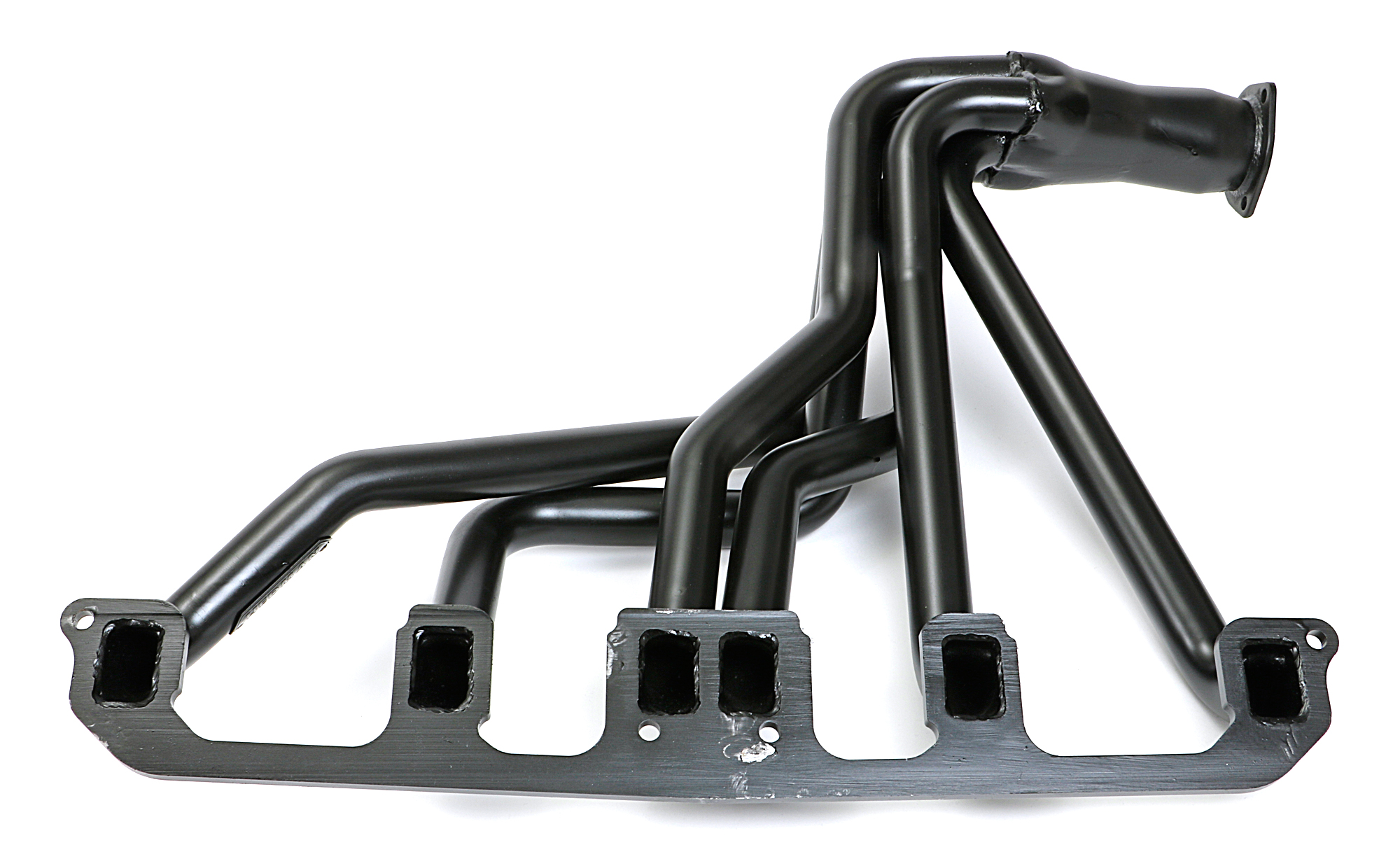

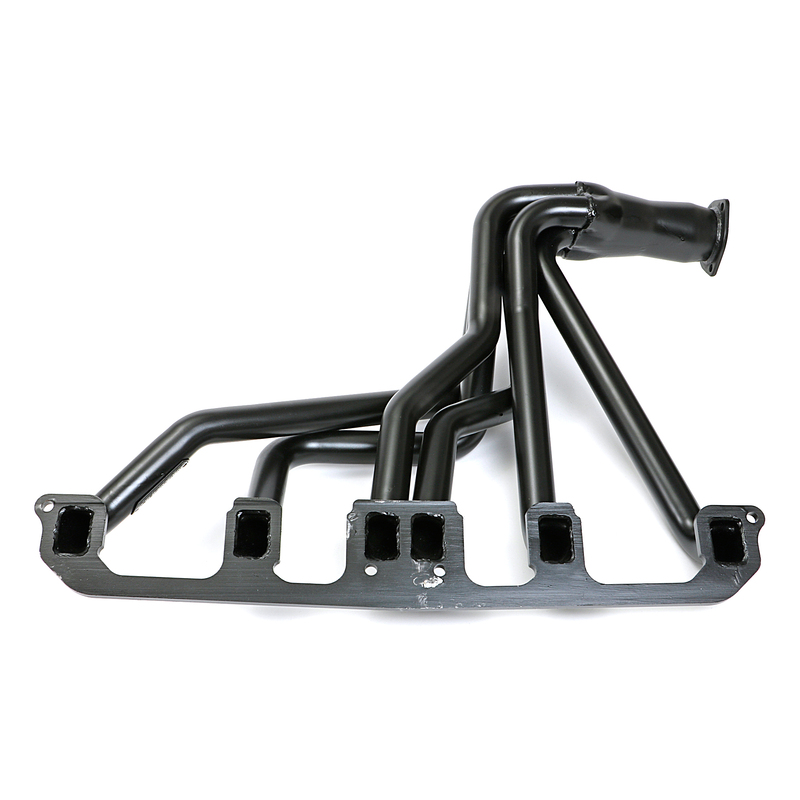

HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; 6-INTO-1 DESIGN
Hedman Hedders

HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; 6-INTO-1 DESIGN

Part Number:99610

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Jeep headers for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Inline 6 AMC headers, even if it is not perfectly aligned with the header collectors.

These uncoated, 6-into-1, LONG-TUBE, headers fit 1972-1986 Jeep CJ5, CJ6 and CJ7 models with AMC's "torquey" 232-258 I6 engine. They are compatible with both manual and automatic transmission setups, and the long, smooth 1-1/2 in. tube design provides excellent exhaust flow to let your CJ's Inline 6 AMC engine exhale better, to pull out every bit of available torque and power you down any trail.

These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

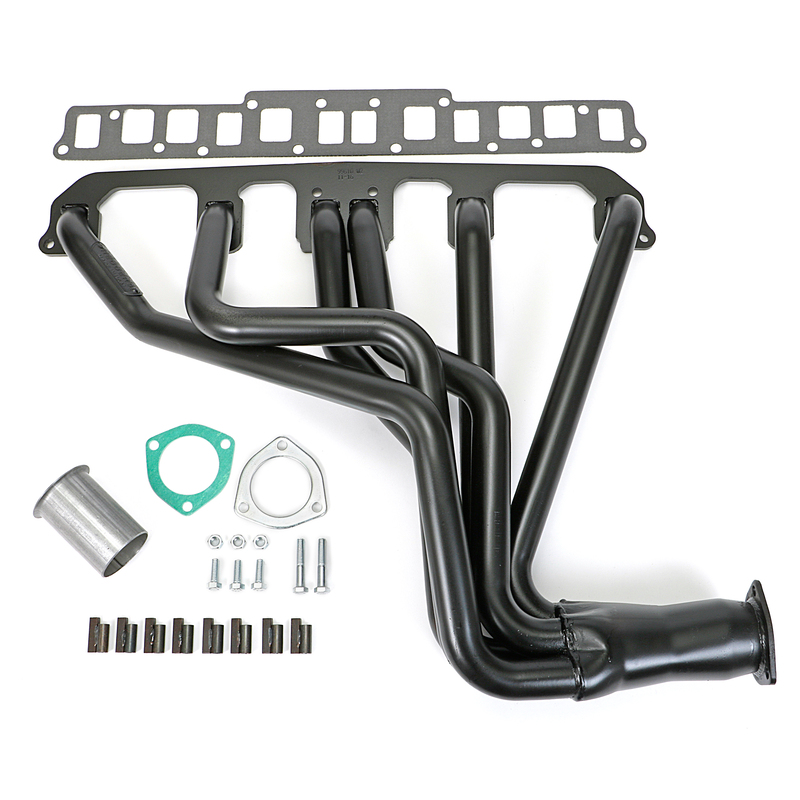

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

  • Handcrafted, Mild Steel Construction.
  • Long Tube, 6-Into-1 Header Design Provides Excellent Horsepower and Torque.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
Retail price
  • $957.50
Features
  • SKU
    99610
  • Brand
    Hedman Hedders
  • 50-State Street Legal
    Please Refer to Vehicle Fitment Data for CARB EO Information
  • Air Conditioning
    Yes
  • Alternate Variation Part Number
    99616
  • Automatic Transmission - Column
    Yes
  • Automatic Transmission - Floor
    Yes
  • Collector Diameter
    2.5 in.
  • Collector Style
    3-Bolt Gasket Style Flange
  • Cylinder Head Port Shape
    Rectangle
  • Exhaust System Diameter
    2.5 in.
  • Finish
    Uncoated
  • Fitment Note
    72-86 Jeep CJ5, CJ6, CJ7 232-258
  • Fitment Note
    Fits Stock Profile Heads
  • Flange Style
    Standard
  • Flange Thickness
    0.375 in.
  • Header Style
    6-into-1
  • Header Style
    Long Tubes
  • Includes Catalytic Converters
    No
  • Includes Collector Bolts
    Yes
  • Includes Crossover Pipe
    No
  • Includes Gasket/Seal
    Yes
  • Includes Motor Mounts
    No
  • Includes Reducers
    Yes
  • Includes Y-Pipe
    No
  • Manual Transmission - Column
    Yes
  • Manual Transmission - Floor
    Yes
  • Material
    Mild Steel
  • Material
    Standard-Duty Mild Steel
  • Mounting Hardware
    Utilizes OEM Hardware
  • Primary Tube Diameter
    1.50 in.
  • Prop 65 - Short Label
    WARNING: Cancer - www.p65warnings.ca.gov
  • Quantity
    1 Piece
  • Reducer Outlet Size
    2.5 in.
  • Replacement Head Flange Gasket Part Number
    27820
  • Replacement Manifold Gasket Part Number
    27820
  • Tube Design
    Standard
  • Tube Diameter
    1.5 in.
  • Tube Size
    1.5 in.
  • Tube Thickness
    14 ga
  • Tuned
    No
  • Weld-Up
    No
  • With A.I.R. System
    No
  • With EGR
    No
  • With Power Steering
    Yes
