Trans-Dapt Performance

TRANS-DAPT PERFORMANCE PRODUCTS SWAP IN A BOX KIT-LS ENGINE INTO 67-69 F-BODY W/ AUTOMATIC TRANSMISSION W/HTC HEADERS

Part Number:42012
SWAP IN A BOX KIT-LS IN 67-69 F-BODY, 68-74 X-BODY WITH AUTO TRANS; HTC HEADERS
Retail price
  • $2,743.47
Features
  • SKU
    42012
  • Brand
    Trans-Dapt Performance
  • Air Conditioning
    Yes
  • Automatic Transmission - Column
    No
  • Automatic Transmission - Floor
    Yes
  • Baffled
    No
  • Collector Diameter
    3.0 in.
  • Collector Style
    Ball and Socket (Gasketless)
  • Color
    Silver
  • Cylinder Head
    Factory Style
  • Dipstick Port
    No
  • Engine Fitment
    Chevy LS Series
  • Exhaust System Diameter
    3.0 in.
  • Finish
    HTC Polished Ceramic-Metallic
  • Finish
    HTC Polished Silver Ceramic-Metallic
  • Fitment Note
    4L60E Transmission
  • Fitment Note
    Automatic Transmission
  • Fitment Note
    F-Body (GM) 1967-69
  • Fitment Note
    Not for Use with 4L80E or 4L85E Transmissions
  • Fitment Note
    Pan has -10AN Inlet / Outlet Ports, and Requires Relocation of the Oil Filter.
  • Flange Thickness
    0.375 in.
  • Header Style
    Mid-Length
  • Installation Note
    Pickup Number 2522
  • Kicked Out
    No
  • Manual Transmission - Column
    No
  • Manual Transmission - Floor
    No
  • Material
    Mild Steel
  • O2 Provision
    No
  • Oil Pan Capacity
    5.0 qt.
  • Oil Pan Depth
    2.0 in. (Front), 6.0 in. (Rear Sump)
  • Oil Pan Material
    Steel
  • Package Contents

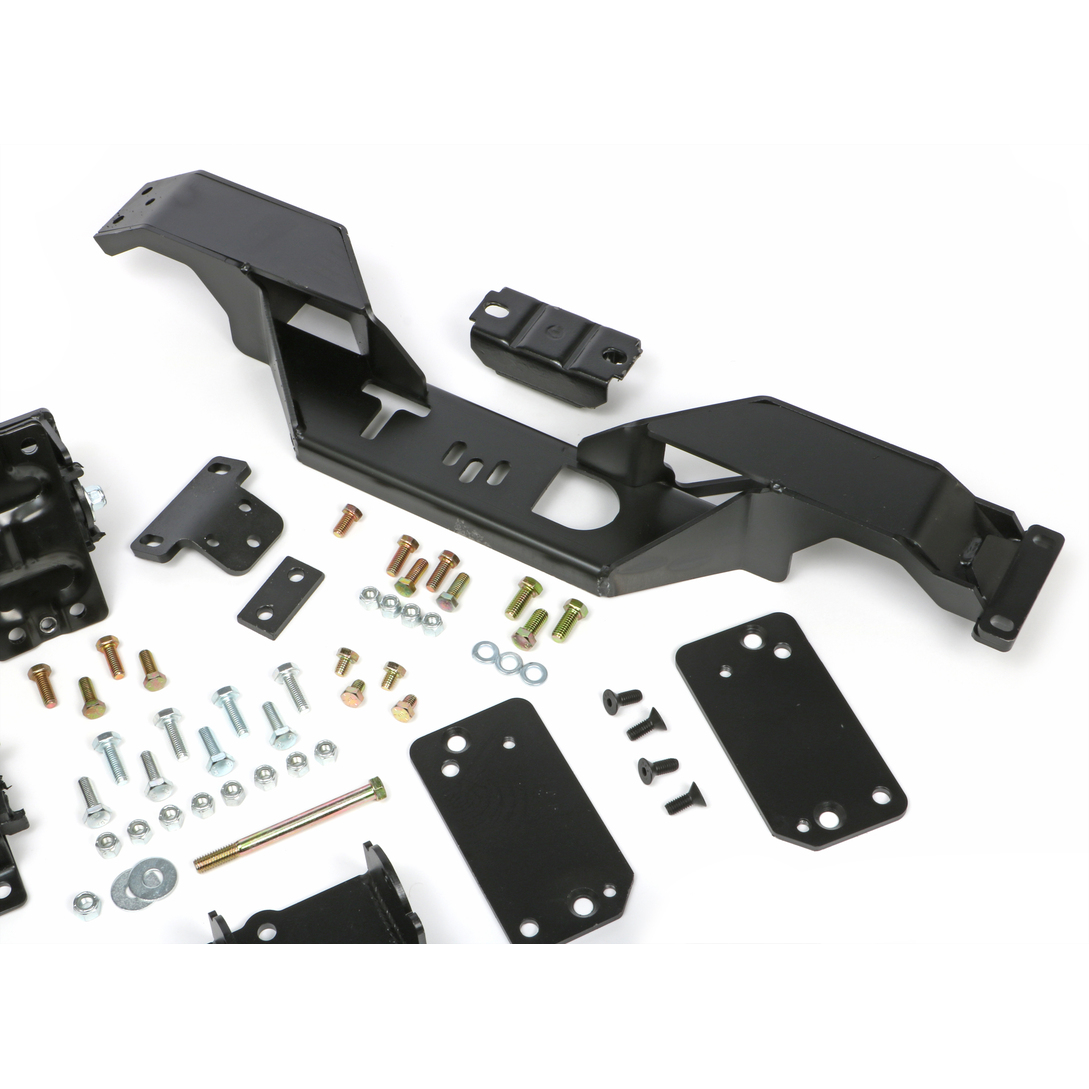

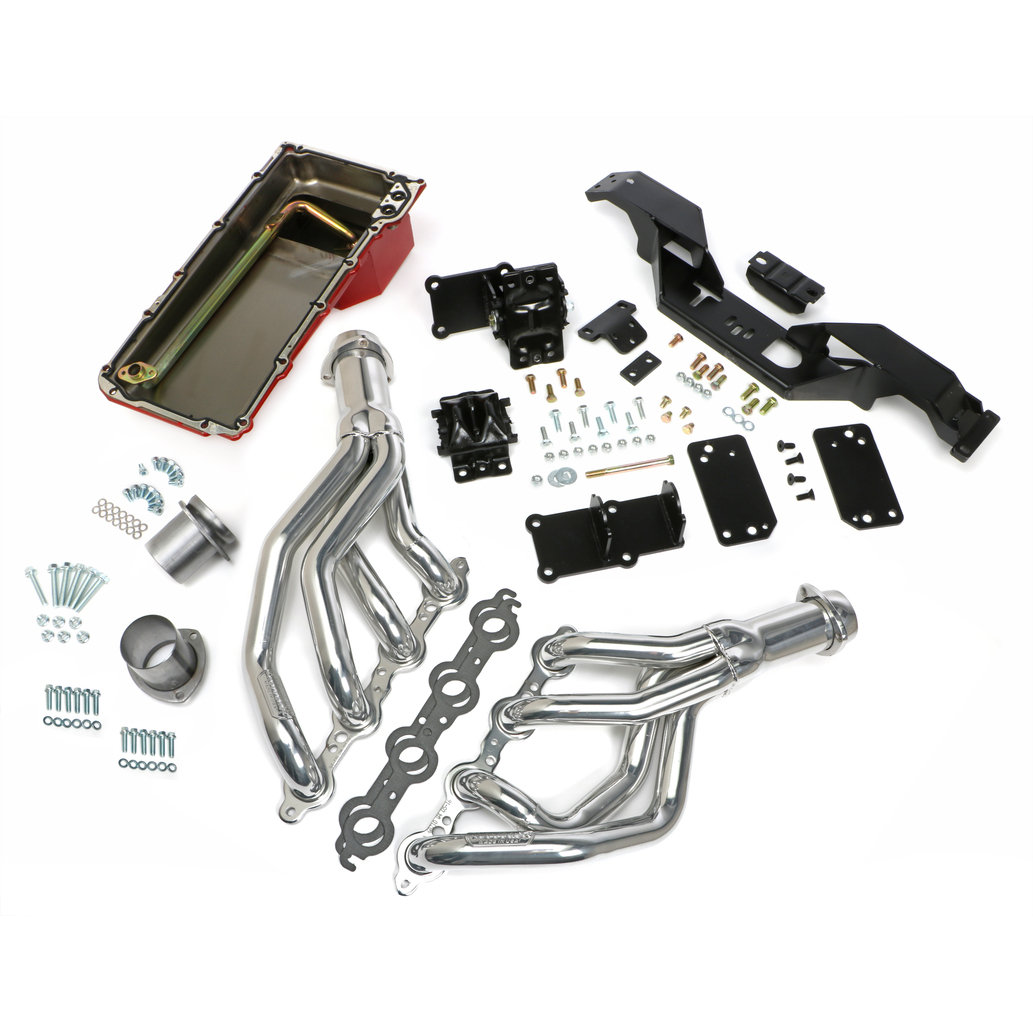

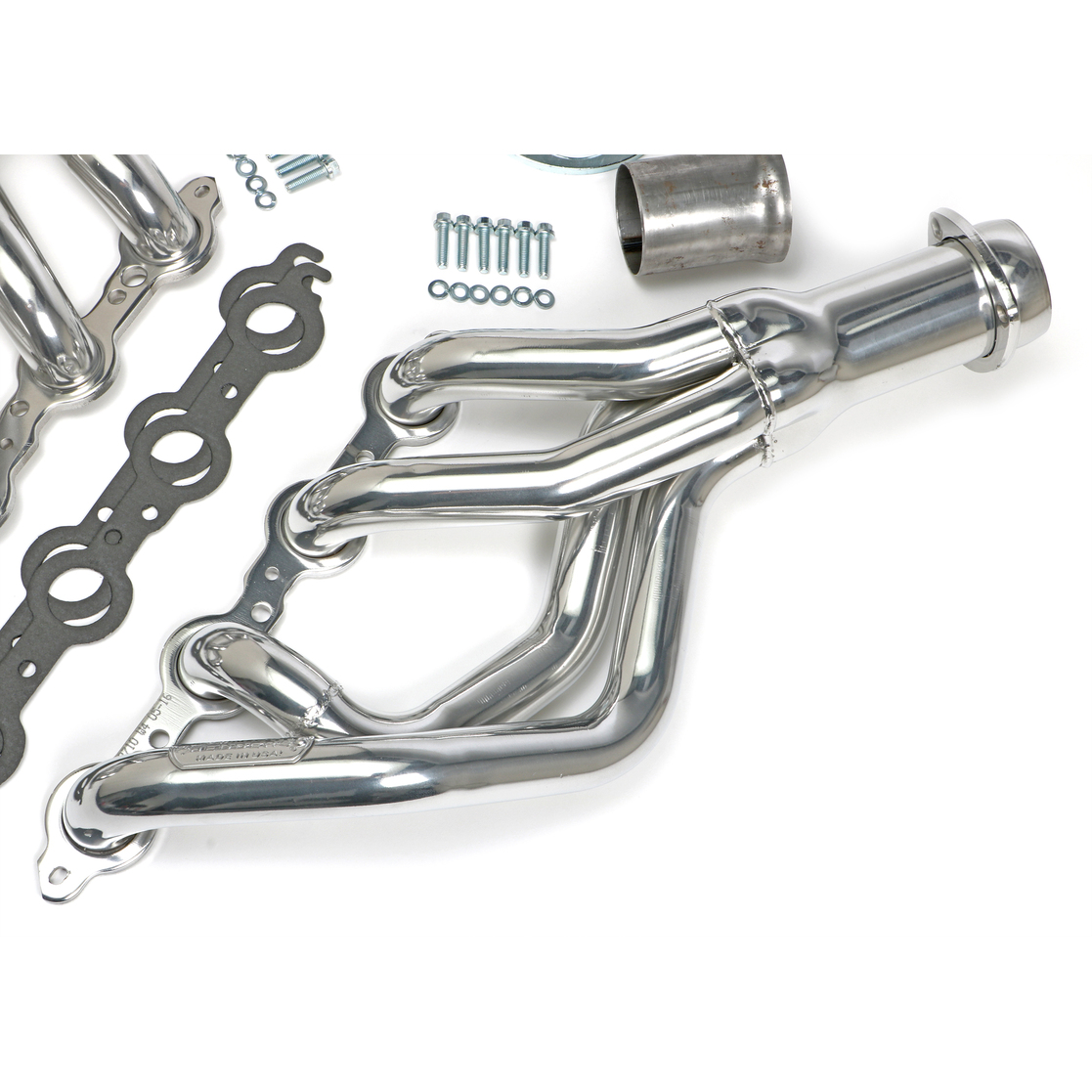

    Headers, Engine Mounts, Transmission Crossmember, Oil Pan, Hardware and Gaskets
  • Power Steering
    Yes
  • Primary Tube Diameter
    1.75 in.
  • Product Note
    Some LS have Dipstick in Pan and will Require Drilling of Dipstick Port on Block
  • Product Type
    Complete SWAP-IN-A-BOX Kits
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Reducer Outlet Size
    2.5 in.
  • Replacement Head Flange Gasket
    Yes
  • Sump Location
    Rear
  • Sump Style
    Wet Sump
  • Transmission Mount Type
    Crossmember
  • Tube Diameter
    1.75 in.
  • Tube Thickness
    16 ga
  • Tuned
    No
  • With A.I.R. System
    No
  • With EGR
    No
See More
