TRANS-DAPT PERFORMANCE PRODUCTS SWAP IN A BOX KIT-LS ENGINE INTO 67-69 F-BODY & 68-74 X-BODY MANUAL TRANSMISSION W/BLACK HEADERS

Part Number:42014

Regarding Your LS Engine's Oil Filter:
This LS Swap kit uses a specially designed STEEL engine swap pan that requires the relocation of your ls engine's oil filter. The HP Group manufactures and offers six different oil filter integration kits. CLICK HERE TO VIEW THESE KITS IN A NEW WINDOW

Retail price

Features
Fitment
Installation
More Detail
Videos

Features

SKU
42014
Brand
Trans-Dapt Performance
Air Conditioning
Yes
Automatic Transmission - Column
No
Automatic Transmission - Floor
No
Baffled
No
Collector Diameter
3.0 in.
Collector Style
Ball and Socket (Gasketless)
Cylinder Head
Factory Style
Dipstick Port
No
Engine Fitment
Chevy LS Series
Exhaust System Diameter
3.0 in.
Finish
Uncoated
Fitment Note
F-Body (GM) 1967-69
Fitment Note
Manual Transmission
Fitment Note
Pan has -10AN Inlet / Outlet Ports, and Requires Relocation of the Oil Filter.
Fitment Note
T-56 Transmission
Flange Thickness
0.375 in.

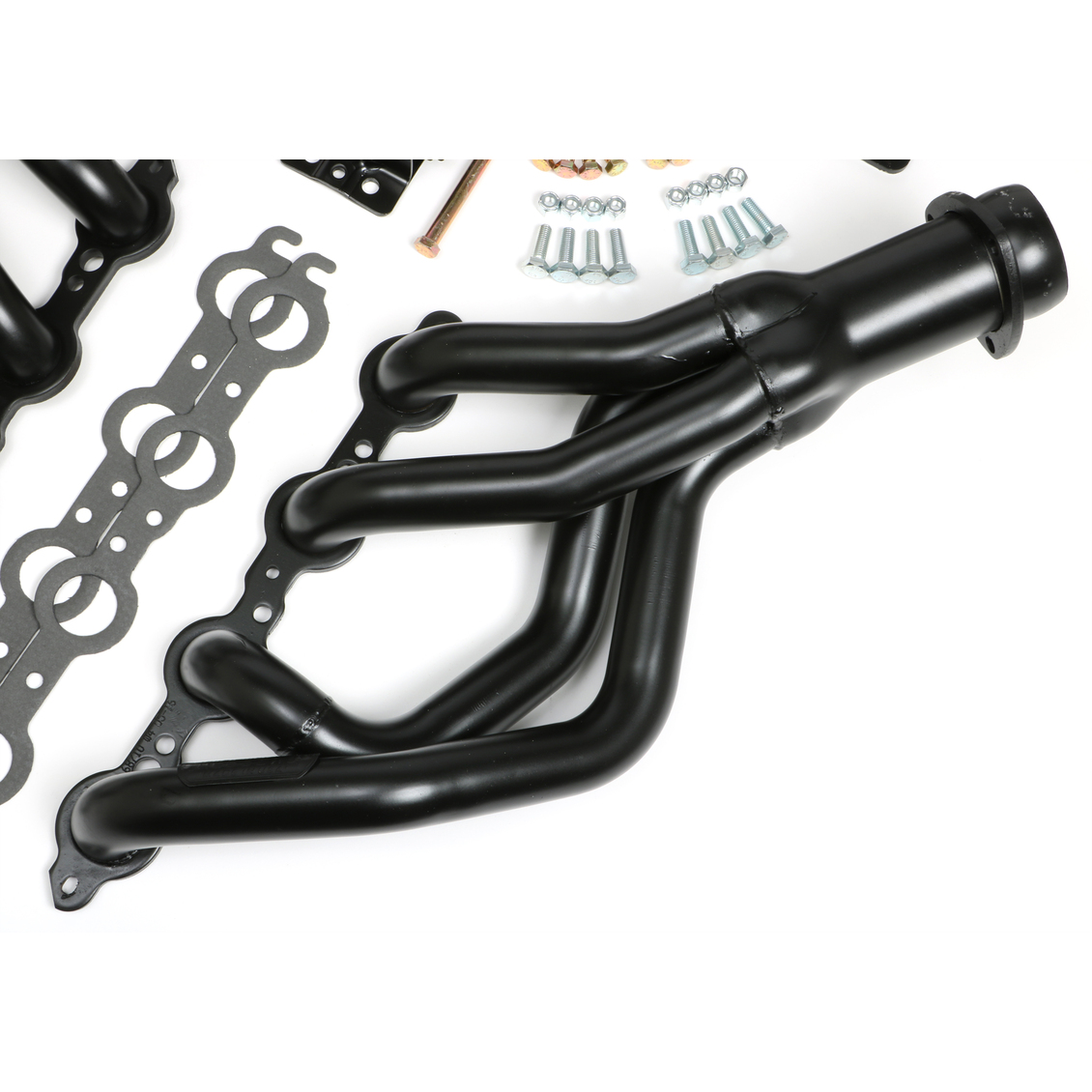

Header Style
Mid-Length
Installation Note
Pickup Number 2522
Kicked Out
No
Manual Transmission - Column
No
Manual Transmission - Floor
Yes
Material
Mild Steel
O2 Provision
No

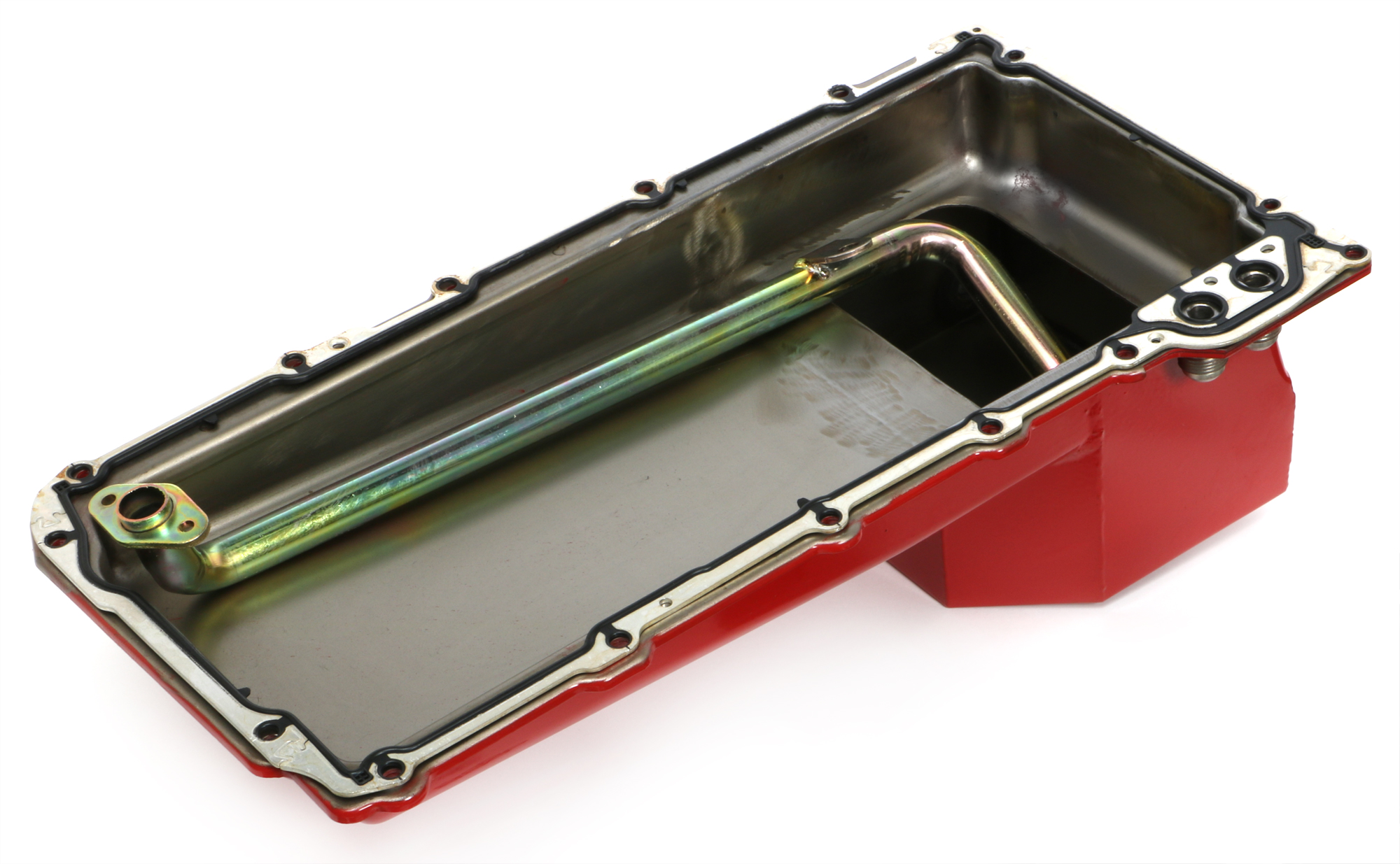

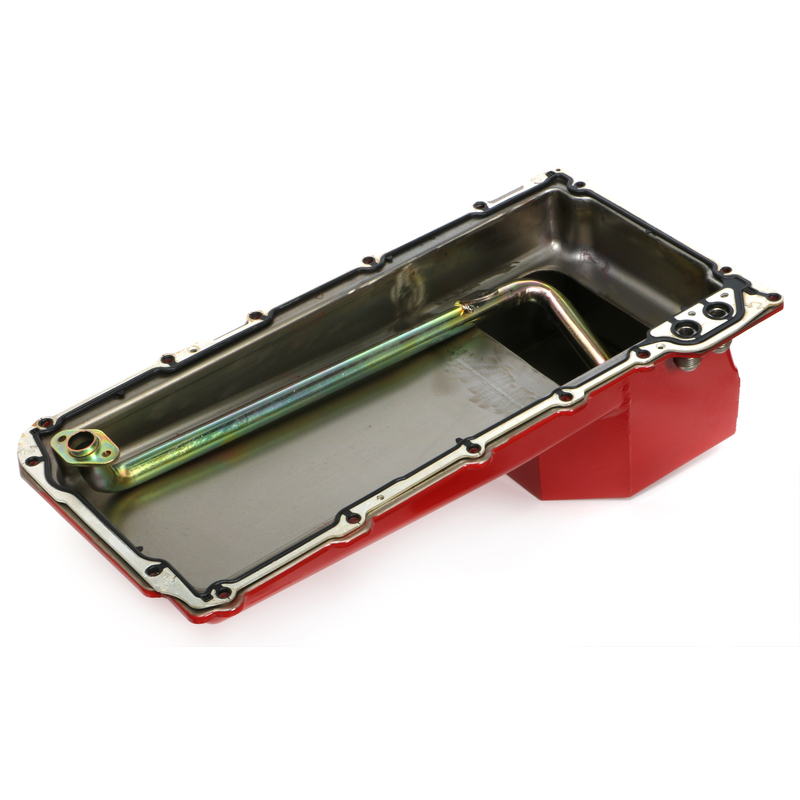

Oil Pan Capacity
5.0 qt.

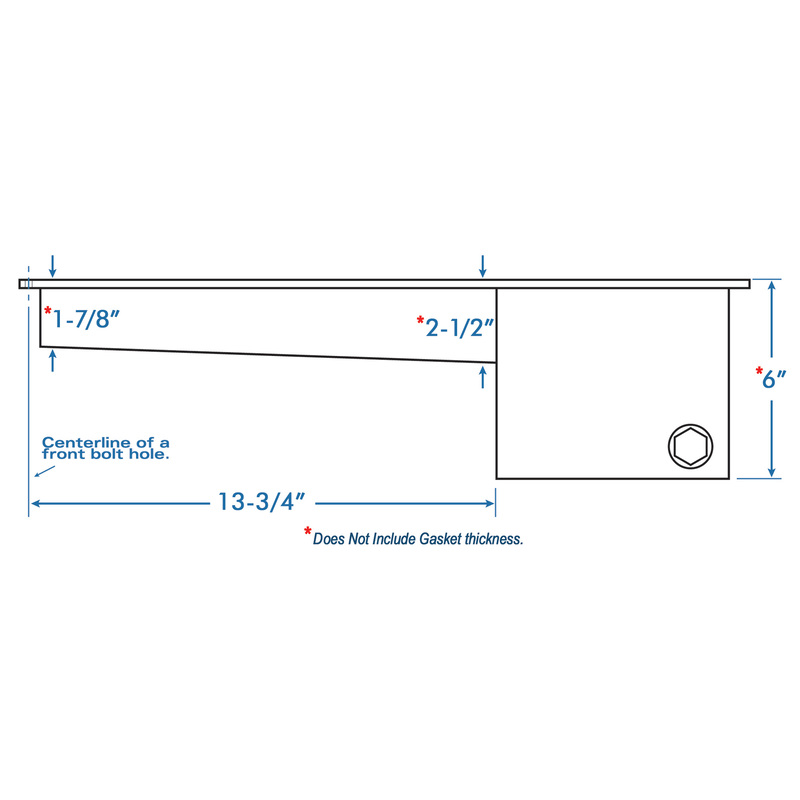

Oil Pan Depth
2.0 in. (Front), 6.0 in. (Rear Sump)
Oil Pan Material
Steel
Package Contents

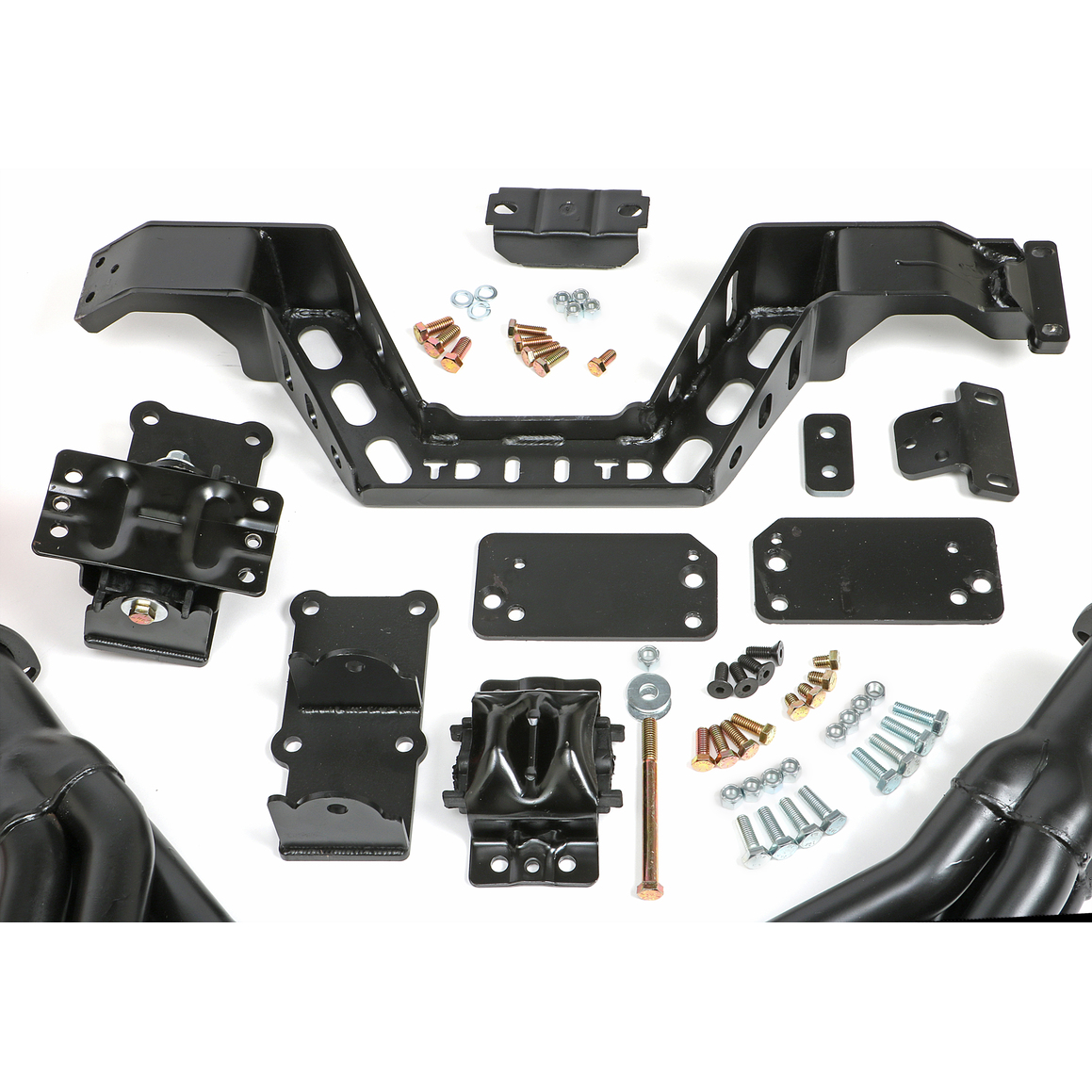

Headers, Engine Mounts, Transmission Crossmember, Oil Pan, Hardware and Gaskets
Power Steering
Yes
Primary Tube Diameter
1.75 in.
Product Note
Engine Swap Kit for Installing an LS Engine into 1967-69 Chevy Camaro or 1968-74 Chevy Nova, Pontiac Ventura
Product Note
Some LS have Dipstick in Pan and will Require Drilling of Dipstick Port on Block
Product Type
Complete SWAP-IN-A-BOX Kits
Prop 65 - Short Label
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Reducer Outlet Size
2.5 in.
Replacement Head Flange Gasket
Yes
Replacement Manifold Gasket Part Number
27470
Sump Location
Rear
Sump Style
Wet Sump
Transmission Mount Type
Crossmember
Tube Diameter
1.75 in.
Tube Thickness
16 ga
Tuned
No
With A.I.R. System
No
With EGR
No

Emissions Notes
Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Title
TRANS-DAPT PERFORMANCE PRODUCTS SWAP IN A BOX KIT-LS ENGINE INTO 67-69 F-BODY & 68-74 X-BODY MANUAL TRANSMISSION W/BLACK HEADERS
Variations
42014, 42015, 42016.
