Trans-Dapt Performance

TRANS-DAPT PERFORMANCE PRODUCTS SWAP IN A BOX KIT-LS ENGINE INTO 75-81 F-BODY MANUAL TRANSMISSION W/BLACK HEADERS

Part Number:42034
SWAP IN A BOX KIT-LS ENGINE INTO 75-81 F-BODY MANUAL TRANS. W/BLACK HEADERS
Retail price
  • $2,038.76
Features
  • SKU
    42034
  • Brand
    Trans-Dapt Performance
  • Air Conditioning
    Yes
  • Automatic Transmission - Column
    No
  • Automatic Transmission - Floor
    No
  • Baffled
    No
  • Collector Diameter
    3.0 in.
  • Collector Style
    Ball and Socket (Gasketless)
  • Cylinder Head
    Factory Style
  • Dipstick Port
    No
  • Driver Side Sump Dimensions
    4.75 in. x 3.0 in. x 8 .25 in.
  • Engine Fitment
    Chevy LS Series
  • Exhaust System Diameter
    3.0 in.
  • Finish
    Uncoated
  • Fitment Note
    F-Body (GM) 1975-81
  • Fitment Note
    Manual Transmission
  • Fitment Note
    Pan has -10AN Inlet / Outlet Ports, and Requires Relocation of the Oil Filter.
  • Fitment Note
    T-56 Transmission
  • Flange Thickness
    0.375 in.

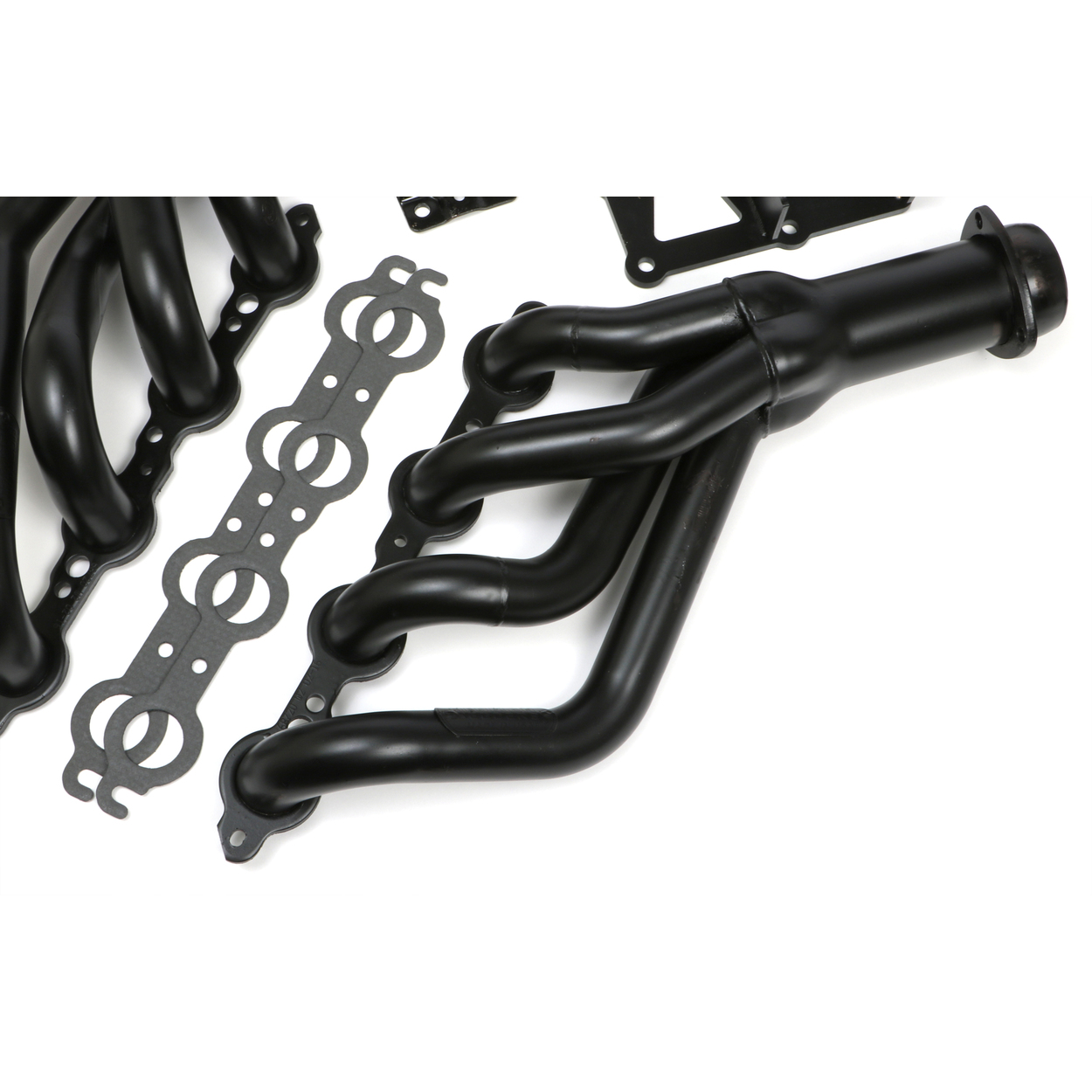

  • Header Style
    Mid-Length
  • Installation Note
    Pickup Number 2522
  • Kicked Out
    No
  • Manual Transmission - Column
    No
  • Manual Transmission - Floor
    Yes
  • Material
    Mild Steel
  • O2 Provision
    No
  • Oil Pan Capacity
    5.0 qt.
  • Oil Pan Depth
    6.0 in.
  • Oil Pan Material
    Steel
  • Package Contents

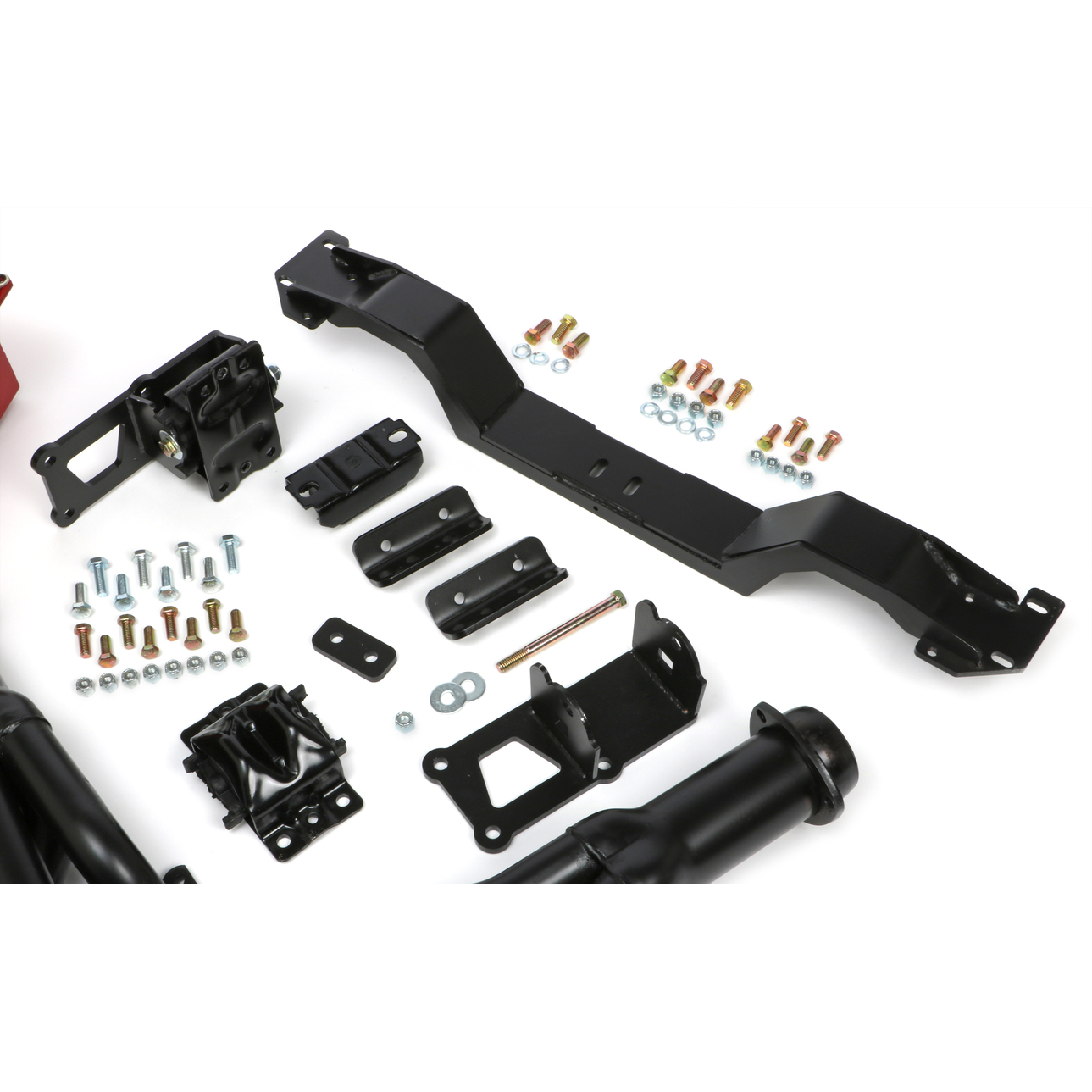

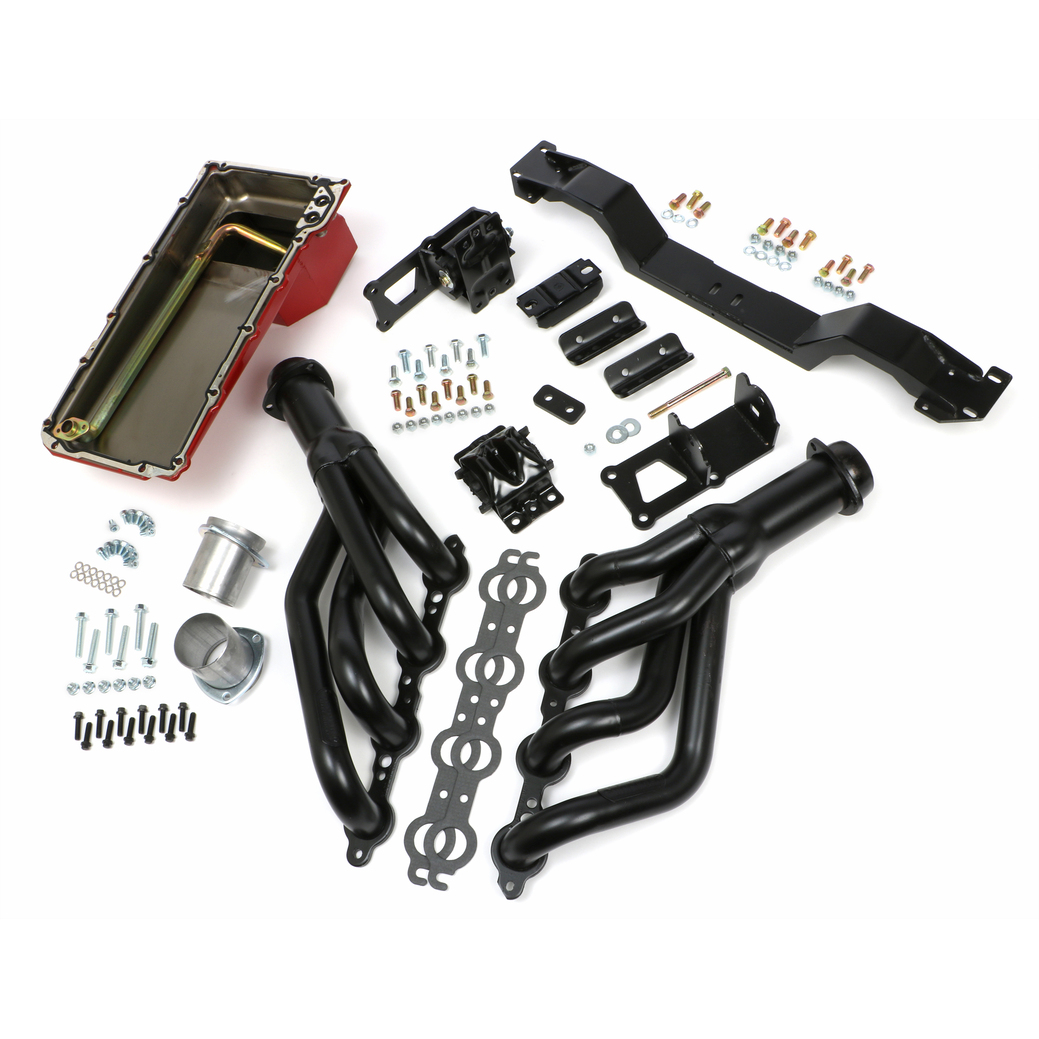

    Headers, Engine Mounts, Transmission Crossmember, Oil Pan, Hardware and Gaskets
  • Passenger Side Sump Dimensions
    7.0 in. x 8.25 in.
  • Power Steering
    Yes
  • Primary Tube Diameter
    1.75 in.
  • Product Note
    Engine Swap Kit for Installing an LS Engine into 1975-81 Chevy Camaro and Pontiac Firebird
  • Product Note
    Some LS have Dipstick in Pan and will Require Drilling of Dipstick Port on Block
  • Product Type
    Complete SWAP-IN-A-BOX Kits
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Reducer Outlet Size
    2.5 in.
  • Replacement Head Flange Gasket
    Yes
  • Replacement Manifold Gasket Part Number
    27470
  • Sump Location
    Rear
  • Sump Style
    Wet Sump
  • Transmission Mount Type
    Crossmember
  • Tube Diameter
    1.75 in.
  • Tube Thickness
    16 ga
  • Tuned
    No
  • With A.I.R. System
    No
  • With EGR
    No
