        Trans-Dapt Performance

        TRANS-DAPT PERFORMANCE PRODUCTS SWAP IN A BOX KIT-86-00 SBC INTO 82-04 2WD S10 W/HTC HEADERS-1 3/4 IN. TUBES

        Part Number:99080
        SWAP IN A BOX KIT-86-00 SBC INTO 82-04 2WD S10 ; HTC HEADERS-1 3/4 in. TUBES
        Retail price
        • $2,266.90
        Features
        • SKU
          99080
        • Brand
          Trans-Dapt Performance
        • Air Conditioning
          Yes
        • Automatic Transmission - Column
          No
        • Automatic Transmission - Floor
          Yes
        • Baffled
          Yes
        • Collector Diameter
          3.0 in.
        • Collector Style
          3-Bolt Gasket Flange
        • Color
          Silver
        • Cylinder Head
          Factory Style
        • Dipstick Port
          Yes
        • Emissions Notes
          Not legal for sale or use in California, or on pollution controlled vehicles.
        • Engine
          Chevy SB 283-400; '86-00 (passenger side dipstick)
        • Exhaust System Diameter
          2.5 in.
        • Finish
          HTC Polished Ceramic-Metallic
        • Finish
          HTC Polished Silver Ceramic-Metallic
        • Fitment Note
          2WD
        • Fitment Note
          Automatic Transmission
        • Fitment Note
          Chevy/GMC S10/S15 Family; 1982-04
        • Fitment Note
          Fits 2WD
        • Fitment Note
          Manual Transmission
        • Flange Thickness
          0.3125 in.
        • Head Style
          Factory Profile
        • Head Type
          Factory Heads
        • Header Port Shape
          Rectangle
        • Header Style
          Mid-Length
        • Installation Note
          Pickup Number 2509
        • Kicked Out
          No
        • Manual Transmission - Column
          No
        • Manual Transmission - Floor
          Yes
        • Material
          Mild Steel
        • Material
          Standard-Duty Mild Steel
        • O2 Provision
          No

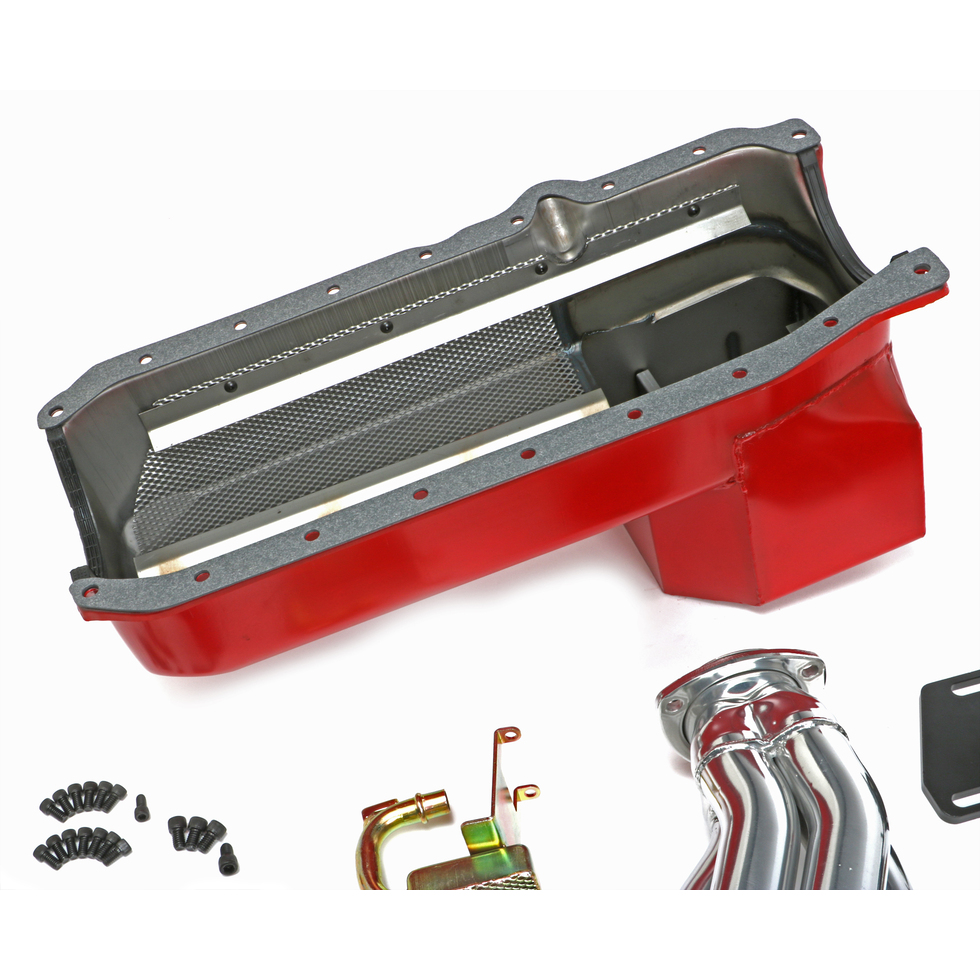

        • Oil Pan Capacity
          7.0 qt.
        • Oil Pan Depth
          9.25 in.
        • Oil Pan Material
          Steel
        • Oil Pump Compatibility
          Standard Volume Oil Pumps only. NOT For high volume oil pumps.
        • Package Contents

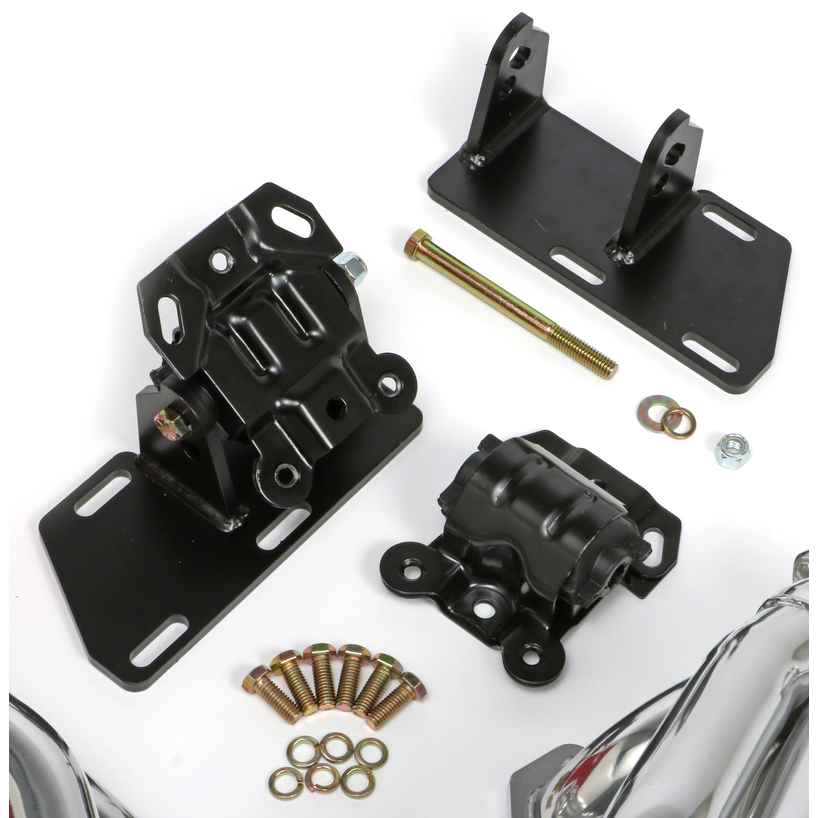

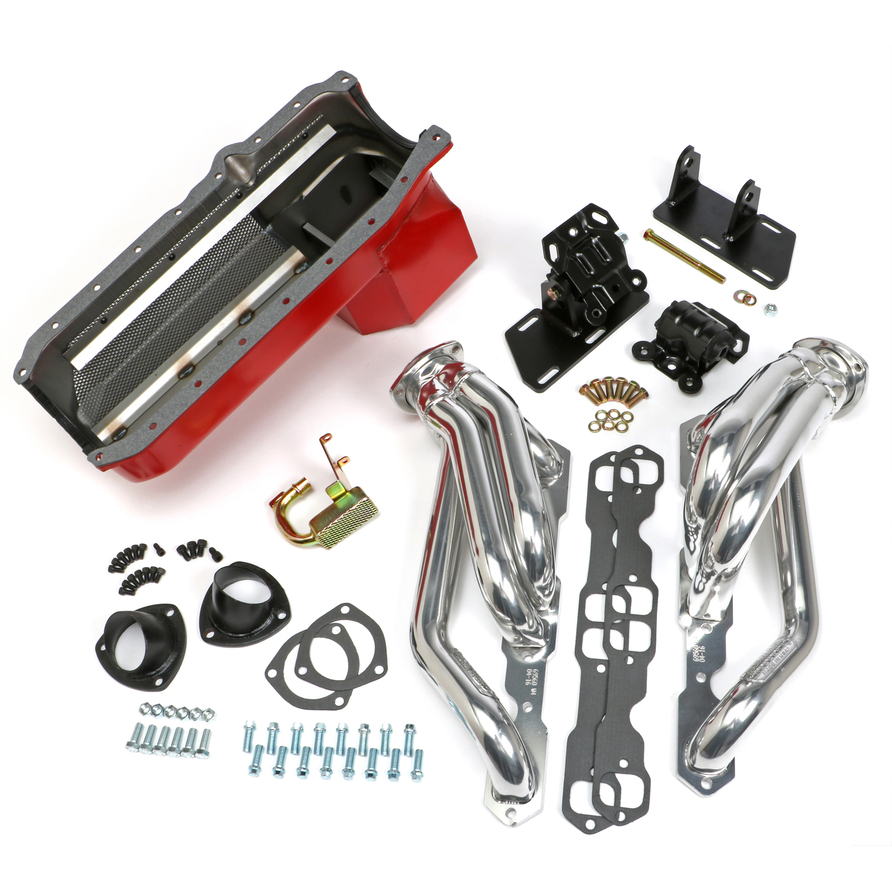

          Headers, Engine Mounts, Oil Pan, Related Gaskets and Hardware
        • Pick-up Connector Tube Diameter (O.D.)
          5/8 in.
        • Power Steering
          Yes
        • Primary Tube Diameter
          1.75 in.
        • Product Details
          Engine swap kit for installing a 1986-00 SB Chevy engine into 1982-2004 2WD Chevy/GMC S10/S15 Trucks
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Reducer Outlet Size
          2.5 in.
        • Sump Location
          Rear
        • Sump Style
          Wet Sump
        • Title
          TRANS-DAPT PERFORMANCE PRODUCTS SWAP IN A BOX KIT-86-00 SBC INTO 82-04 2WD S10 W/HTC HEADERS-1 3/4 IN. TUBES
        • Tube Diameter
          1.75 in.
        • Tube Thickness
          18 ga
        • Tuned
          No
        • With A.I.R. System
          No
        • With EGR
          No
