Engine Oil Filter Bracket 3407

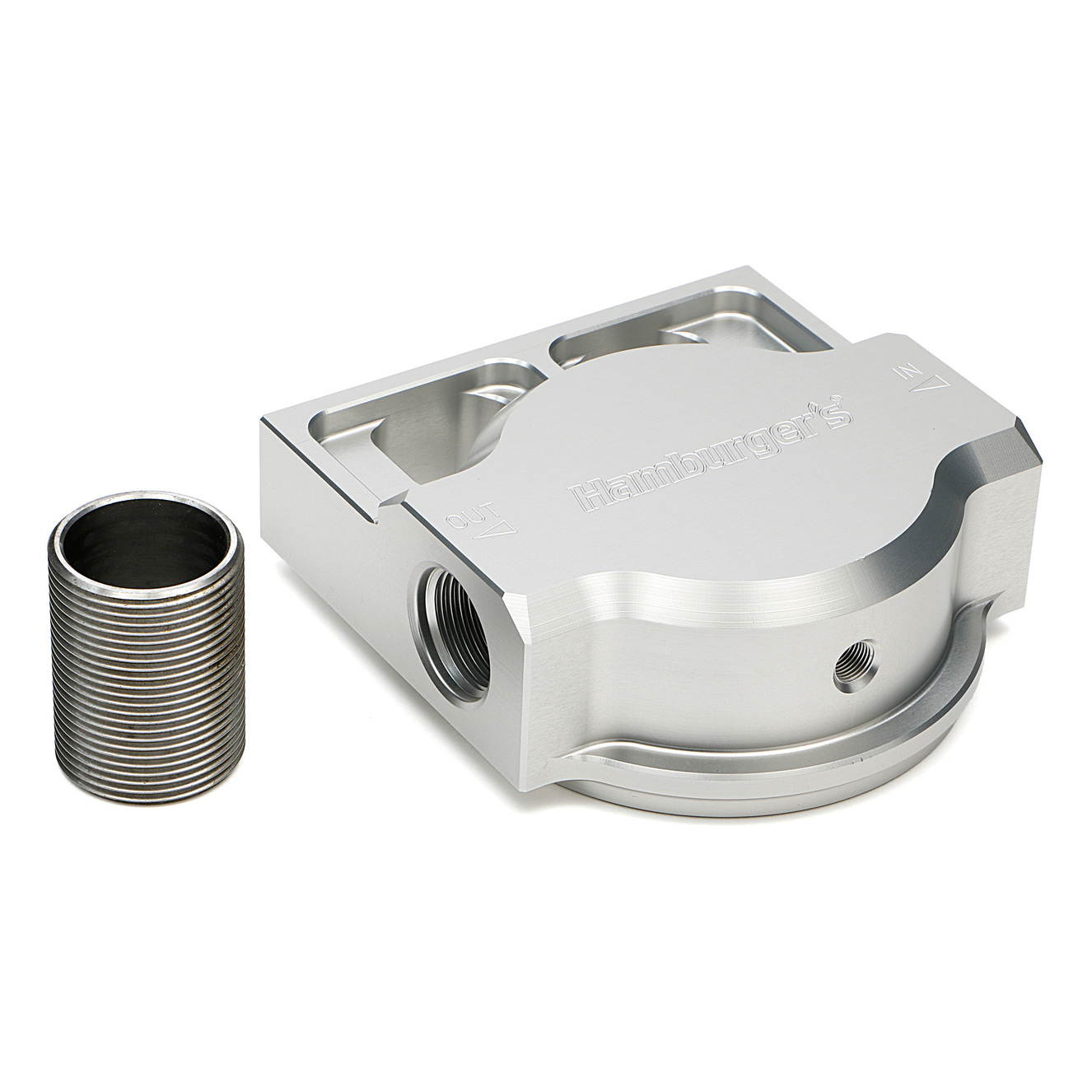

This single, remote oil filter base is CNC machined by Hamburger's Performance Products in their Whittier, California manufacturing facility, and is so reliable, Hamburger's Performance backs it with a limited lifetime warranty.

Hamburger's remote oil filter bases are a must have for custom projects, such as, engine swaps and chassis modifications, that require the oil filter be removed from the block and relocated elsewhere. This unit is durable enough for marine or all-out competition use, and the dense billet aluminum material makes it ideal for diesel engines.

To accommodate the endless list of possible obstacles created during custom car build, Hamburger's is regularly introducing new options and design styles to its oil filtration component line. This model is configured for Right-To-Left oil flow, keeping the unit and inlet/outlet oil lines inline, to maintain a low profile along a fenderwell, framerail or firewall.

Engine oil enters through the right side of the unit, travels through the filter, and exits out the left side port on the unit. Large -12AN inlet and outlet ports means all Hamburger's oil filter bases and bypasses can provide ample flow to meet the needs of any car, truck or race engine. An 1/8" NPT instrumentation port has been built into the unit for pressure or temperature gauge. 1/8 in. NPT PLUG NOT INCLUDED.

The unit uses a Fram HP6, Mobil M1-302, Motorcraft FL-12, NAPA 1060, STP S5, WIX 51060, or equivalent oil filter with a 1-1/2"-12 thread size, 4" diameter seal, and bypass setting that matches your engine's factory filter setting.

This base reqquires a pair of oil lines and bypass adapter to complete the installation. If you do not already have these components, Hamburger's offers this base as part of complete filter relocation system that includes a filter bypass adapter, Gates hoses, fittings, ferules and the rmote base.

CNC machined from 6061 T6 aluminum, and includes a 1-1/2"-12 nipple.
