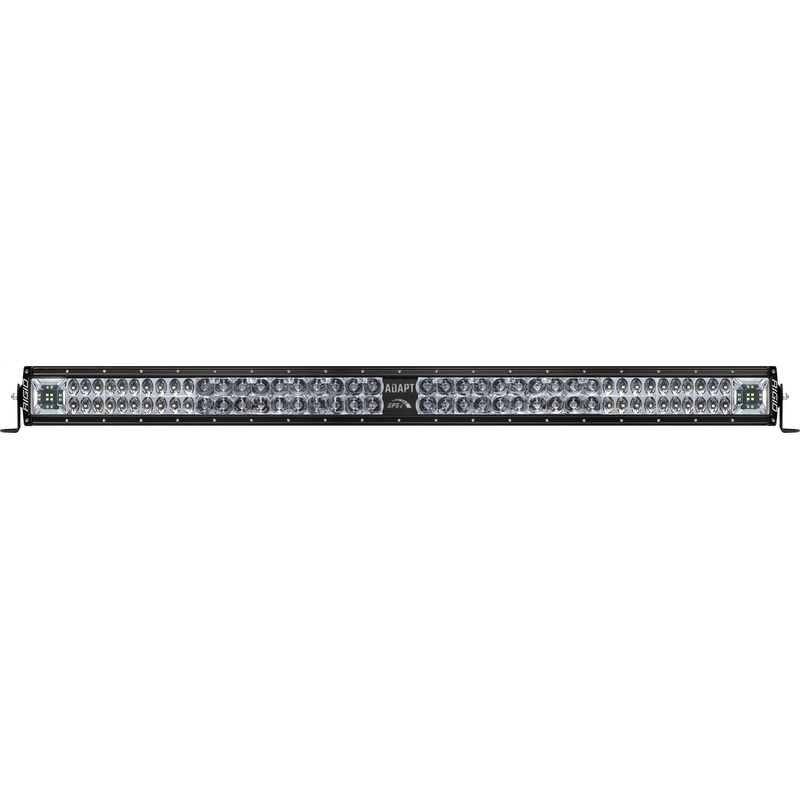

RIGID Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module, 40 Inch
  • RIGID Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module, 40 Inch
  • RIGID Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module, 40 Inch
RIGID Industries

RIGID Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module, 40 Inch

Part Number:280413
The RIGID Adapt E-Series LED Light Bar features the same style and construction as RIGIDs legendary E-Series, from the high-strength aluminum heat sink to the unbreakable polycarbonate lens. On the inside, however, the Adapt E-Series contains cutting-edge technology. The Adapt E-Series takes off-road lighting performance to a whole new level with two layers of adaptive response to your vehicle and driving conditions.
  • Use In Adapt Mode Or All On
Retail price
  • $1,589.99
Features
  • SKU
    280413
  • Brand
    RIGID Industries
  • A = LUX at 10 Meters
    7,425.0 lx
  • ASIN
    No
  • Beam Angle(Horizontal)
    17.0 Degrees
  • Beam Angle(Vertical)
    16.0 Degrees
  • LED Quantity
    88
  • Lumens
    29,920 lm
  • Package Contents
    Stainless Steel Mounting Brackets, Hardware Kit, Wire Harness, Relay, Switch, Install Instructions
  • Peak Beam Intensity (Candela)
    742,460 lm
  • Prop 65 - Required to list in California with Warning
    No
  • Recommended Additional Part
    11001, 11002, 11003, 11008, 46590, 1063, 1067, 1031, 30130, 30140, 30150
  • Series
    Adapt
  • Size
    40 in.
  • Wattage
    231W
  • Weight
    10.84 lbs. (4.9 kg)
  • Zone 1 A
    52.85
  • Zone 1 Amp Draw
    6.3A
  • Zone 1 B
    72.70
  • Zone 1 C
    145.40
  • Zone 1 Horizontal Field Beam Angle
    101.6 Degrees
  • Zone 1 LED Quantity
    8
  • Zone 1 Lumens
    8,641 lm
  • Zone 1 Peak Beam Intensity (Candela)
    5,285 lm
  • Zone 1 Vertical Field Beam Angle
    96.4 Degrees
  • Zone 1 Wattage
    88W
  • Zone 2 A
    1,580.27
  • Zone 2 Amp Draw
    13.5A
  • Zone 2 B
    397.50
  • Zone 2 C
    795.10
  • Zone 2 Horizontal Field Beam Angle
    50.6 Degrees
  • Zone 2 LED Quantity
    40
  • Zone 2 Lumens
    25,520 lm
  • Zone 2 Peak Beam Intensity (Candela)
    158,027 lm
  • Zone 2 Vertical Field Beam Angle
    24.4 Degrees
  • Zone 2 Wattage
    189W
  • Zone 3 A
    7,424.60
  • Zone 3 Amp Draw
    16.5A
  • Zone 3 B
    861.70
  • Zone 3 C
    1,723.30
  • Zone 3 Horizontal Field Beam Angle
    17.5 Degrees
  • Zone 3 LED Quantity
    40
  • Zone 3 Lumens
    29,920 lm
  • Zone 3 Peak Beam Intensity (Candela)
    742,460 lm
  • Zone 3 Vertical Field Beam Angle
    15.9 Degrees
  • Zone 3 Wattage
    231W
