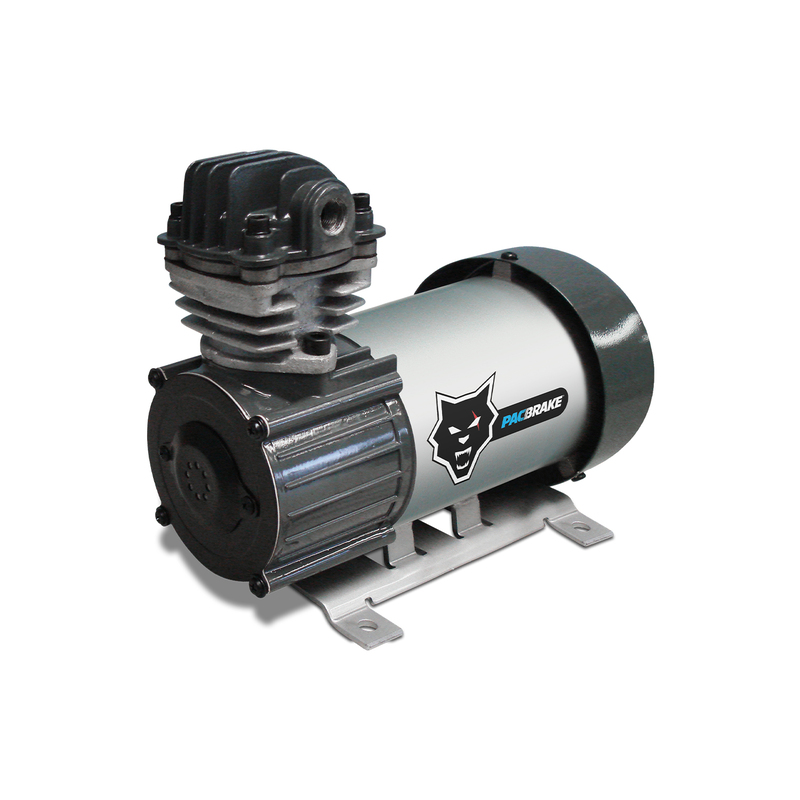

HP10625V-24 24V HP625 Series Heavy Duty Air Compressor - Vertical Pump Head

Part Number:HP10625V-24
Pacbrake's HP625 Series Air Compressors have a 100% duty cycle (60 minutes @ 100 psi) and are offered in 24 VDC Vertical Head configuration (HP10625V-24) or 12 VDC in either a Vertical Head configuration (HP10625V) or Horizontal Head configuration (HP10625H). These 3/4 horsepower compressors have an oil-less design, sealed bearings, a PTFE piston ring, a copper wire wound permanent magnet motor and a cast steel cylinder with a hard anodized aluminum sleeve. Kit Details: Replacement 24VDC HP625 Series Air Compressor - Gunmetal Grey finish Vertical Head configuration Raw Compressor only - Does not include installation hardware (See Basic Kit: HP10630) Does not include any pre-built harnesses (See Premium Kit: HP10633) HP625 Series Compressor Specifications: 11.5 inch x 6 inch x 9.5 inch (LxWxH) / (293mm x 153mm x 242mm) 18.5 lbs (8.39kg) PLEASE NOTE: HP625 series compressors require the use of the unloader assembly (Part #: HP10116) for use with an air tank. Basic/Replacement kits are available with unloader kit and all required installation hardware included.
  • Get quick and effortless inflation power at your fingertips with Pacbrake's robust heavy duty compressors!
  • Pacbrake has been in the business of building heavy-duty products for OEMs and the aftermarket for 50 years now, so introducing ''just another air suspension'' simply wouldn't do.Pacbrake's dedication to quality and service has given them the experience to develop the number one air management system on the market.
  • The adjustable air springs in AMP air suspension kits are made from double convoluted two-ply rubber, and are the only air bags on the market with one piece aluminum end caps and 20 support wires for maximum strength and durability.
  • Pacbrake also has a growing line of heavy duty AMP Onboard air systems and Incab controls. You can inflate the air springs manually or add an in-cab control kit which allows you to control your air spring with the touch of a button. If you require more air for your air springs (or other pneumatic accessories) you can add one of our heavy duty onboard air kits which allow you to store compressed air.
  • The AMP product line continues to offer a wide range of air management products that exceed customer expectations.
