19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT
        • 19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT
        • 19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT
        ICON Vehicle Dynamics

        19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT

        Part Number:211000

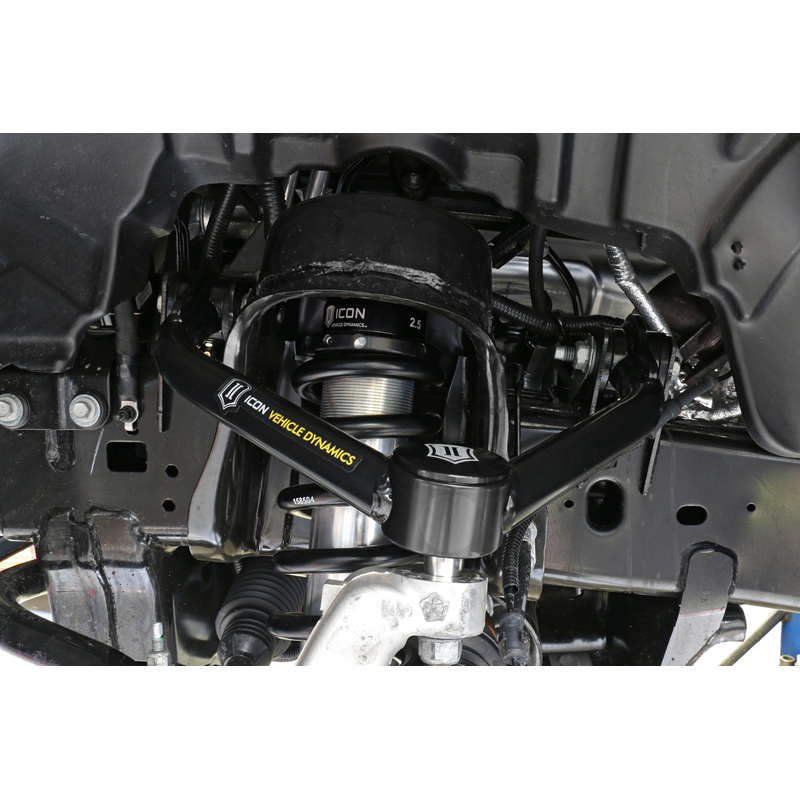

        ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
        • Adjustable coilovers yield .75-2.5” of front lift height on '09-'18 models or 0-1.5" of lift on '19-Up models
        • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
        • Superior low speed control reduces body roll and increases on-road stability
        • High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
        • Corrosion resistant CAD plated shock body with 7/8" shaft
        • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
        • Bolt-in design makes for an easy install into OEM shock location
        Retail price
        • $1,616.11
        Features
        • SKU
          211000
        • Brand
          ICON Vehicle Dynamics
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • Adjustable Damping
          No
        • Adjustable Height
          Yes
        • Body Diameter
          2.5 in.
        • California Prop 65 Warning
          Yes
        • Damping Type
          Oil
        • Fitment Note
          Does fit OEM Wheels and Tires
        • Gas Charged
          Yes
        • Grade Type
          Performance
        • Includes Boot
          No
        • Lower Mount Type
          Clevis
        • Mount Type - Upper
          Mounting Plate
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Recommended Additional Part
          191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
        • Recommended Additional Part
          198000 - 2 PIN COILOVER SPANNER WRENCH KIT
        • Recommended Additional Part
          198001 - BILLET SPANNER WRENCH KIT
        • Recommended Additional Part
          252001 - 2.5 Fixed Spanner Wrench
        • Recommended Additional Part
          252002 - Universal Spanner Wrench (2.0/2.5/3.0)
        • Recommended Additional Part
          252003 - Seal Install Tool 2.5/3.0
        • Recommended Additional Part
          252004 - Economy Needle Charging Tool
        • Recommended Additional Part
          252011 - 2.5 Piggyback/remote Resi/bypass Rebuild Kit
        • Recommended Additional Part
          254100G - 1.0 Gallon Icon Performance Shock Oil
        • Recommended Additional Part
          611019 - Coilover Hardware Kit Pair
        • Recommended Aftermarket Tires
          33.0 in. X 11.5 in. (Larger Tires may Fit but Fender Trimming and Modifications will be Required)
        • Recommended Aftermarket Wheels
          (2009-UP Models) ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
        • Recommended Aftermarket Wheels
          (2009-UP Models) ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
        • Recommended Aftermarket Wheels
          (2009-UP Models) ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset
        • Recommended Aftermarket Wheels
          (2019-UP Models) ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
        • Recommended Aftermarket Wheels
          (2019-UP Models) ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset
        • Remote Reservoir
          No
        • Shaft Diameter
          0.875 in.
        • Shock Absorber Body End Measuring Point
          Top of Upper Mount Plate
        • Shock Absorber Rod End Measuring Point
          Center of Clevis Holes
        • Spring Color
          Black
        • Spring Material
          Steel
