14-UP RAM 2500 4.5" FRONT LIFT 2.5 VS RR PAIR
        ICON Vehicle Dynamics

        14-UP RAM 2500 4.5" FRONT LIFT 2.5 VS RR PAIR

        Part Number:217803P

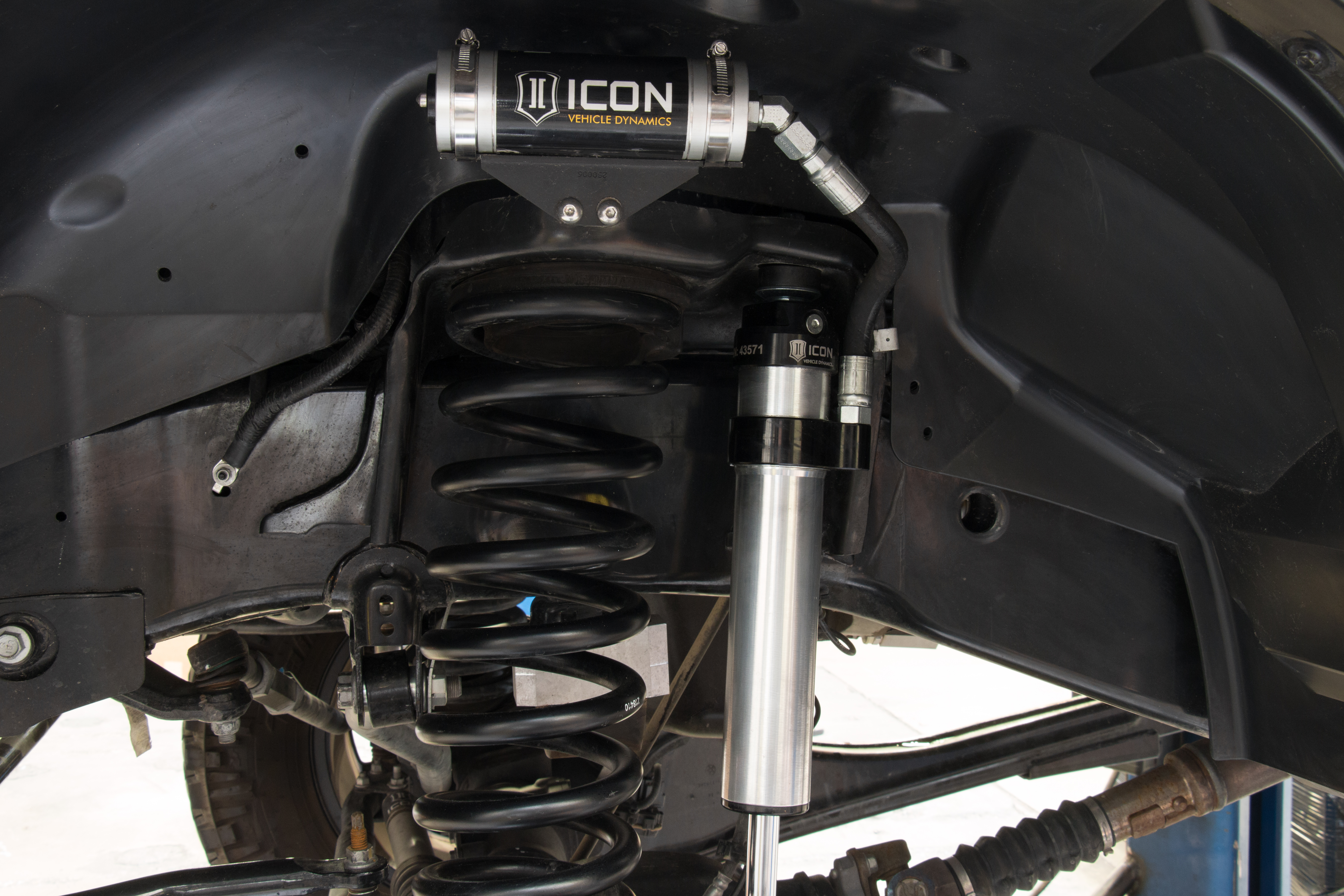

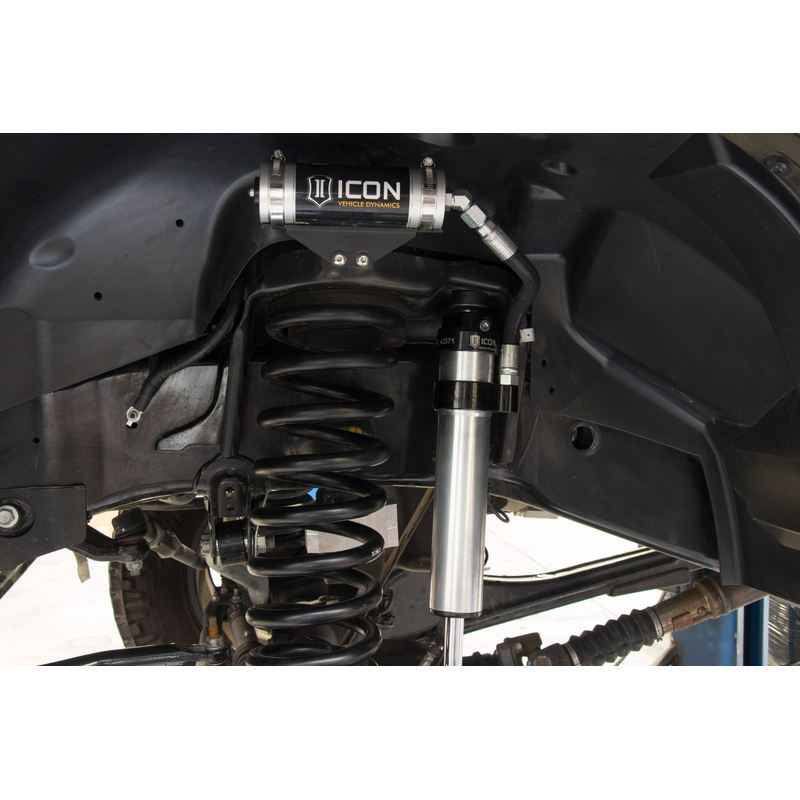

        ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
        • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
        • 100% Rebuildable
        • 100% Revalveable
        • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
        • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
        • Nitrogen charged monotube design with remote reservoir
        • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
        • 7/8” diameter induction hardened, chrome plated shock shaft
        • PTFE lined spherical bearings and application specific mounting hardware
        • 6061 aircraft grade aluminum CNC machined components
        • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
        Retail price
        • $1,253.17
        Features
        • SKU
          217803P
        • Brand
          ICON Vehicle Dynamics
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • Adjustable
          No
        • Bore Diameter
          57.15.0 mm
        • California Prop 65 Warning
          Yes
        • Cylinder Color
          Silver
        • Cylinder Material
          Aluminum
        • Damping Type
          Oil
        • External Reservoir
          Yes
        • Gas Charged
          Yes
        • Grade Type
          Performance
        • Includes Boot
          No
        • Includes Mounting Hardware
          Yes
        • Lower Mount Type
          Eyelet
        • Mount Type - Upper
          Stem
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Recommended Additional Part
          191016 - 7.5 in. Finned Reservoir Upgrade Kit
        • Recommended Additional Part
          252001 - 2.5 Fixed Spanner Wrench
        • Recommended Additional Part
          252002 - Universal Spanner Wrench (2.0/2.5/3.0)
        • Recommended Additional Part
          252003 - Seal Install Tool 2.5/3.0
        • Recommended Additional Part
          252011 - 2.5 Piggyback/remote Reservoir/bypass Rebuild Kit
        • Recommended Additional Part
          252012 - -4 TO -10 HOSE SHIELD KIT
        • Recommended Additional Part
          254100G - 1.0 Gallon Icon Performance Shock Oil
        • Recommended Additional Part
          257340 - 0.875 in. Shaft 14.25 Overall Length, 10.0 Travel
        • Recommended Additional Part
          611006 - 0.563 in. Hd Stem Bushing Kit
        • Shaft Diameter
          0.875 in.
        • Shaft Material
          Chrome
        • Shock Absorber Body End Measuring Point
          Shoulder of Stem
        • Shock Absorber Rod End Measuring Point
          Center of Eyelet
        • Title
          14-UP RAM 2500 4.5" FRONT LIFT 2.5 VS RR PAIR
        • Tube Outside Diameter
          2.5 in.
