18-UP JL/20-UP JT 2.0 CENTERLINE STABILIZER KIT
        ICON Vehicle Dynamics

        18-UP JL/20-UP JT 2.0 CENTERLINE STABILIZER KIT

        Part Number:22038

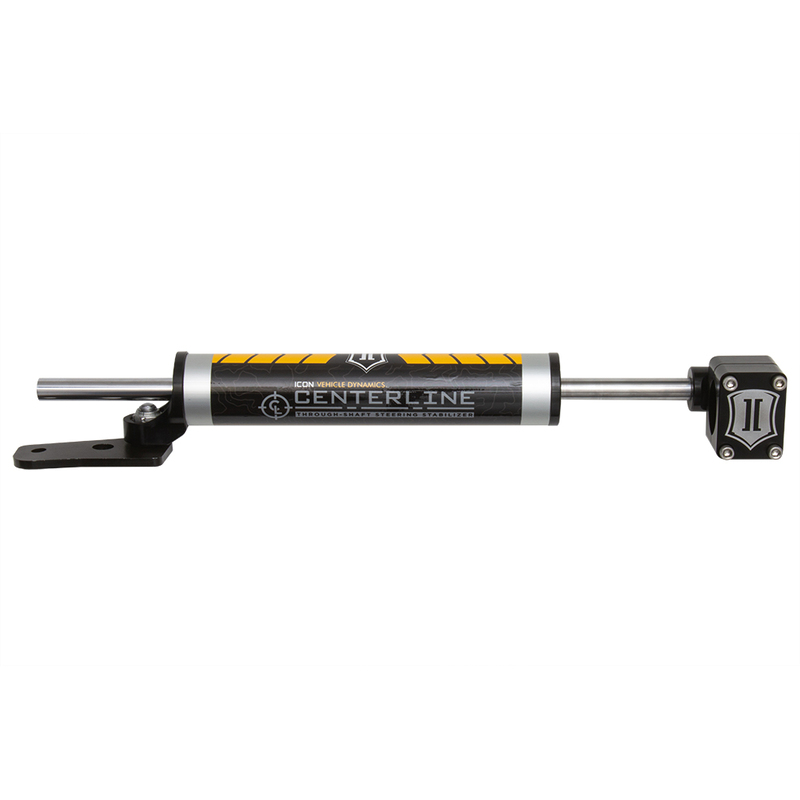

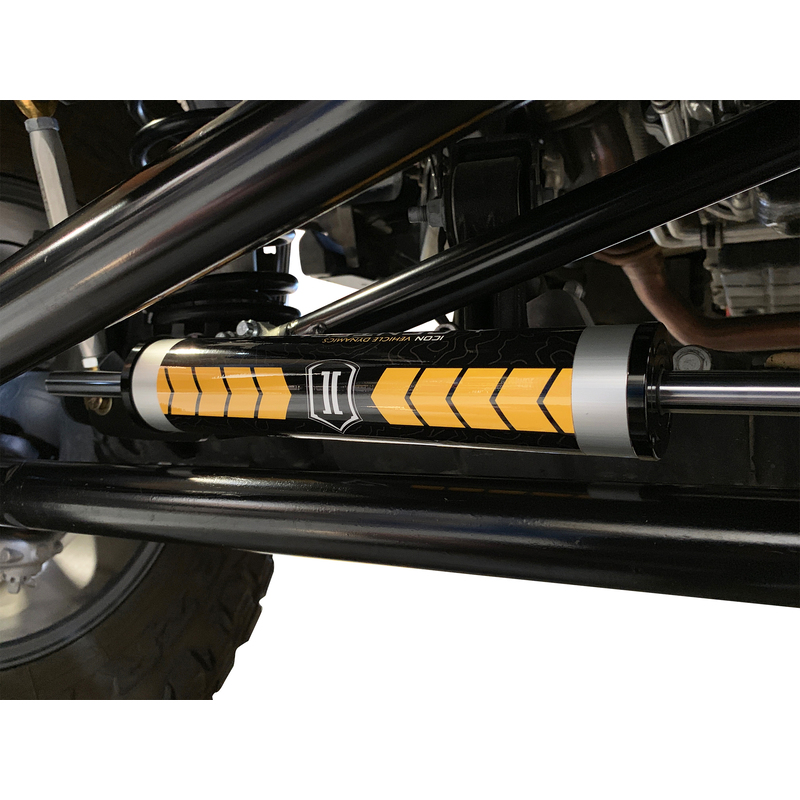

        Engineered to provide consistent steering damping with a through-shaft design, the ICON Centerline Steering Stabilizer eliminates the common push/pull sensation associated with traditional steering stabilizers. Developed with a wide range of aftermarket Jeep components in mind, this stabilizer features a high clearance design that allows for fitment on all ICON suspension systems. This new Centerline Steering Stabilizer shares the same great build features as our proven ICON 2.0 Aluminum Series shocks. These features include a clear anodized 6063 aluminum shock body for corrosion resistance and a 5/8” chrome plated hardened steel shaft for durability, premium 5WT shock oil that provides consistent damping characteristics across a wide operating temperature range, and a high temperature long wear seal pack that stands up to harsh conditions found both on and off-road. The Centerline Stabilizer mounts using CNC machined billet aluminum 1-3/8” tie rod clamps (1-5/8” clamps available) and the rod end features FK spherical bearings for precise and reliable operation.
        • Through shaft design eliminates the push/pull sensation associated with traditional stabilizers
        • 5WT shock oil for consistent suspension damping along a wide temperature range
        • FK Rod End bearings for precise function
        • Increased steering damping over stock unit
        • Provides symmetrical steering feel throughout input range
        • 100% bolt-on installation
        • Mounts to OE tie rod (1-3/8”)
        • Optional clamps for aftermarket heavy duty tie rods (1-5/8”)
        • Fully serviceable ICON 2.0 Aluminum Series shock
        • 6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation
        • 5/8” chrome plated hardened steel shaft
        Retail price
        • $455.26
        Features
        • SKU
          22038
        • Brand
          ICON Vehicle Dynamics
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • Add-On Part
          614525 - UNIVERSAL TUBE CLAMP KIT (1-5/8")
        • Adjustable Damping
          No
        • California Prop 65 Warning
          Yes
        • Color
          Light Gray
        • Cylinder Diameter
          2
        • Cylinder Material
          Aluminum
        • Damping Type
          Oil
        • Grade Type
          Performance
        • Lower Mount Type
          Eyelet
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Service Parts
          202006 - 2.0 CENTERLINE STABILIZER REBUILD KIT
        • Shaft Color
          Chrome
        • Shaft Diameter
          0.625
        • Title
          18-UP JL/20-UP JT 2.0 CENTERLINE STABILIZER KIT
        • Upper Mount Type
          Eyelet
