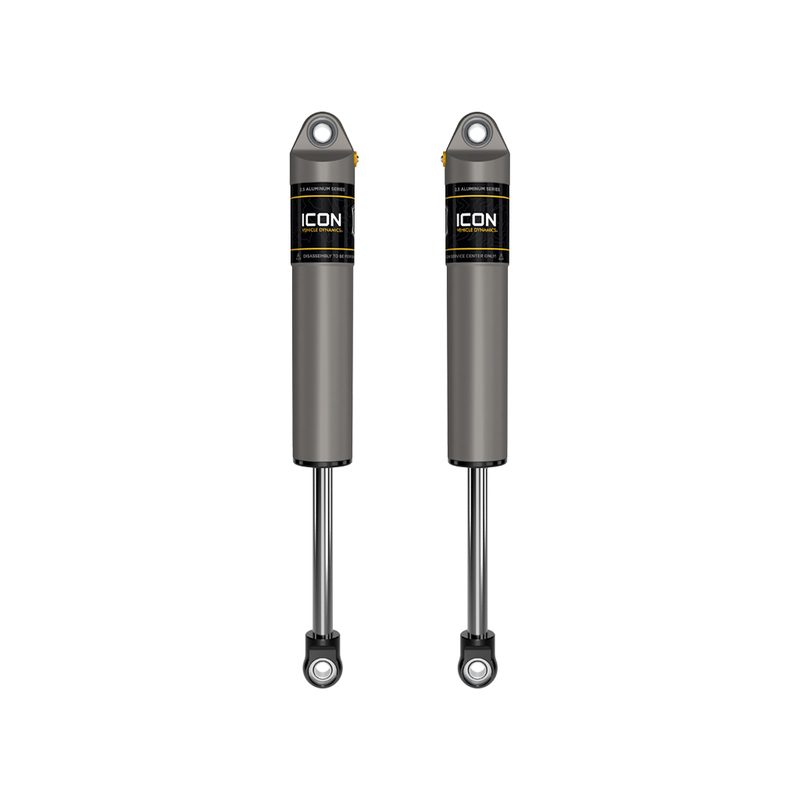

ICON 1999-2024 Ford F-250/F-350/F-450 Super Duty, 0-3” Lift, Rear, V.S. 2.5 Aluminum Series Shocks, Internal Reservoir, Pair
        ICON Vehicle Dynamics

        ICON 1999-2024 Ford F-250/F-350/F-450 Super Duty, 0-3” Lift, Rear, V.S. 2.5 Aluminum Series Shocks, Internal Reservoir, Pair

        Part Number:37605P
        ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.
        • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
        • 100% Revalveable
        • Nitrogen charged monotube design with internal reservoir
        • Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
        • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
        • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
        • 6061 aircraft grade aluminum CNC machined components
        • PTFE lined spherical bearings and application specific mounting hardware
        • 7/8” diameter induction hardened, chrome plated shock shaft
        • 100% Rebuildable
        Retail price
        • $852.60
        Features
        • SKU
          37605P
        • Brand
          ICON Vehicle Dynamics
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • Adjustable Damping
          No
        • Bore Diameter
          57.15.0 mm
        • California Prop 65 Warning
          Yes
        • Cylinder Color
          Gray
        • Cylinder Diameter
          2.5 in.
        • Cylinder Material
          Aluminum
        • Damping Type
          Oil
        • External Reservoir
          No
        • Gas Charged
          Yes
        • Grade Type
          Performance
        • Includes Boot
          No
        • Includes Mounting Hardware
          Yes
        • Lower Mount Type
          Eyelet
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Recommended Additional Part
          252001 - 2.5 Fixed Spanner Wrench
        • Recommended Additional Part
          252002 - Universal Spanner Wrench (2.0/2.5/3.0)
        • Recommended Additional Part
          252003 - Seal Install Tool 2.5/3.0
        • Recommended Additional Part
          252004 - Economy Needle Charging Tool
        • Recommended Additional Part
          252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
        • Recommended Additional Part
          252010 - 2.5 Ifp Rebuild Kit
        • Recommended Additional Part
          254100G - 1.0 Gallon Icon Performance Shock Oil
        • Recommended Additional Part
          257340 - 0.875 in. Shaft 14.25 Overall Length, 10.0 Travel
        • Shaft Diameter
          0.875 in.
        • Shaft Material
          Chrome
        • Shock Absorber Body End Measuring Point
          Center of Eyelet
        • Shock Absorber Rod End Measuring Point
          Center of Eyelet
        • Title
          ICON 1999-2024 Ford F-250/F-350/F-450 Super Duty, 0-3” Lift, Rear, V.S. 2.5 Aluminum Series Shocks, Internal Reservoir, Pair
        • Tube Outside Diameter
          2.5 in.
        • Upper Mount Type
          Eyelet
