ICON 2005-2023 Toyota Tacoma 2.5 VS Remote Reservoir w/ CDCV Coilover Kit for Pro Comp 6” Lift, 700 lbs/in Coils
        ICON Vehicle Dynamics

        ICON 2005-2023 Toyota Tacoma 2.5 VS Remote Reservoir w/ CDCV Coilover Kit for Pro Comp 6” Lift, 700 lbs/in Coils

        Part Number:58731C-700-CB

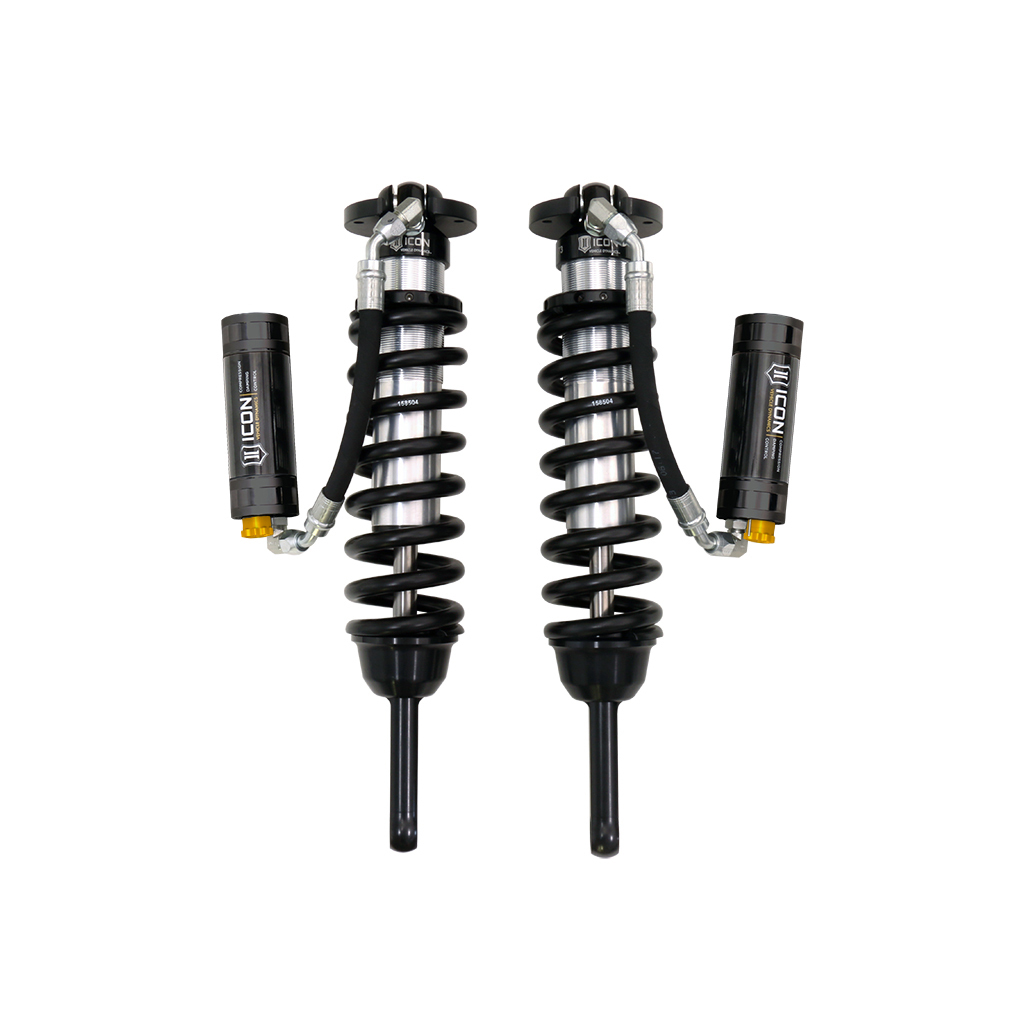

        ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma equipped with the Pro Comp 6” lift kit. These coilovers offer lift height adjustability, allowing fine tuning of ride height or the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
        • Increased wheel travel and improved ride quality over stock
        • Fully rebuildable and re-tunable
        • Vehicle specific tuned for superior shock damping and control
        • Height-adjustable coilovers with application specific length for fitment with Pro Comp 6" lift kits
        • Remote reservoirs maintain cooler operating temperatures during extended off-road use
        • ICON CDCV equipped for 10 settings of external compression damping adjustment
        • ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
        • 6061 Aircraft grade aluminum CNC machined components
        • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
        • FK rod end bearings for extended longevity and minimal deflection
        Retail price
        • $2,653.51
        Features
        • SKU
          58731C-700-CB
        • Brand
          ICON Vehicle Dynamics
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • Adjustable Damping
          Yes
        • Adjustable Height
          Yes
        • Body Diameter
          2.5 in.
        • California Prop 65 Warning
          Yes
        • Damping Adjustment Type
          Manual
        • Damping Type
          Oil
        • Dust Shield Included
          No
        • Gas Charged
          Yes
        • Grade Type
          Performance
        • Includes Boot
          No
        • Material
          Aluminum
        • Mount Type - Lower
          Eyelet
        • Mount Type - Upper
          Mounting Plate
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Recommended Additional Part
          191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
        • Recommended Additional Part
          191016 - 7.5 in. Finned Resi Upgrade Kit
        • Recommended Additional Part
          198000 - 2 PIN COILOVER SPANNER WRENCH KIT
        • Recommended Additional Part
          198001 - BILLET SPANNER WRENCH KIT
        • Recommended Additional Part
          252001 - 2.5 Fixed Spanner Wrench
        • Recommended Additional Part
          252002 - Universal Spanner Wrench (2.0/2.5/3.0)
        • Recommended Additional Part
          252003 - Seal Install Tool 2.5/3.0
        • Recommended Additional Part
          252011 - 2.5 Piggyback/remote Resi/bypass Rebuild Kit
        • Recommended Additional Part
          252012 - -4 TO -10 HOSE SHIELD KIT
        • Recommended Additional Part
          254100G - 1.0 Gallon Icon Performance Shock Oil
        • Recommended Additional Part
          611019 - Coilover Hardware Kit Pair
        • Remote Reservoir
          Yes
        • Shaft Diameter
          0.875 in.
        • Shock Absorber Body End Measuring Point
          Top of Upper Mount Plate
        • Shock Absorber Rod End Measuring Point
          Center of Eyelet
        • Spring Color
          Black
        • Spring Material
          Steel
        • Spring Rate
          700
        • Spring Rate Type
          Linear
