2014 F150 2WD 1.75-2.63" 2.5 VS CDCV COILOVER KIT
ICON Vehicle Dynamics

2014 F150 2WD 1.75-2.63" 2.5 VS CDCV COILOVER KIT

Part Number:91815C

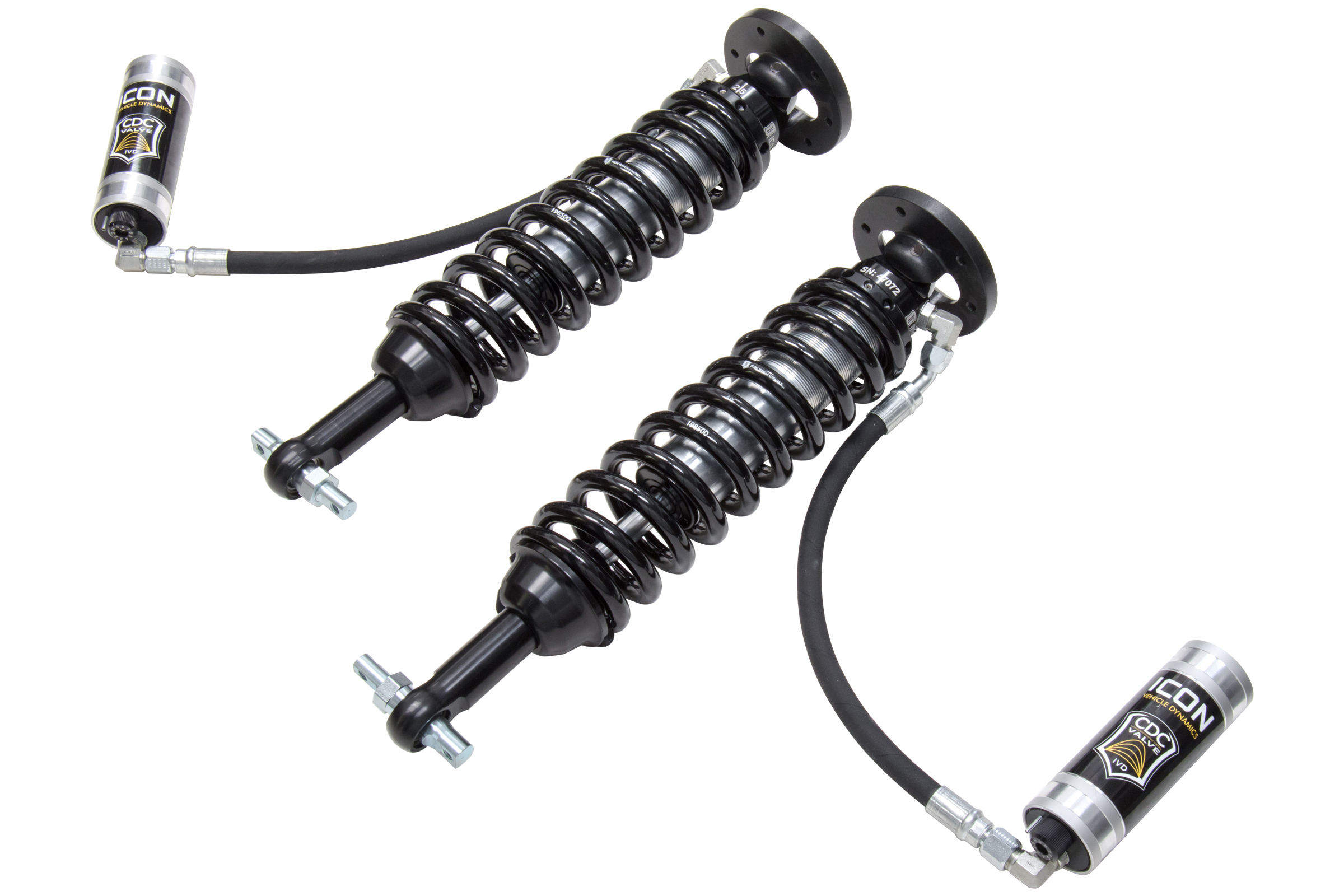

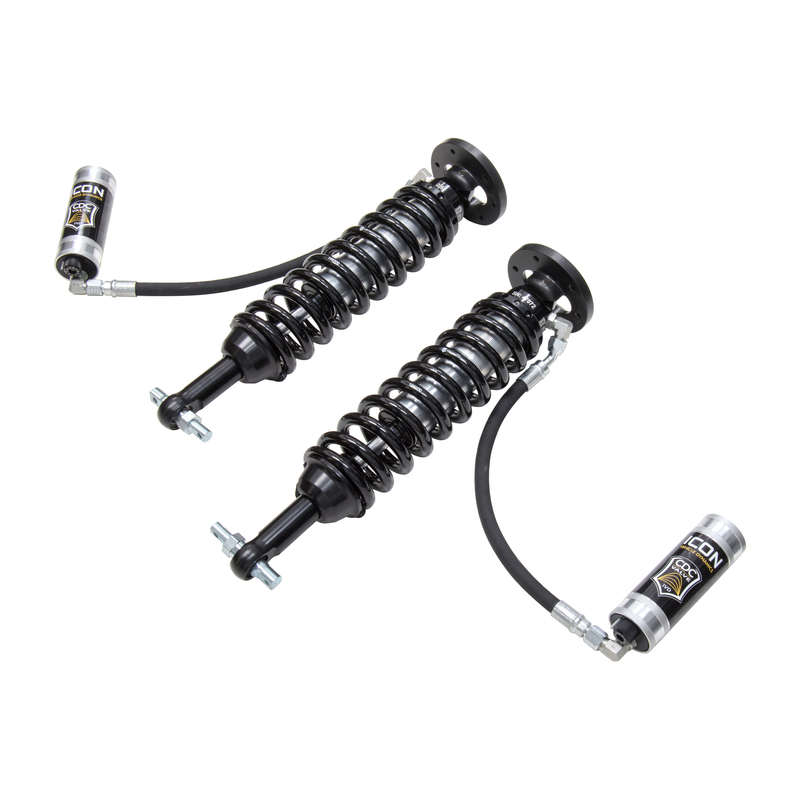

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2014 Ford F-150 2WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirS ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2014 F-150 2WD.
  • Increased wheel travel and ride quality over stock
  • 100% Bolt-on - no cutting or welding necessary for installation
  • Vehicle specific tuned for superior shock damping and control
  • External reservoir to attain cooler operating temperatures during extended offroad use
  • Adjustable 1.75-3" lift height
  • ICON engineered Eibach Springs
  • High strength alloy CNC machined lower bar pin
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock body with 7/8" diameter shaft
  • FK rod end bearings for extended longevity and minimal deflection
Retail price
  • $2,511.55
Features
  • SKU
    91815C
  • Brand
    ICON Vehicle Dynamics
  • Adjustable Damping
    Yes
  • Adjustable Height
    Yes
  • Body Diameter
    2.5 in.
  • Damping Type
    Oil
  • Fitment Note
    Does fit OEM Wheels and Tires
  • Gas Charged
    Yes
  • Grade Type
    Performance
  • Includes Boot
    No
  • Material
    Aluminum
  • Mount Type - Lower
    Bar Pin
  • Mount Type - Upper
    Mounting Plate
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Recommended Additional Part
    191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
  • Recommended Additional Part
    191016 - 7.5 in. Finned Resi Upgrade Kit
  • Recommended Additional Part
    198000 - 2 PIN COILOVER SPANNER WRENCH KIT
  • Recommended Additional Part
    198001 - BILLET SPANNER WRENCH KIT
  • Recommended Additional Part
    252001 - 2.5 Fixed Spanner Wrench
  • Recommended Additional Part
    252002 - Universal Spanner Wrench (2.0/2.5/3.0)
  • Recommended Additional Part
    252003 - Seal Install Tool 2.5/3.0
  • Recommended Additional Part
    252011 - 2.5 Piggyback/remote Resi/bypass Rebuild Kit
  • Recommended Additional Part
    252012 - -4 TO -10 HOSE SHIELD KIT
  • Recommended Additional Part
    254100G - 1.0 Gallon Icon Performance Shock Oil
  • Recommended Additional Part
    611019 - Coilover Hardware Kit Pair
  • Recommended Aftermarket Tires
    33.0 in. X 11.5 in. (Larger Tires may Fit but Fender Trimming and Modifications will be Required)
  • Remote Reservoir
    Yes
  • Shaft Diameter
    0.875 in.
  • Shock Absorber Body End Measuring Point
    Top of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point
    Flat on Bar Pin
  • Spring Color
    Black
  • Spring Material
    Steel
