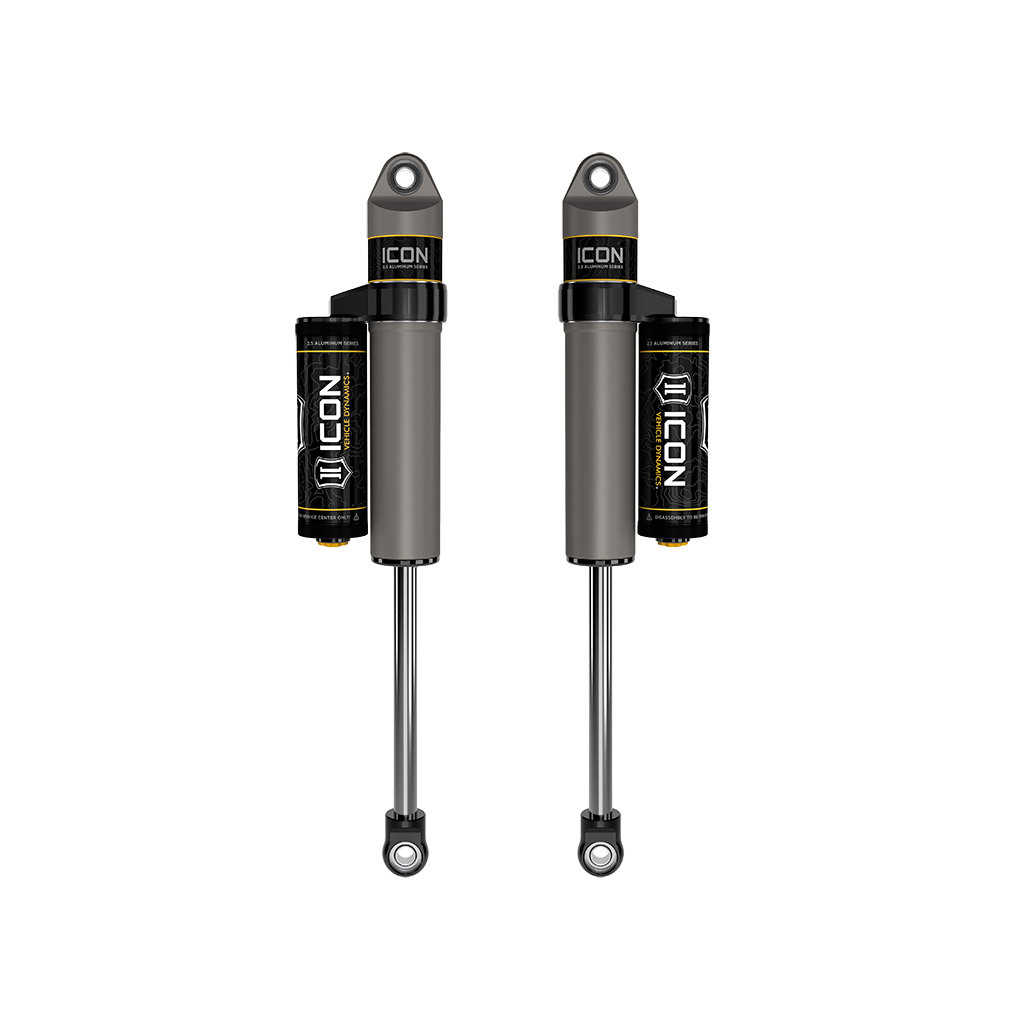

ICON 2009-2024 Ford F-150/2004-2008 Ford F-150 4WD, 0-1" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair
ICON Vehicle Dynamics

ICON 2009-2024 Ford F-150/2004-2008 Ford F-150 4WD, 0-1" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair

Part Number:97720P
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
  • Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
  • 100% Rebuildable
  • 100% Revalveable
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with piggyback reservoir
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Retail price
  • $1,304.67
Features
  • SKU
    97720P
  • Brand
    ICON Vehicle Dynamics
  • Adjustable
    No
  • Adjustable Damping
    No
  • Bore Diameter
    57.15.0 mm
  • Cylinder Diameter
    2.5 in.
  • Damping Type
    Oil
  • External Reservoir
    Yes
  • Gas Charged
    Yes
  • Grade Type
    Performance
  • Includes Boot
    No
  • Includes Mounting Hardware
    Yes
  • Lower Mount Type
    Eyelet
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Recommended Additional Part
    191016 - 7.5 in. Finned Reservoir Upgrade Kit
  • Recommended Additional Part
    252001 - 2.5 Fixed Spanner Wrench
  • Recommended Additional Part
    252002 - Universal Spanner Wrench (2.0/2.5/3.0)
  • Recommended Additional Part
    252003 - Seal Install Tool 2.5/3.0
  • Recommended Additional Part
    252011 - 2.5 Piggyback/remote Reservoir/bypass Rebuild Kit
  • Recommended Additional Part
    254100G - 1.0 Gallon Icon Performance Shock Oil
  • Recommended Additional Part
    257341S - 0.875 in. Shaft 15.25 Overall Length, 11.0 Travel Short
  • Reservoir Type
    Piggyback
  • Shaft Diameter
    0.875 in.
  • Shock Absorber Body End Measuring Point
    Center of Eyelet
  • Shock Absorber Rod End Measuring Point
    Center of Eyelet
  • Tube Outside Diameter
    2.5 in.
  • Upper Mount Type
    Eyelet
