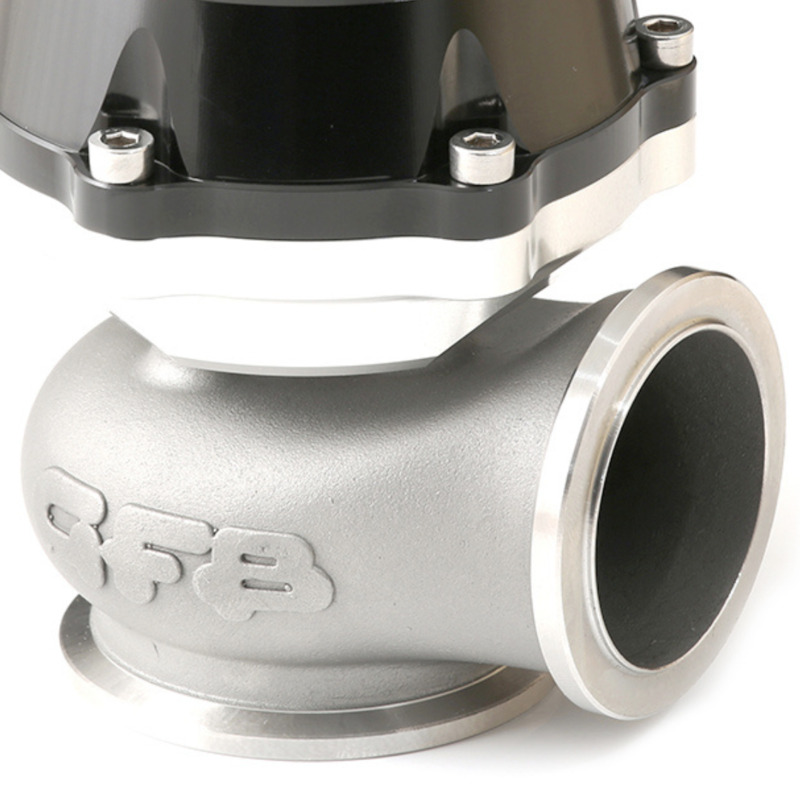

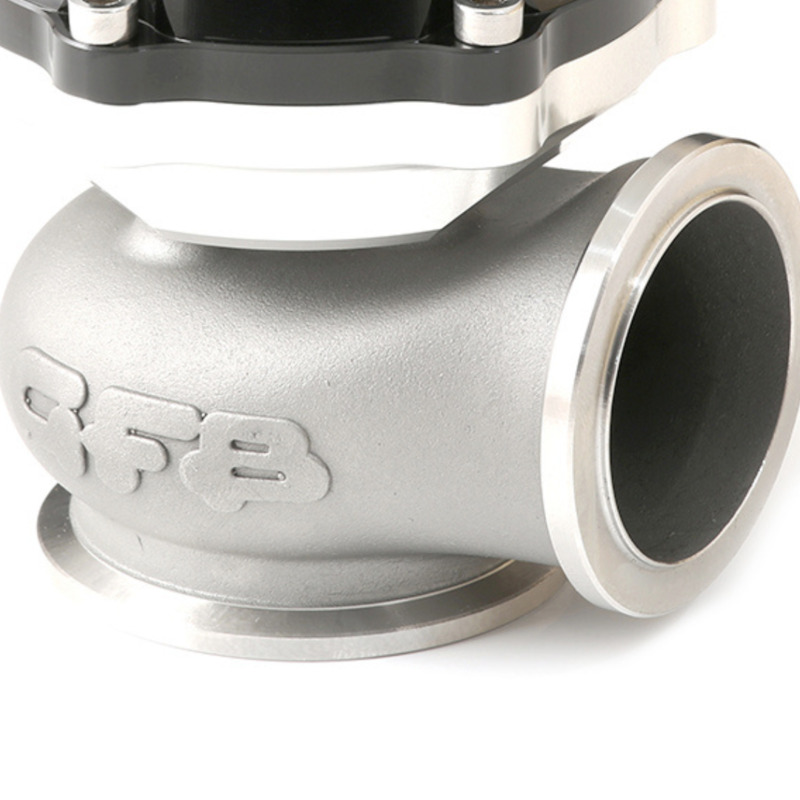

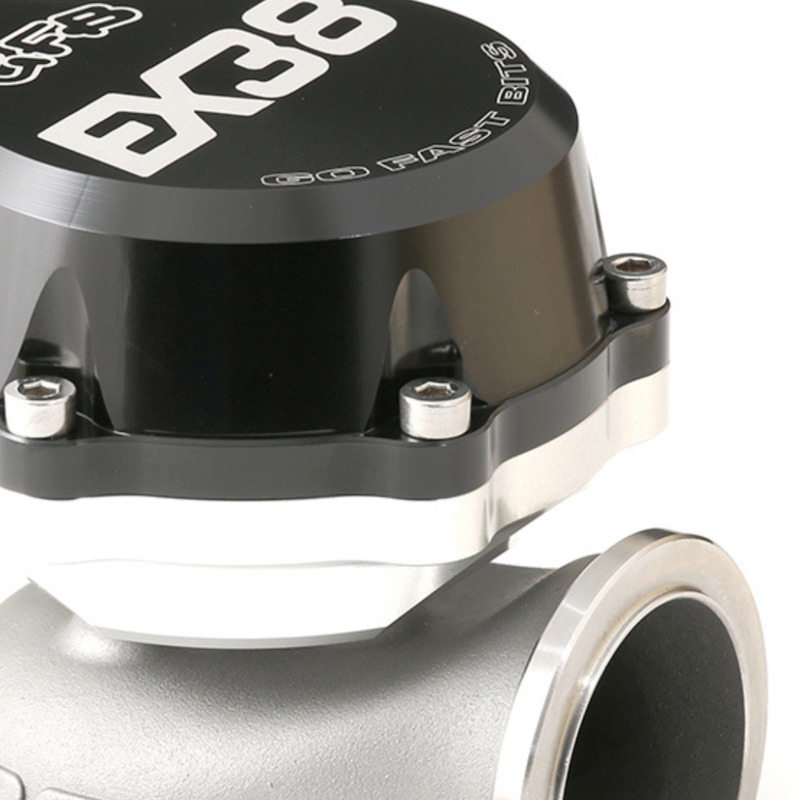

        GFB EX 38mm wastegate:

        Part Number:7003
        The 7002 wastegate features an investment cast body made from 253MA chromium-nickel stainless steel, a one-piece stainless steel valve, and a nomex reinforced diaphragm to cope with the extreme conditions and harsh environment of high-boost and exhaust temperatures. ? 38MM VALVE, ? V-BAND INLET AND OUTLET (DIRECTLY COMPATIBLE WITH TIAL MV-S FLANGES), ? 93MM OVERALL HEIGHT, ? SUPPLIED WITH 10PSI (OUTER) SPRING ADDITIONAL SPRINGS AVAILABLE ARE 5PSI (INNER) AND 7PSI (MIDDLE), ? COMBINE SPRINGS TO ACHIEVE BASE BOOST PRESSURE OF 5, 7, 10, 12, 15, 17 AND 22PSI
        • MOST COMPACT WASTEGATE RANGE ON THE MARKET BODY, VALVE, SEAT AND ALL MOUNTING HARDWARE IS CNC MACHINED FROM HIGH-TEMP STAINLESS STEEL ACTUATOR HOUSING CNC MACHINED FROM BILLET 6061-T6 ALUMINIUM NOMEX-REINFORCED SILICONE DIAPHRAGM
        • INTERNAL SHROUD PROTECTS VALVE STEM FROM EXCESSIVE HEAT AND PREVENTS CARBON-RELATED STICKING V-BAND CLAMP MOUNTING SYSTEM Manufactured In Australia under ISO 9001
        Retail price
        • $405.00
        Features
        • SKU
          7003
        • Brand
          GFB Go Fast Bits
        • Grade Type
          Performance
        • Housing Color
          Silver
        • Housing Material
          Stainless Steel
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Type
          Cancer and Reproductive
        • Prop 65 - Warning Image Label
        • Recommended Additional Part
          7205
        • Title
          GFB EX 38mm wastegate:
