93-97 Toyota Landcruiser (3-Row Copper Core) Radiator
        CSF Cooling - Racing & High Performance Division

        93-97 Toyota Landcruiser (3-Row Copper Core) Radiator

        Part Number:2517
        CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Landcruiser running at its finest, a CSF Heavy-Duty Radiator is the obvious choice. CSF has spent years refining and improving their radiator designs. The original style copper/brass construction features ribbed brass end tanks for additional strength and reinforced side end plates and integrated metal core straps to withstand heavy vibration and chassis flex while off-roading. The 3-Row 46mm Heavy-Duty and High-Performance Copper Core offers the best cooling available in a design that is a true "drop-in" fit with no modifications necessary for installation. Whether you are off-roading, towing, or just casually driving your Landcruiser, trust the cooling experts at CSF for the best performing, high-quality, and reliable radiators.
        • OEM specified Copper-Brass Construction
        • CSF, The Cooling Experts, have been serving the US aftermarket for almost 4 decades. With over 30 million units sold, CSF is your exclusive source for Radiators, Condensers, Intercoolers, Inverter Coolers, Racing Radiators and Pressure Caps.
        • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
        • Side Channels - Coated Steel for Strength & Durability
        • Reinforced Inlet & Outlet Connections with "Thru Pipe Design"
        • 100% leak tested before leaving factory at 150% of operating pressure
        • Industry Best Packaging - "10 Foot Drop Test" Standard
        • Drop-in Fit
        • Built for OEM Cooling - High Performance Transmission Cooler with special Built-in Turbulators
        • All components are installed, torqued & tested on Radiator during assembly
        • Easy to recore & repair
        • No risk for coolant contamination and damage to sensitive seals, water pump & thermostat
        • OEM specified "Single Piece - Deep Drawn" Brass Tanks with Ribs for added Strength & Durability
        • Tubes - Special coated OEM specified "Double Lock Seam Joints" for Long Life
        Retail price
        • $565.75
        Features
        • SKU
          2517
        • Brand
          CSF Cooling - Racing & High Performance Division
        • Coolant Hose Inlet Connection Type
          OE Type Connection
        • Coolant Hose Outlet Connection Type
          OE Type Connection

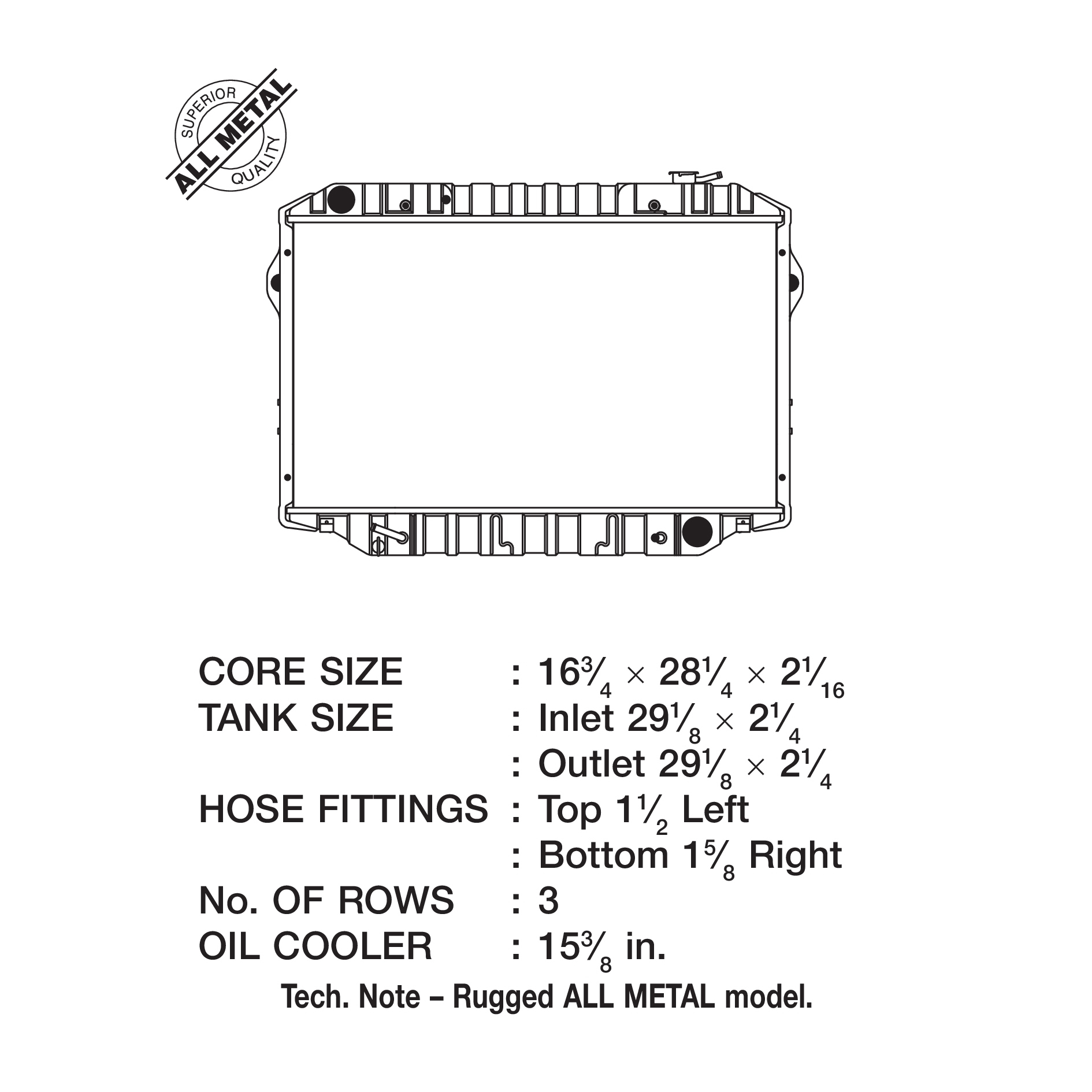

        • Core Height
          16.75 in.
        • Core Material
          Copper
        • Core Row Quantity
          3
        • Core Thickness
          2.0625 in.
        • Core Width
          28.25 in.
        • Down Flow Or Cross Flow Type
          Down Flow
        • Finish/Color
          Polished
        • Frame Included
          No
        • Grade Type
          Performance
        • Inlet Connector Type
          Slip On
        • Inlet Diameter
          1.5 in.
        • Inlet Location
          Top Left
        • Installation Type
          Drop-In Fit Installation
        • Internal Engine Oil Cooler
          No
        • Internal Transmission Oil Cooler
          Yes
        • Mounting Hardware Included
          No
        • Mounting Type
          Mounts with OE Hardware
        • Outlet Connector Type
          Slip On
        • Outlet Diameter
          1.625 in.
        • Outlet Location
          Bottom Right
        • Prop 65 - Required to list in California with Warning
          No
        • Radiator Cap Included
          No
        • Tank Material
          Brass
        • Thermostat Included
          No
        • Title
          93-97 Toyota Landcruiser (3-Row Copper Core) Radiator
