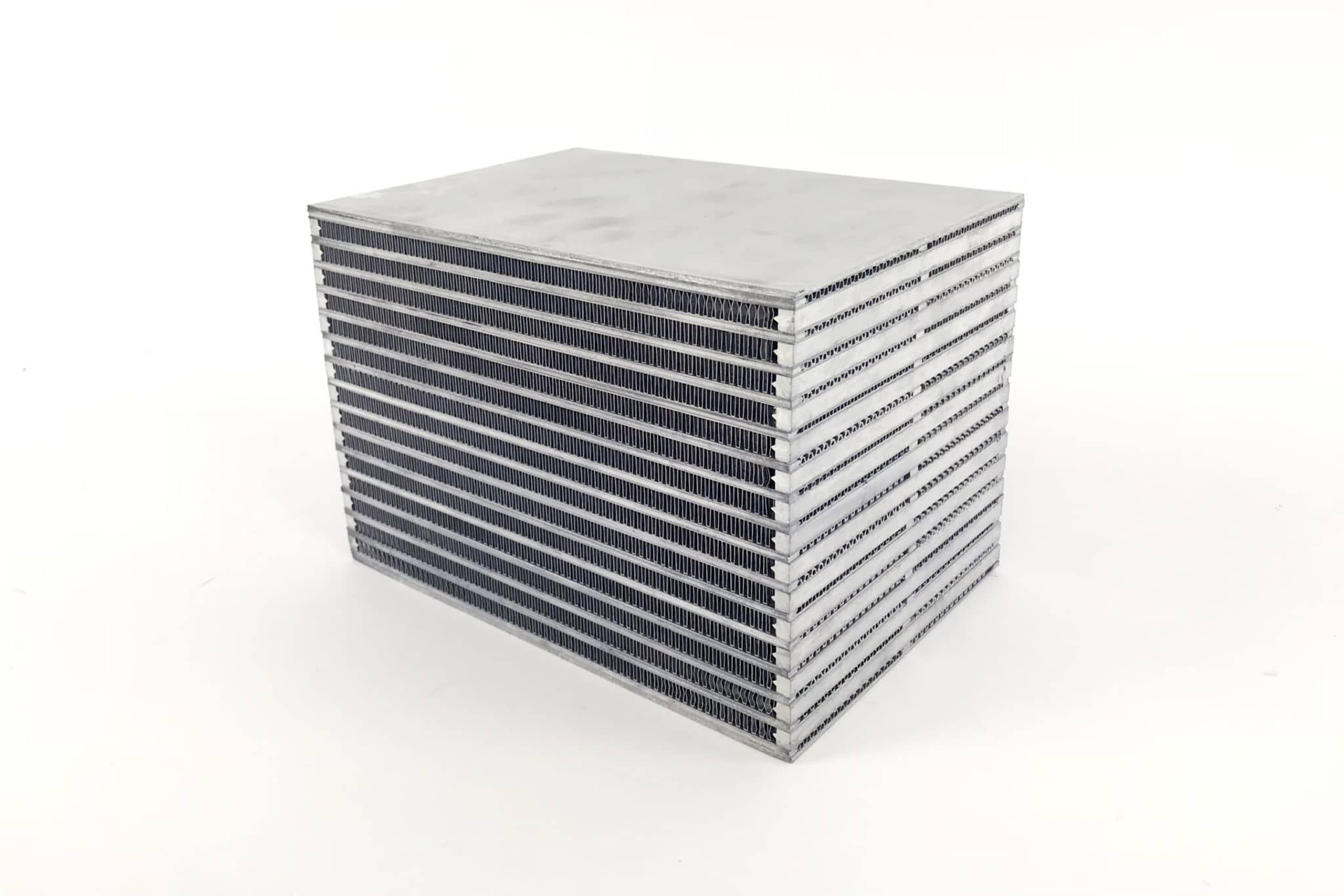

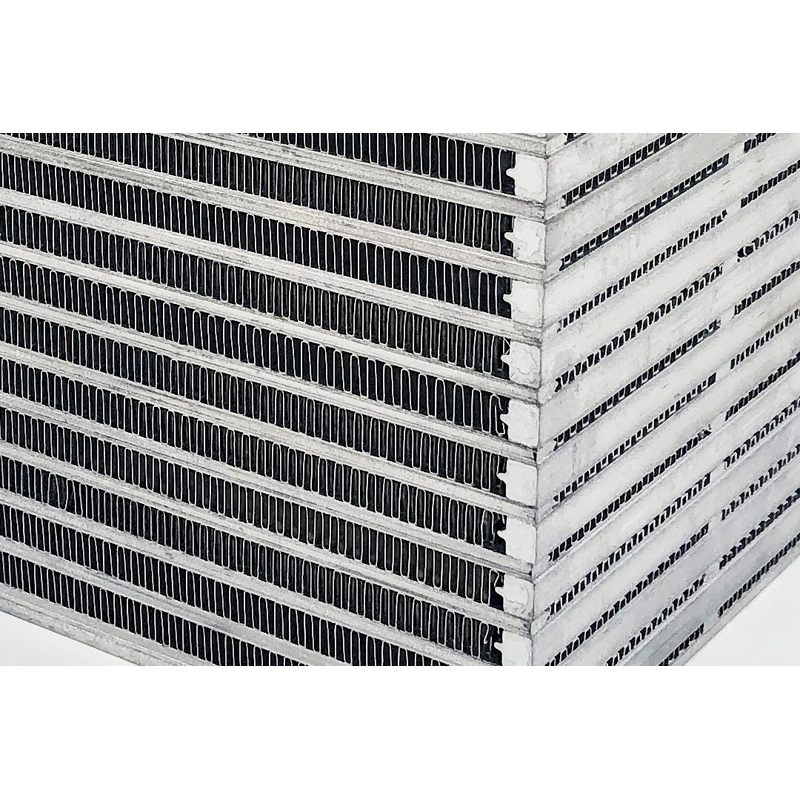

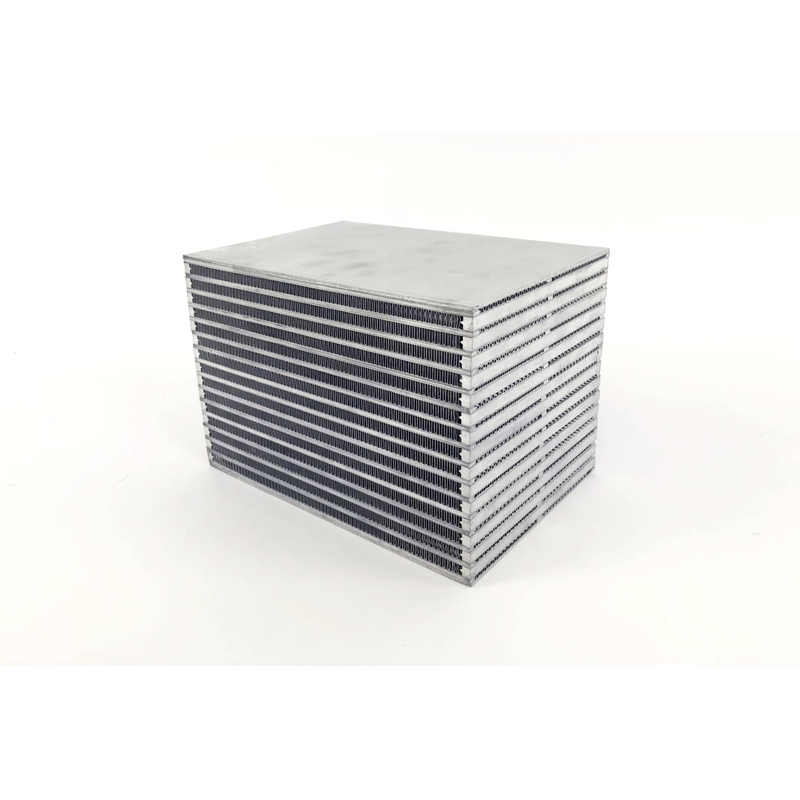

Air-to-Water Bar & Plate Intercooler Core 8.5L x 6H x 6W

Part Number:8113

CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 8.5" x 6" x 6" Air-to-Water Core is rated for 1000 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.

Heavy-Duty Bar & Plate Intercooler Cores
CSF, The Cooling Experts, have been serving the US aftermarket for almost 4 decades. With over 30 million units sold, CSF is your exclusive source for Radiators, Condensers, Intercoolers, Inverter Coolers, Racing Radiators and Pressure Caps.
Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
Dimensions: 8.5"x6"x6" (215mm x 150mm x 150mm)
HP Rating: 1000
Air-to-Water
Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding

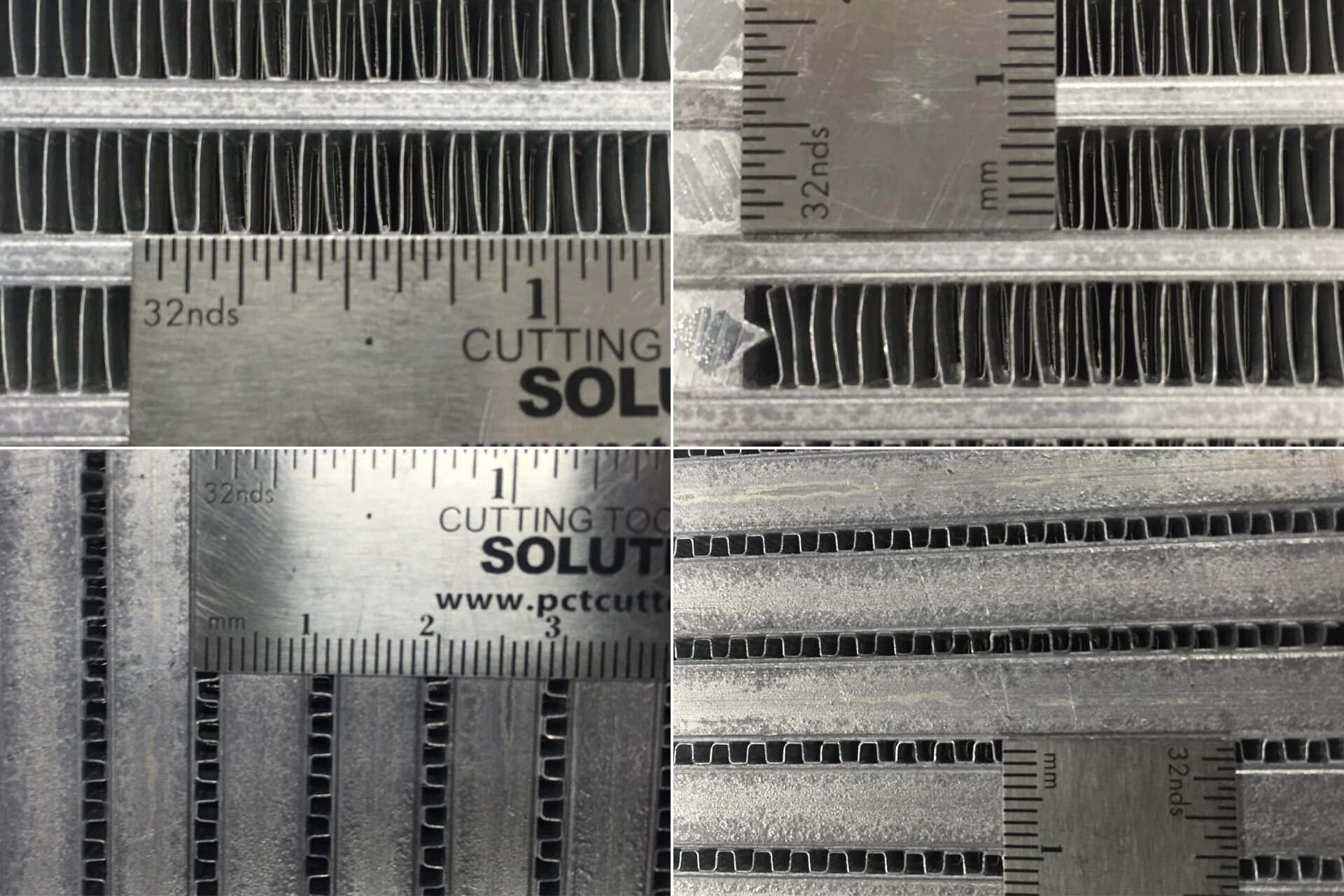

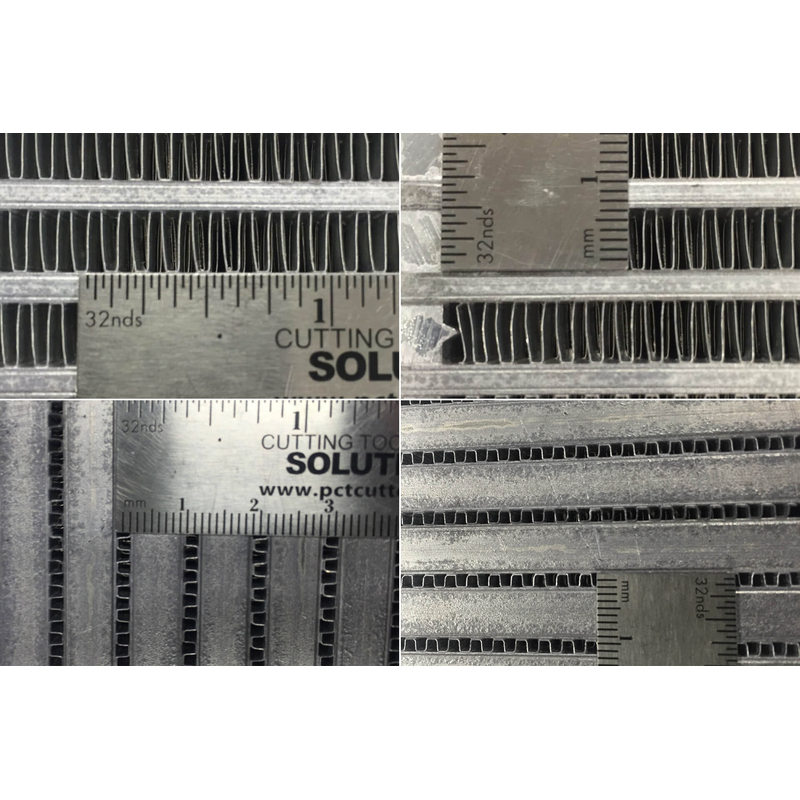

Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
Strict Quality Control and Quality Testing, Including Individual Pressure Testing
