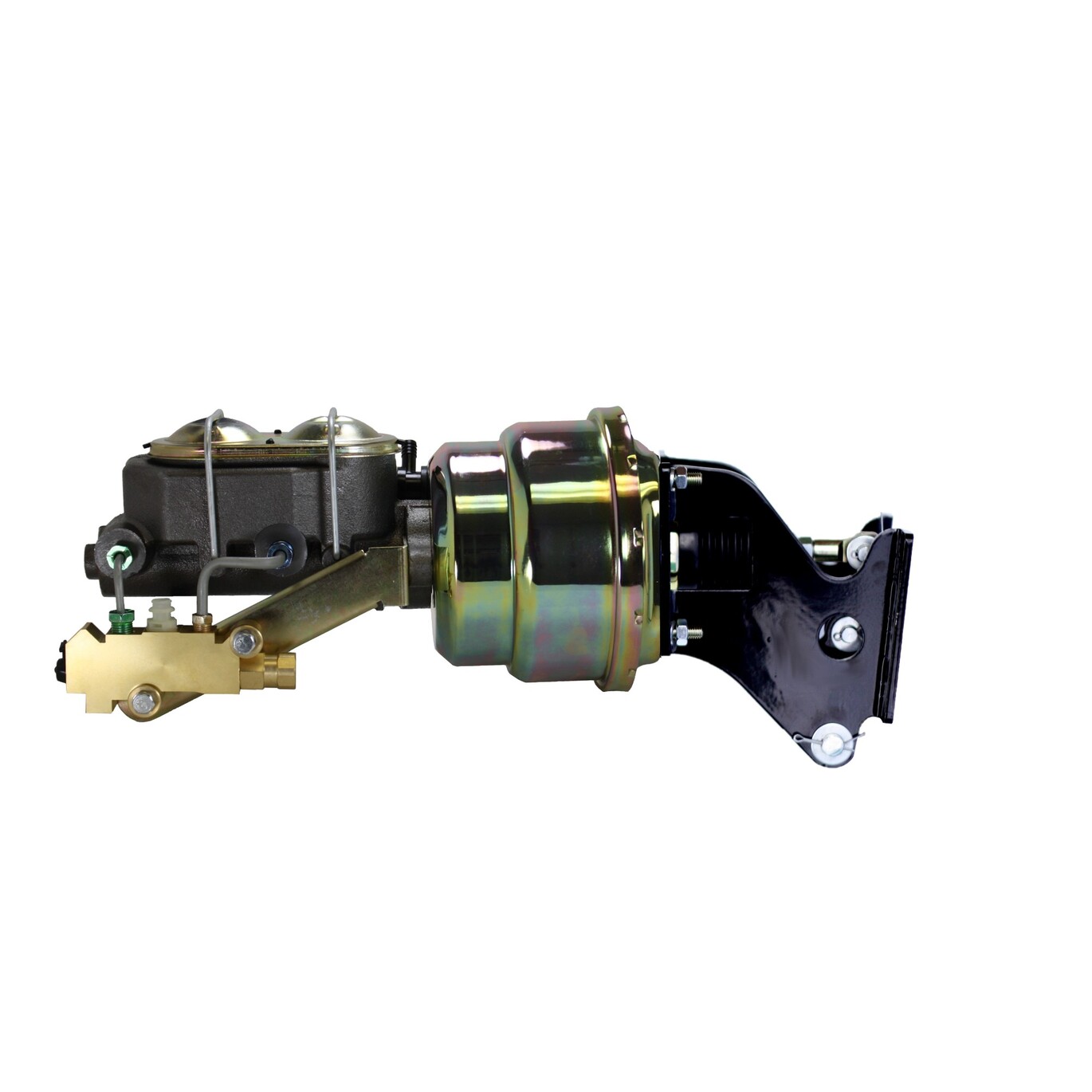

LEED Brakes 7 inch dual power booster, 1-1/8 inch bore master disc/disc (Zinc)
  • LEED Brakes 7 inch dual power booster, 1-1/8 inch bore master disc/disc (Zinc)
  • LEED Brakes 7 inch dual power booster, 1-1/8 inch bore master disc/disc (Zinc)
  • LEED Brakes 7 inch dual power booster, 1-1/8 inch bore master disc/disc (Zinc)
  • LEED Brakes 7 inch dual power booster, 1-1/8 inch bore master disc/disc (Zinc)
  • LEED Brakes 7 inch dual power booster, 1-1/8 inch bore master disc/disc (Zinc)
Leed Brakes

LEED Brakes 7 inch dual power booster, 1-1/8 inch bore master disc/disc (Zinc)

Part Number:761A3

Leed Brakes power booster assemblies are shipped fully assembled. This insures proper adjustment of the pushrod between the power booster and master cylinder and proper fitment all valves, lines and brackets for a trouble-free installation.

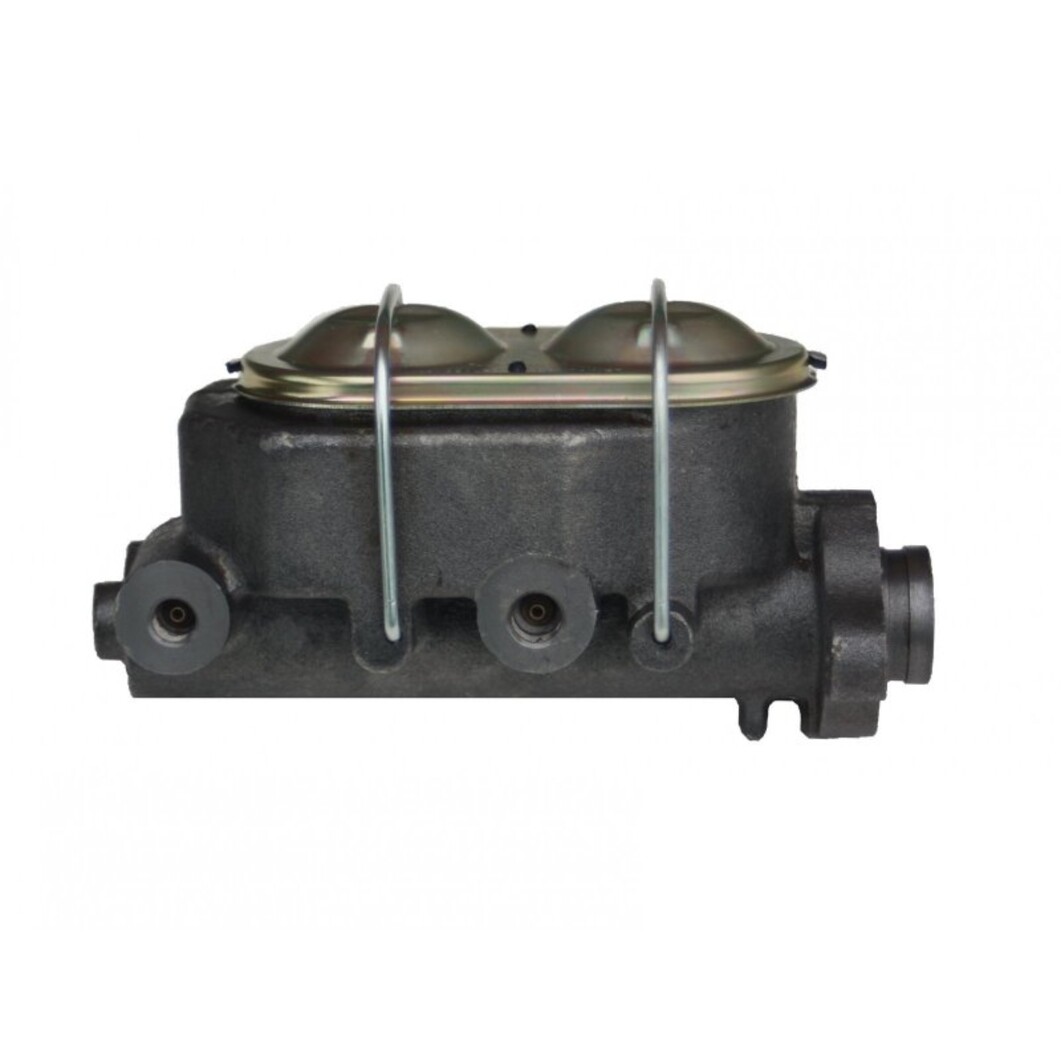

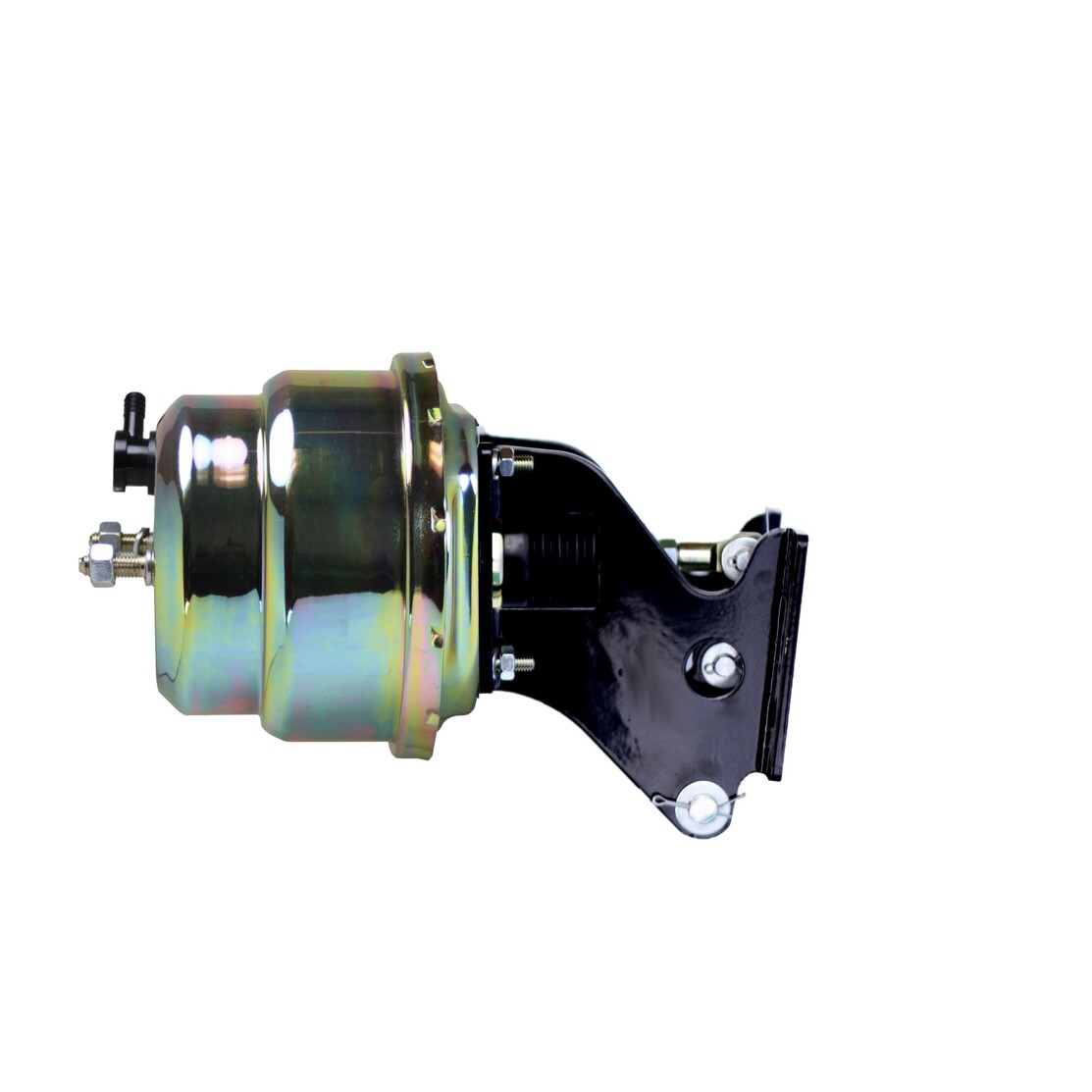

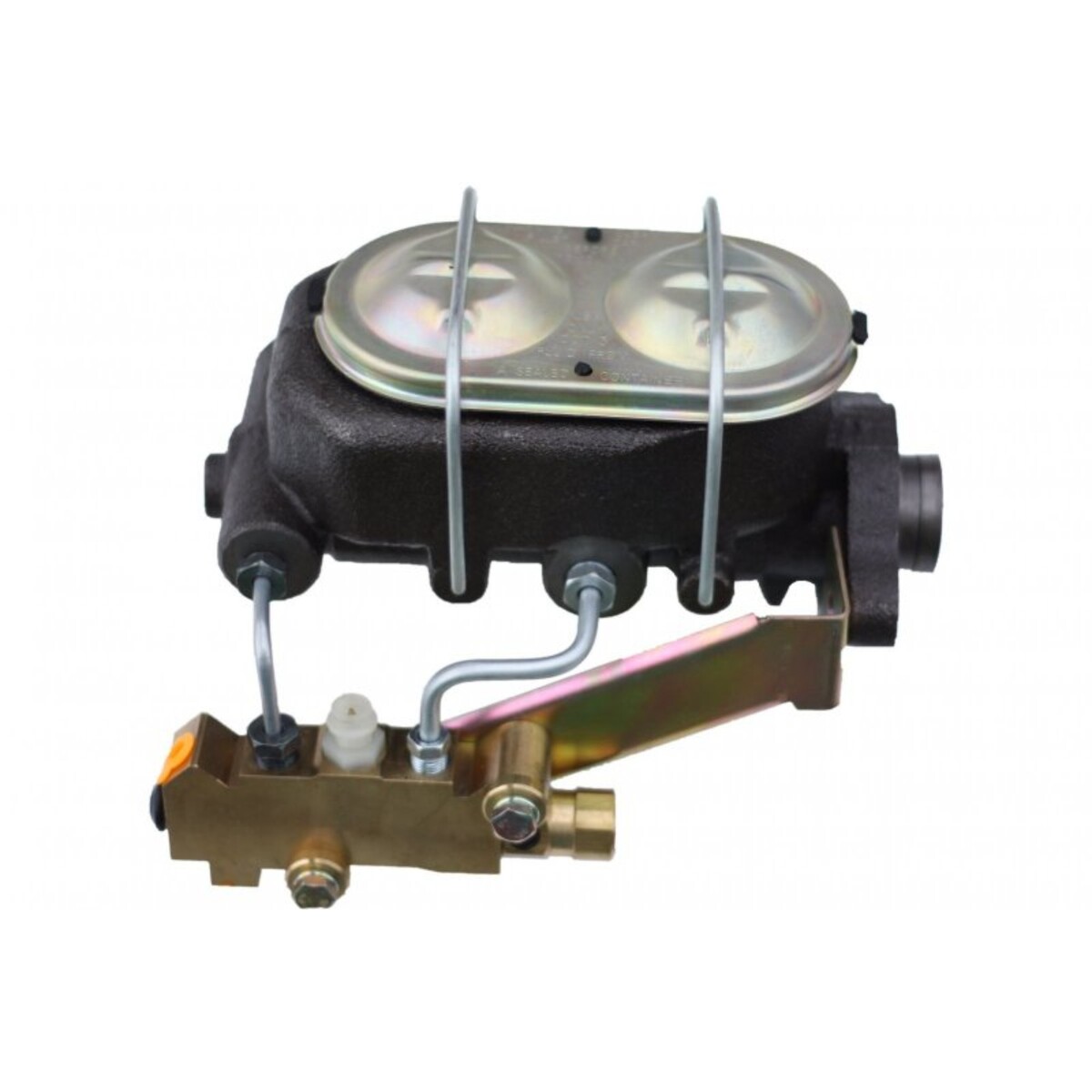

New 7" Dual Diaphragm zinc plated power brake booster, master cylinder & disc/drum proportioning valve combo. This 7" power booster is hand polished before a zinc finish is applied for a top quality finish. The black powder coated mount and pushrod assembly is a direct fit to your factory firewall for that fresh factory look. Also included in this kits is a new 1-1/8" bore master cylinder and proportioning valve equipped to work with 4 Wheel Disc applications.
  • New unit not remanufactured
  • THE LEED BRAKES DIFFERENCE
  • Includes brackets and pushrod
  • Expert Advice- Need help with your brake system, contact us today!
  • Fast Shipping Most orders ship within 1-2 business days
  • Warranty Each LEED Brakes product is backed by a 1year warranty
  • EZ Returns Fast returns or refunds
  • HAVE A QUESTION? ASK THE PROS - 1-716-852-2139 Mon-Fri 9am-430pm EST

Retail price
  • $459.95
Features
  • SKU
    761A3
  • Brand
    Leed Brakes
  • Booster Housing Diameter
    7 in.
  • Booster Type
    Vacuum
  • Brake Booster Diaphragm Type
    Dual
  • Brake Booster Finish
    Zinc Plated
  • Brake Booster Type
    Dual Diaphragm
  • Grade Type
    Performance
  • Housing Material
    Steel
  • Includes Bleeder Hoses
    Yes
  • Includes Bracket
    Yes
  • Includes Brake Booster
    Yes
  • Includes Brake Lines
    Yes
  • Includes Brake Pedal Pushrod
    Yes
  • Includes Brake Pedal Rod Extension
    Yes
  • Includes Master Cylinder
    Yes
  • Includes Master Cylinder Cap
    Yes
  • Master Cylinder Bore Size
    1.125 in.
  • Master Cylinder Finish
    Raw
  • Master Cylinder Material
    Cast Iron
  • Master Cylinder Port Quantity
    2
  • Master Cylinder Port Thread Diameter
    9/16 - 18 UNF, 1/2 - 20 UNF
  • Mounting Hardware
    Utilizes OEM Hardware
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Prop 65 - Type
    Cancer and Reproductive
  • Prop 65 - Warning Image Label
    Prop 65 sticker web use.png
See More
Fitment
Installation
  • INS0105 Universal Hydraulic Kit Leed Brakes Instructions Rev A.pdf
More Detail
    • Prop 65 Yes.jpg
    • LEED Brakes Warranty.pdf
