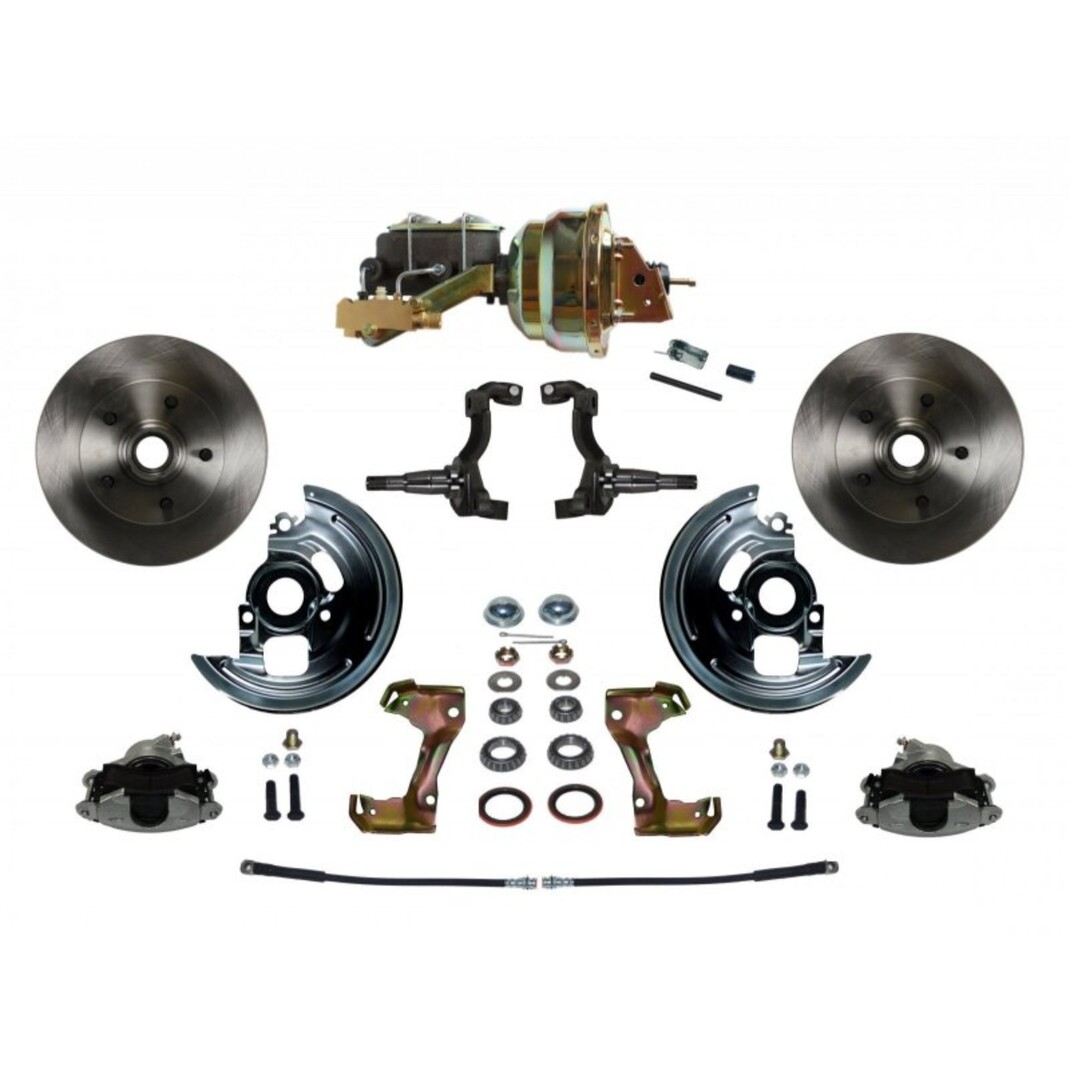

LEED Brakes Power Front Kit with Plain Rotors and Zinc Plated Calipers

Part Number:FC1006-M1A3

Add the safety, reliability and performance of disc brakes to your vehicle with our Chevy disc brake conversion. In this brake disc conversion kit, you receive everything you need to mount single piston disc brakes to the control arms of your vehicle. All components used in this Chevy disc brake conversion are new high quality, precision machined products. <strong>Converts the vehicle to 5 Lug. 1962-64 cars must use 1965-67 Chevy II V8 (5 lug) Steering Arms</strong>

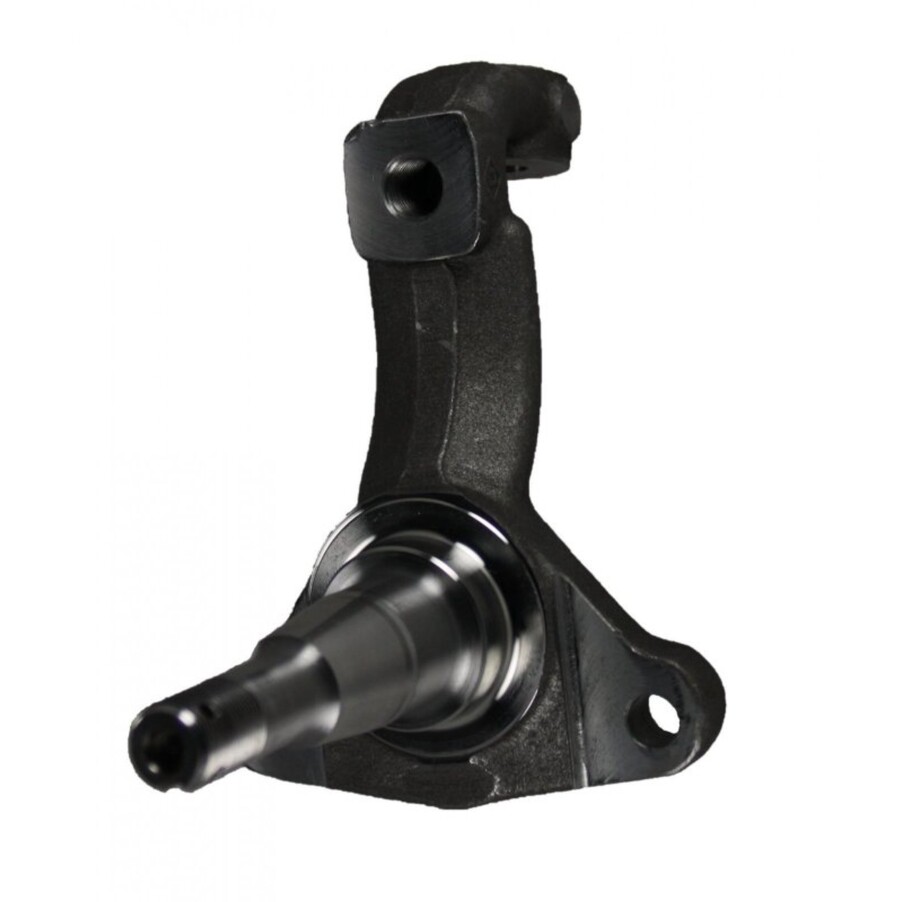

Includes new disc brake spindles
THE LEED BRAKES DIFFERENCE

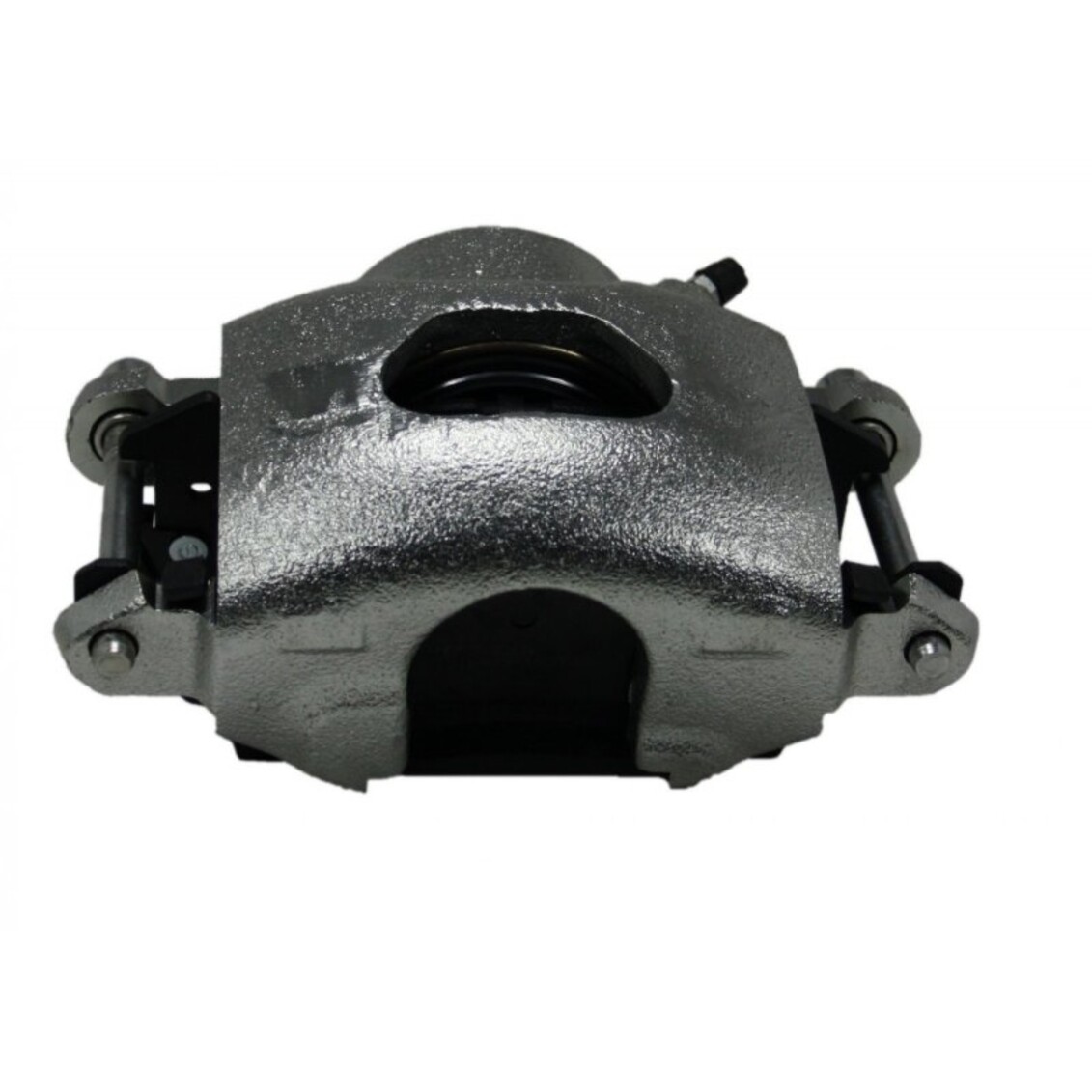

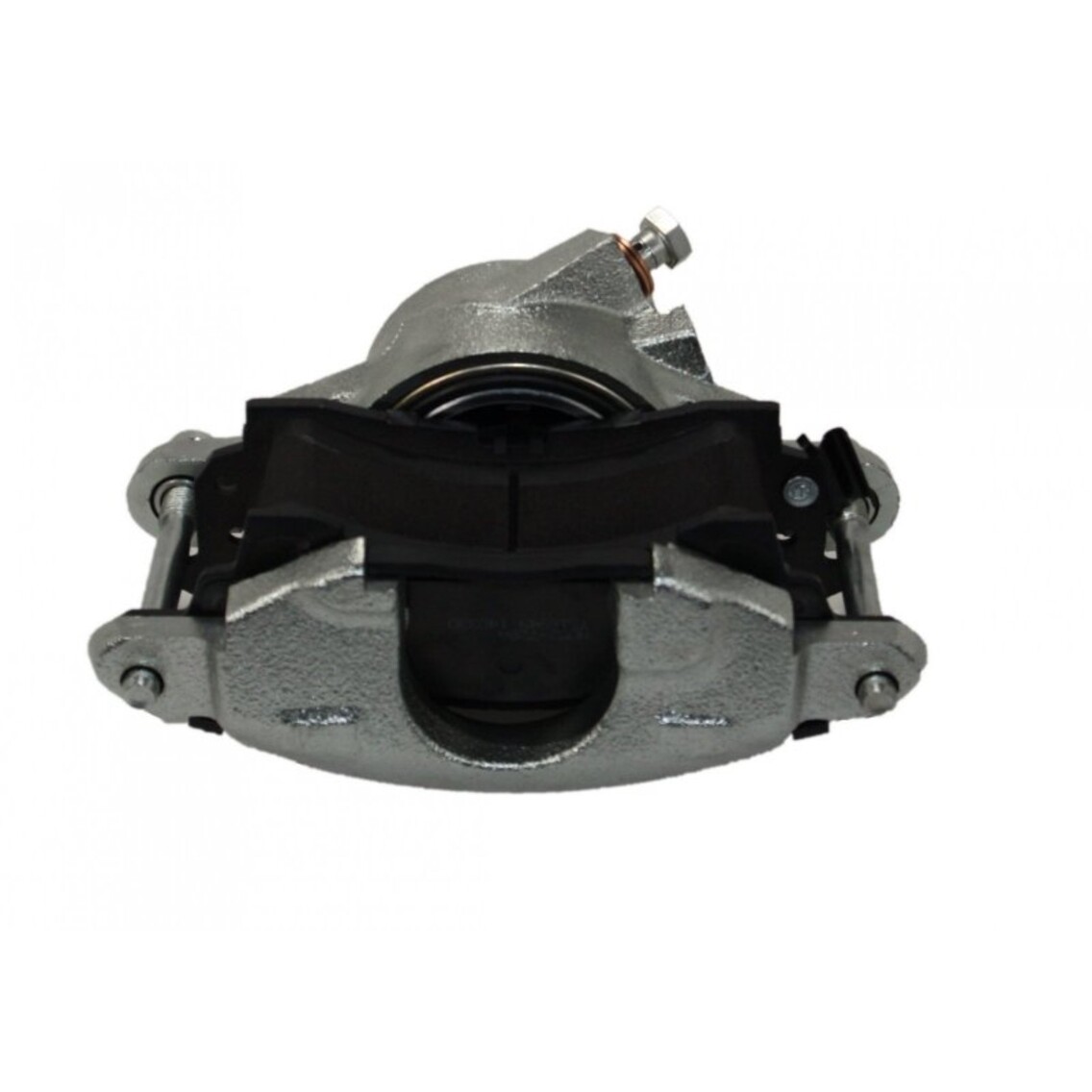

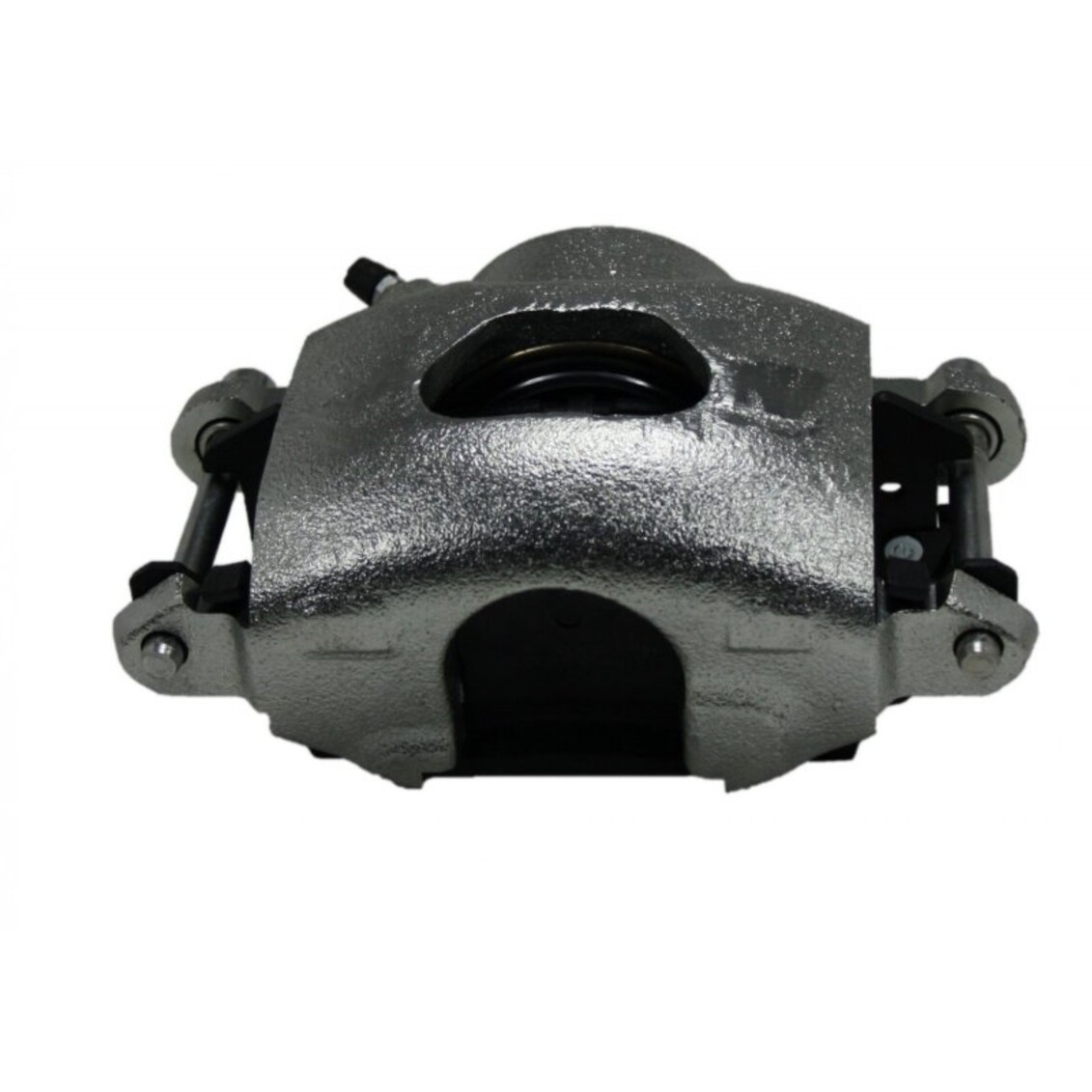

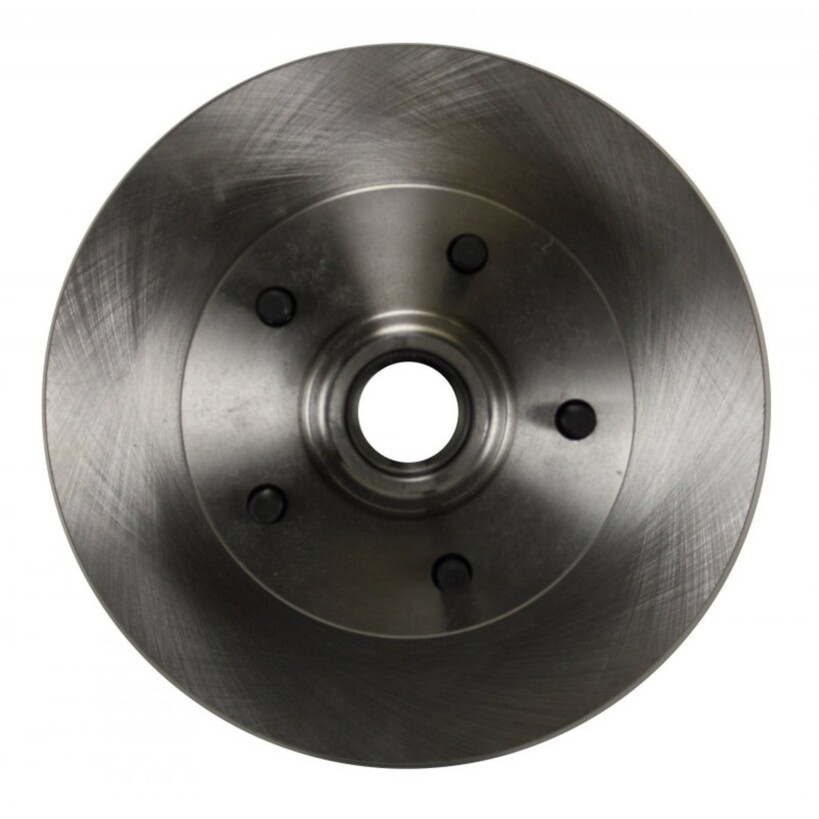

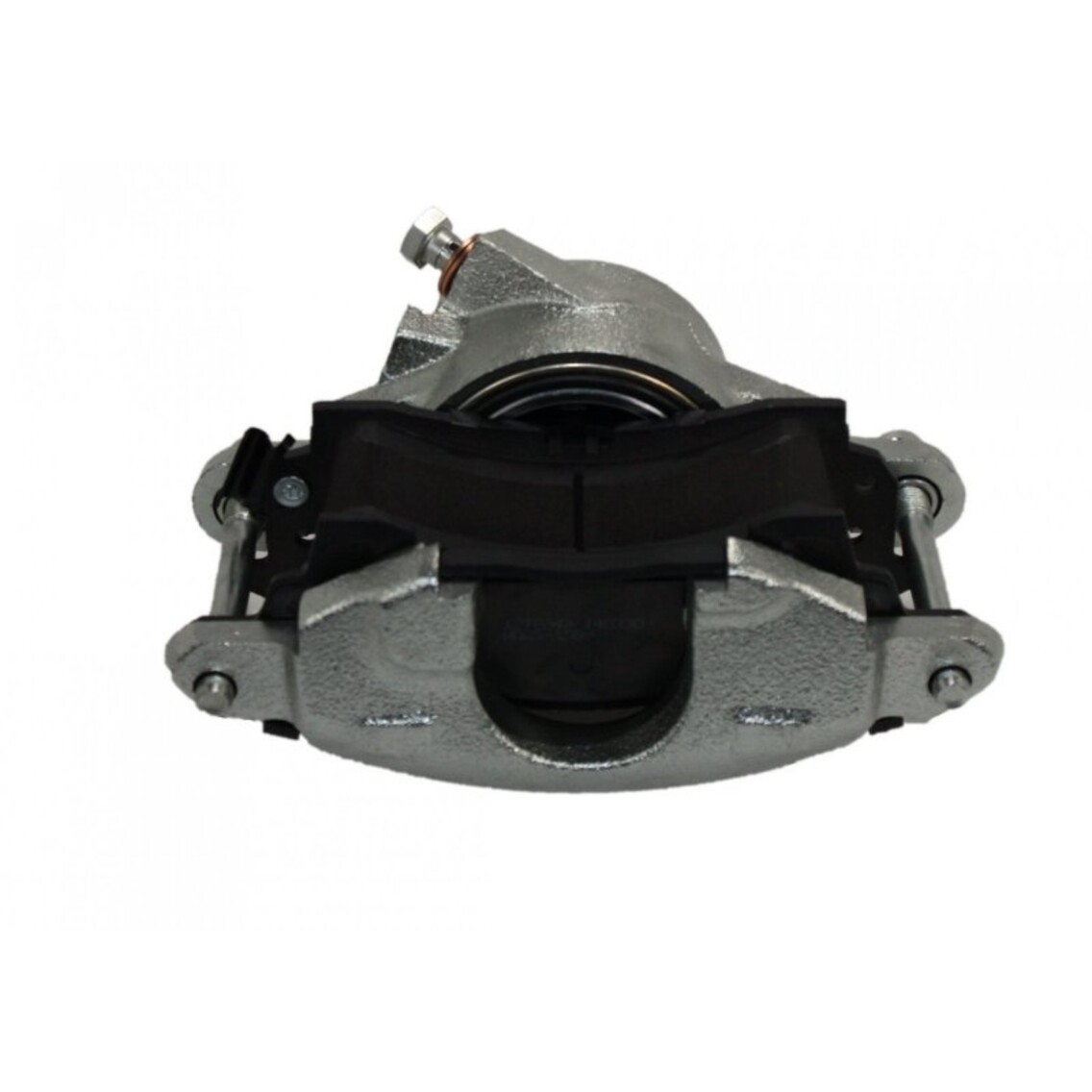

Includes new single piston calipers and 11" rotors

Retail price

Features
Fitment
Installation
More Detail
Videos

Features

- SKU
  FC1006-M1A3
- Brand
  Leed Brakes

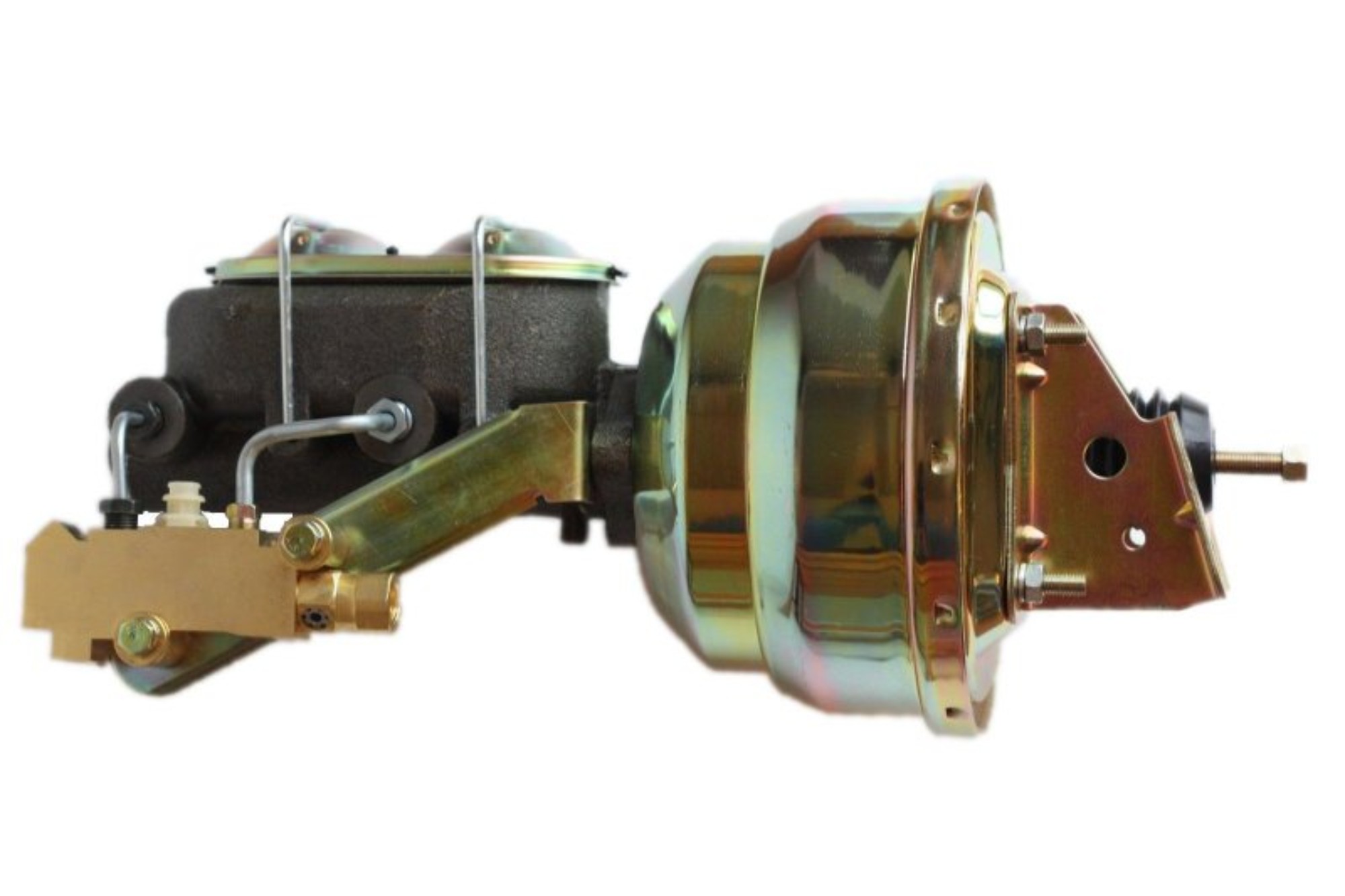

- Brake Booster Diameter
  8 in.
- Brake Booster Finish
  Zinc Plated
- Brake Booster Type
  Dual Diaphragm
- Brake Pad Material
  Semi-Metallic

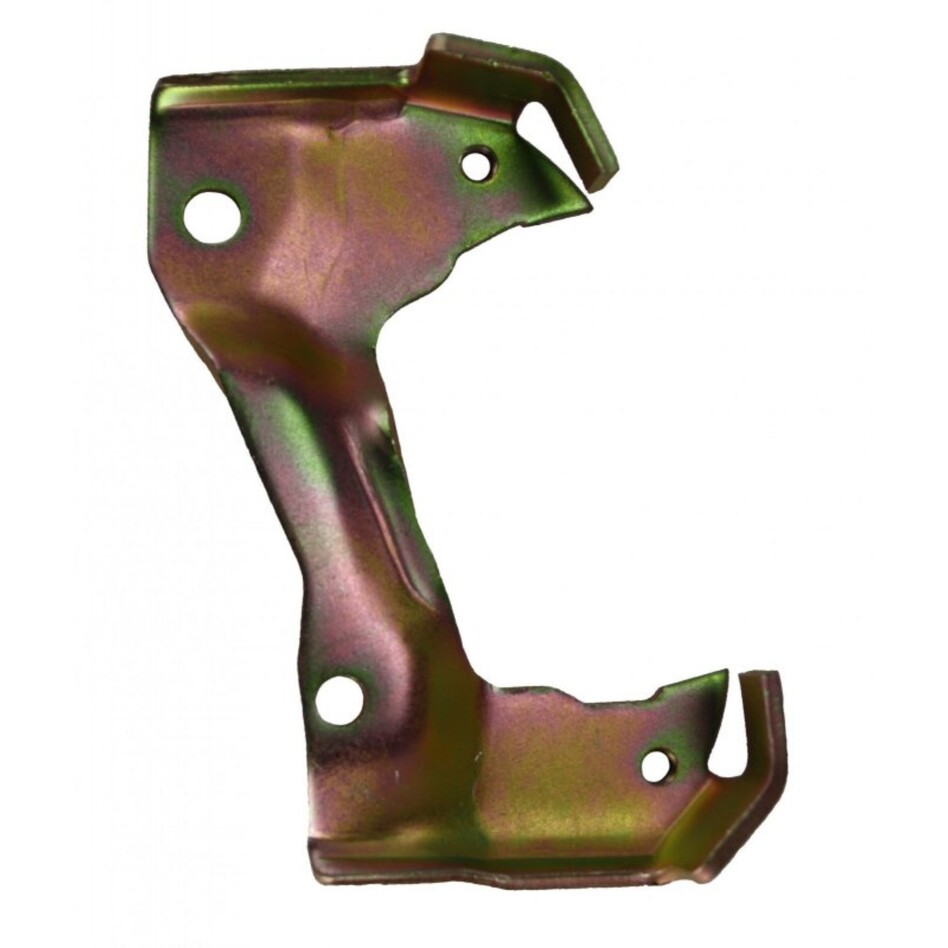

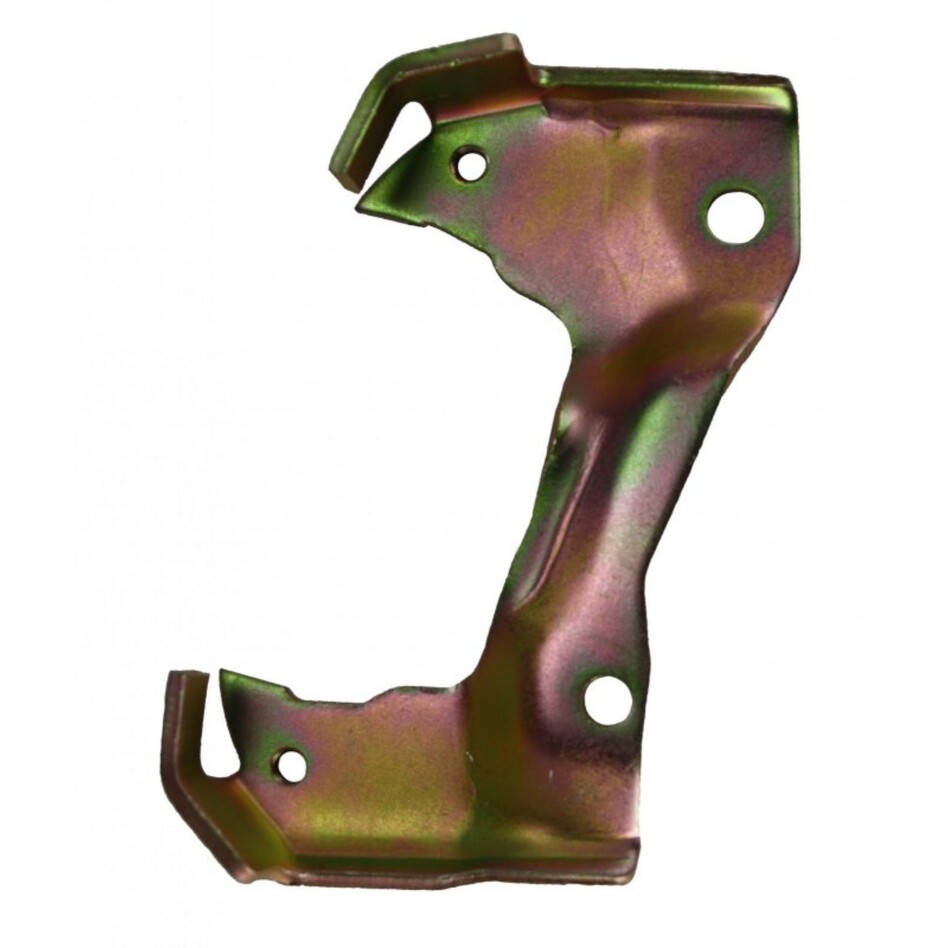

- Caliper Bracket Color
  Gold
- Caliper Bracket Material
  Steel
- Caliper Bracket Mount Hole Center To Center Length
  7.0 in.
- Caliper Bracket Mount Hole Diameter
  7/16 - 20 UNF
- Caliper Finish
  Zinc Plated
- Caliper Material
  Cast Iron
- Caliper Piston Quantity
  1
- Disc Brake Rotor Type
  Vented
- Flex Hose 1 Bracket
  Is not Attached
- Flex Hose 1 Length
  15.75 in.
- Flex Hose 2 Bracket
  Is not Attached
- Flex Hose End 2 Thread Diameter
  0.44 in.
- Flex Hose Fitting Gender - End 1
  Female
- Flex Hose Fitting Gender - End 2
  Banjo
- Flex Hose Thread Diameter - End 1
  3/8 - 24 UNF
- Grade Type
  Standard
- Includes Brake Booster
  Yes
- Includes Brake Lines
  Yes - From Master Cylinder to Valve
- Includes Brake Pedal Pushrod
  Yes
- Includes Brake Rotor
  Yes
- Includes Caliper
  Yes
- Includes Caliper Slides
  Yes
- Includes Master Cylinder
  Yes
- Includes Spindles
  Yes - Stock Ride Height
- Master Cylinder Bore Size
  1.13 in.
- Master Cylinder Finish
  Raw
- Master Cylinder Material
  Cast Iron
- Minimum Recommended Wheel Diameter
  14 x 7 in.
- Position
  Front
- Prop 65 - Required to list in California with Warning
  Yes
- Prop 65 - Short Label
  WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Prop 65 - Type
  Cancer and Reproductive
- Prop 65 - Warning Image Label
  Prop 65 sticker web use.png
- Rotor Diameter
  11.0 in.
- Rotor Finish
  Raw
- Rotor Material
  Cast Iron
- Rotor Material
  Cast Iron
- Rotor Outside Diameter
  11.0 in.
- Rotor Style
  Smooth
- Rotor Style
  Standard
- Rotor Thickness
  1.0 in.
- Rotor Thickness
  1.035 in.
- Spindle Finish
  Raw
- Spindle Material
  Forged Steel
- Spindle Type
  OEM
- Wheel Lug Hole Quantity
  5

Fitment

Make	Model	Submodel	Year
Chevrolet	Chevy II	Base	1962
Chevrolet	Chevy II	Base	1963
Chevrolet	Chevy II	Base	1964
Chevrolet	Chevy II	Base	1965
Chevrolet	Chevy II	Base	1966
Chevrolet	Chevy II	Base	1967

Installation

INS0003 FC1002 FC1006 Series Power Kit Instructions.pdf

More Detail

LEED Brakes Warranty.pdf
