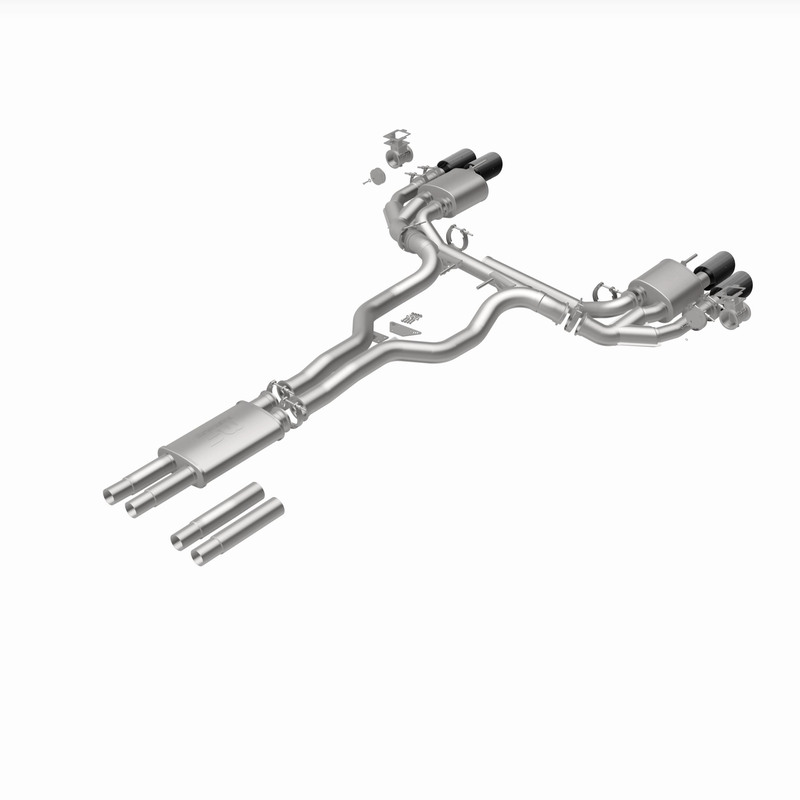

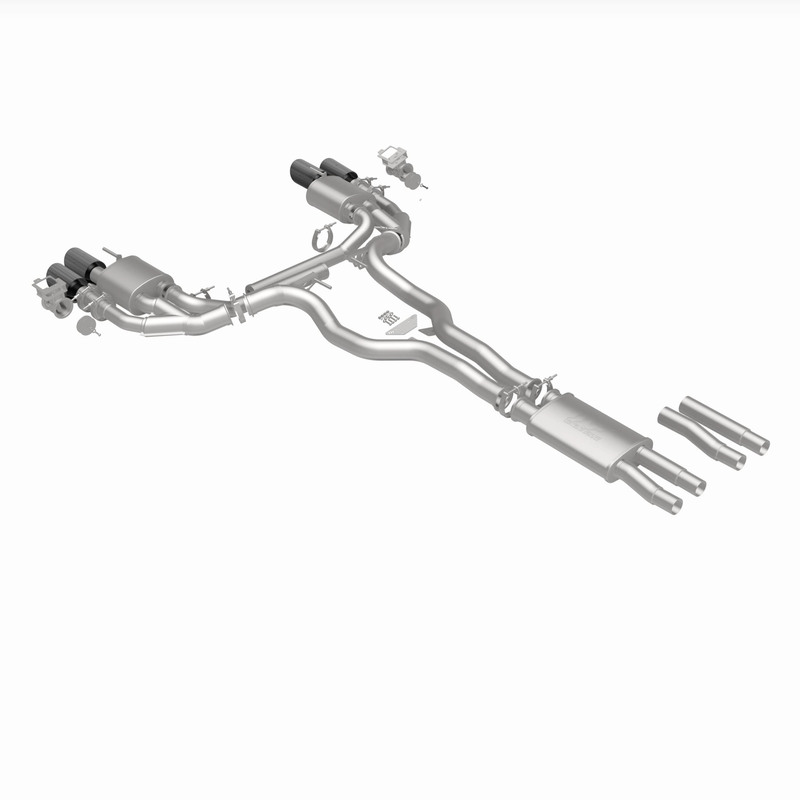

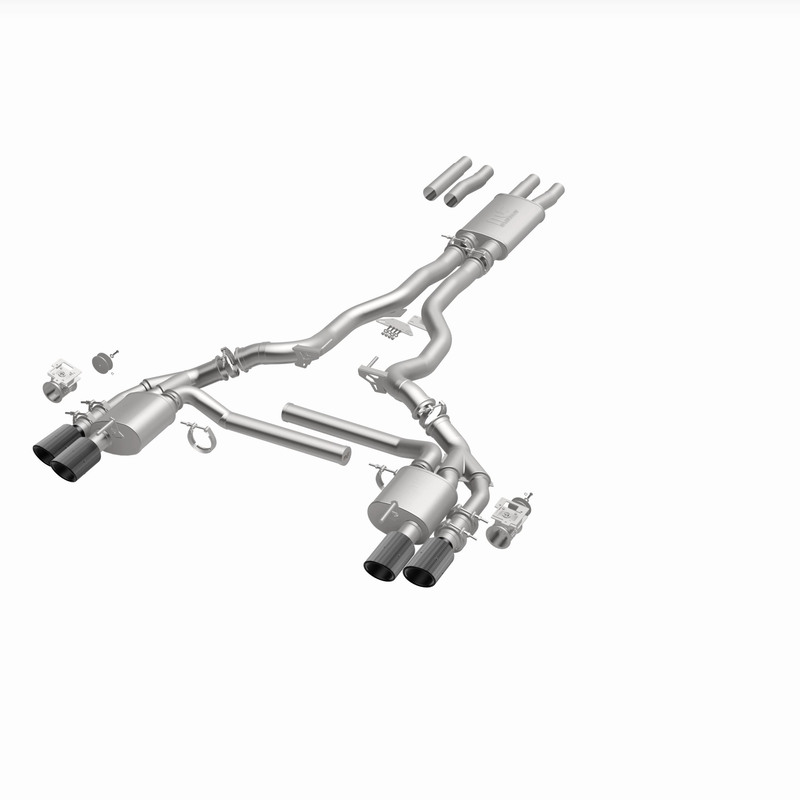

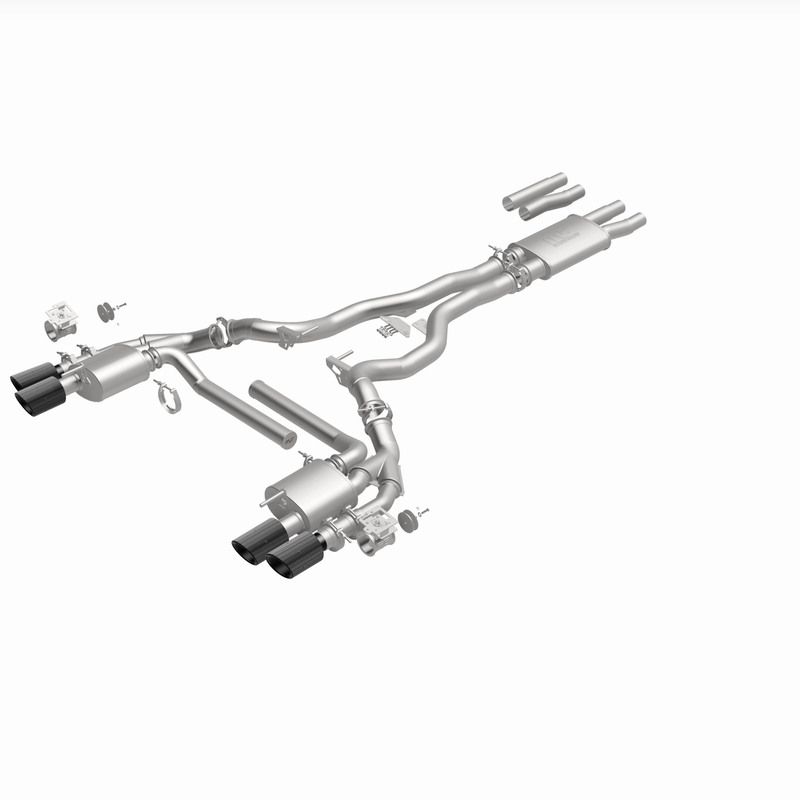

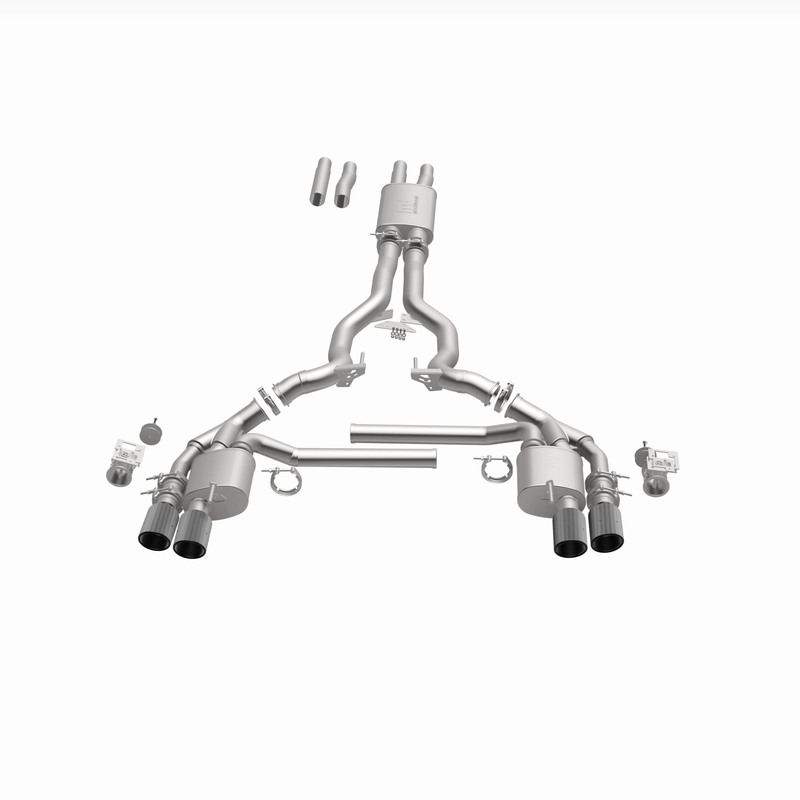

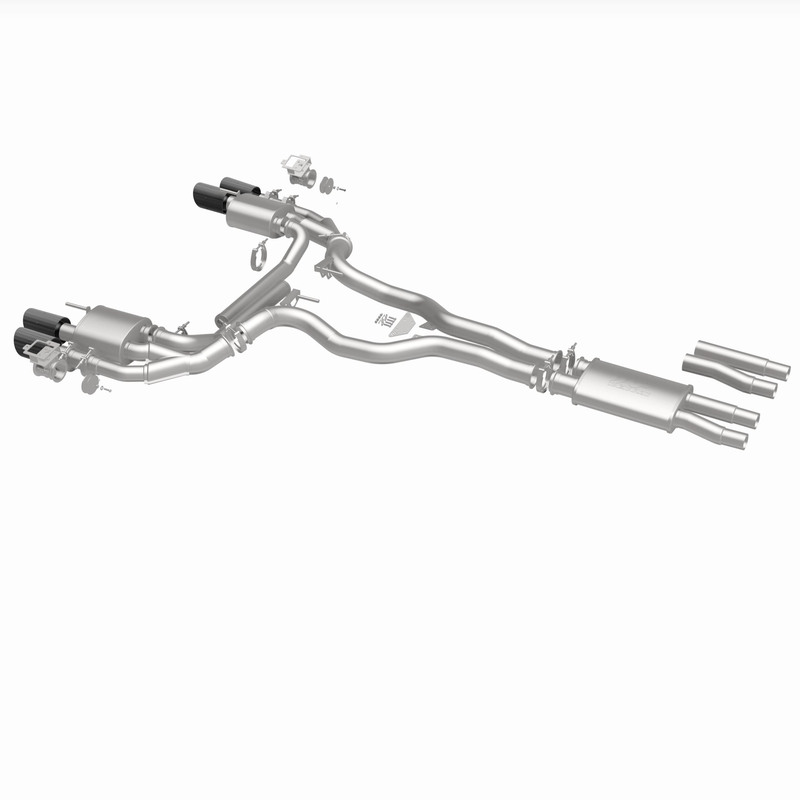

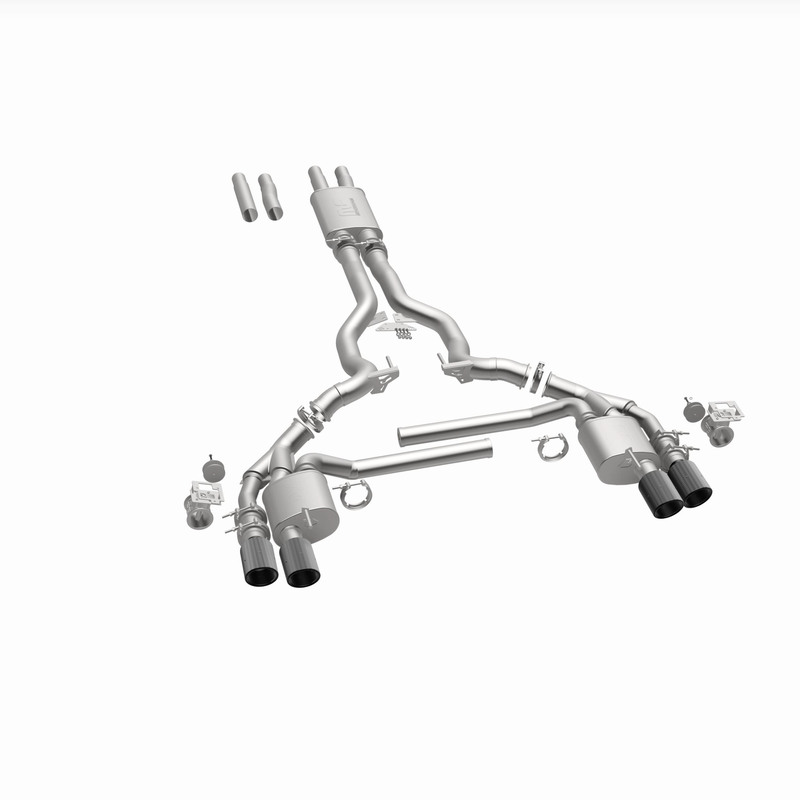

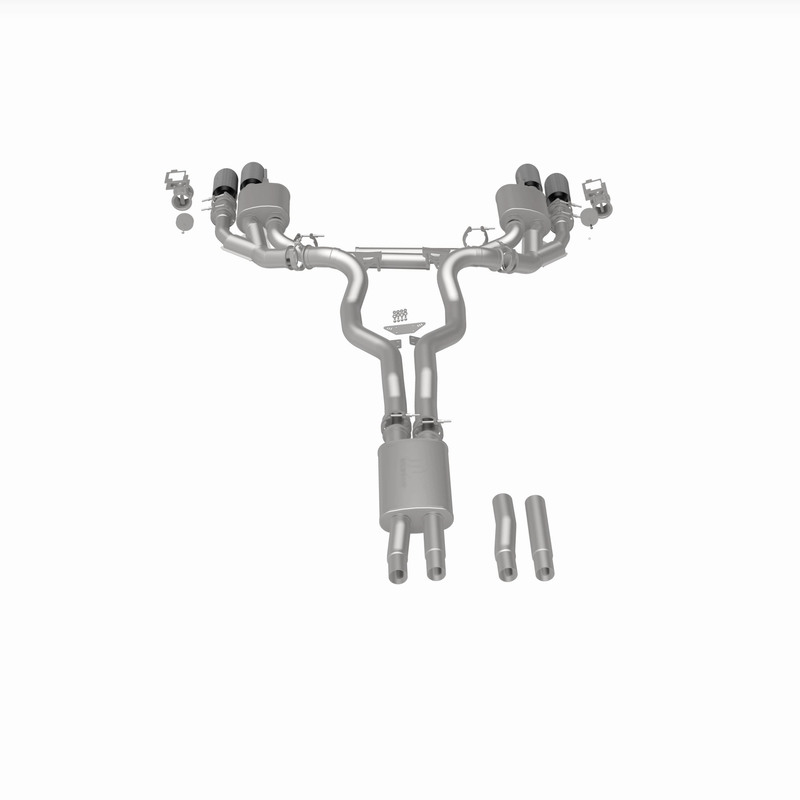

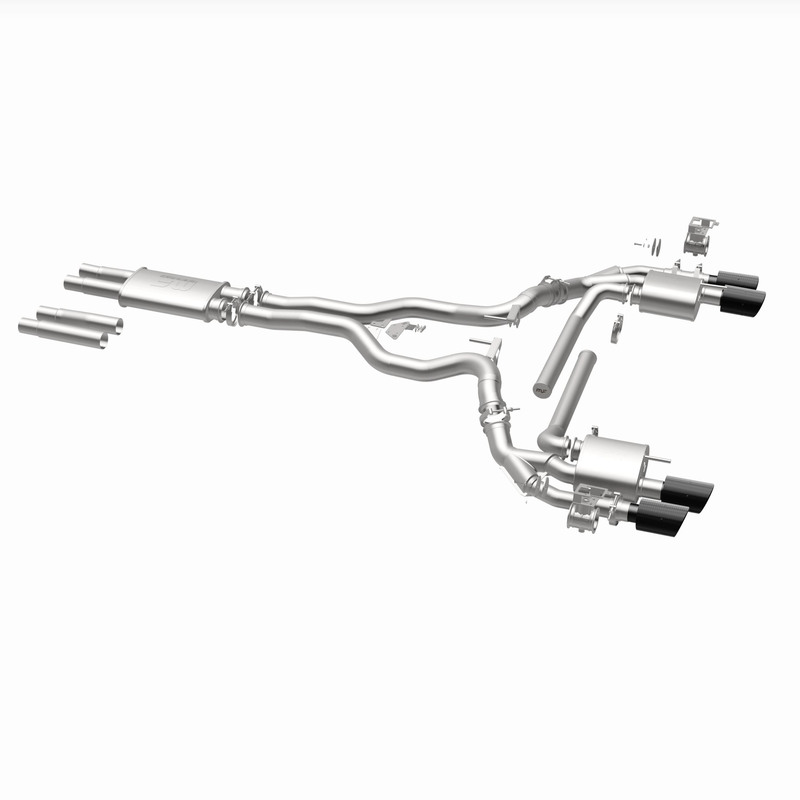

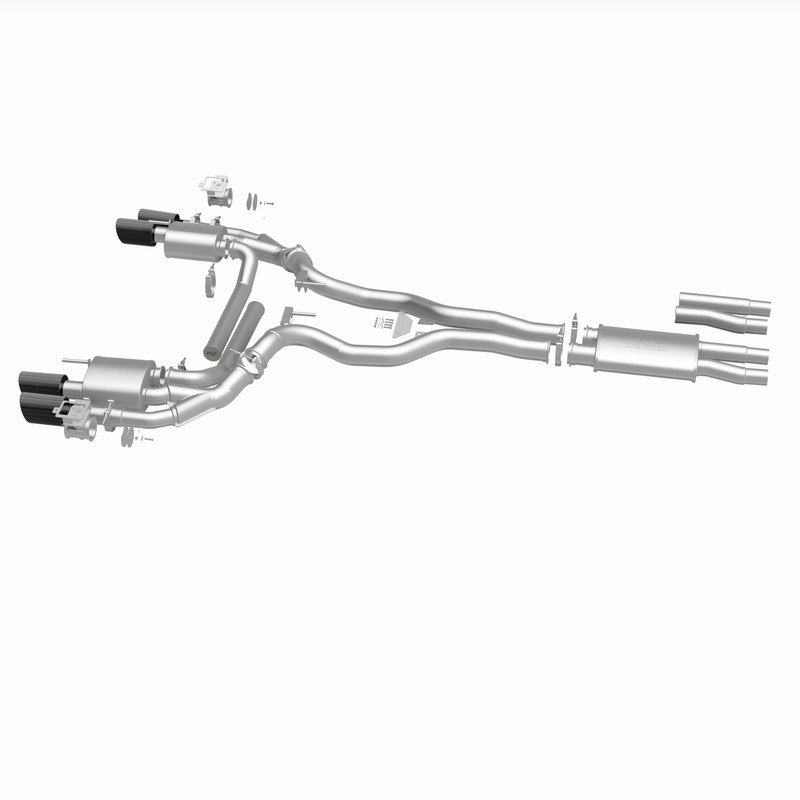

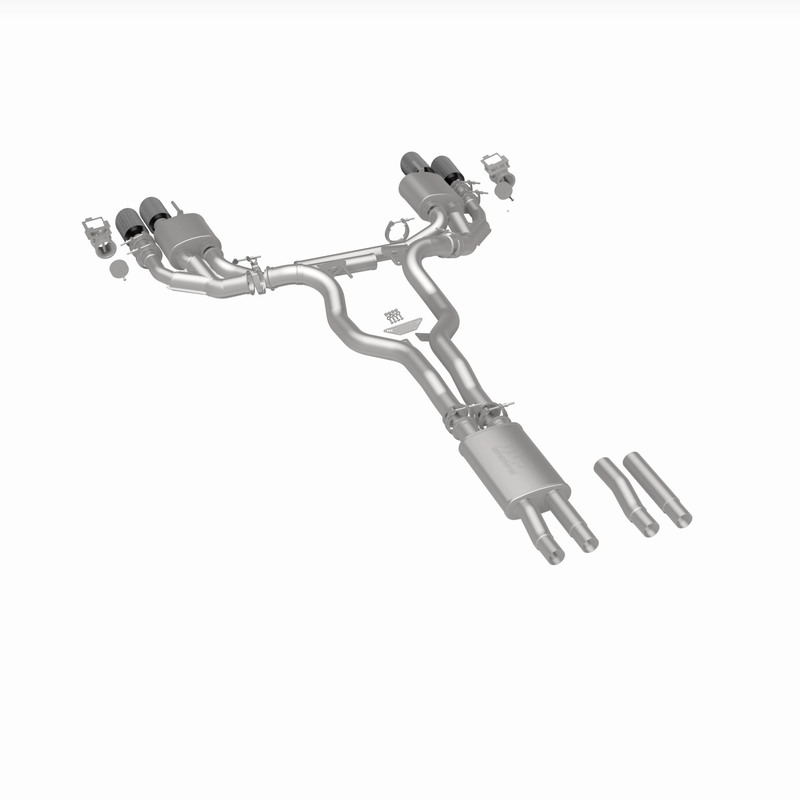

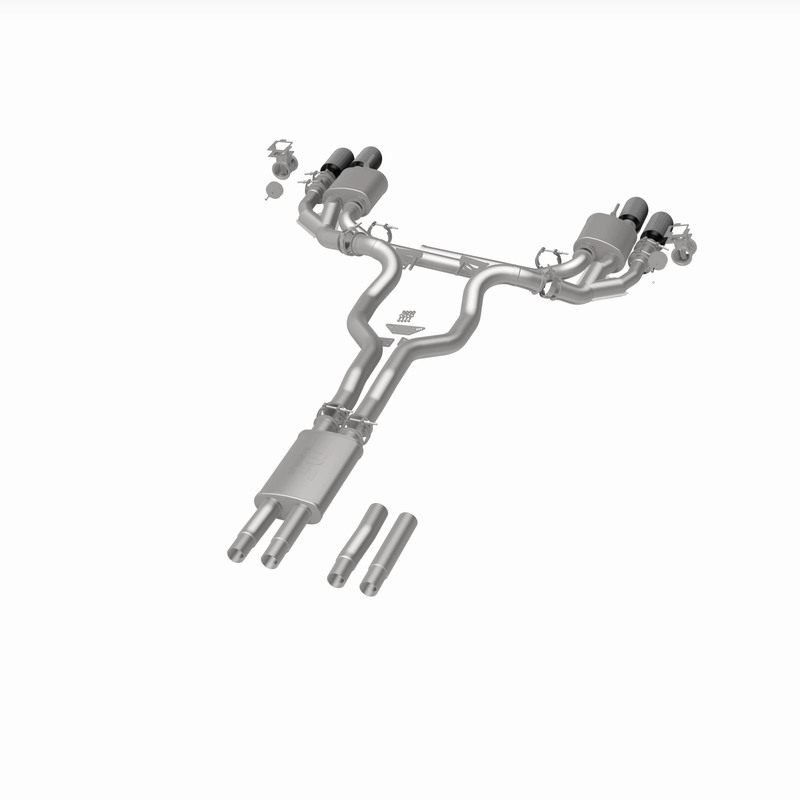

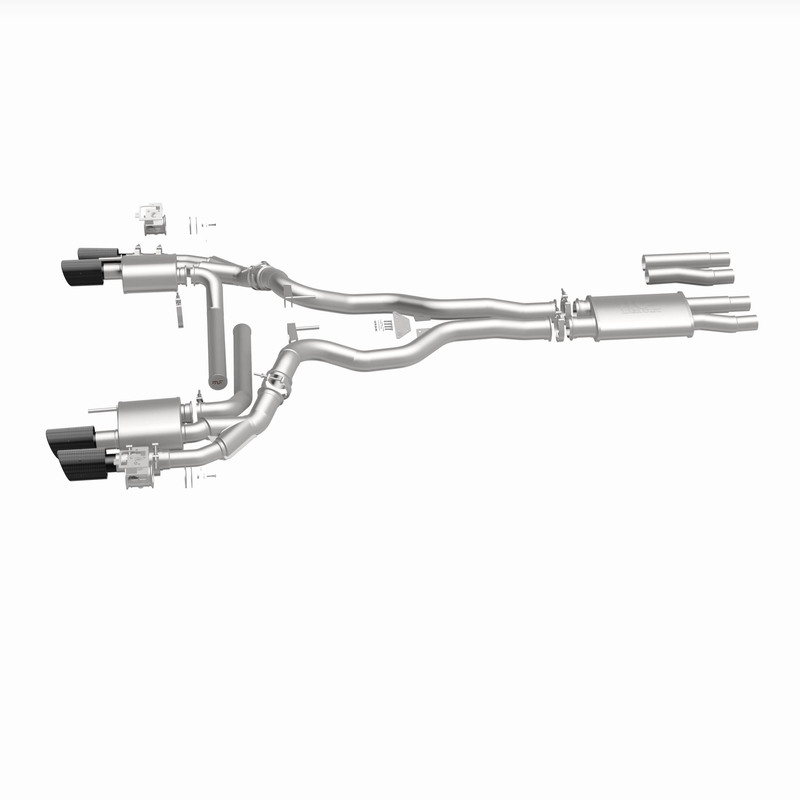

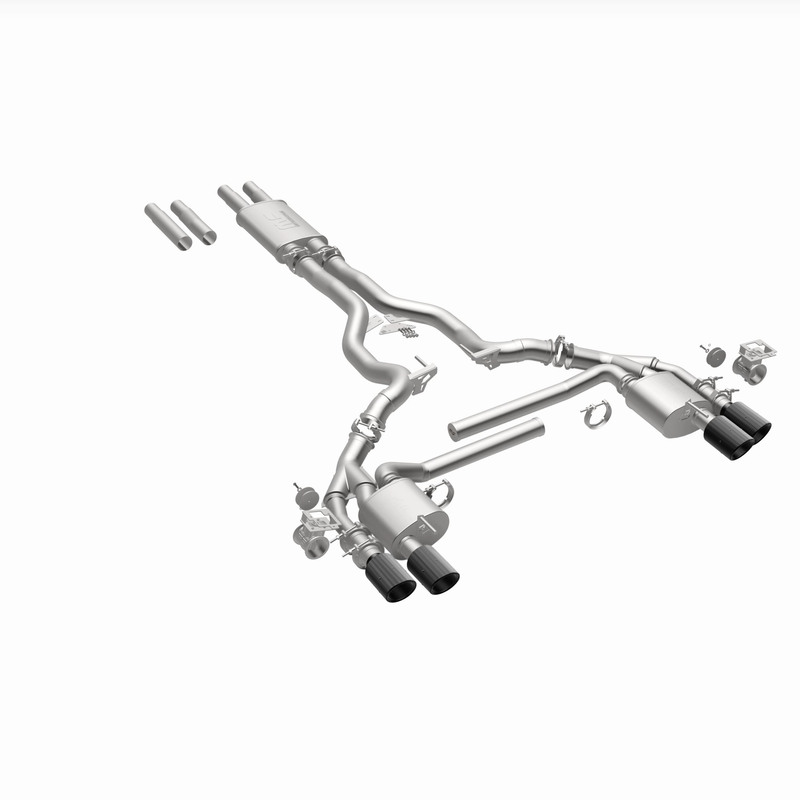

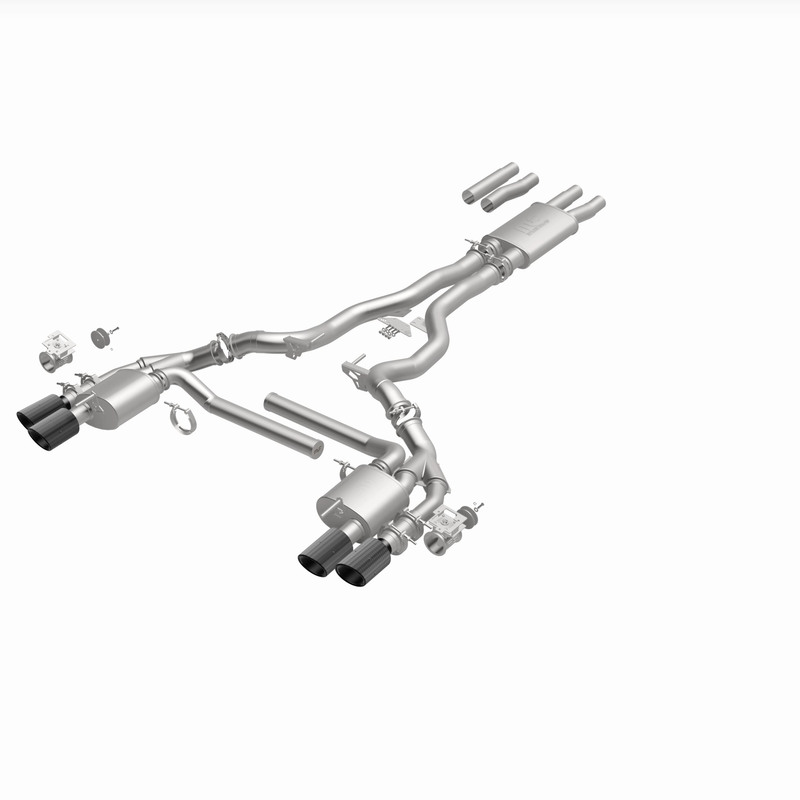

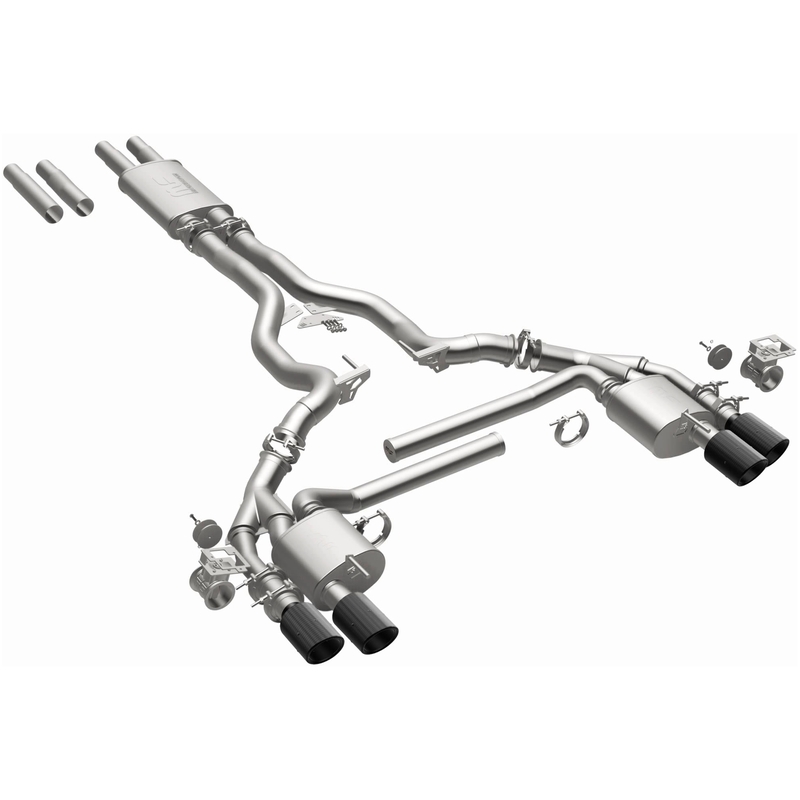

MagnaFlow 2018-2023 Ford Mustang xMOD Series Cat-Back Performance Exhaust System

Part Number:19535

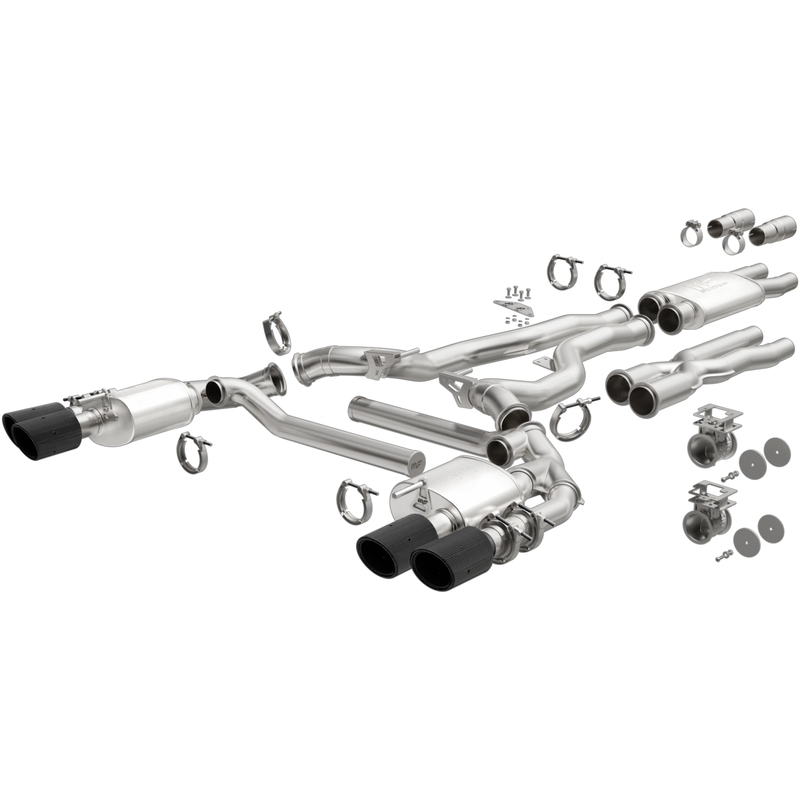

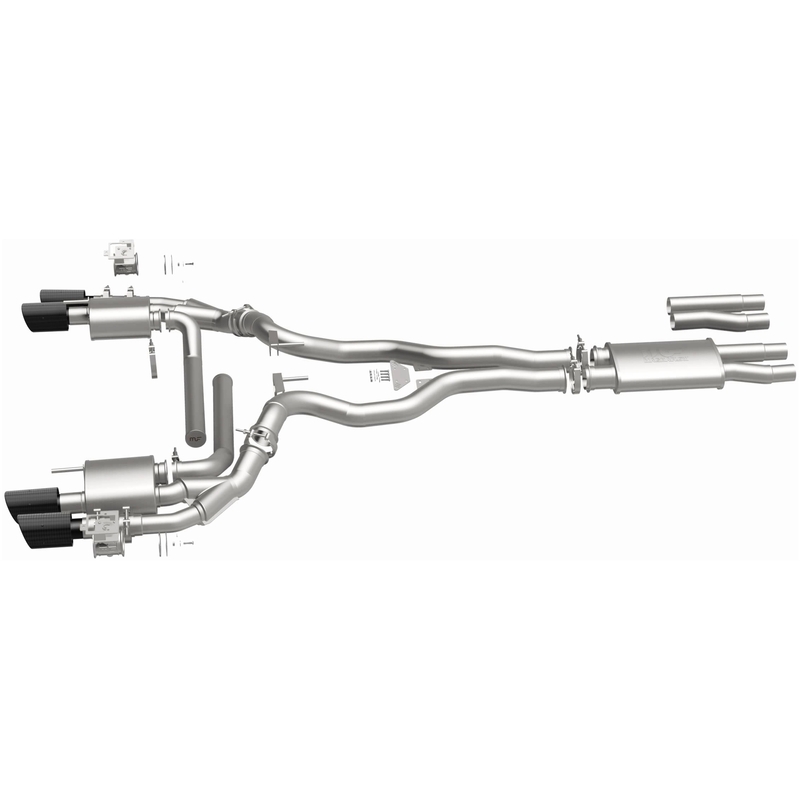

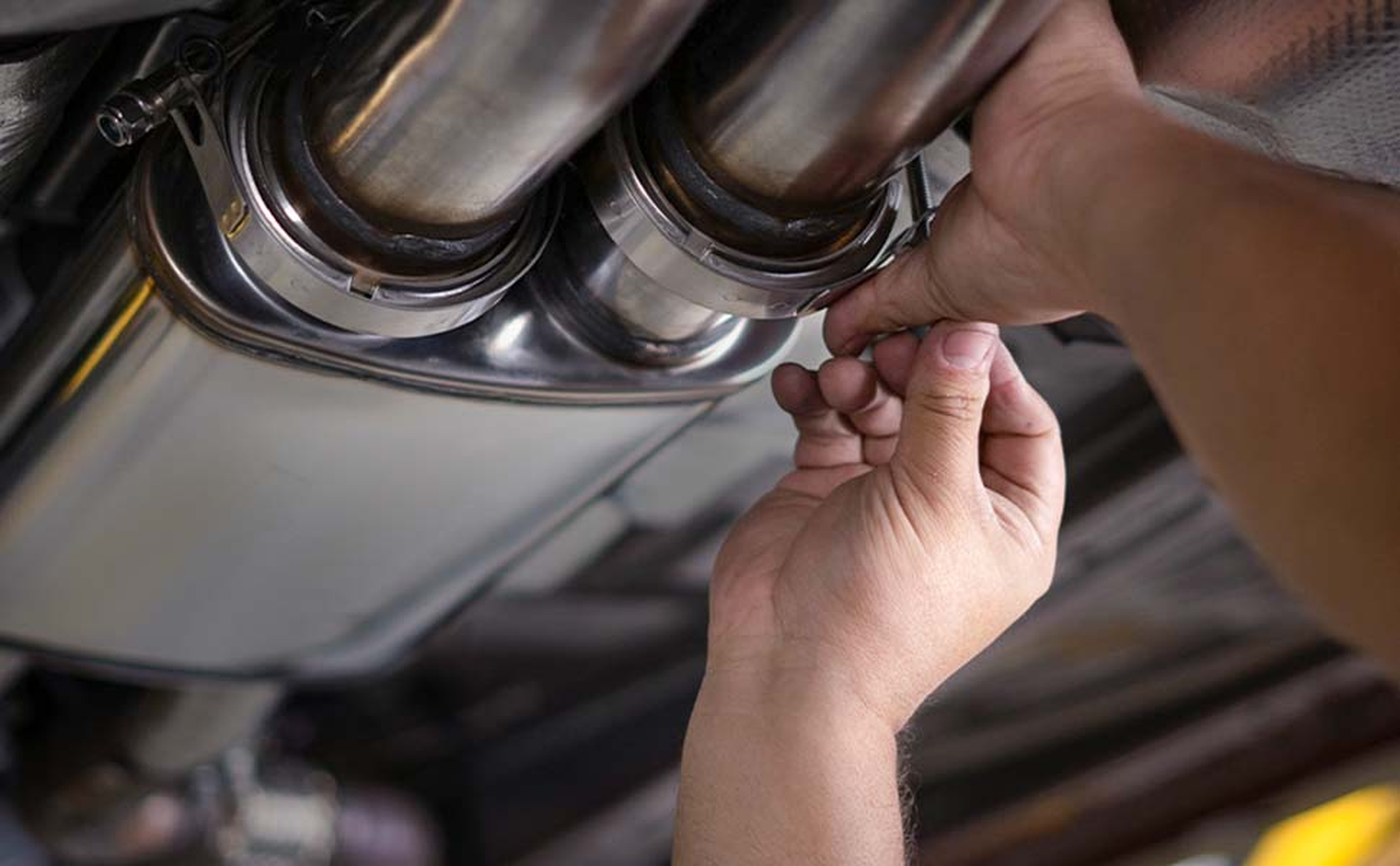

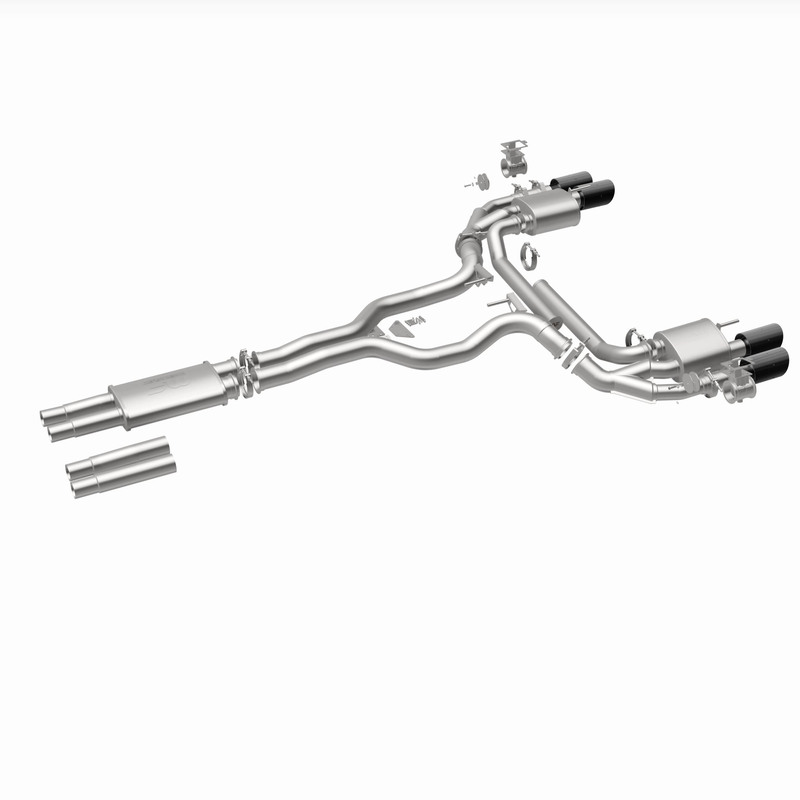

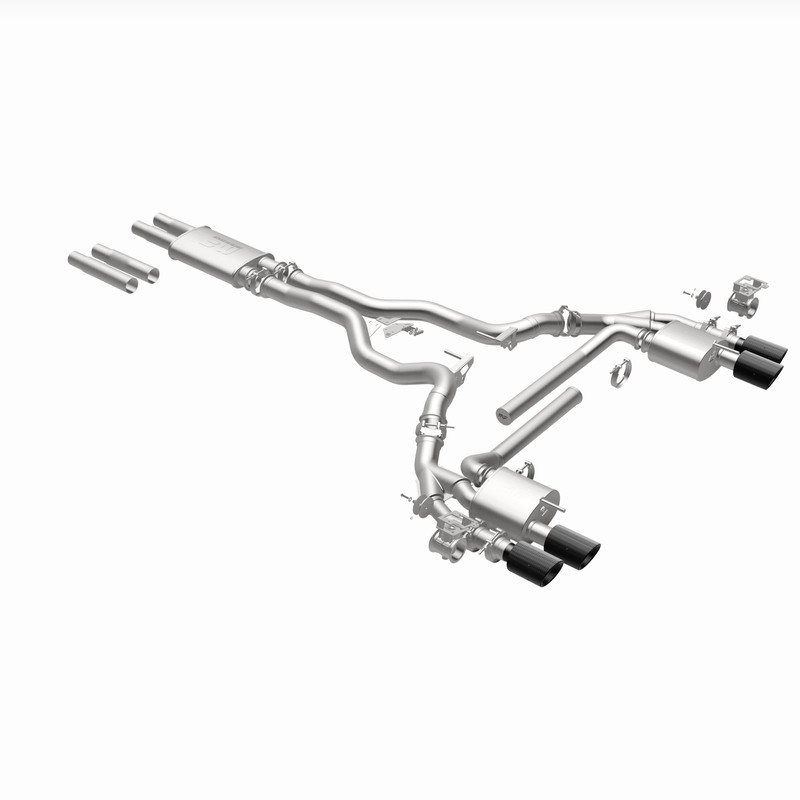

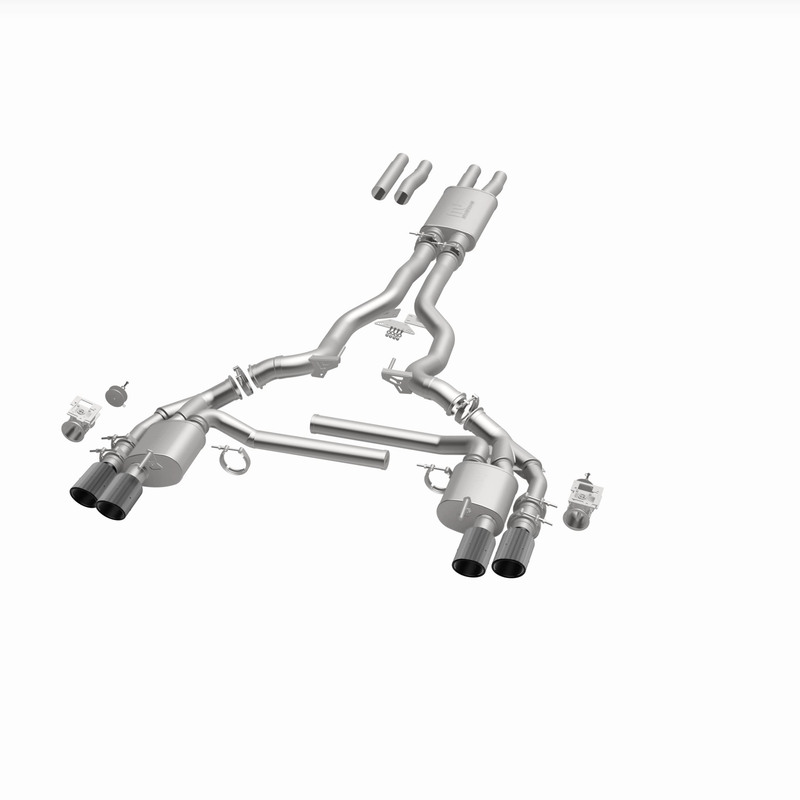

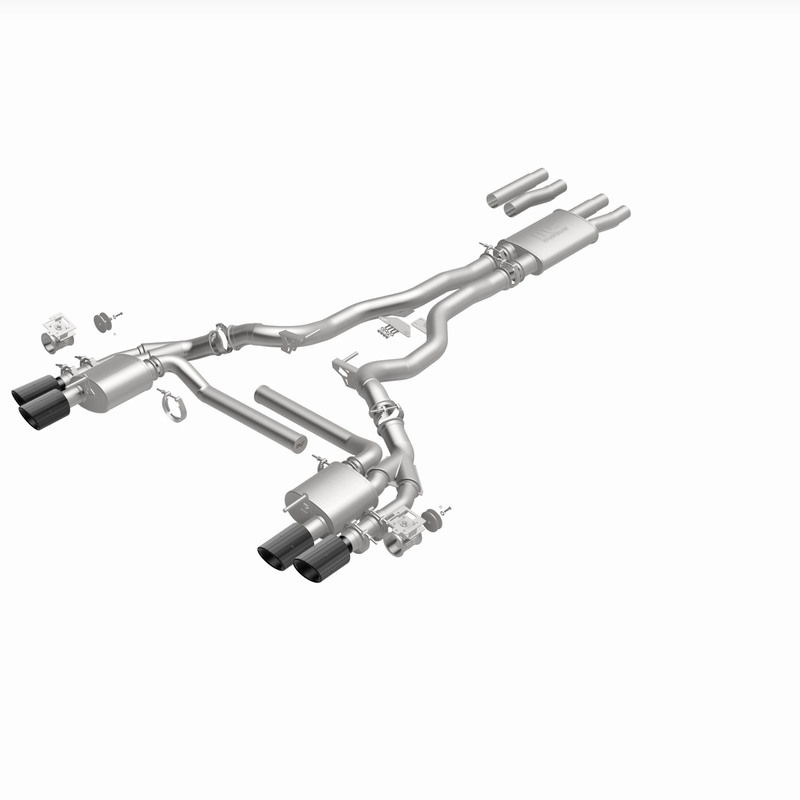

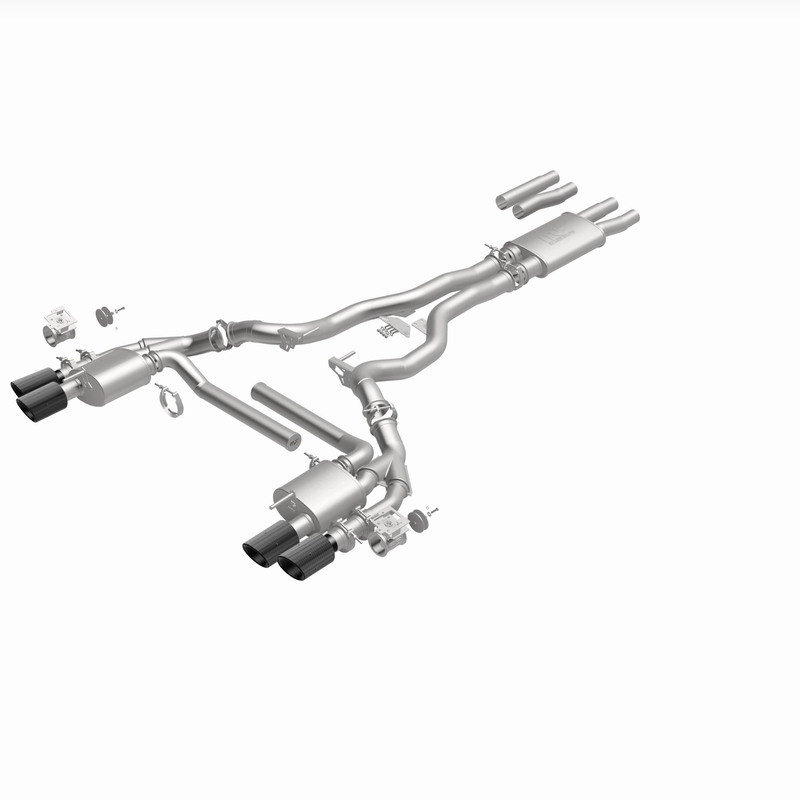

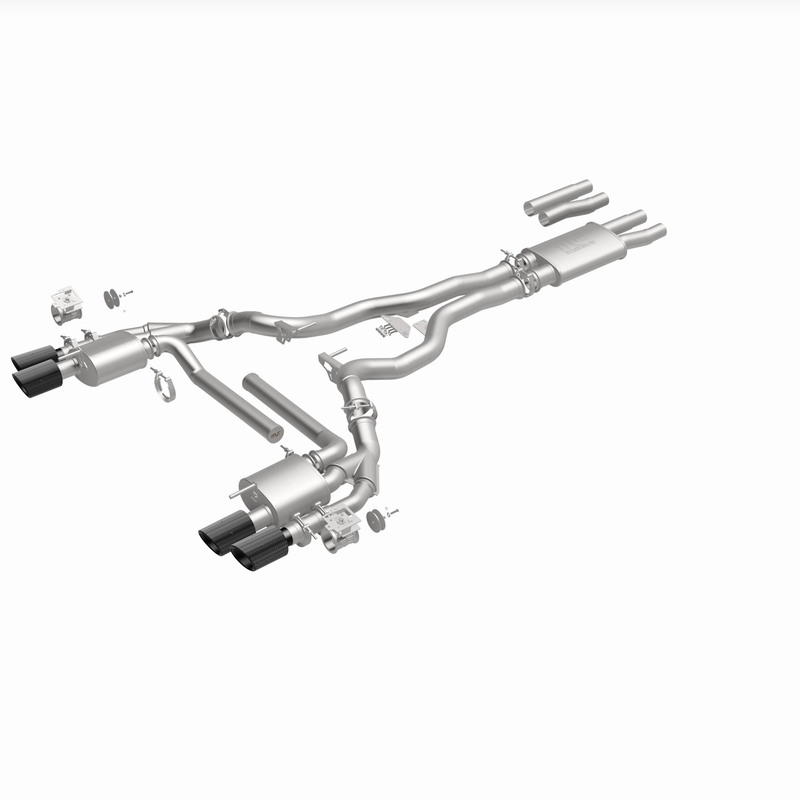

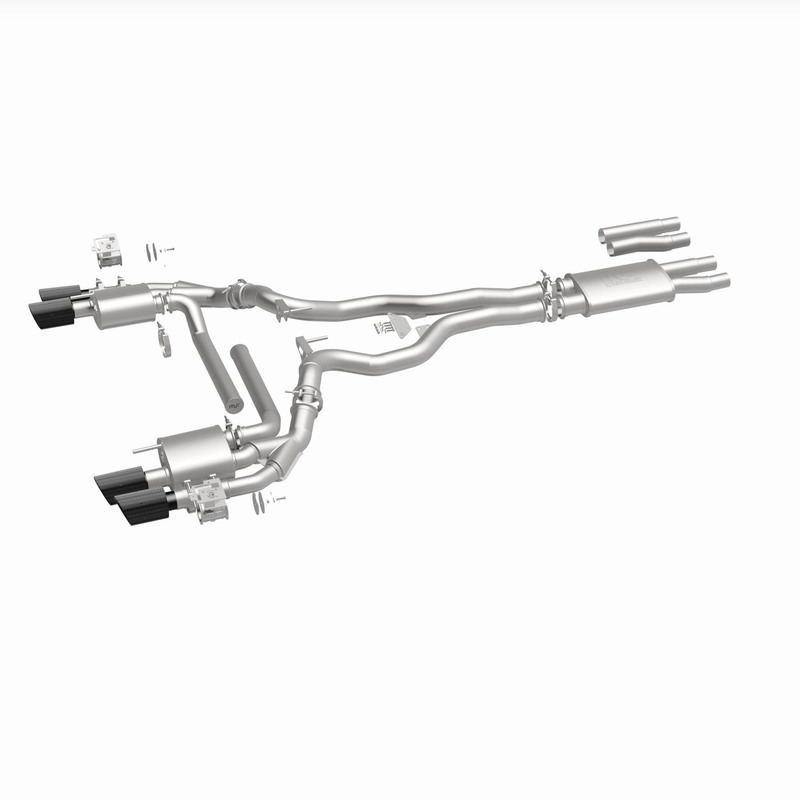

Configure your 2018-2023 Mustang GT Coupe for the sound you want, when you want it! MagnaFlow's premium performance exhaust offering, the xMOD Series, provides an unrivaled exhaust experience! The revolutionary MagnaFlow 2018-2023 Ford Mustang XMOD Series Cat-Back Performance Exhaust System 19535 offers a completely modular exhaust system with all the benefits a MagnaFlow premium exhaust is known for: lifetime warrantied stainless-steel construction, dyno-proven performance featuring straight-through mufflers and fast-flowing mandrel bent pipes. xMOD Muffler Modules for the Mustang offer MagnaFlow's proven straight-through Tru-X core design with a 4" x 9” oval by 14" long muffler, and now feature race bred v-band clamps for quick installation and removal. Easily switch from the deep, aggressive signature MagnaFlow exhaust note to the wild straight-pipe race car sound offered by the xMOD xTreme Delete Tru-X. xMOD xTreme Delete Tru-X for the Mustang comes equipped with the same race bred v-bands which allow removal of the Tru-X core muffler modules for that unmatched xMOD xTreme sound experience. PLEASE NOTE: While xMOD systems are 100% emissions legal, the use of xTreme Deletes combined with xTreme Bypass is recommended for track use only. Check local noise regulations for street legality. In addition to the xMOD variable sound and flow modules, this system incorporates MagnaFlow’s latest exhaust tuning advancement called No Drone Technology (NDT). MagnaFlow’s NDT, along with careful muffler design and placement, utilizes 1/4 wave passive noise cancellation to remove unwanted drone that can occur when creating a maximum performance, high flow exhaust system. xMOD systems retain the original equipment exhaust valve functionality. The NDT resonators are also attached with v-bands to offer the ability to remove or tune them if you have made substantial modifications to your powertrain.
  • No-Drone-Technology (NDT) allows for a quiet cabin
  • xTreme Delete Modules for a straight-pipe setup
  • Configurable sound from mild to wild
Retail price
  • $4,081.51
Features
  • SKU
    19535
  • Brand
    MagnaFlow Exhaust Products
  • Baffle Design
    Straight-Through, Multi-Chamber
  • Clamp Style
    Band Clamp, V-Bolt Clamp
  • Exhaust Tip Cut
    Angle
  • Exhaust Tip Diameter
    4.0 in.
  • Exhaust Tip Edge
    Rolled
  • Exhaust Tip Intercooled
    No
  • Exhaust Tip Length
    7.75 in.
  • Exhaust Tip Material
    Carbon Fiber
  • Exhaust Tip Quantity
    4
  • Exhaust Tip Shape
    Round
  • Exhaust Tip Wall
    Double
  • Exit Location
    Quad Split Rear
  • Includes Catalytic Converters
    No
  • Includes Clamps
    Yes
  • Includes Gasket or Seal
    Yes
  • Includes Hangers
    Yes
  • Includes Mounting Bracket
    No
  • Includes Valve
    Yes
  • Installation Method
    Clamp-On
  • Installation Method
    Weld-On
  • Main Piping Diameter
    3.0 in.
  • Muffler Body Height Position Center
    4.0 in.
  • Muffler Body Height Position Rear Inside
    2.5 in.
  • Muffler Body Height Position Rear Outside
    5.0 in.
  • Muffler Body Length Position Front
    14.0 in.
  • Muffler Body Length Position Rear Inside
    26.625 in.
  • Muffler Body Length Position Rear Outside
    8.0 in.
  • Muffler Body Material
    Stainless Steel
  • Muffler Body Width Position Front
    9.0 in.
  • Muffler Body Width Position Rear Inside
    2.5 in.
  • Muffler Body Width Position Rear Outside
    8.0 in.
  • Muffler Finish
    Polished
  • Muffler Quantity
    5
  • Muffler Type Position Front
    Straight-Through
  • Muffler Type Position Rear Inside
    Tuned Chamber
  • Muffler Type Position Rear Outside
    Straight-Through
  • Pipe Material
    Stainless Steel
  • Product Type
    Cat-Back
  • Series
    xMOD
  • Valve Type
    Actuated
