        ACT Mod-Twin 225 HD Rigid Street

        Part Number:T1S-S07

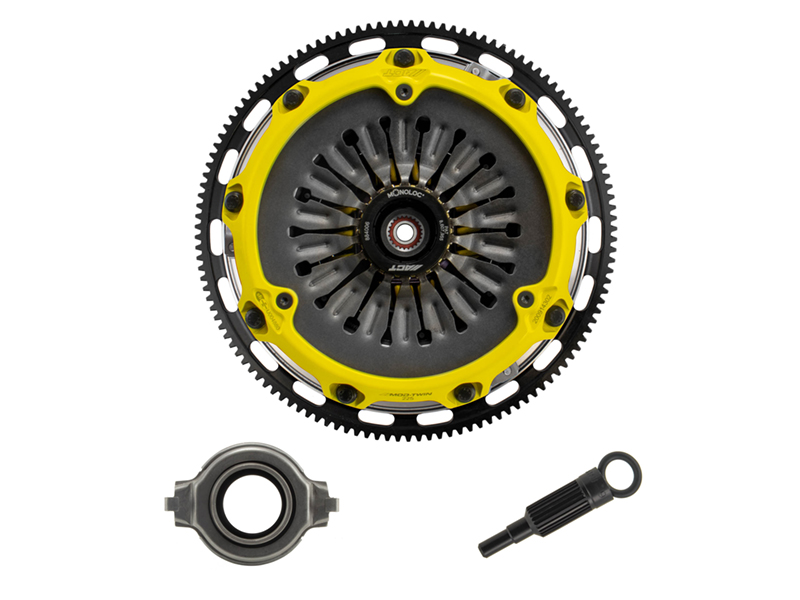

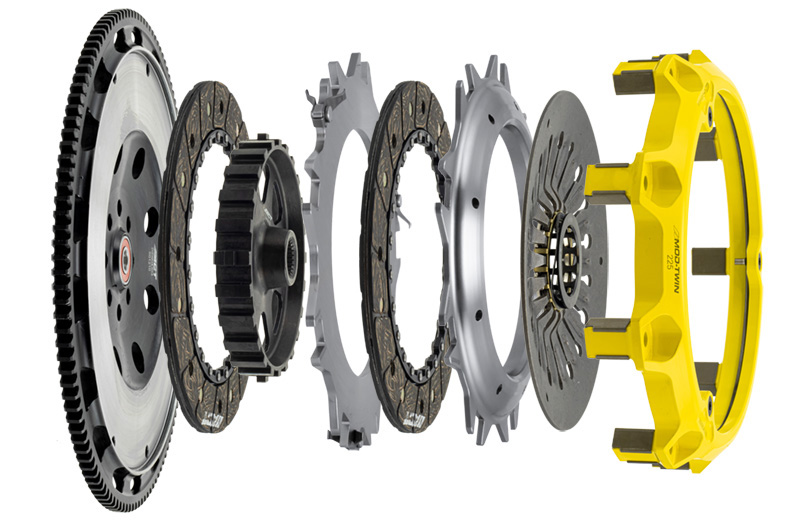

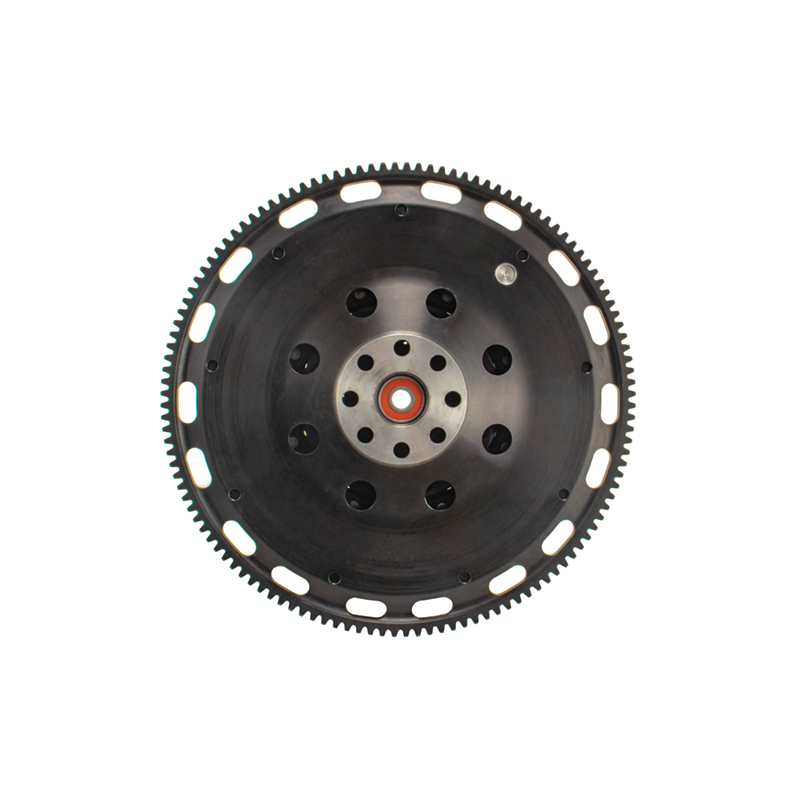

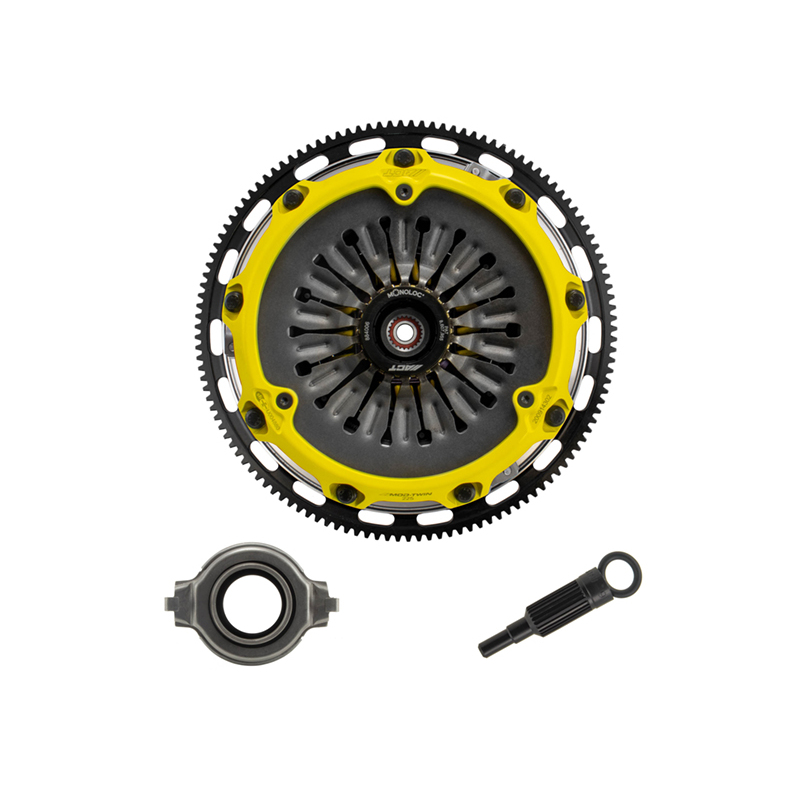

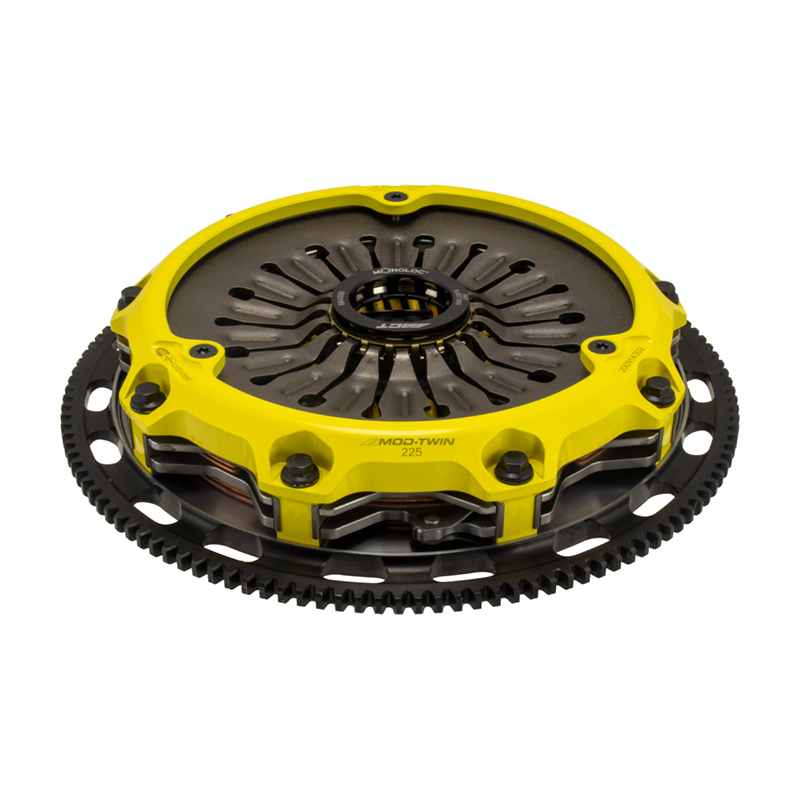

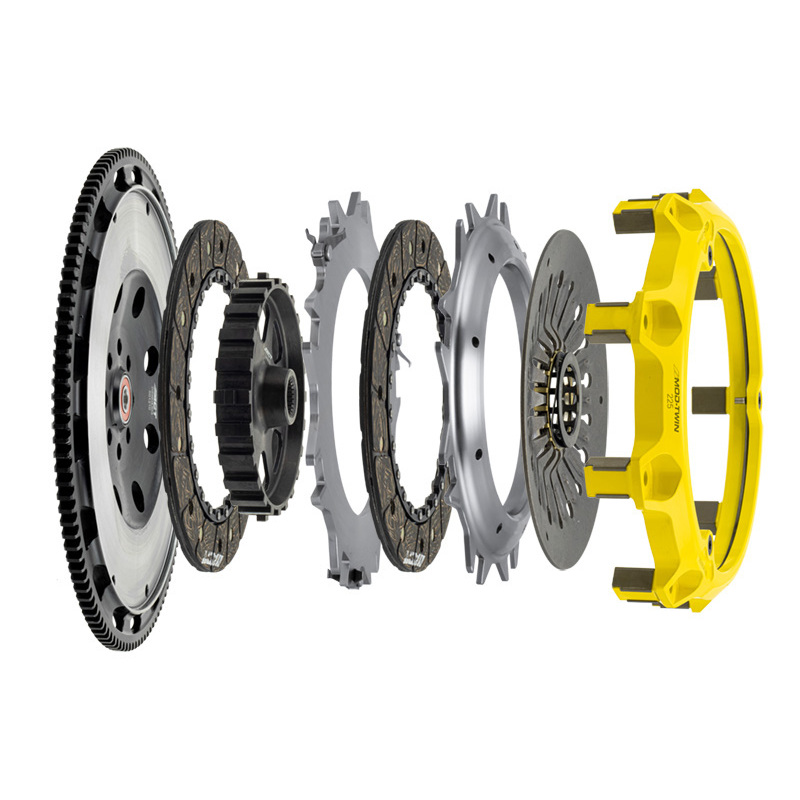

        T1S-S07 Mod-Twin 225 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $2,183.00
        Features
        • SKU
          T1S-S07
        • Brand
          Advanced Clutch
        • Clutch Disc Diameter
          225 mm
        • Clutch Disc Diameter
          8.80 in.
        • Clutch Master Cylinder Included
          No
        • Clutch Slave Cylinder Included
          No
        • Disc Material
          Organic
        • Disc Type Sprung Solid
          Solid
        • Flywheel Bolts Included
          No
        • Grade Type
          Performance
        • Grease Included
          Yes
        • Includes Alignment Tool
          Yes
        • Includes Flywheel
          Yes
        • Includes Release Bearing
          Yes
        • Input Shaft Diameter
          1.0 in.
        • Input Spline Quantity
          24
        • Pilot Bearing Included
          Yes
        • Pilot Bushing Included
          No
        • Pressure Plate Bolts Included
          No
        • Pressure Plate Series
          Heavy Duty
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Prop 65 Long Label
          Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
        • SFI Certification Rating
          1.2
        • Torque Capacity
          700 ft/lbs.
        • Torque Capacity Percentage Over Stock
          97%
        • Weight
          28.1 lbs. (12.7 kg)
