        IAG Performance / Crest Stage X 2.5L Subaru Billet Aluminum Short Block for WRX, STI, LGT, FXT.

        Part Number:IAG-ENG-1611

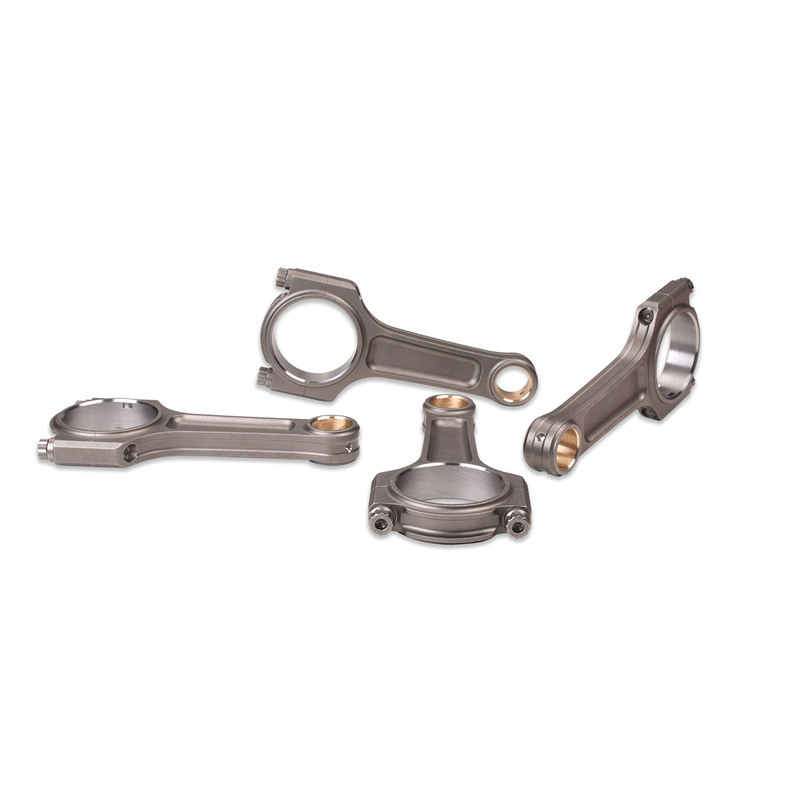

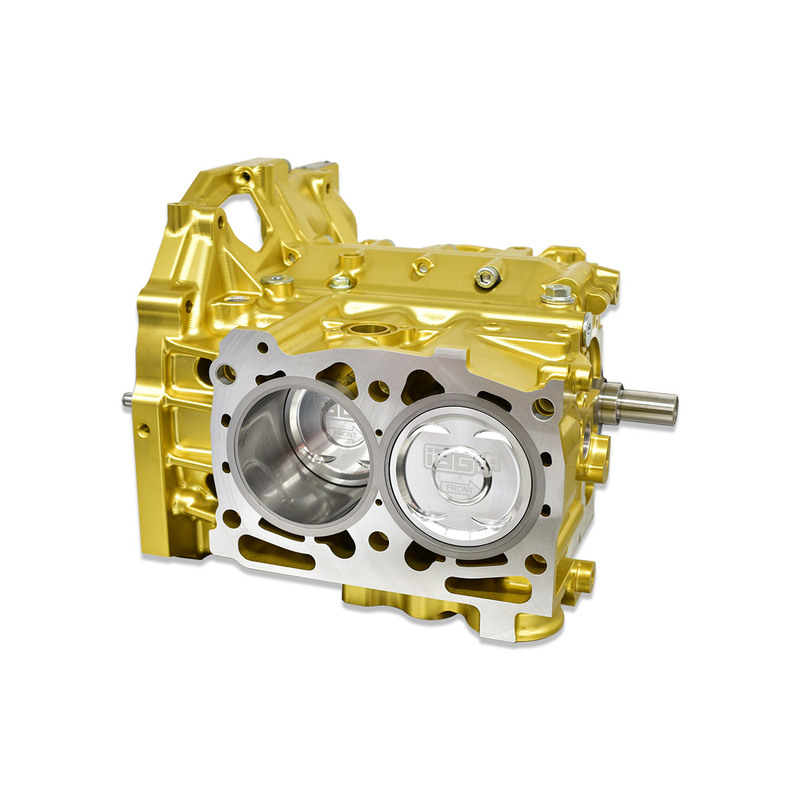

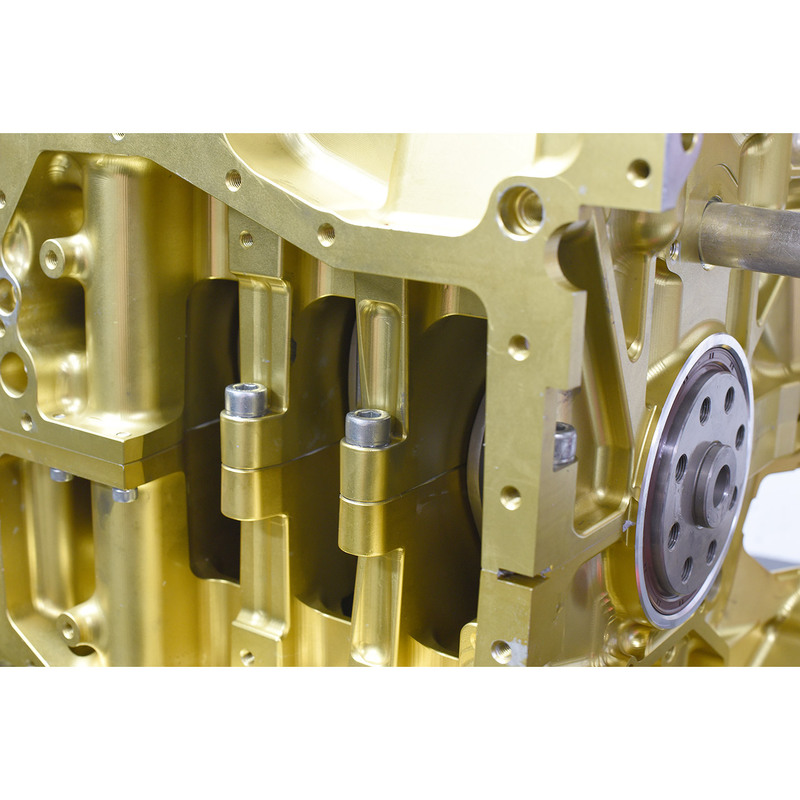

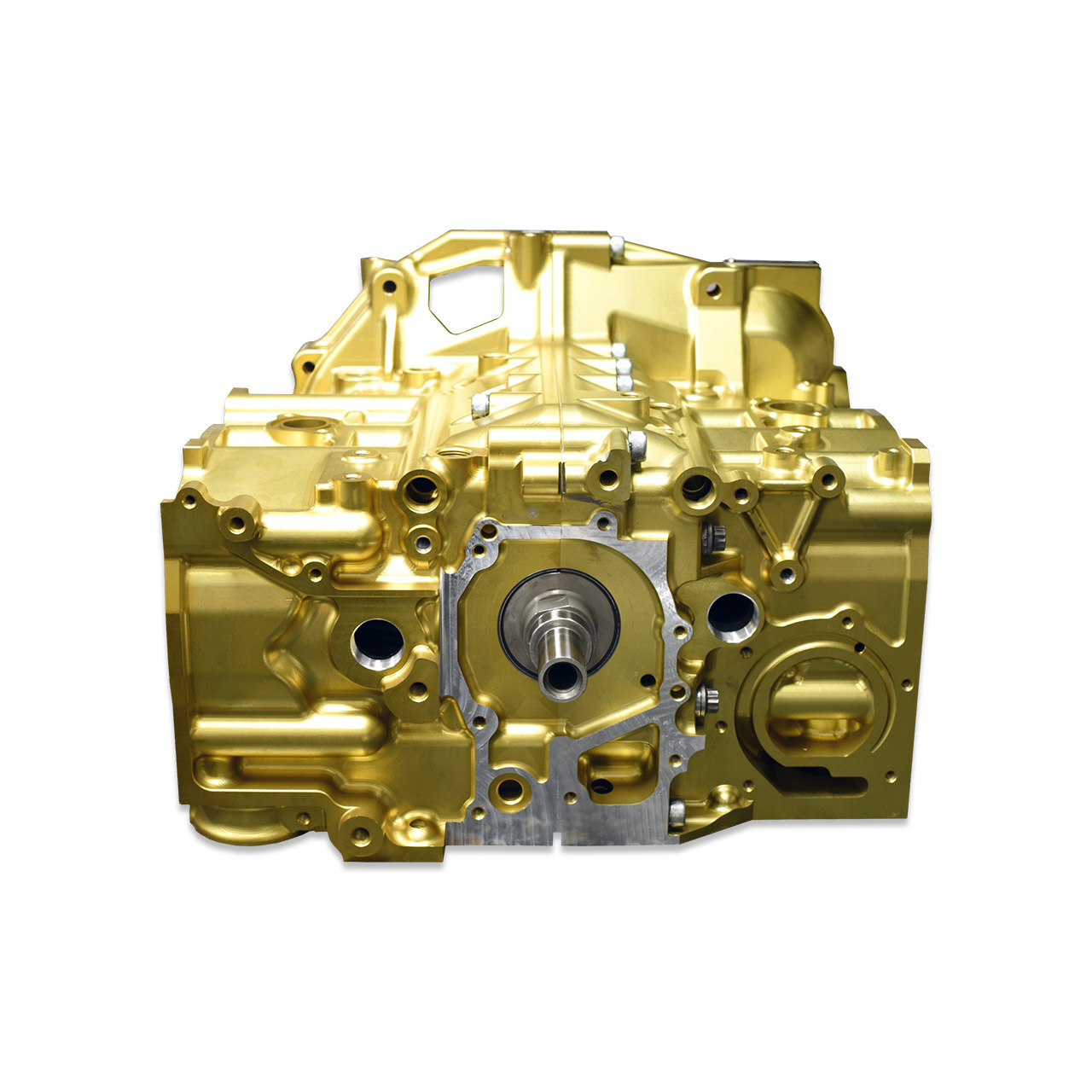

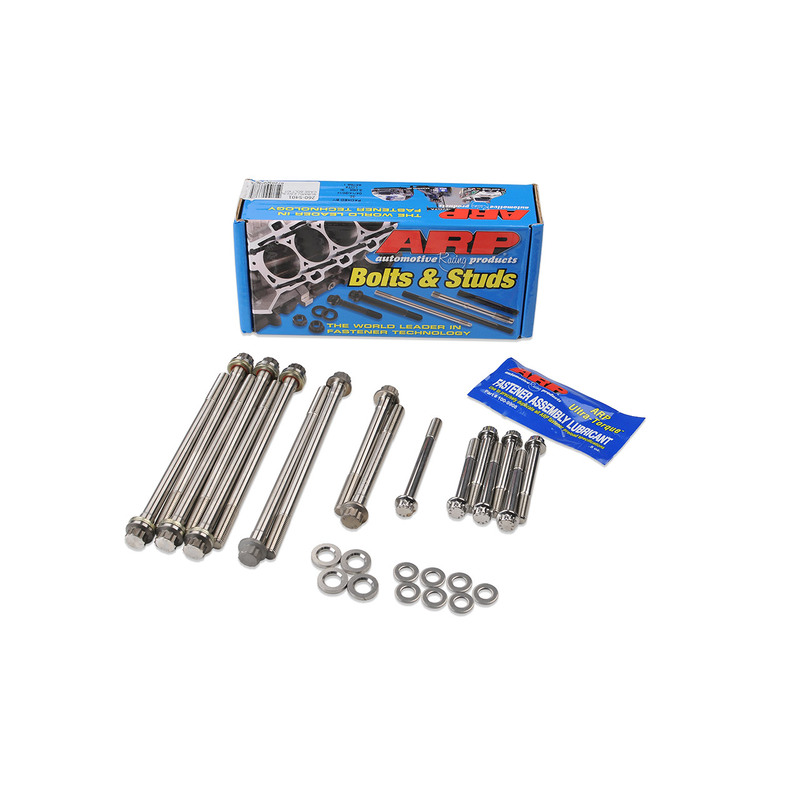

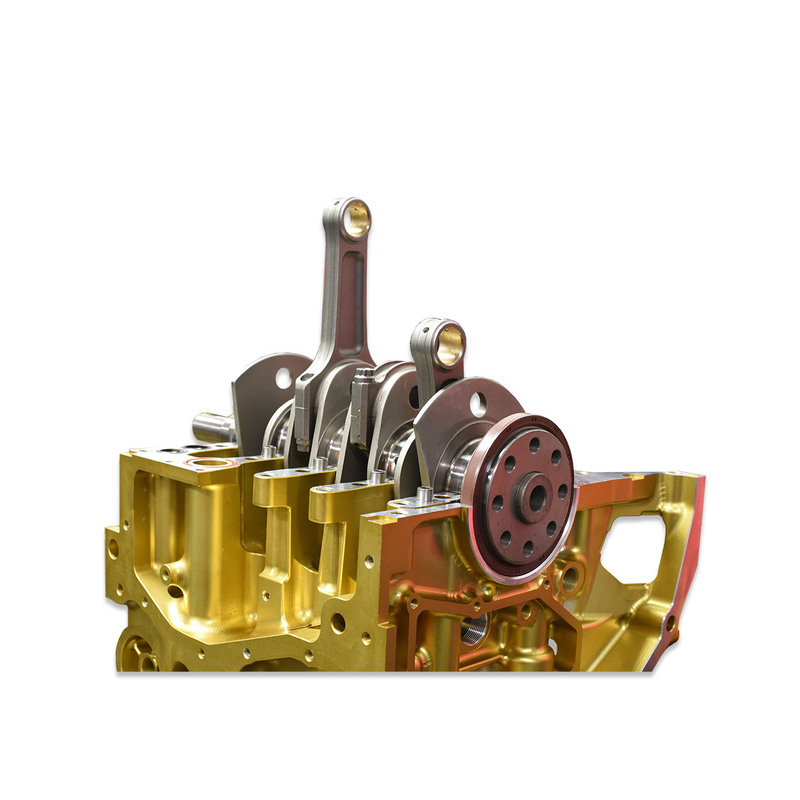

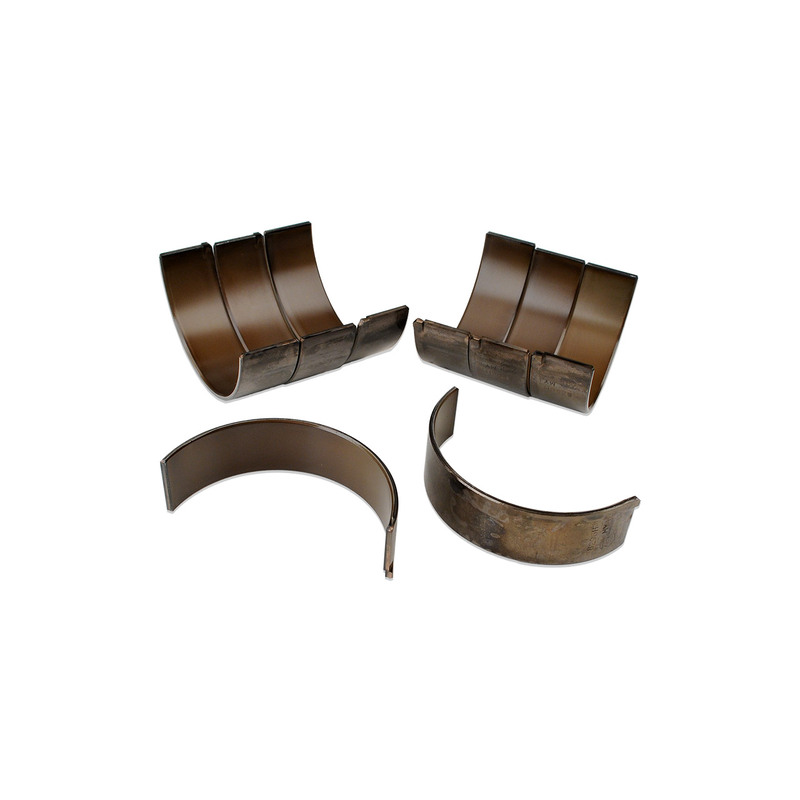

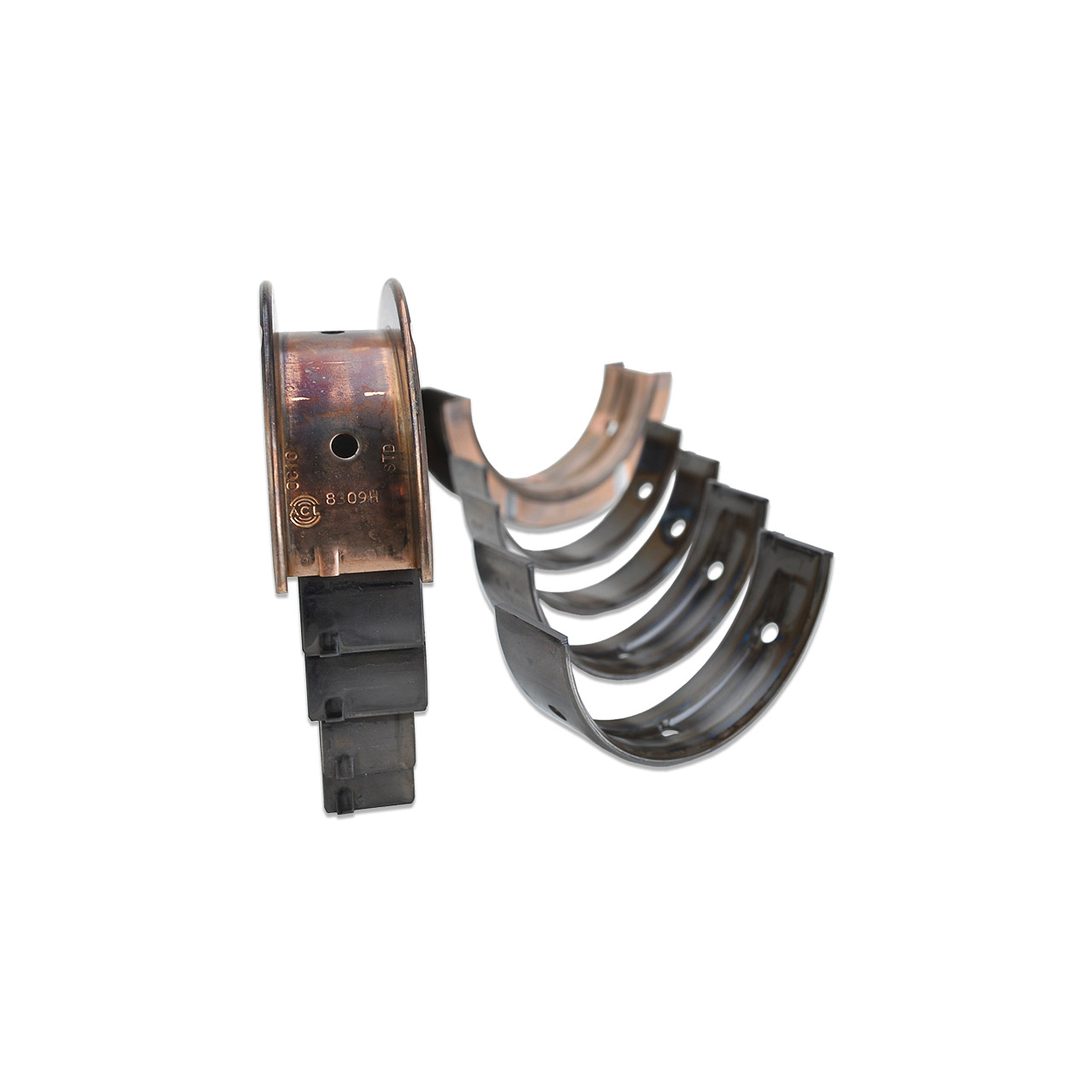

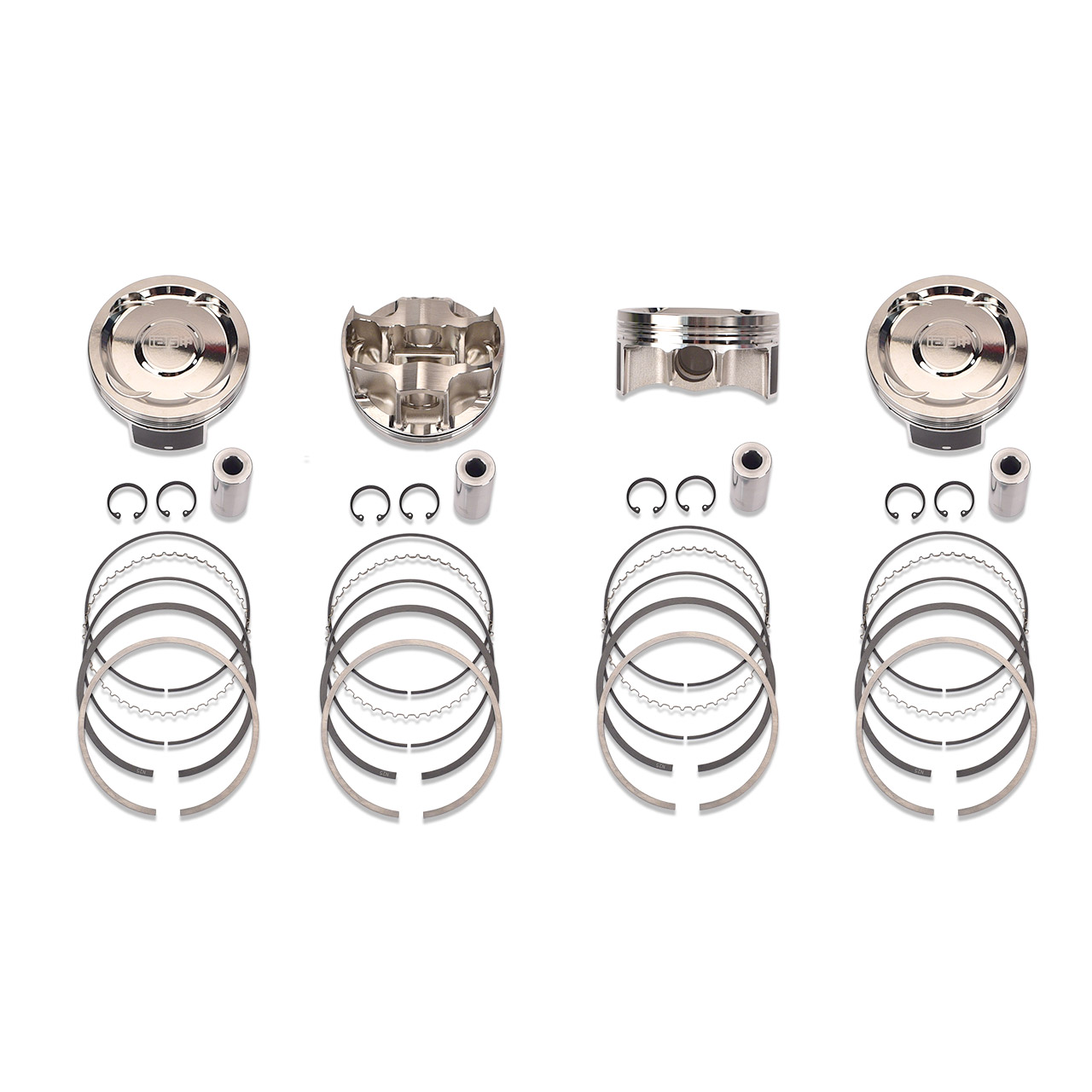

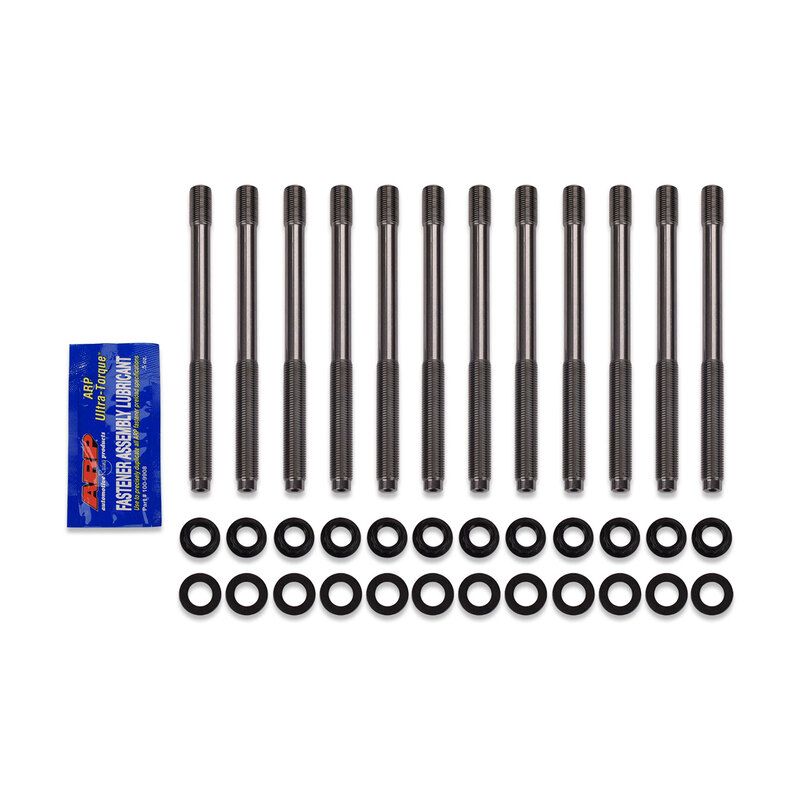

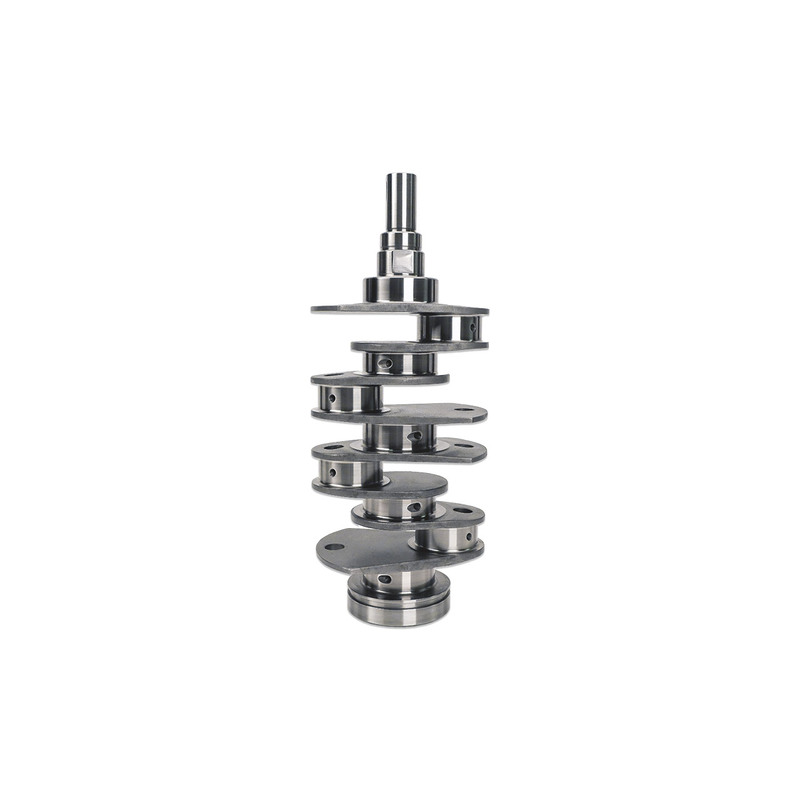

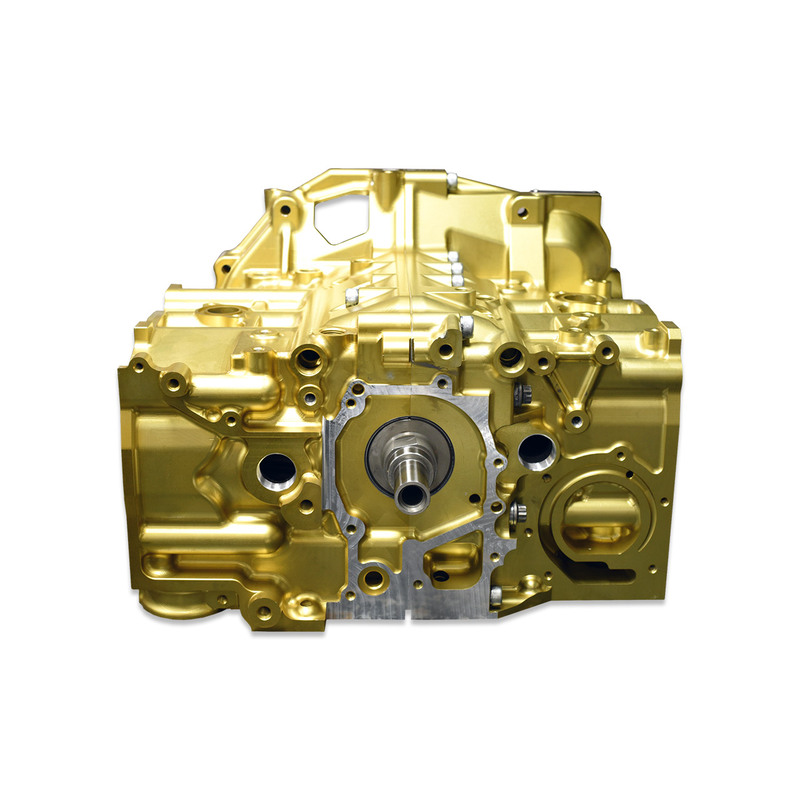

        IAG / Crest Stage X Billet Aluminum EJ25 Subarushort Block Using the same world-leading technology found in Willall's incredible billet GT-R block, the billet EJ case seeks to change the Subaru performance tuning market by reinventing the EJ and addressing virtually every weakness that exists in max-power builds. The Stage "X" Block is a complete short block built on the Willall billet platform, which also includes pistons, rods, bearings, crank, bore/hone, case bolts, line hone, and final assembly and blueprinting. Stage X Billet EJ25 Case Features: Machined from solid billet 6061-T6 Aerospace grade aluminum Darton Ductile iron sleeves Increased material thickness in all known weak points (around head studs, bottom end location) Unique 4 bolt bottom end strengthening Threads are rolled into the block rather than conventionally cut for much greater strength Full cooling system operation Radiused coolant and oil galleries for improved flow and less foaming/turbulence Fits all factory engine bay ancillaries (i.e. AC/PS/etc.) Multiple Times stiffer and stronger than the stock case Precision machined for a superior surface finish Hard anodized to avoid marking or straining
        • The IAG / Crest Stage X Short Block has a power output rating of 1100+BHP
        • All IAG short blocks are balanced and blueprinted.

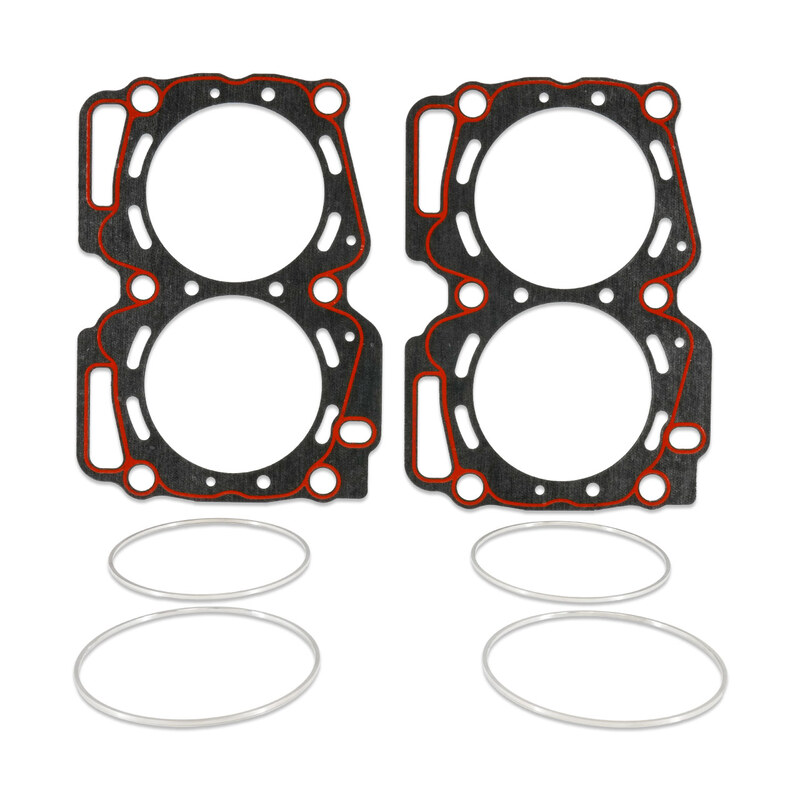

        • Compression Ratio: 8.5:1 on D Cylinder Heads (EJ255) 8.2:1 on B, V and W EJ257 Heads with standard thickness gasket.
        Retail price
        • $17,599.99
        Features
        • SKU
          IAG-ENG-1611
        • Brand
          IAG Performance
        • Assembled
          Yes
        • Assembly Lubricant Included
          No
        • Bore Diameter
          99.75 mm
        • Connecting Rod Beam Style
          X Beam
        • Connecting Rod Material
          T-6 Billet Aluminum
        • Crankshaft Material
          Billet Steel
        • Cylinder Quantity
          0
        • Engine Block Material
          Aluminum
        • Engine Oil Pump Included
          No
        • Engine Water Pump Included
          No
        • Flexplate Included
          No
        • Flywheel Included
          No
        • Fuel Type
          All
        • Grade Type
          Performance
        • Intake Manifold Included
          No
        • Oil Pan Included
          No
        • Piston Material
          Forged Aluminum
        • Piston Rings Included
          Yes
        • Piston Style
          Dome
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Prop 65 - Type
          Cancer and Reproductive
        • Timing Set Included
          No
        • Title
          IAG Performance / Crest Stage X 2.5L Subaru Billet Aluminum Short Block for WRX, STI, LGT, FXT.
        • Wrist Pin Style
          Full Floating
