TI Automotive Application Specific High Performance FFV Fuel Module
        TI Automotive

        TI Automotive Application Specific High Performance FFV Fuel Module

        Part Number:TU4024HX
        TI Automotive is the builder of the most popular fuel pumps and modules for over 60 years under the Walbro brand name. We value this heritage and are proud to continue our legacy of reliability, performance and first-time fit. TI Automotive fuel pumps, fuel pump kits, module assemblies, filters and accessories deliver the feed you need for the power you demand. These products deliver unquestioned fuel flow across a wide pressure range to support outrageous horsepower. TI Automotive fuel pumps are available for in-tank or in-line needs across a variety of fuels featuring the award winning 39/50 in-tank pump and the GSS line featuring the popular 255LPH pump. They deliver high-pressure, high flow performance for engines with more than 500hp. Pump kits, filters and accessories are available to help you with your installation needs and are designed as direct-fit replacements. Our products are engineered to win through decades of technical expertise and by settling for nothing less than superior hot fuel performance. Proudly union made in TI Automotives Caro, Michigan plant across 5 fuel pump and 14 modules assembly lines. Our fuel pumps and modules are never manufactured or assembled by a third party or sourced from an outside company. Fluid Thinking shapes the mindset of TI Automotive.

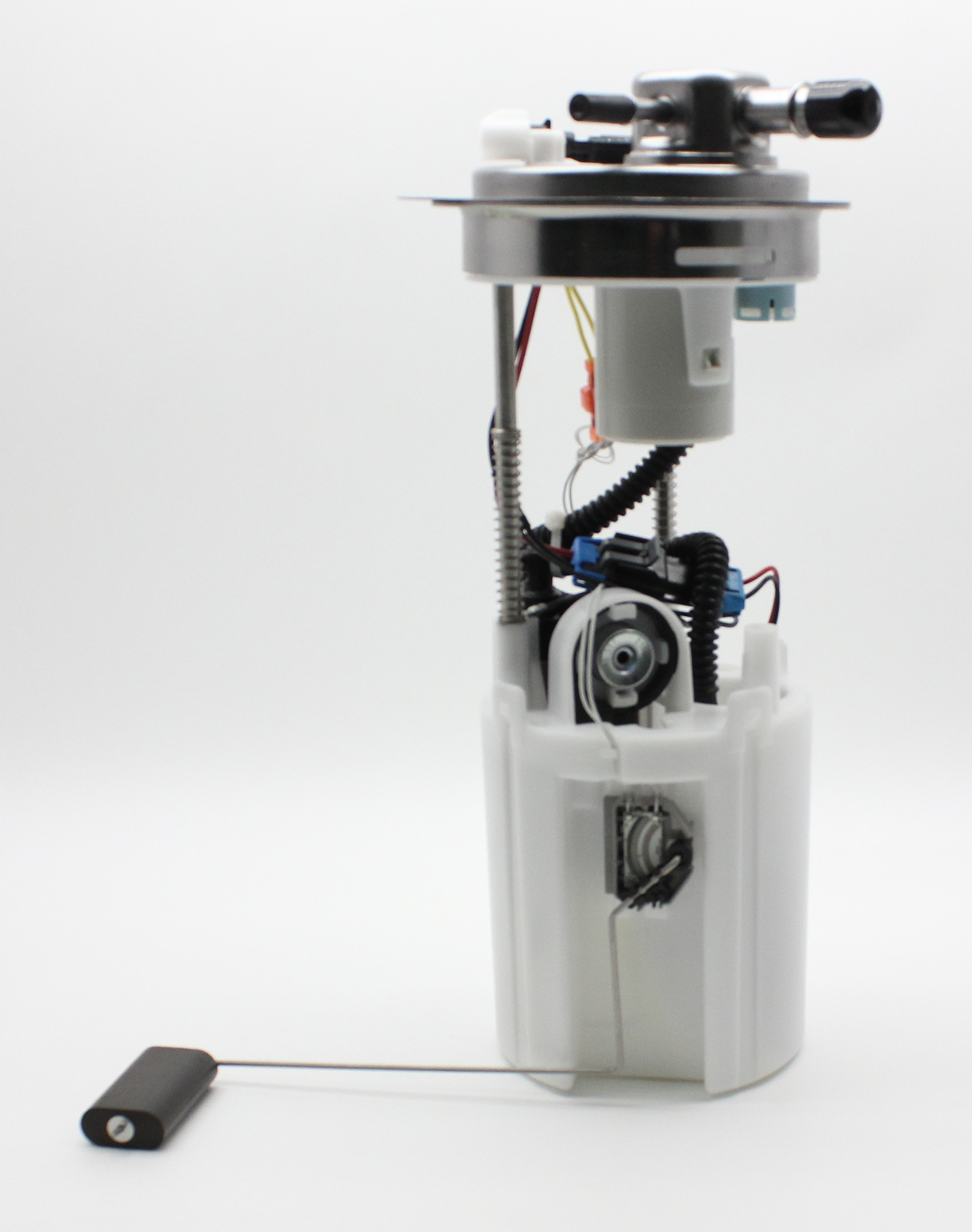

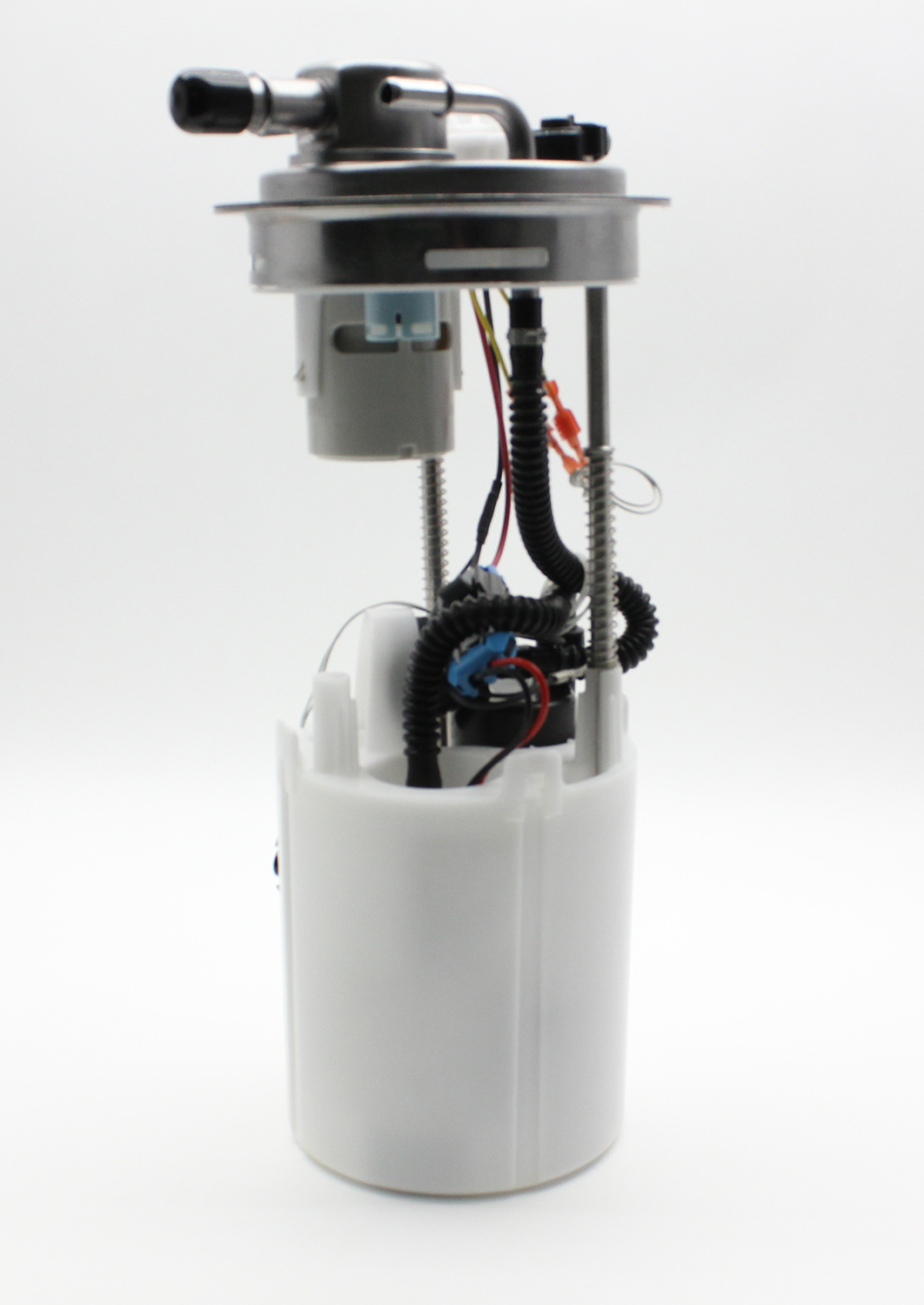

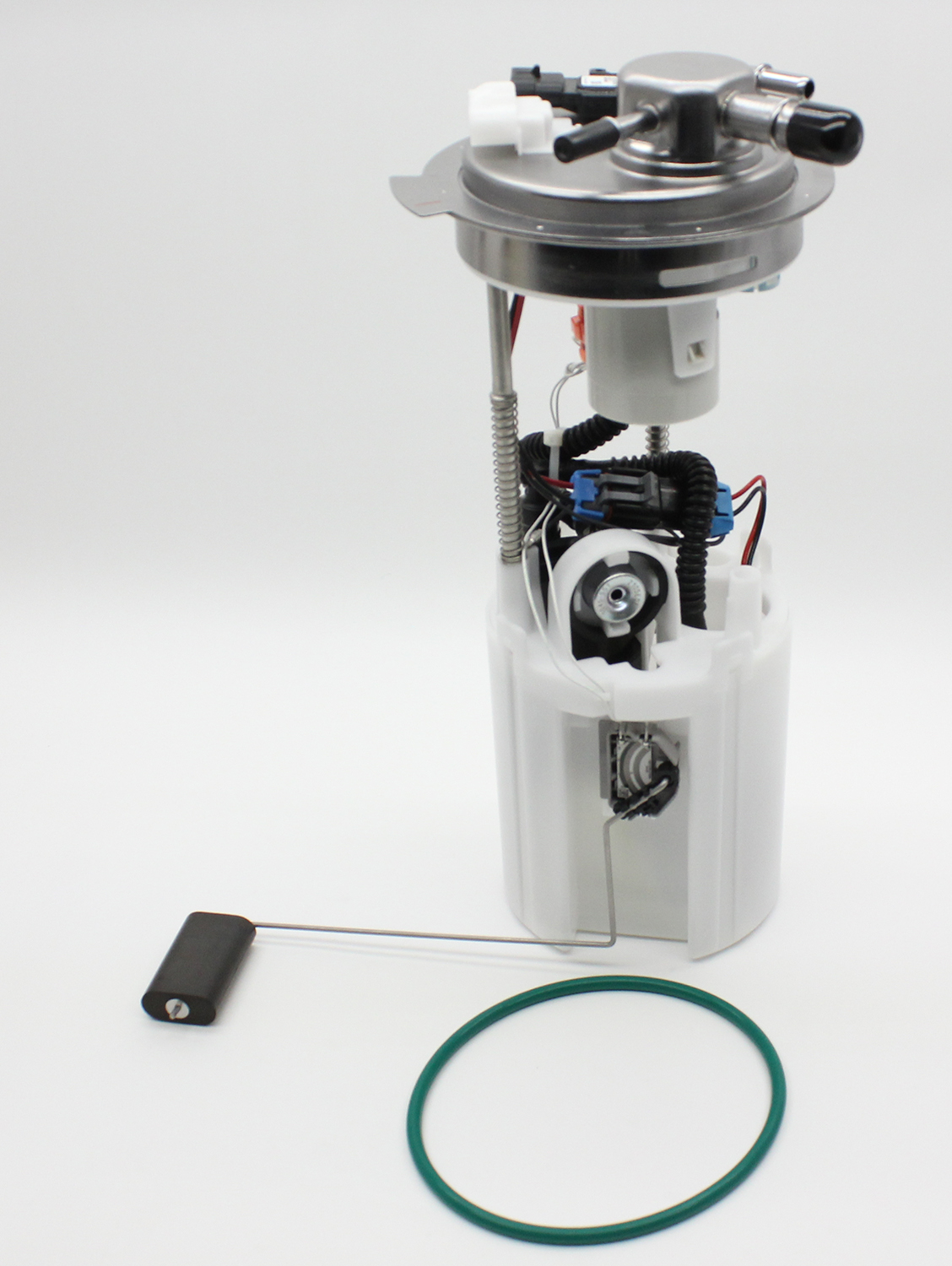

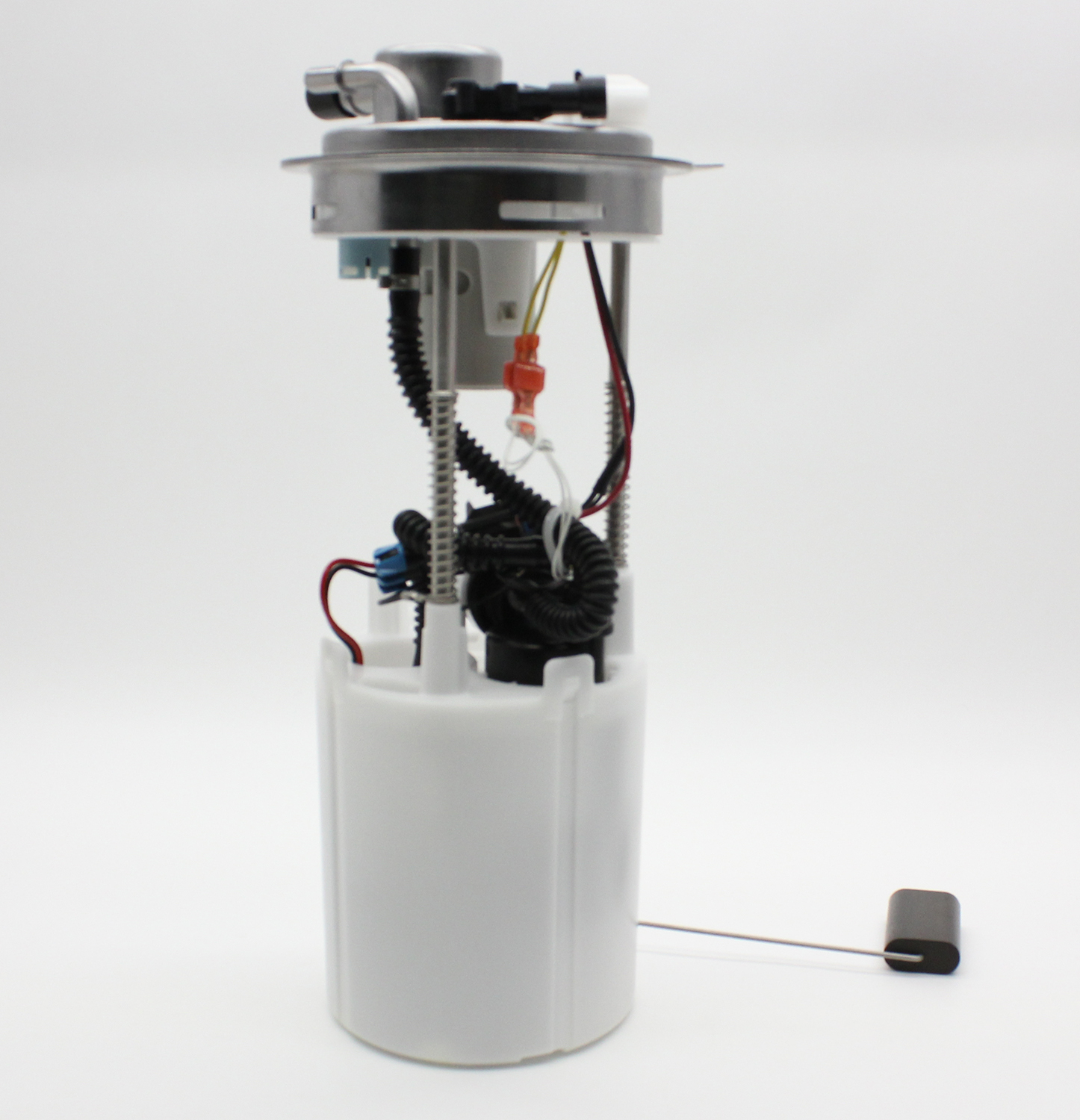

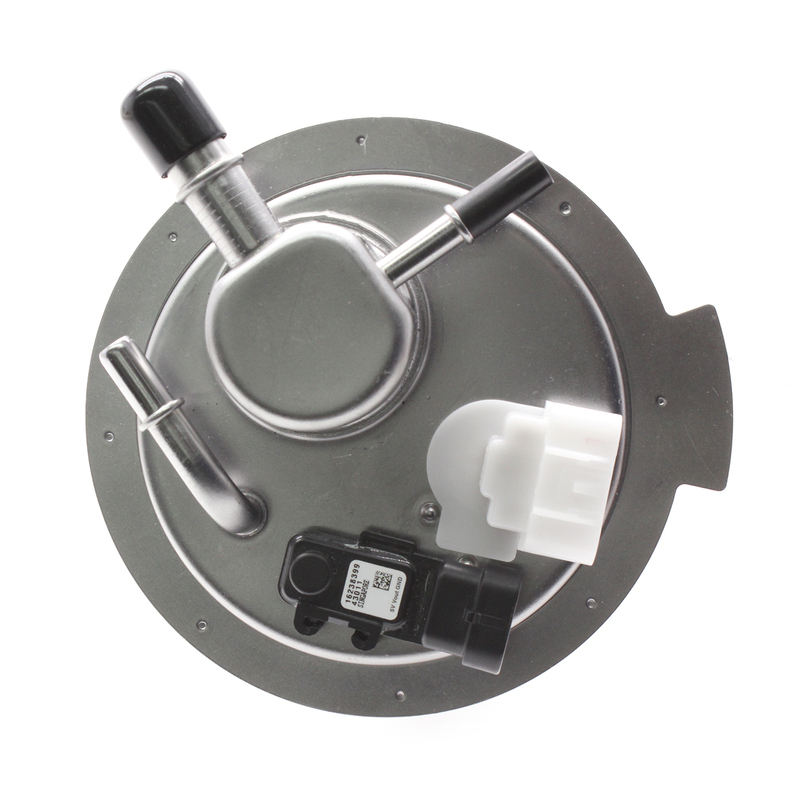

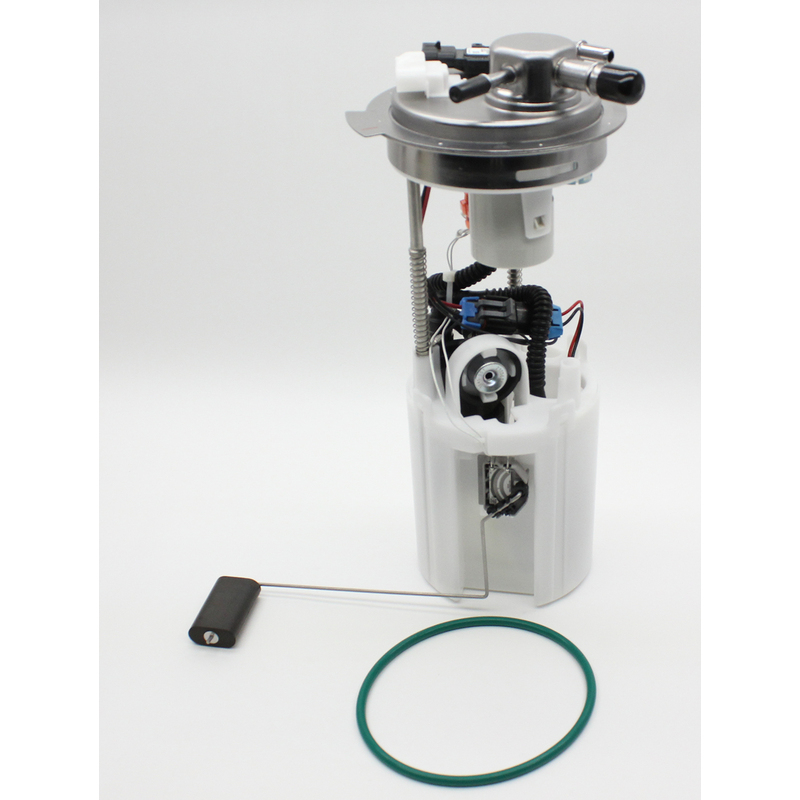

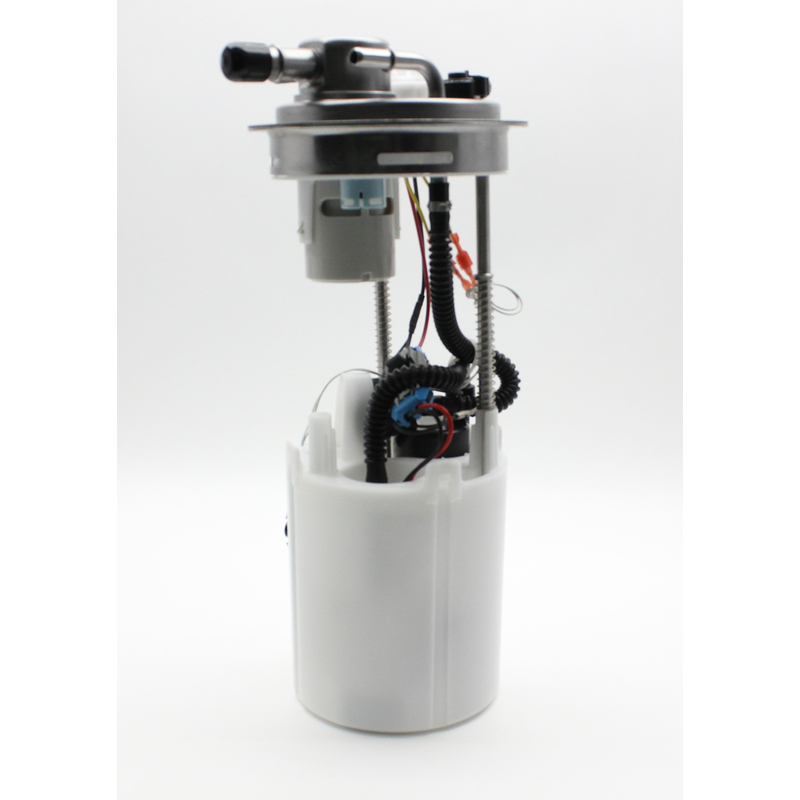

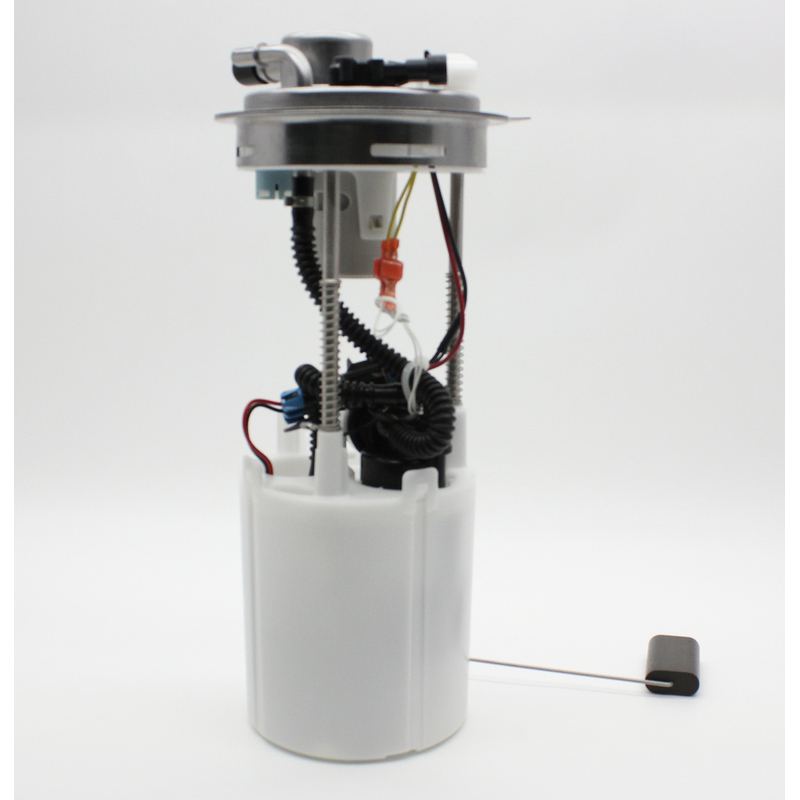

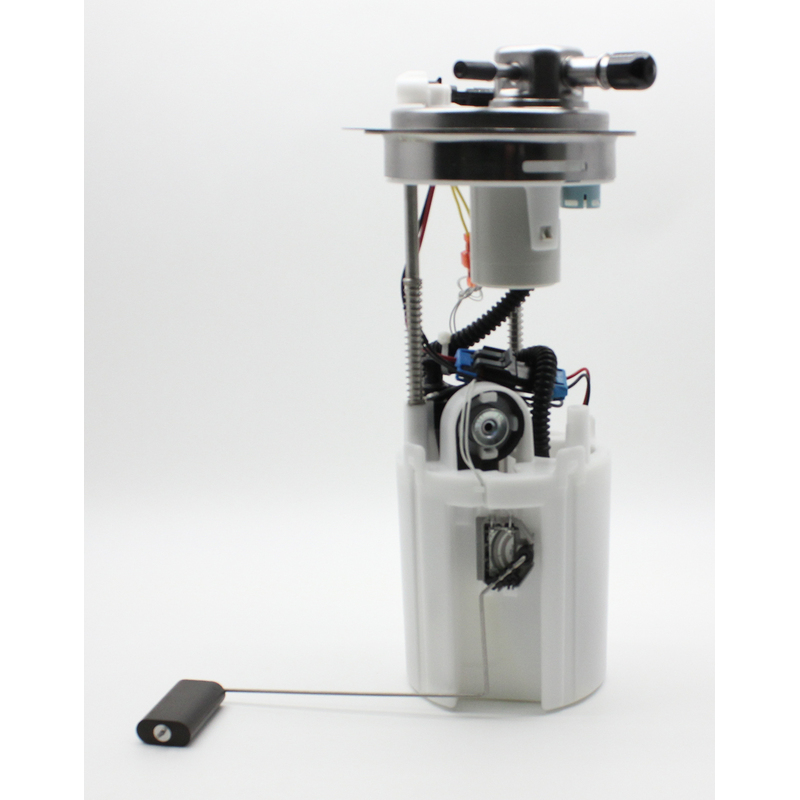

        • Complete fuel pump module assy includes level sender & float arm
        • Drop in installation designed for in-tank use only
        • Pump UAW manufactured in Caro, MI USA
        Retail price
        • $501.02
        Features
        • SKU
          TU4024HX
        • Brand
          TI Automotive
        • Average Current Draw
          21.92
        • Average Flow Rating
          73.9
        • Engine Horsepower Value
          600
        • Fuel Filter Included
          No
        • Fuel Sending Unit Included
          Yes
        • Fuel Tank Pressure Sensor Included
          Yes
        • Fuel Type
          Flex
        • Grade Type
          Premium
        • Height
          335.0
        • In Tank or External
          In Tank
        • Installation Warnings
          Yes
        • Internal Or External Strainer
          Internal
        • Lock Ring Included
          No
        • Maximum Pressure
          73
        • Minimum Flow Rating
          261
        • Mounting Hardware
          Utilizes OEM Hardware
        • Operating Pressure UOM
          PS
        • Operating Pressure Value
          60
        • Outlet Outside Diameter
          9.525
        • Outlet Type
          SAE Quick Connect
        • Prop 65 - Long Label
          WARNING: This product can expose you to lead. For more information, visit www.P65Warnings.ca.gov
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          WARNING: This product contains a chemical known to the State of California to cause cancer.
        • Prop 65 - Warning Image Label
          PROP 65 LEAD WARNING.JPG
        • Pump Design
          Turbine pump
        • Pump Type
          Electric
        • Regulator Included
          Yes
        • Resistance Ohms Empty
          250.5
        • Resistance Ohms Full
          40.4

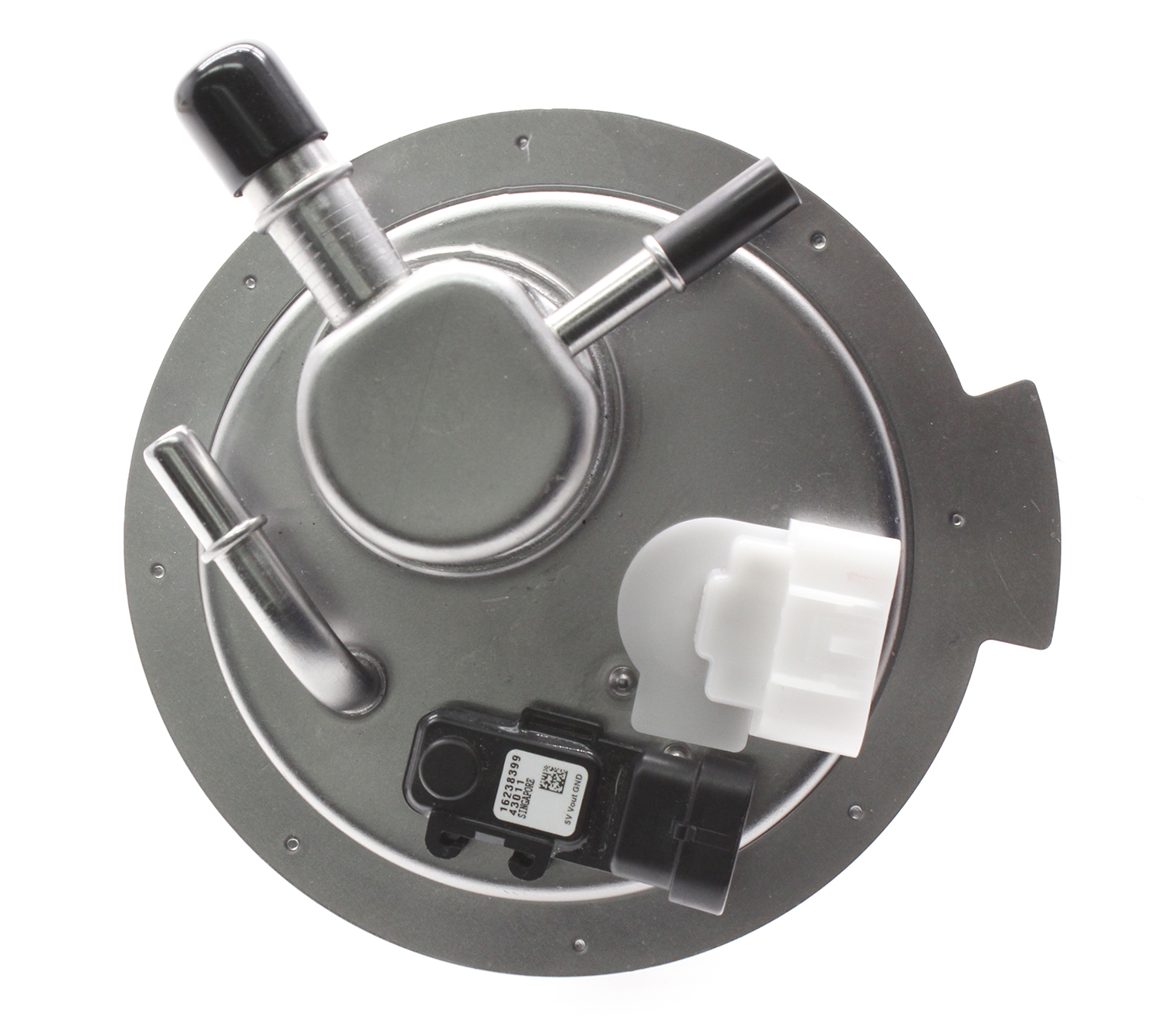

        • Top Mount Diameter
          129.5
        • Universal Or Specific Fit
          Specific
        • Voltage
          13.5
        • Wire Harness Included
          No
