ACT HD/Race Rigid 6 Pad Kit
Advanced Clutch

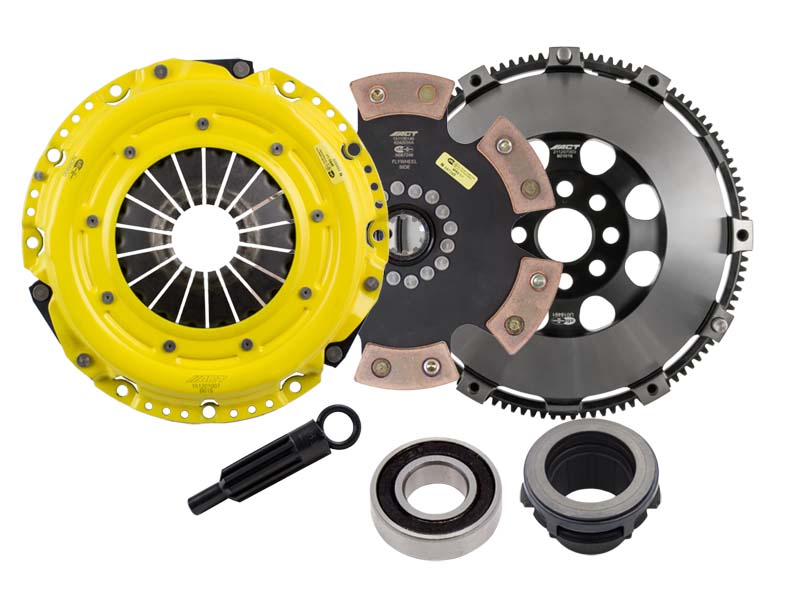

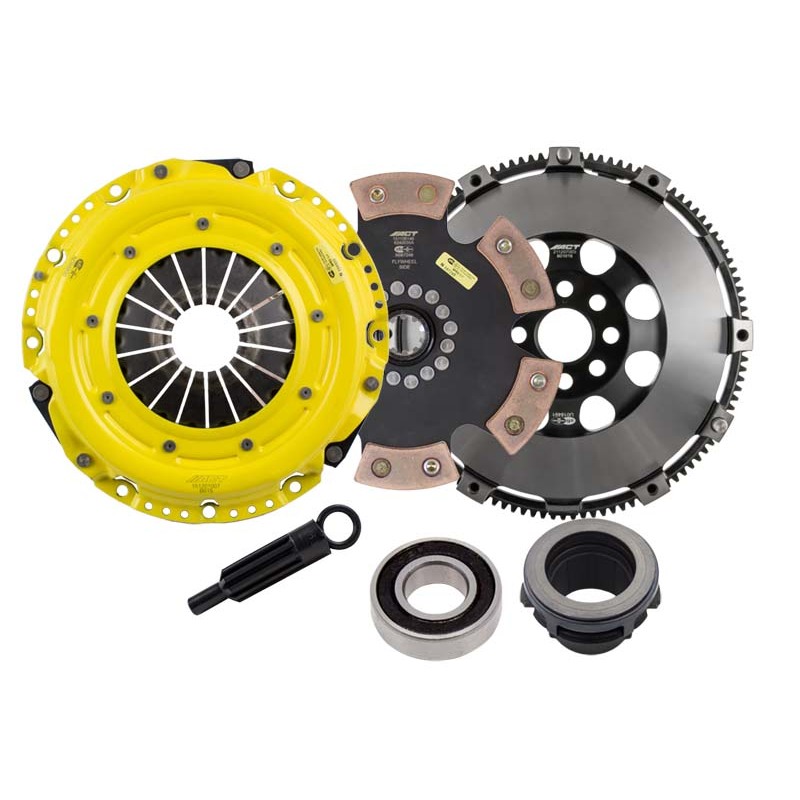

ACT HD/Race Rigid 6 Pad Kit

Part Number:BM13-HDR6
BM13-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Retail price
  • $1,793.00
Features
  • SKU
    BM13-HDR6
  • Brand
    Advanced Clutch
  • Clutch Disc Diameter
    240 mm
  • Clutch Disc Diameter
    9.40 in.
  • Disc Material
    Ceramic
  • Flywheel Series
    Prolite
  • Grade Type
    Performance
  • Includes Alignment Tool
    Yes
  • Includes Flywheel
    Yes
  • Includes Release Bearing
    Yes
  • Input Shaft Diameter
    1.125 in.
  • Input Spline Quantity
    10
  • Pressure Plate Series
    Heavy Duty
  • Product Note
    Conversion Kit. Includes ACT Prolite Flywheel. Must Use ACT Flywheel (included in Kit). Flywheel Bolts Included (M12-1.5 X 30mm). Pressure Plate Bolts Included (M8-1.25 X 20mm).
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Torque Capacity
    596 ft/lbs.
  • Torque Capacity Percentage Over Stock
    94%
  • Weight
    23.7 lbs. (10.8 kg)
