IAG Bosch 82mm Throttle Body & Adapter Package for Subaru STI Process West Intake Manifolds; Silver Finish.
        IAG Performance

        IAG Bosch 82mm Throttle Body & Adapter Package for Subaru STI Process West Intake Manifolds; Silver Finish.

        Part Number:IAG-AFD-2025SL

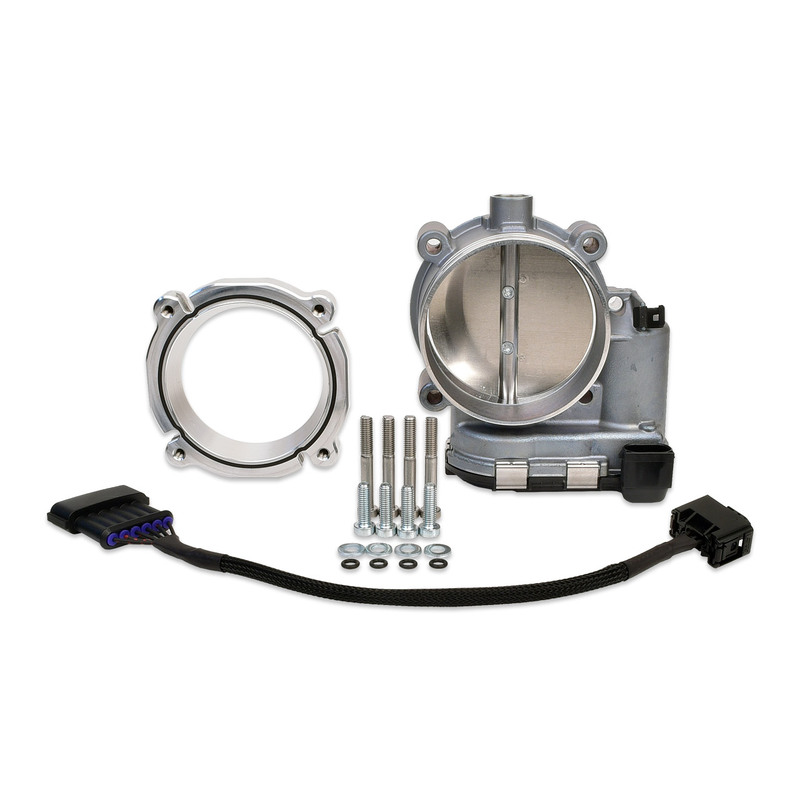

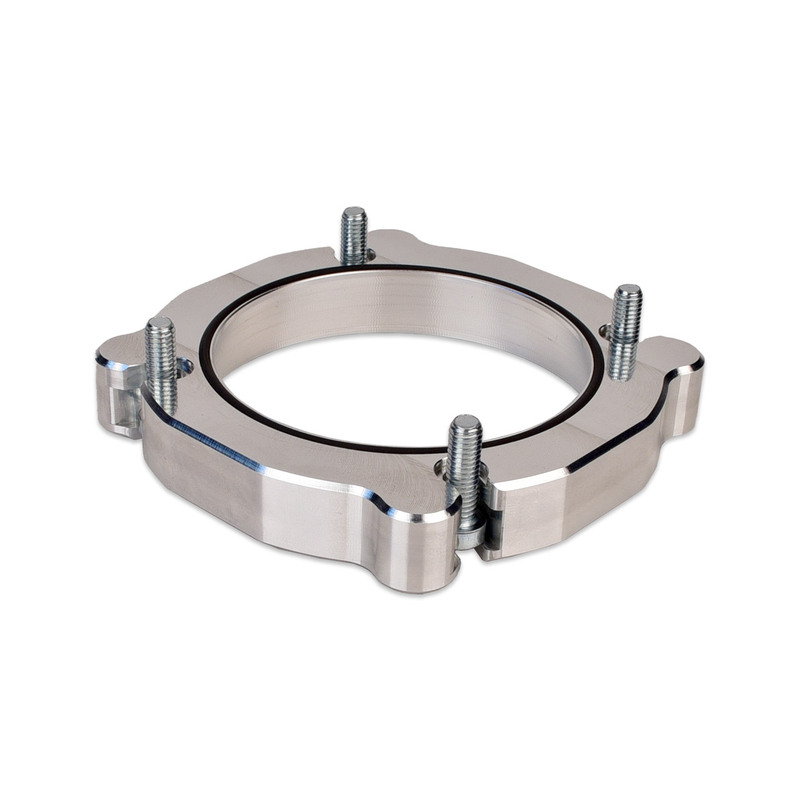

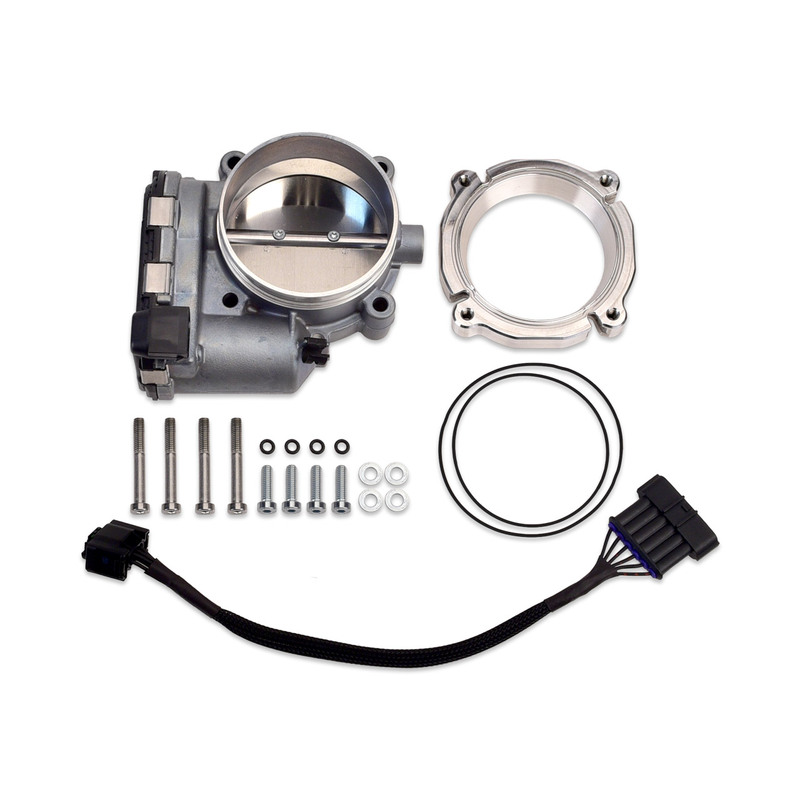

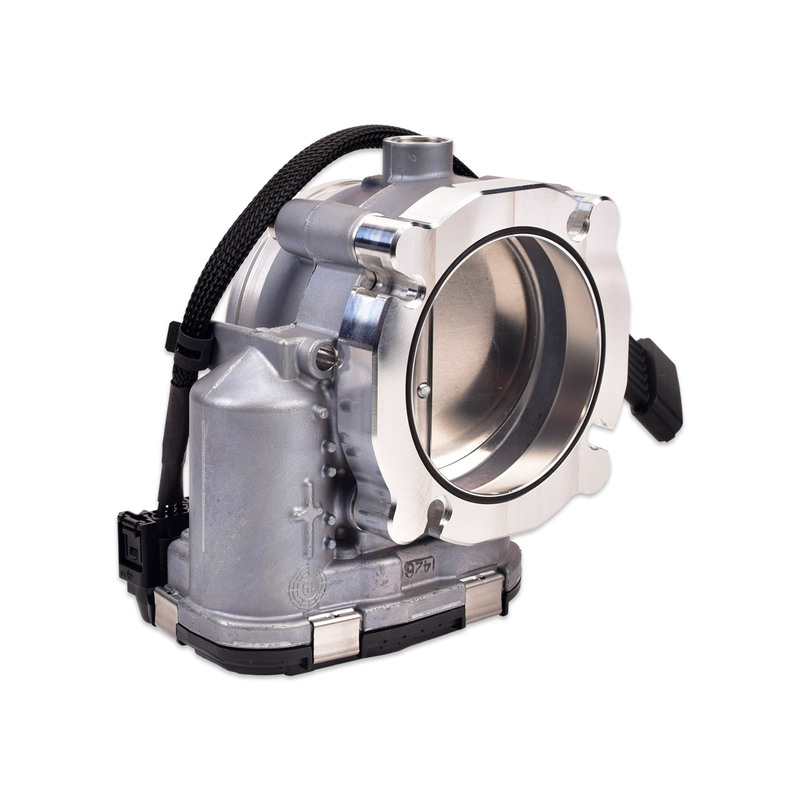

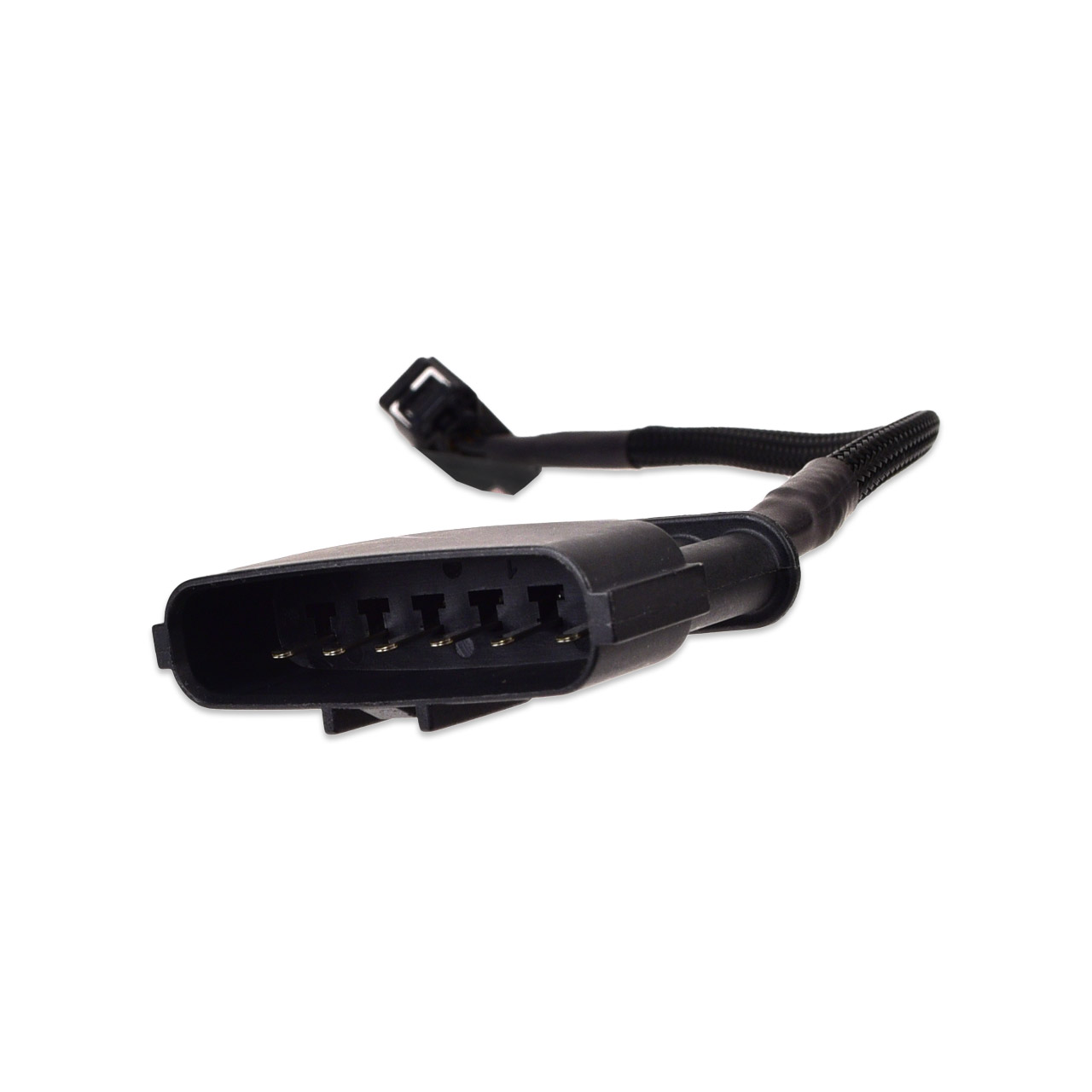

        In the hunt for more than 600 horsepower Subaru owners can be limited by their OEM throttle body. The OEM units just aren't big enough to meet the demands of larger upgraded turbochargers. For years those who were seeking to upgrade this component were forced to use inferior aftermarket alternatives. These aftermarket throttle bodies were prone to issues like sticking, poor idle quality, and difficult installation. IAG is pleased to announce that these owners are no longer forced to compromise drivability for horsepower. With the introduction of our new adapter plates owners are able to upgrade their OEM throttle bodies with a larger quality unit. The Bosch throttle body offers a 82mm bore which is over 36% larger over stock. Intended for race applications, this unit requires the use of Stand-alone Engine Management (Motec, Haltech etc). The package includes a wire harness adapter to make the installation much easier than other options previously available. Custom calibration using your stand-alone engine management is required. The plate is machined from 6061 aluminum, and features an O-ring sealing surface. Each package includes a brand new Bosch 82mm Throttle Body, IAG adapter plate, and all the necessary hardware to complete the installation.
        • Allows mounting of larger 82mm Bosch throttle body for increased airflow
        Retail price
        • $419.99
        Features
        • SKU
          IAG-AFD-2025SL
        • Brand
          IAG Performance
        • Adjustable
          No
        • Bore Diameter
          82
        • Fuel Injectors Included
          No
        • Grade Type
          Performance
        • Idle Air Control Motor Included
          No
        • Inlet Diameter
          82
        • Inlet Type
          Clamp On
        • Outlet Diameter
          82
        • Outlet Type
          Bolt On
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Throttle Body Finish
          Natural Silver Finish
        • Throttle Body Material
          6061 Aluminum
        • Throttle Body Spacer Color
          Silver
        • Throttle Body Spacer Finish
          Natural Silver
        • Throttle Body Spacer Included
          Yes
        • Throttle Body Spacer Material
          6061 Aluminum
        • Throttle Body Type
          Bosch
        • Throttle Position Sensor Included
          No
