ICON 2021-2023 Ford Bronco, Front, 1.5-4” Lift, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV
        ICON Vehicle Dynamics

        ICON 2021-2023 Ford Bronco, Front, 1.5-4” Lift, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV

        Part Number:48700E
        ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are the ideal upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. ICON 2.5 Series rear coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
        • Increased wheel travel (up to 11.5”) and ride quality over stock
        • FK rod end bearings for extended longevity and minimal deflection
        • High strength alloy CNC machined lower bar pin
        • Fully rebuildable and re-tunable
        • 100% Bolt-on - no drilling, cutting or welding necessary for installation
        • Vehicle specific tuned for superior shock damping and control
        • Remote reservoirs maintain cooler operating temperatures during extended off-road use
        • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
        • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
        • Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3” of front lift on Sasquatch Broncos
        • ICON engineered coil springs
        • 6061 Aircraft grade aluminum CNC machined components
        • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
        Retail price
        • $3,036.80
        Features
        • SKU
          48700E
        • Brand
          ICON Vehicle Dynamics
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • Active or Passive Suspension
          Active
        • Add-On Part
          42000 - 21-23 BRONCO CRASH BARS
        • Add-On Part
          43501 - 21-23 BRONCO IIC INSTALL KIT
        • Add-On Part
          45212 - 21-23 BRONCO XD TIE ROD KIT
        • Add-On Part
          48400DJ - 21-23 BRONCO TUBULAR UCA DJ PRO KIT
        • Add-On Part

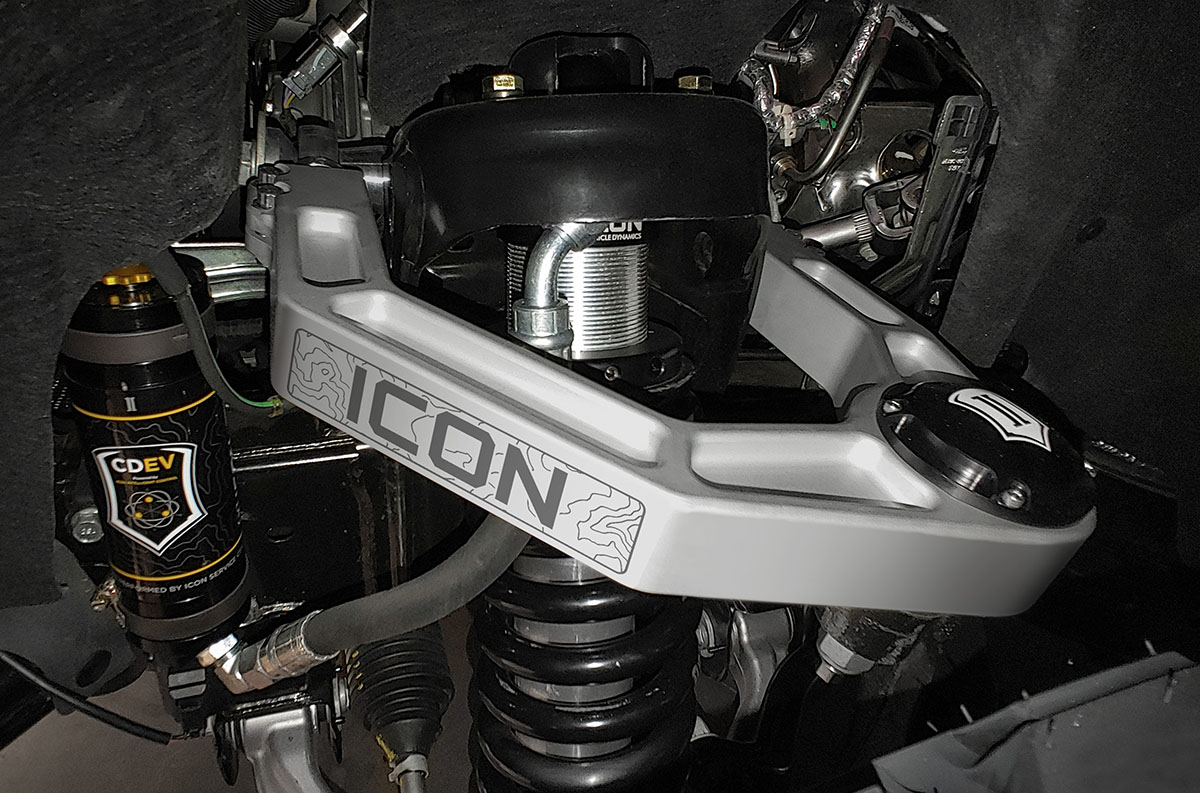

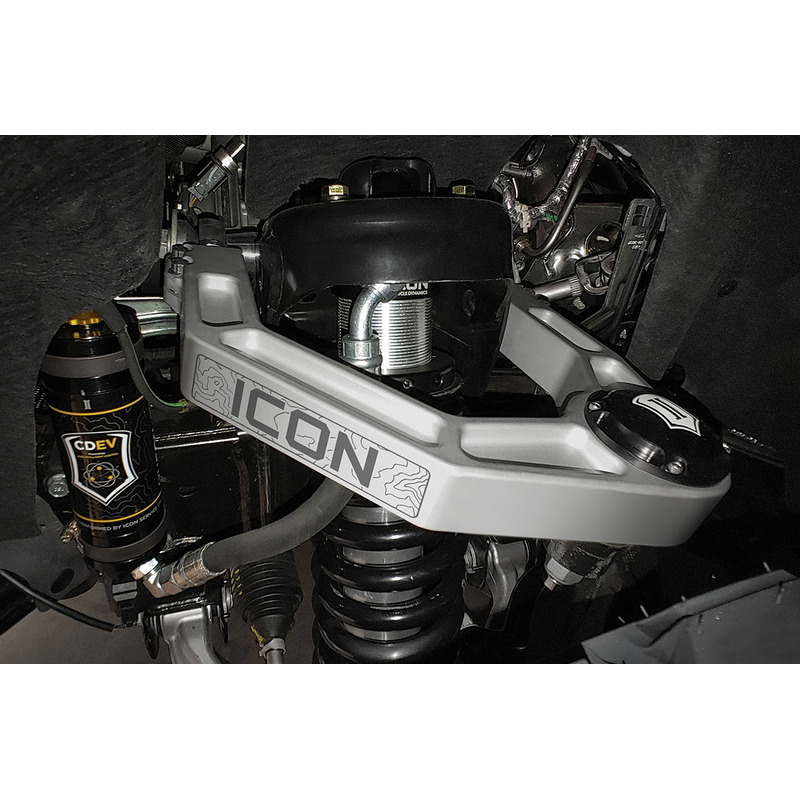

          48500DJ - 21-23 BRONCO BILLET UCA DJ PRO KIT
        • Add-On Part
          48710E - 21-23 BRONCO REAR 2.5 VS RR CDEV COILOVER KIT
        • Adjustable
          Yes
        • Adjustable Compression
          Yes
        • Adjustable Damping
          Yes
        • Adjustable Height
          Yes
        • Adjustable Rebound
          No
        • Body Diameter
          2.5 in.
        • California Prop 65 Warning
          Yes
        • Cylinder Color
          Silver
        • Cylinder Finish
          Cadmium Plated
        • Cylinder Material
          Steel
        • Damping Adjustment Type
          Electronic
        • Damping Type
          Oil
        • Dust Shield Included
          No
        • Fitment Note
          Does fit OEM Wheels and Tires
        • Gas Charged
          Yes
        • Grade Type
          Performance
        • Housing Material
          Steel
        • Includes Boot
          No
        • Internal Construction Type
          Single Tube
        • Material
          Aluminum
        • Maximum Lift
          4.0 in.
        • Minimum Lift
          2.0 in.
        • Mount Type - Lower
          Bar Pin
        • Mount Type - Upper
          Mounting Plate
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Recommended Additional Part
          191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
        • Recommended Additional Part
          198000 - 2 PIN COILOVER SPANNER WRENCH KIT
        • Recommended Additional Part
          198001 - BILLET SPANNER WRENCH KIT
        • Recommended Additional Part
          252011 - 2.5 Piggyback/remote Resi/bypass Rebuild Kit
        • Recommended Additional Part
          252012 - -4 TO -10 HOSE SHIELD KIT
        • Recommended Additional Part
          611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL
        • Recommended Aftermarket Wheels
          (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
        • Recommended Aftermarket Wheels
          (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
        • Recommended Aftermarket Wheels
          (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
        • Recommended Aftermarket Wheels
          (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
        • Recommended Aftermarket Wheels
          (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
        • Remote Reservoir
          Yes
        • Reservoir Style
          Remote
        • Self-Leveling
          No
        • Shaft Diameter
          0.875 in.
        • Shock Absorber Body End Measuring Point
          Top of Upper Mount Plate
        • Shock Absorber Rod End Measuring Point
          Flat on Bar Pin
        • Spring Color
          Black
        • Spring Material
          Steel
        • Spring Rate Type
          Linear
        • Valving Type
          Digressive
