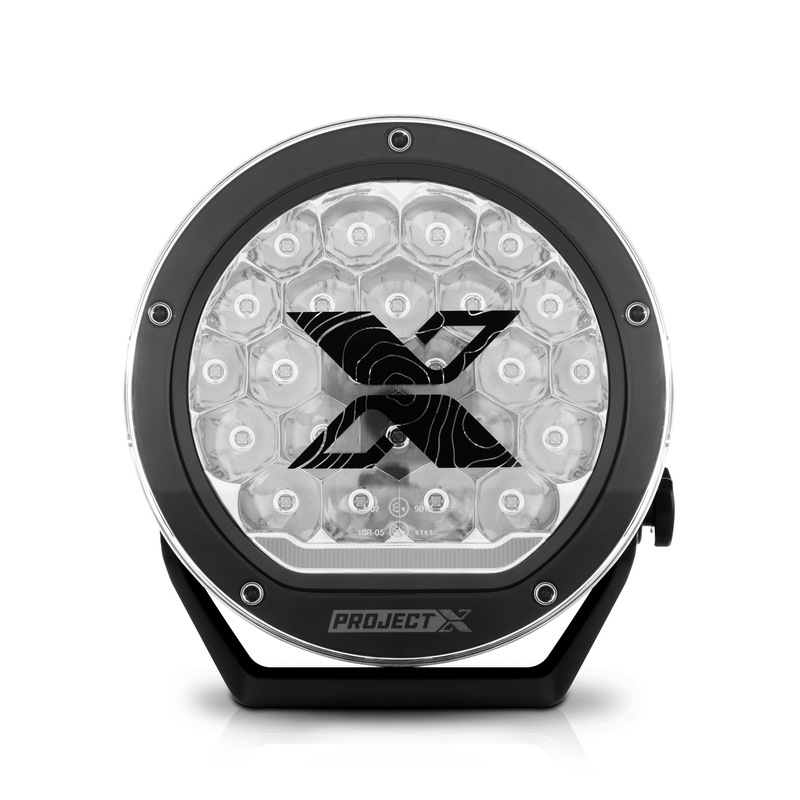

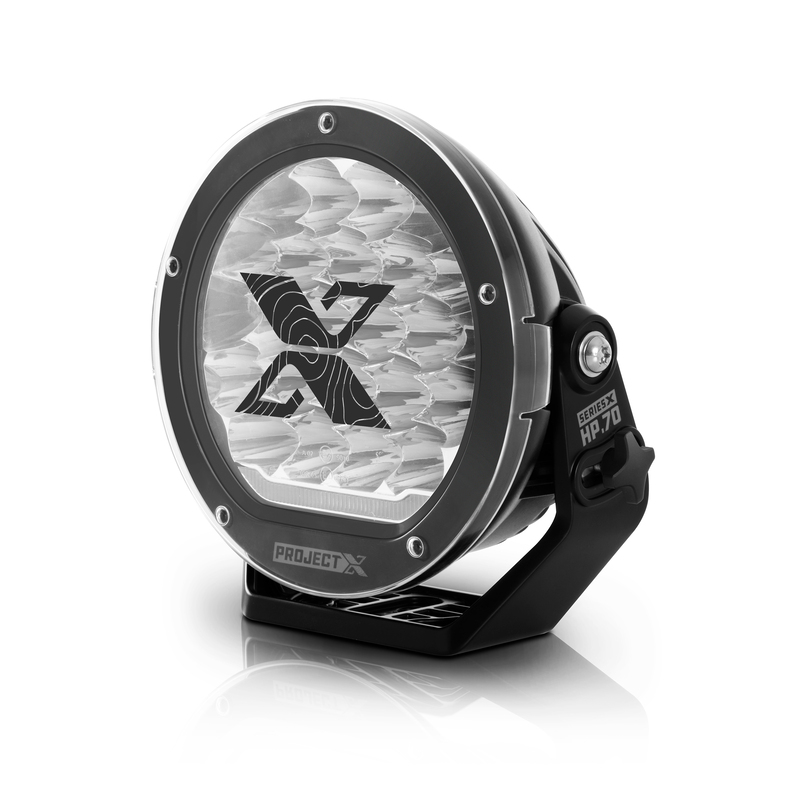

PROJECT X - SERIES X HP.70 - HIGH POWER 7 INCH LED AUXILIARY LIGHT - COMBO BEAM

Part Number:AL538804-1
Connect with the Wild with the Project X - Series X High Power LED auxiliary lights. The Series X LED lights feature best in class performance and is engineered using Osram LED technology to cut through the darkness and light the trail ahead with a powerful combo beam. Featuring an integrated Active Thermal Management System (ATMS), the HP.70 delivers 120 watts of pure white light (5700K) in a broad penetrating beam of light.
  • Unparalleled Performance - 5-Watt High Power Osram-LEDs producing 120W of pure white light (5700K)
  • PROJECT X was born from innovation in a market where the "tried and true" and "way things have always been done" stand in the way of progress. We seek a different path, creating new technologies and solutions that will revolutionize the offroad experience for enthusiasts and set a new market standard.

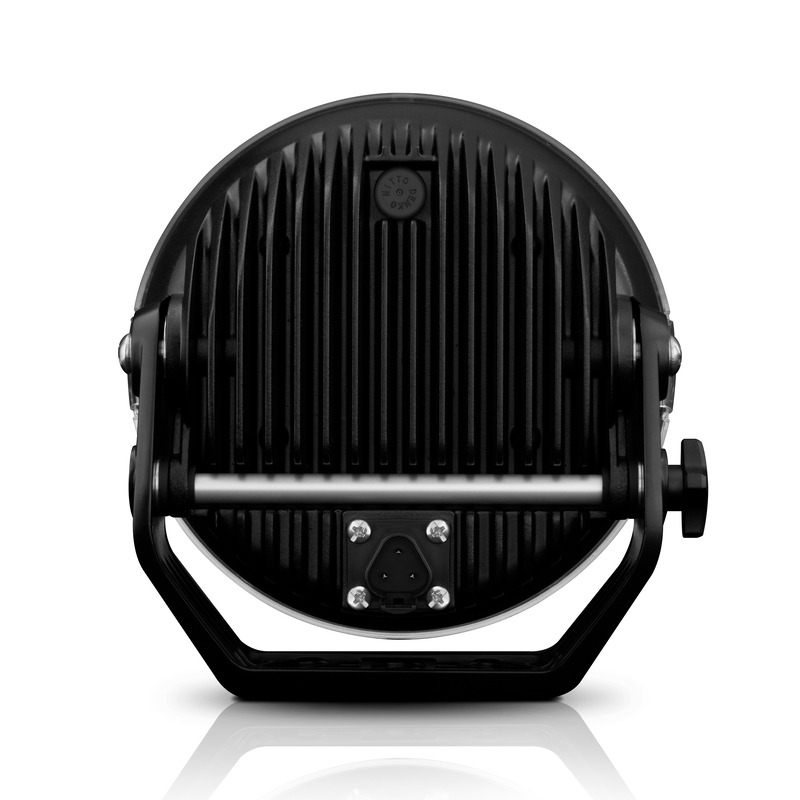

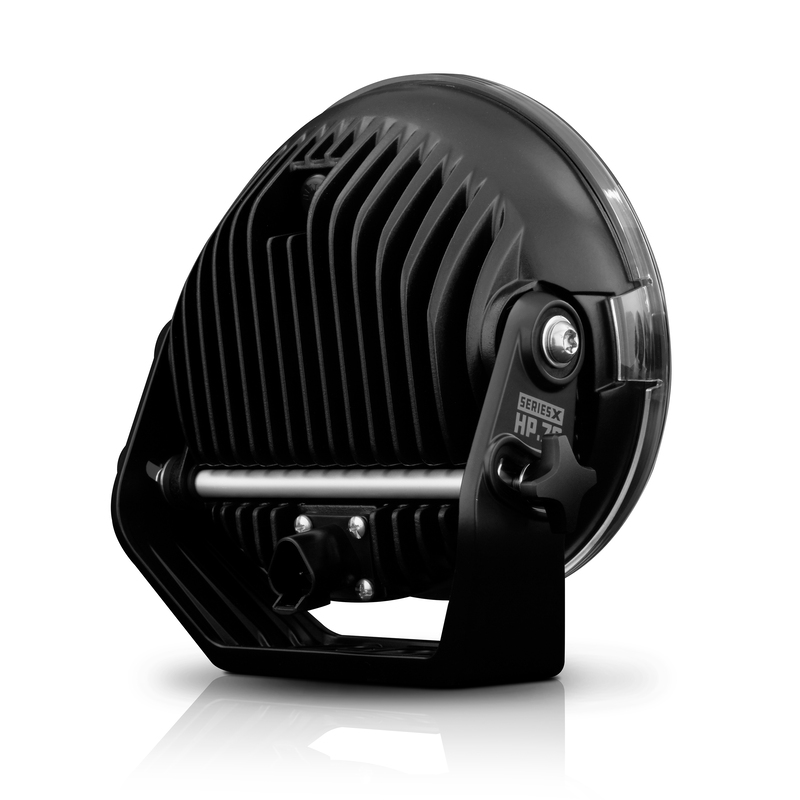

  • Integrated Heat Management - Built-in Active Thermal Management System (ATMS) enables the HP.70 to run harder for longer
  • Best in Class Power - 15,000 raw lumens (8889 effective) per light
  • Superior Optics - Highly Polished super-efficient aluminum metalized reflector utilizing precisely scalloped parabolas for ultimate control and performance
  • LED Front Position Light - Signature built-in LED light meets ECE requirements for front position light improving daytime driving visibility and safety
  • Customizable Appearance - Customize the look of your Series X HP.70s with your choice of 3 inner trim pieces, including Brocky Blue, Dragon Red and Project X Green.

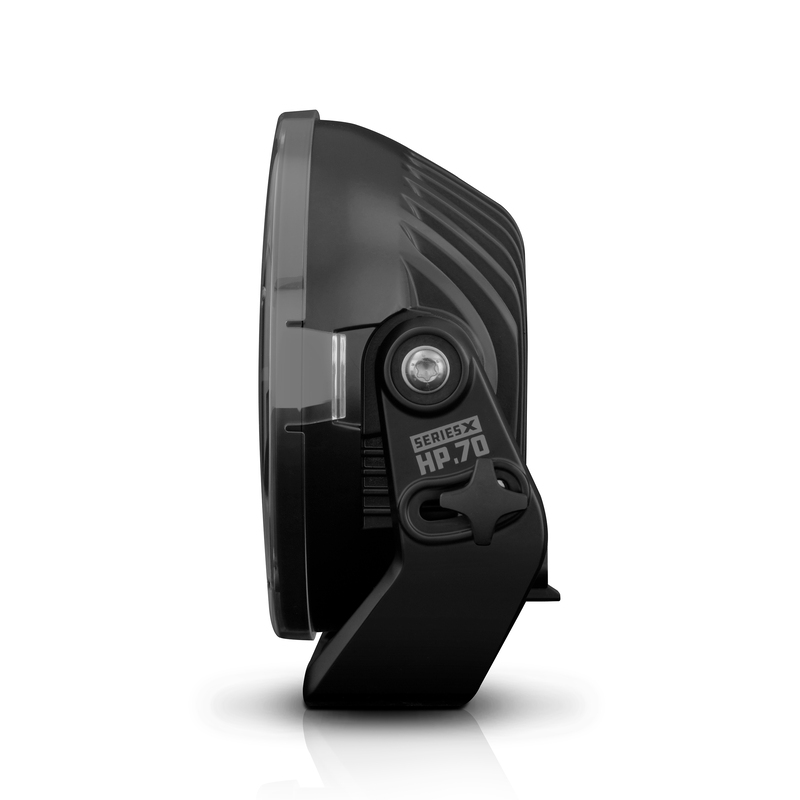

  • Unique Fit & Adjustment - Tool free vertical adjustment allows on-the-fly beam correction via ergonomic adjuster knob. The mounting system utilizes polyurethane bushings to suspend the light making it impervious to shock and vibration.
  • Engineered to Survive - Constructed from light weight super strong Pressure Die Cast Aluminum, uncompromised strength and rugged durability
  • Protected from the Elements - Fully sealed against water and dust intrusion (IP66 & IP67) utilizing a genuine Gore-Tex(r) breather vent and integrated Deutsch(r) connectors
  • Durable Lens Design - Virtually unbreakable hard coated and UV resistant polycarbonate lens and lens protectors for rock and debris protection
Features
  • SKU
    AL538804-1
  • Brand
    PROJECT X
  • Beam Length (1 Lamp)
    1 lx at 1886 ft.
  • Beam Length (2 Lamps)
    1 lx at 2664 ft.
  • Beam Width (1 Lamp)
    1 lx at 147 ft.
  • Beam Width (2 Lamps)
    1 lx at 206 ft.
  • Bezel Color
    Brocky Blue, Dragon Red and PROJECT X Green
  • Bulb Color
    White
  • Bulb Quantity
    24
  • Bulb Style
    LED
  • Bulb Style
    Osram LED
  • Color Rendering Index
    72
  • Connector Gender
    Male
  • Connector Quantity
    1
  • Current Draw
    8.77A @ 12V (Lamp Current Draw)
  • Filter Shape
    Round
  • Grade Type
    Performance
  • Hardware Material
    Stainless Steel
  • Heat Management
    Active Thermal Management System
  • Housing Color
    Black
  • Housing Material
    Pressure Die-Cast Aluminum
  • IP Rating
    IP67
  • Includes Mounting Hardware
    Yes
  • Includes Wiring Harness
    Yes
  • Input Voltage
    9-33V DC
  • Length
    7.0 in.
  • Lens Color
    Clear
  • Lens Material
    Hardcoated Polycarbonate
  • Lumens
    15,000 lm
  • Mounting Hole Quantity
    3
  • Operating Temperature
    -40C to 65C (-40F to 149F)
  • Positional Light Current Draw @ 12.0V DC
    0.17A
  • Prop 65 - Long Label
    WARNING: This product can expose you to chemicals including DEHP and DINP, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
  • Prop 65 - Required to List in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Prop 65 - Warning Chemical Listing
    Di(2-ethylhexyl)phthalate (DEHP), Diisononyl phthalate (DINP)
  • Protection
    Reverse Polarity Protection
  • Terminal Gender
    Female
  • Terminal Quantity
    1
  • Universal Or Specific Fit
    Universal
  • Voltage
    12.0V DC
  • Wattage
    (Driving Light) 106.0W, (Position) 2.2W
  • Width
    4.0 in.
  • Wire Quantity
    3
