ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma, Rear, Billet Lower Link Kit
        ICON Vehicle Dynamics

        ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma, Rear, Billet Lower Link Kit

        Part Number:54002

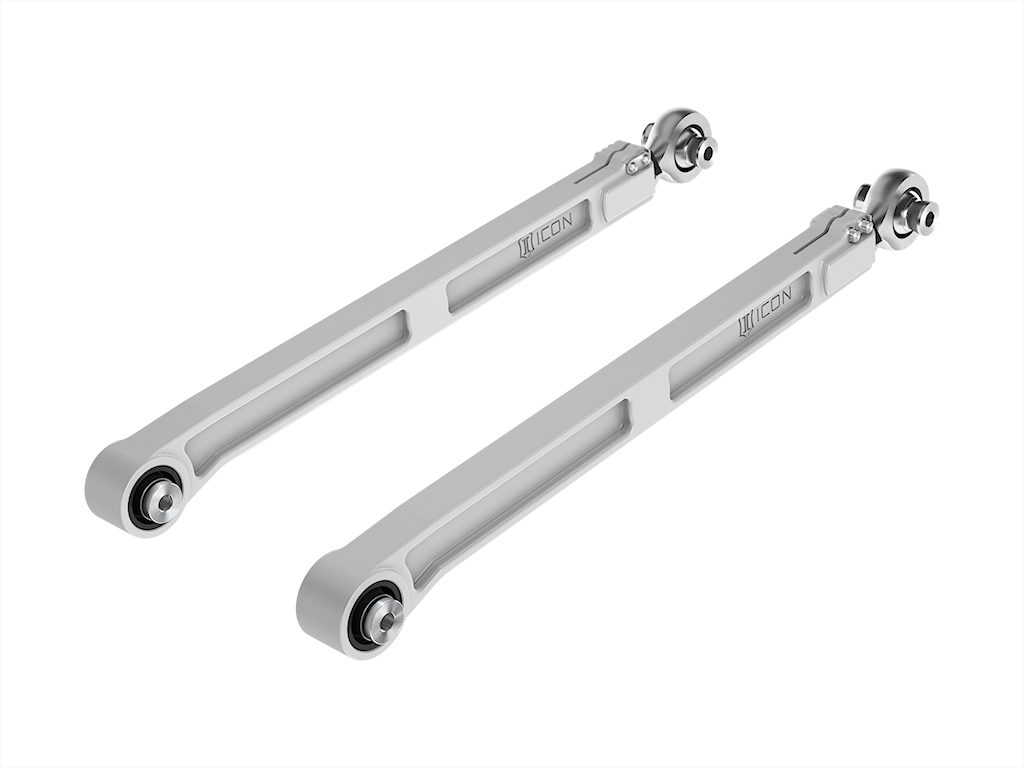

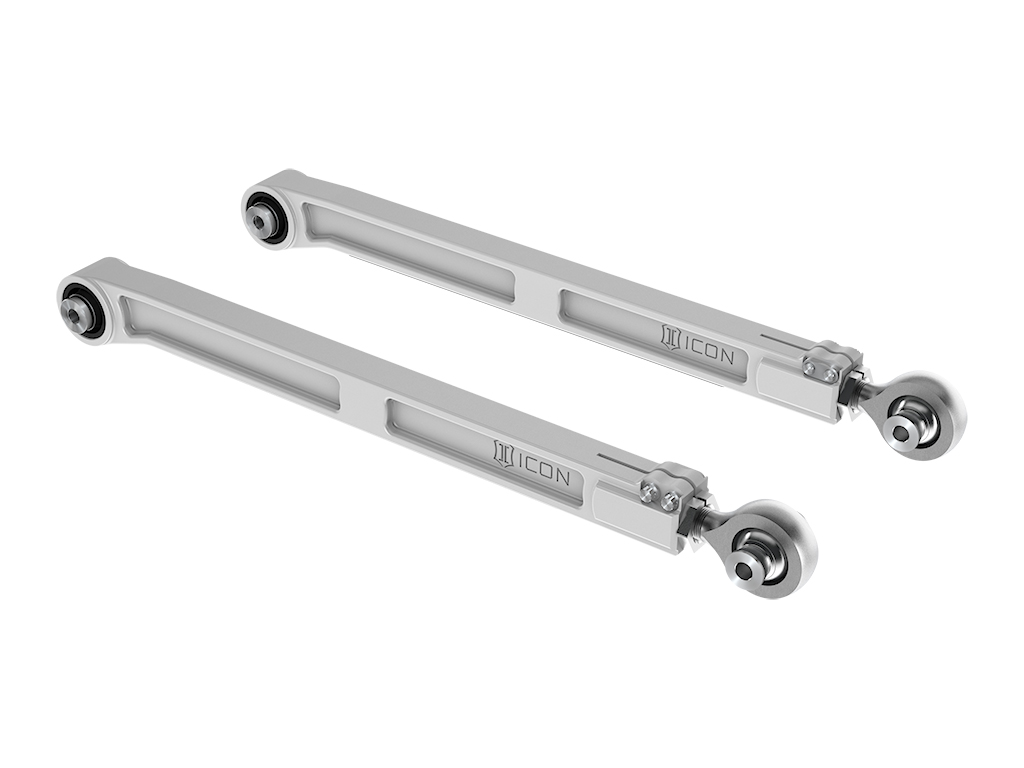

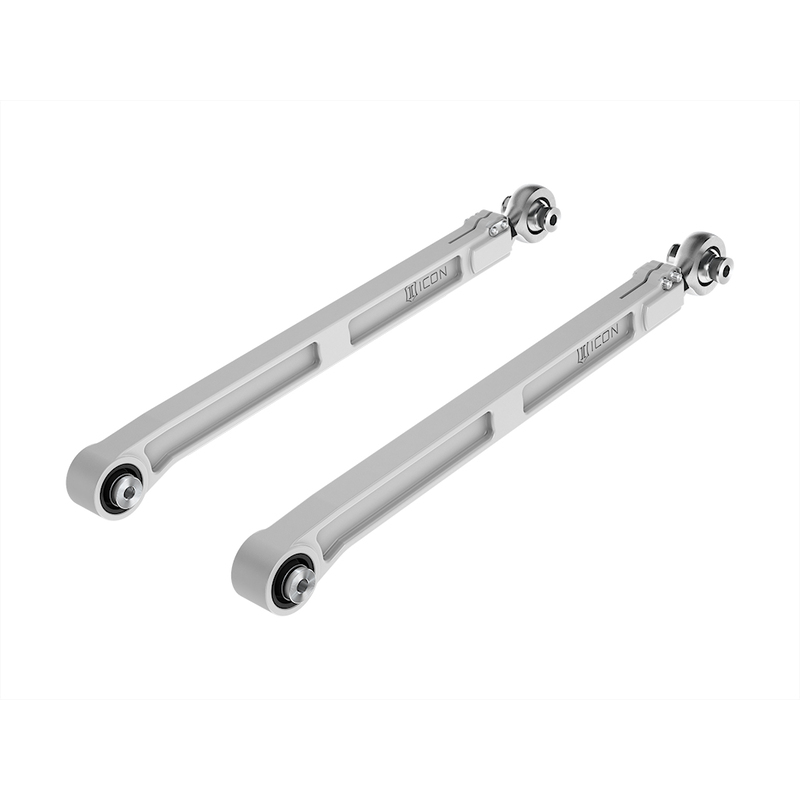

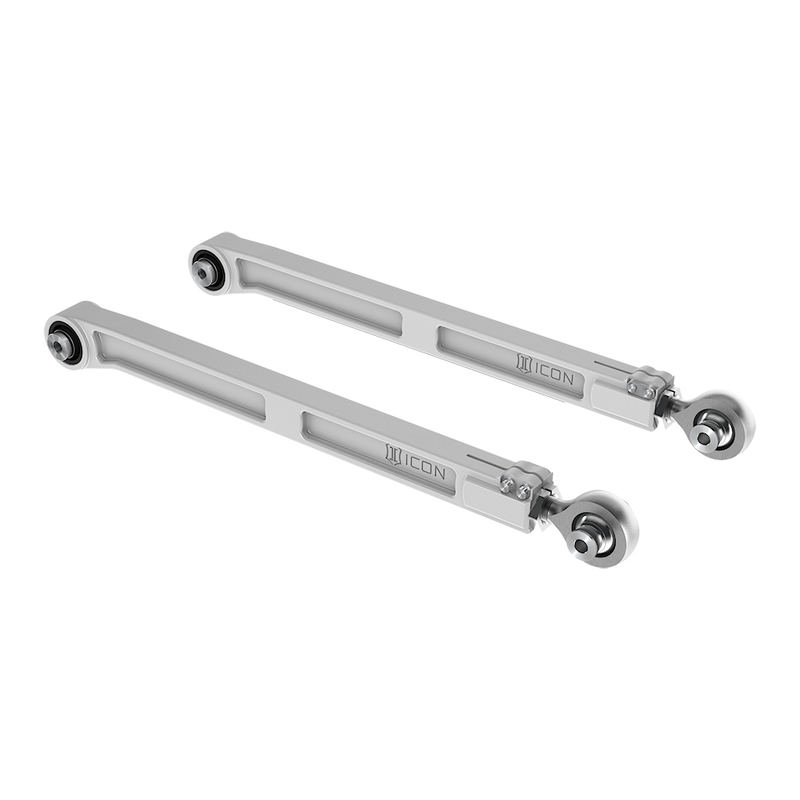

        ICON’s billet aluminum rear lower link arms for the 2022-2025 Toyota Tundra, 2023-2025 Toyota Sequoia, and 2024-2025 Toyota Tacoma are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units. This rear lower link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. ICON’s engineering team has also gone a step further in the development of these products by incorporating features such replaceable nylon rock sliders to prevent any hang-ups on the trail. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.
        • On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
        • Vehicle specific, high clearance design for reduced link contact with obstacles
        • Replaceable Nylon Rock Slider to protect the link from damage
        • CNC machined 6061 aluminum construction

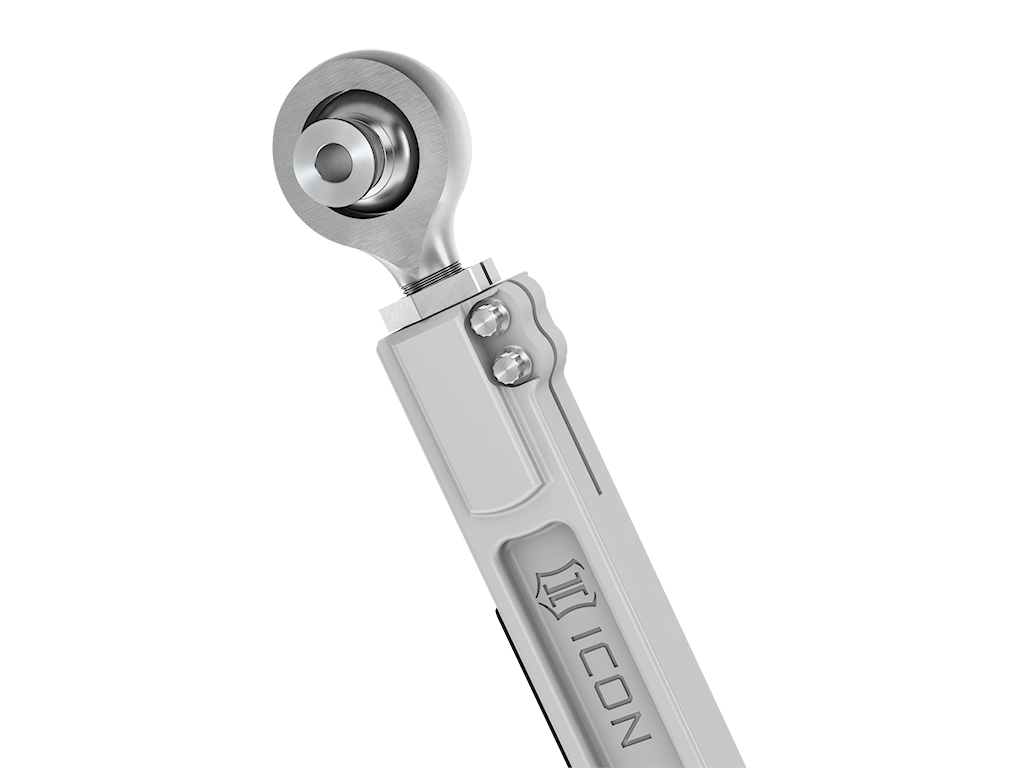

        • Large FK Bearing JMX16T PTFE-lined rod ends
        • Maintenance free, dual durometer bushings for maximum angularity and noise isolation
        • Covered by ICON’s Limited Lifetime Warranty
        Retail price
        • $1,602.24
        Features
        • SKU
          54002
        • Brand
          ICON Vehicle Dynamics
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • Add-On Part
          54102 - 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 BILLET REAR UPPER LINK KIT
        • Adjustable
          Yes
        • Adjustable Arms
          Yes
        • Attachments Included
          No
        • Ball Joint Mounting Type
          Thread in
        • Ball Joint Stud Type
          Threaded
        • Bushing Color
          Black
        • Bushing Color
          Silver
        • Bushing Material
          Polyurethane
        • Bushing Material
          Rod End Bearing
        • California Prop 65 Warning
          Yes
        • Color
          Gray
        • Construction
          Billet
        • Control Arm Color
          Gray
        • Control Arm Construction
          Billet
        • Control Arm Material
          Aluminum
        • End 1 Type
          Bushing
        • End 2 Type
          Rod End Bearing
        • Finish
          Anodized
        • Grade
          Performance
        • Grade Type
          Performance
        • Includes Ball Joint
          Yes
        • Includes Bushings
          Yes
        • Includes Grease Fittings
          No
        • Includes Mounting Hardware
          Yes
        • Material
          Aluminum
        • Mounting Bracket Included
          No
        • Pre-Assembled
          Yes
        • Pre-Greased
          No
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Reinforced
          Yes
        • Set
          Yes
        • Sold As
          Pair
        • Suspension Type
          Air
        • Suspension Type
          Coil Spring
        • Title
          ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma, Rear, Billet Lower Link Kit
