ICON 2022-2025 Toyota Tundra 1.25-3.5" Lift/2023-2025 Sequoia 3-4.5" Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV, Pair
        ICON Vehicle Dynamics

        ICON 2022-2025 Toyota Tundra 1.25-3.5" Lift/2023-2025 Sequoia 3-4.5" Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV, Pair

        Part Number:58770C

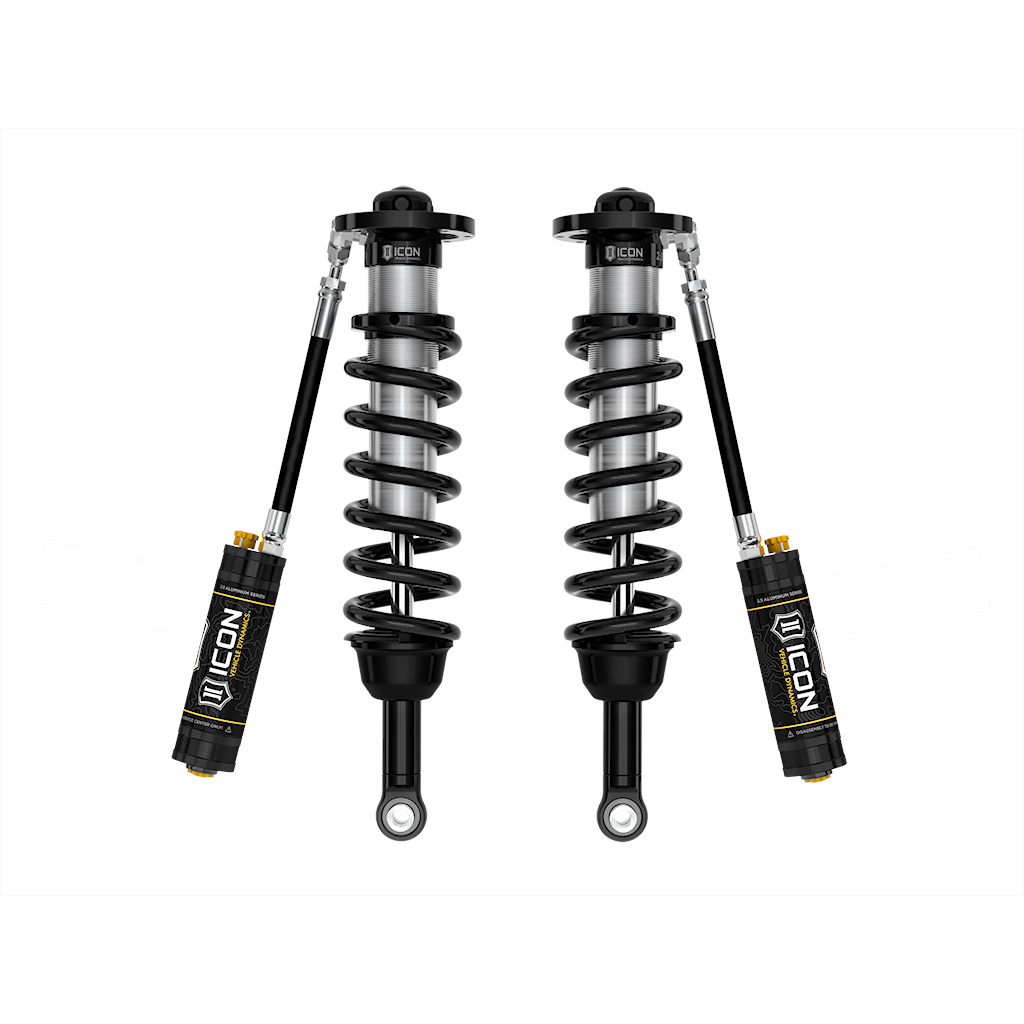

        ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2025 Toyota Tundra or 2023-2025 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3.5-4.5" of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
        • Increased wheel travel and improved ride quality over stock
        • Fully rebuildable and re-tunable
        • Vehicle specific tuned for superior shock damping and control
        • Adjustable up to 1.25-3.5" of front lift height over stock on Tundra or 3-4.5" of front lift on Sequoia
        • Remote reservoirs maintain cooler operating temperatures during extended off-road use
        • ICON CDCV equipped for 10 settings of external compression damping adjustment
        • ICON engineered coil springs
        • 6061 Aircraft grade aluminum CNC machined components
        • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
        • FK rod end bearings for extended longevity and minimal deflection
        Retail price
        • $2,463.17
        Features
        • SKU
          58770C
        • Brand
          ICON Vehicle Dynamics
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • Active or Passive Suspension
          Passive
        • Add-On Part
          55154 - 22-25 TUNDRA/23-24 SEQUOIA SWAY BAR DROP KIT
        • Add-On Part
          55156 - 22-25 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
        • Add-On Part
          55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
        • Add-On Part
          58461DJ - 22-25 TUNDRA/23-24 SEQUOIA TUBULAR UCA DJ PRO KIT
        • Add-On Part
          58561DJ - 22-25 TUNDRA/23-24 SEQUOIA BILLET UCA DJ PRO KIT
        • Adjustable
          Yes
        • Adjustable Compression
          Yes
        • Adjustable Damping
          Yes
        • Adjustable Height
          Yes
        • Adjustable Rebound
          No
        • Body Diameter
          2.5 in.
        • California Prop 65 Warning
          Yes
        • Cylinder Color
          Silver
        • Cylinder Finish
          Cadmium Plated
        • Cylinder Material
          Steel
        • Damping Adjustment Type
          Manual
        • Damping Type
          Oil
        • Dust Shield Included
          No
        • Fitment Note
          Does fit OEM Wheels and Tires
        • Gas Charged
          Yes
        • Grade Type
          Performance
        • Housing Material
          Steel
        • Includes Boot
          No
        • Internal Construction Type
          Single Tube
        • Material
          Aluminum
        • Maximum Lift
          3.5 in.
        • Mount Type - Lower
          Eyelet
        • Mount Type - Upper
          Mounting Plate
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Recommended Additional Part
          191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
        • Recommended Additional Part
          198000 - 2 PIN COILOVER SPANNER WRENCH KIT
        • Recommended Additional Part
          198001 - BILLET SPANNER WRENCH KIT
        • Recommended Additional Part
          252011 - 2.5 Piggyback/remote Resi/bypass Rebuild Kit
        • Recommended Additional Part
          252012 - -4 TO -10 HOSE SHIELD KIT
        • Recommended Aftermarket Tires
          35.0 in. X 12.5 in. (Minor Fender Trimming and Modifications may be Required)
        • Remote Reservoir
          Yes
        • Reservoir Style
          Remote
        • Self-Leveling
          No
        • Shaft Diameter
          0.875 in.
        • Shock Absorber Body End Measuring Point
          Top of Upper Mount Plate
        • Shock Absorber Rod End Measuring Point
          Center of Eyelet
        • Spring Color
          Black
        • Spring Material
          Steel
        • Spring Rate Type
          Linear
        • Valving Type
          Digressive
