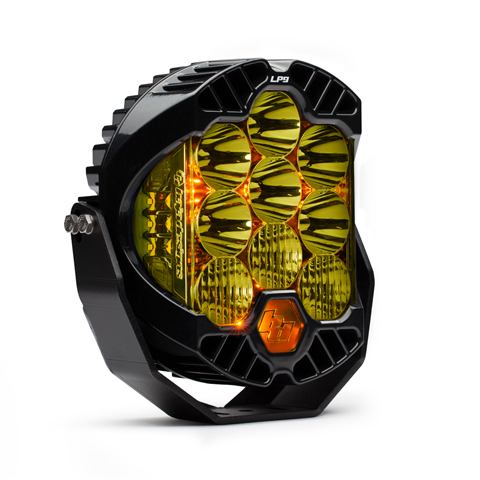

LP9 Pro LED Light Pod (Driving/Combo; Baja Amber)
Baja Designs

LP9 Pro LED Light Pod (Driving/Combo; Baja Amber)

Part Number:320013
A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
  • The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear
  • The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A
  • With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs
Retail price
  • $628.95
Features
  • SKU
    320013
  • Brand
    Baja Designs
  • Beam Pattern
    Combo
  • Bulb Style
    LED
  • Feature Note
    Driving/Combo; Amber
  • Hardware Material
    Stainless Steel
  • Height
    8.0 in.
  • Housing Color
    Black
  • Includes Mounting Hardware
    Yes
  • Includes Wiring Harness
    No
  • Length
    8.0 in.
  • Lens Color
    Amber
  • Lens Material
    Hardcoated Polycarbonate
  • Life Expectancy
    49,930 hrs.
  • Light Quantity
    1
  • Light Quantity
    9
  • Lighting Mode
    High Beam/Low Beam/Day-Time Running Backlighting
  • Mechanical Impact Testing
    IK10 Compliant
  • Mil-Spec Testing
    Exceeds MIL-STD810G
  • Product Type
    LP9 Pro LED Light Pod
  • Projection Direction
    Forward
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Protection
    Built-In Overvoltage Protection
  • Recommended Additional Part
    Accessories-328001-Rock Guard (Black)
  • Recommended Additional Part
    Accessories-328002-Rock Guard (Amber)
  • Recommended Additional Part
    Accessories-328003-Rock Guard (Clear)
  • Recommended Additional Part
    Accessories-668601-Lens Kit (Spot; Clear)
  • Recommended Additional Part
    Accessories-668603-Lens Kit (Driving/Combo; Clear)
  • Recommended Additional Part
    Accessories-668611-Lens Kit (Spot; Amber)
  • Recommended Additional Part
    Accessories-668613-Lens Kit (Driving/Combo; Amber)
  • Recommended Additional Part
    Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts
  • Recommended Additional Part
    Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
  • Recommended Additional Part
    Compatible Products-640167-Upfitter Lock Out Harness
  • Recommended Additional Part
    Compatible Products-640168-Controller Module Harness
  • Recommended Additional Part
    Compatible Products-640172-Splitter Harness (2-Light Max)
  • Recommended Additional Part
    Compatible Products-640176-Backlit Add-On Harness
  • Secondary LED Quantity
    6
  • Secondary Wattage
    21W
  • Terminal Connector
    DT06-4S Deutsch
  • Terminal Type
    Mating Connector
  • Universal Or Specific Fit
    Universal
