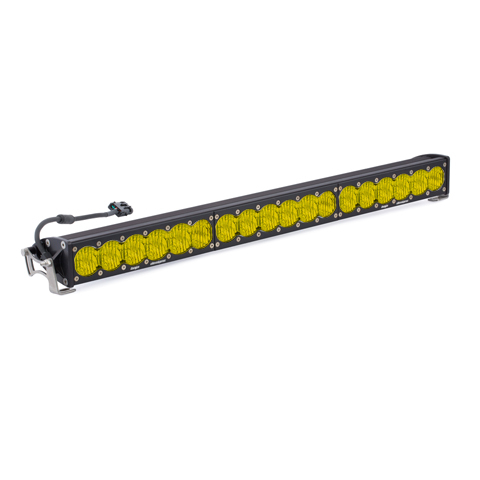

OnX6+ Straight LED Light Bar (30 Inch; Wide Cornering; Baja Amber)
Baja Designs

OnX6+ Straight LED Light Bar (30 Inch; Wide Cornering; Baja Amber)

Part Number:453014
At an impressive 39,430 lumens, the brightest just got up to 69 percent brighter than our previous generation. The OnX6 plus LED light bar also integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
  • 5000K Daylight – Less Driver Fatigue, Natural Color
  • ClearView – All The Light, Right Where You Need It
  • CopperDrive – Only LED Driven At 100 Percent
  • Limited Lifetime Warranty – Complete Purchase Protection
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • NOTE: *This light does NOT come with a harness, the applicable harness is 640119 OnX6+ wiring harness must be used for 30-50in.
  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • uService – Replaceable Lenses And Optics
Retail price
  • $1,132.95
Features
  • SKU
    453014
  • Brand
    Baja Designs
  • Amperage Rating
    21.7A (High); 17.1A (Low)
  • Beam Pattern
    Combo
  • Bezel Material
    Billet Machined Aluminum
  • Bulb Style
    LED
  • Depth
    4.29 in.
  • Feature Note
    Straight; Wide Cornering; Amber
  • Feature Note
    Waterproof up to 9ft and Pressure Washable
  • Finish
    Mil-Spec Hard Anodize
  • Hardware Material
    Stainless Steel
  • Height
    2.69 in.
  • Housing Color
    Black
  • IP Rating
    IP69K
  • Included Mounting Hardware
    Mounting Brackets
  • Includes Mounting Hardware
    Yes
  • Includes Wiring Harness
    No
  • Length
    30.0 in.
  • Lens Color
    Amber
  • Lens Material
    Hardcoated Polycarbonate
  • Life Expectancy
    49,930 hrs.
  • Light Feature
    High Beam/Low Beam
  • Light Quantity
    1
  • Light Quantity
    18
  • Lumens
    31,910 lm (High); 25,450 lm (Low)
  • Material
    Aircraft Grade Aluminum
  • Mechanical Impact Testing
    IK10 Compliant
  • Mil-Spec Testing
    Exceeds MIL-STD810G
  • Product Type
    30.0 in. LED Light Bar
  • Projection Direction
    Forward
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Protection
    Built-In Overvoltage Protection
  • Recommended Additional Part
    Accessories-458113-Lens Kit (Spot; Clear)
  • Recommended Additional Part
    Accessories-458114-Lens Kit (Driving/Combo; Clear)
  • Recommended Additional Part
    Accessories-458115-Lens Kit (Wide Cornering; Clear)
  • Recommended Additional Part
    Accessories-458116-Lens Kit (Wide Cornering; Amber)
  • Recommended Additional Part
    Accessories-458117-Lens Kit (Driving/Combo; Amber)
  • Recommended Additional Part
    Accessories-458410-Light Cover (Clear)
  • Recommended Additional Part
    Accessories-458411-Rock Guard (Black)
  • Recommended Additional Part
    Accessories-458412-Light Cover (Amber)
  • Recommended Additional Part
    Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts
  • Recommended Additional Part
    Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
  • Recommended Additional Part
    Compatible Products-613608-Harness Splitter
  • Recommended Additional Part
    Compatible Products-613609-Harness/Splitter (55 Inch)
  • Recommended Additional Part
    Compatible Products-640094-Upfitter Harness
  • Recommended Additional Part
    Compatible Products-640115-Wiring Harness (On/Off)
  • Recommended Additional Part
    Compatible Products-640119-Wiring Harness (Hi/Low)
  • Recommended Additional Part
    Compatible Products-640163-Harness/Splitter (Hi Beam)
  • Universal Or Specific Fit
    Universal
  • Wattage
    281.0W (High), 225.0W (Low)
  • Weight
    11.5 lbs. (5.2 kg)
  • Wiring Harness Description
    Hi-Low Dongle
