OnX6 Arc LED Light Bar (30 Inch; Driving/Combo; Clear)
Baja Designs

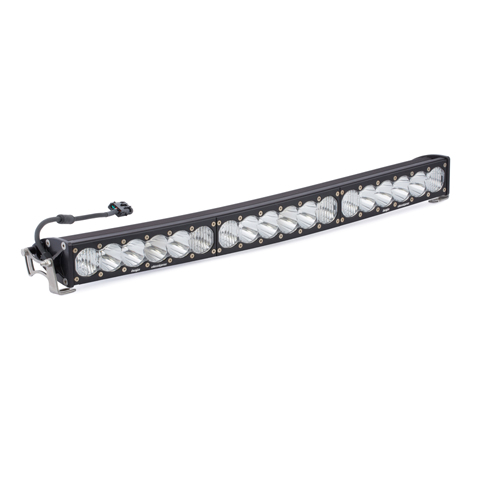

OnX6 Arc LED Light Bar (30 Inch; Driving/Combo; Clear)

Part Number:523003
The OnX6+ Arc Series is the perfect combination of performance and aesthetics. The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility. We use next-generation LEDs that provide 37% greater distance over that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar.
  • Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar
  • NOTE: *This light does NOT come with a harness, the applicable harness is 640119*
  • The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility
  • We use next-generation LEDs that provide 37% greater distance over that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue
Retail price
  • $1,338.95
Features
  • SKU
    523003
  • Brand
    Baja Designs
  • Amperage Rating
    21.7A (High); 17.1A (Low)
  • Beam Pattern
    Combo
  • Bezel Material
    Billet Machined Aluminum
  • Bulb Style
    LED
  • Depth
    4.29 in.
  • Feature Note
    Waterproof up to 9ft and Pressure Washable
  • Finish
    Mil-Spec Hard Anodize
  • Hardware Material
    Stainless Steel
  • Height
    2.69 in.
  • Housing Color
    Black
  • IP Rating
    IP69K
  • Included Mounting Hardware
    Mounting Brackets
  • Includes Mounting Hardware
    Yes
  • Includes Wiring Harness
    No
  • Length
    30.0 in.
  • Lens Color
    Clear
  • Lens Material
    Hardcoated Polycarbonate
  • Life Expectancy
    49,930 hrs.
  • Light Feature
    High Beam/Low Beam
  • Light Quantity
    1
  • Light Quantity
    18
  • Lumens
    32,070 lm (High); 25,610 lm (Low)
  • Material
    Aircraft Grade Aluminum
  • Mechanical Impact Testing
    IK10 Compliant
  • Mil-Spec Testing
    Exceeds MIL-STD810G
  • Product Note
    Arc; Driving/Combo; Clear
  • Product Type
    30.0 in. Arc LED Light Bar
  • Projection Direction
    Forward
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Protection
    Built-In Overvoltage Protection
  • Recommended Additional Part
    Accessories-458113-Lens Kit (Spot; Clear)
  • Recommended Additional Part
    Accessories-458114-Lens Kit (Driving/Combo; Clear)
  • Recommended Additional Part
    Accessories-458115-Lens Kit (Wide Cornering; Clear)
  • Recommended Additional Part
    Accessories-458116-Lens Kit (Wide Cornering; Amber)
  • Recommended Additional Part
    Accessories-458117-Lens Kit (Driving/Combo; Amber)
  • Recommended Additional Part
    Accessories-458410-Light Cover (Clear)
  • Recommended Additional Part
    Accessories-458411-Rock Guard (Black)
  • Recommended Additional Part
    Accessories-458412-Light Cover (Amber)
  • Recommended Additional Part
    Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts
  • Recommended Additional Part
    Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
  • Recommended Additional Part
    Compatible Products-613608-Harness Splitter
  • Recommended Additional Part
    Compatible Products-613609-Harness/Splitter (55 Inch)
  • Recommended Additional Part
    Compatible Products-640094-Upfitter Harness
  • Recommended Additional Part
    Compatible Products-640115-Wiring Harness (On/Off)
  • Recommended Additional Part
    Compatible Products-640119-Wiring Harness (Hi/Low)
  • Recommended Additional Part
    Compatible Products-640163-Harness/Splitter (Hi Beam)
  • Universal Or Specific Fit
    Universal
  • Wattage
    278.0W (High), 222.0W (Low)
  • Weight
    11.5 lbs. (5.2 kg)
  • Wiring Harness Description
    Hi-Low Dongle
