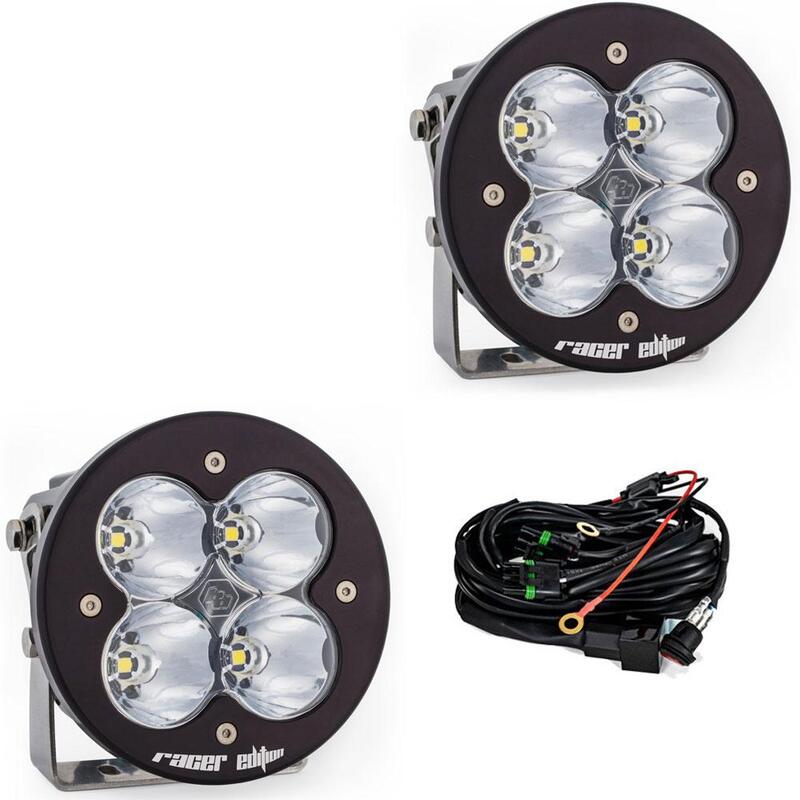

XL-R Racer Edition Light Pod Pair (Racer Spot; Clear)
        Baja Designs

        XL-R Racer Edition Light Pod Pair (Racer Spot; Clear)

        Part Number:697802
        Baja Designs XL-R Racer with the next generation LEDs offers 2,800 lumens per light and 85 percent greater distance over the previous generation. The XL-R Racer comes with a round bezel and throws light an average of 40 percent further than the XL Pro with a High-intensity LED, housed in hard anodized and powder coat cast aluminum. Enjoy nearly 50,000 hours of bright, efficient lighting to enhance your nighttime off-roading experiences! The XL-R Racer Edition LED light utilizes our trademarked High-Speed Spot reflectors providing for a longer beam pattern to hit lighting zone 5, and offers a 20 percent dimming feature. As always, Baja Designs provides the best in auxiliary LED lights with a 30 Day Satisfaction Guarantee, and Limited Lifetime Warranty.
        • 5000K Daylight – Less Driver Fatigue, Natural Color
        • ClearView – All The Light, Right Where You Need It
        • CopperDrive – Only LED Driven At 100 Percent
        • Limited Lifetime Warranty – Complete Purchase Protection
        • MoistureBlock – Waterproof, Rain Proof, Submersible
        • Satisfaction Guarantee – 30-Day Money Back Guarantee
        • uService – Replaceable Lenses And Optics
        Retail price
        • $813.95
        Features
        • SKU
          697802
        • Brand
          Baja Designs
        • Amperage Rating
          2.9A
        • Beam Pattern
          Spot
        • Bezel Material
          Billet Machined Aluminum
        • Bulb Style
          LED
        • Depth
          3.65 in.
        • Hardware Material
          Stainless Steel
        • Height
          5.24 in.
        • Housing Color
          Black
        • Housing Finish
          Hard Anodized and Powder Coated
        • Includes Mounting Hardware
          Yes
        • Includes Wiring Harness
          Yes
        • Length
          5.24 in.
        • Lens Color
          Clear
        • Lens Material
          Hardcoated Polycarbonate
        • Life Expectancy
          49,930 hrs.
        • Light Quantity
          2
        • Light Quantity
          4
        • Lighting Modes
          High Beam/Dimming Feature (20%)
        • Lumens
          4,300 lm
        • Material
          Cast Aluminum
        • Mechanical Impact Testing
          IK10 Compliant
        • Mil-Spec Testing
          Exceeds MIL-STD810G
        • Product Note
          Round; Racer Edition Spot; Clear; Pair
        • Product Type
          XL-R 80 Racer Edition LED Light Pod Pair w/ Wiring Harness
        • Projection Direction
          Forward
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          CR
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Protection
          Built-In Overvoltage Protection
        • Recommended Additional Part
          Accessories-660104-Lens Kit (Driving/Combo; Clear)
        • Recommended Additional Part
          Accessories-660105-Lens Kit (Wide Cornering; Clear)
        • Recommended Additional Part
          Accessories-660106-Lens Kit (Spot; Clear)
        • Recommended Additional Part
          Accessories-660107-Lens Kit (Wide Cornering; Amber)
        • Recommended Additional Part
          Accessories-660115-Lens Kit (Driving/Combo; Amber)
        • Recommended Additional Part
          Accessories-668010-Light Cover (Clear)
        • Recommended Additional Part
          Accessories-668011-Rock Guard (Black)
        • Recommended Additional Part
          Accessories-668012-Light Cover (Amber)
        • Recommended Additional Part
          Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts
        • Recommended Additional Part
          Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
        • Recommended Additional Part
          Compatible Products-613608-Harness Splitter
        • Recommended Additional Part
          Compatible Products-613609-Harness/Splitter (55 Inch)
        • Recommended Additional Part
          Compatible Products-640094-Upfitter Harness
        • Recommended Additional Part
          Compatible Products-640119-Wiring Harness (Hi/Low)
        • Recommended Additional Part
          Compatible Products-660060-Wiring Harness (Off Road Mode Switch)
        • Universal Or Specific Fit
          Universal
        • Wattage
          40.0W
        • Weight
          2.5 lbs. (1.1 kg)
