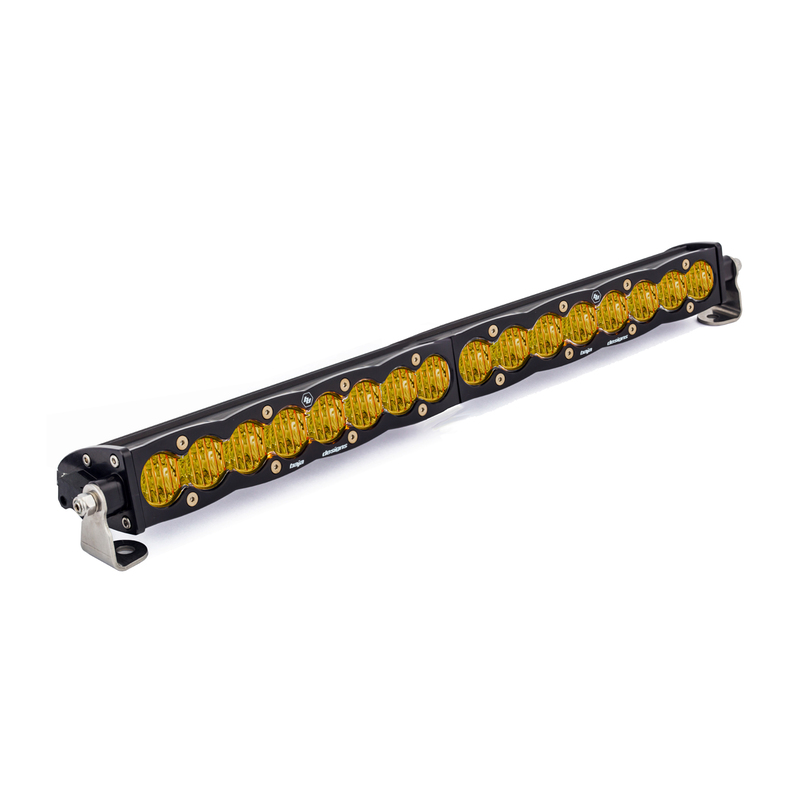

S8 Straight LED Light Bar (20 Inch; Wide Cornering; Baja Amber)
Baja Designs

S8 Straight LED Light Bar (20 Inch; Wide Cornering; Baja Amber)

Part Number:702014
The S8 LED light bar from Baja Designs offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 raw lumens per 10" section, the S8 is available from 10" to 50" and features high-performance reflectors along with the additional feature of an amber backlight making the S8 a light bar that shines with your vehicle. The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! NOTE:This light does NOT include a harness. The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30").
  • 5000K Daylight – Less Driver Fatigue, Natural Color
  • ClearView – All The Light, Right Where You Need It
  • CopperDrive – Only LED Driven At 100 Percent
  • Limited Lifetime Warranty – Complete Purchase Protection
  • Lumens start at 6,324 raw lumens per 10" section, the S8 is available from 10" to 50" and features high-performance reflectors along with the additional feature of an amber backlight making the S8 a light bar that shines with your vehicle
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • NOTE: *This light does NOT come with a harness, The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10?-30?).
  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30")
  • The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! NOTE:This light does NOT include a harness
  • uService – Replaceable Lenses And Optics
Retail price
  • $596.95
Features
  • SKU
    702014
  • Brand
    Baja Designs
  • Amperage Rating
    8.0A
  • Beam Pattern
    Combo
  • Bezel Material
    Billet Machined Aluminum
  • Bulb Style
    LED
  • Depth
    3.0 in.
  • Feature Note
    Beam/Amber Backlit Feature
  • Feature Note
    Waterproof up to 9ft and Pressure Washable
  • Feature Note
    Wide Cornering; Amber
  • Finish
    Mil-Spec Hard Anodize
  • Hardware Material
    Stainless Steel
  • Height
    1.6 in.
  • Housing Color
    Black
  • IP Rating
    IP69K
  • Included Mounting Hardware
    Mounting Brackets
  • Includes Mounting Hardware
    Yes
  • Includes Wiring Harness
    No
  • Length
    20.0 in.
  • Lens Color
    Amber
  • Lens Material
    Hardcoated Polycarbonate
  • Life Expectancy
    49,930 hrs.
  • Light Quantity
    1
  • Light Quantity
    16
  • Lumens
    12,700 lm
  • Material
    Aircraft Grade Aluminum
  • Mechanical Impact Testing
    IK10 Compliant
  • Mil-Spec Testing
    Exceeds MIL-STD810G
  • Patent Number
    D780,964
  • Product Type
    20.0 in. LED Light Bar
  • Projection Direction
    Forward
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Protection
    Built-In Overvoltage Protection
  • Recommended Additional Part
    Accessories-708201-Rock Guard (Black)
  • Recommended Additional Part
    Accessories-708202-Light Cover (Amber)
  • Recommended Additional Part
    Accessories-708203-Light Cover (Clear)
  • Recommended Additional Part
    Accessories-708301-Lens Kit (Spot; Clear)
  • Recommended Additional Part
    Accessories-708303-Lens Kit (Driving/Combo; Clear)
  • Recommended Additional Part
    Accessories-708304-Lens Kit (Wide Cornering; Clear)
  • Recommended Additional Part
    Accessories-708313-Lens Kit (Driving/Combo; Amber)
  • Recommended Additional Part
    Accessories-708314-Lens Kit (Wide Cornering; Amber)
  • Recommended Additional Part
    Associated Products-618001-Cradle Mount Kit
  • Recommended Additional Part
    Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts
  • Recommended Additional Part
    Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
  • Recommended Additional Part
    Compatible Products-613608-Harness Splitter
  • Recommended Additional Part
    Compatible Products-613609-Harness/Splitter (55 Inch)
  • Recommended Additional Part
    Compatible Products-640094-Upfitter Harness
  • Recommended Additional Part
    Compatible Products-640115-Wiring Harness (On/Off)
  • Recommended Additional Part
    Compatible Products-640122-Wiring Harness (Mode Switch)
  • Recommended Additional Part
    Compatible Products-640163-Harness/Splitter (Hi Beam)
  • Recommended Additional Part
    Compatible Products-640177-Backlit Add-On
  • Universal Or Specific Fit
    Universal
  • Wattage
    120.0W
  • Weight
    4.5 lbs. (2 kg)
