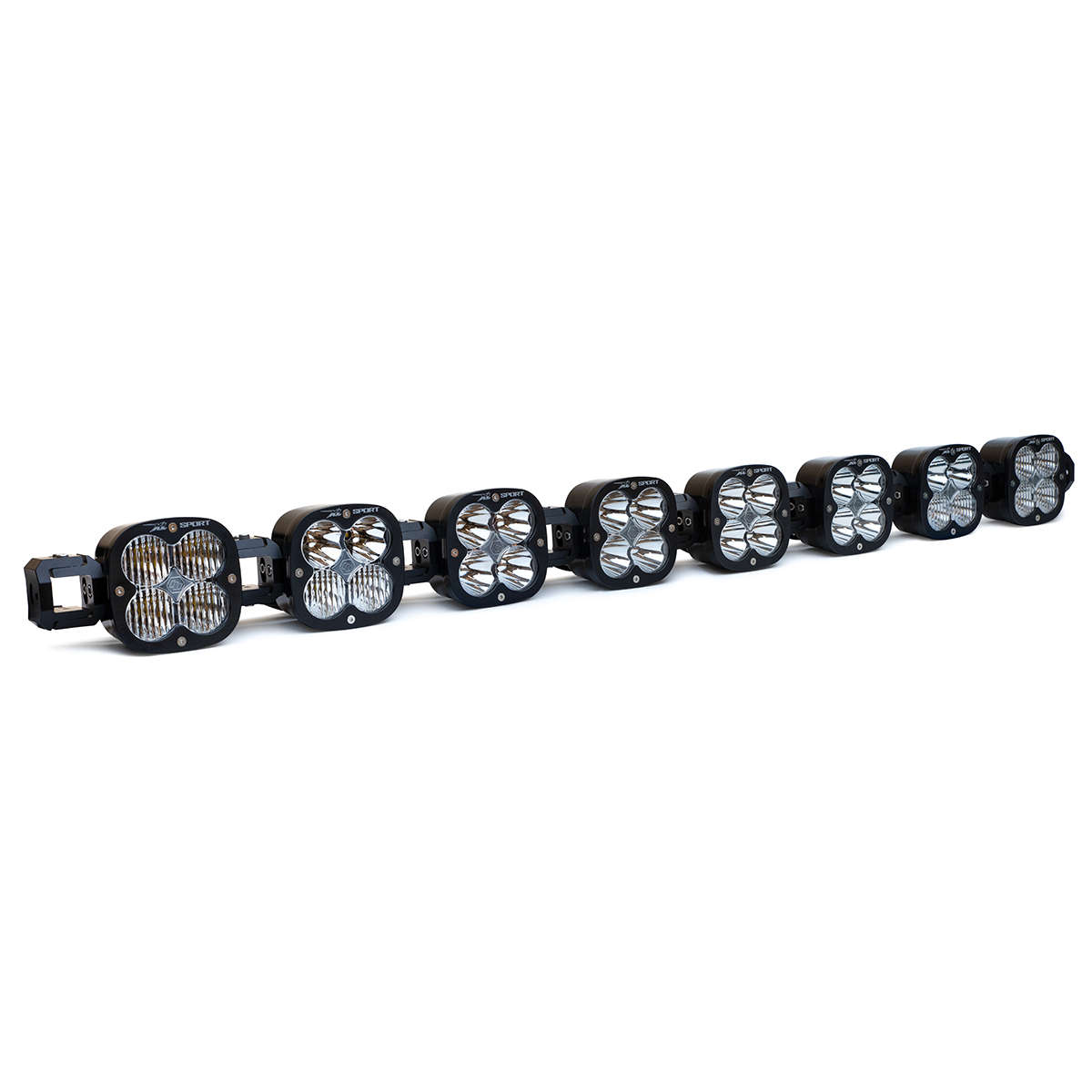

XL Linkable LED Light Bar (8 XL; Clear)
Baja Designs

XL Linkable LED Light Bar (8 XL; Clear)

Part Number:740006
Experience full adjustment and total performance with the Baja Designs XL Linkable LED light bar kit, engineered for enthusiasts seeking to take charge with a lighting package that is completely customizable. Built around our popular XL Sport shallow moto housing, each light offers up 3,162 raw lumens each from our next generation LEDs, the XL Linkable can be built with 3 up to 8 forward projecting lights that provide a smooth blend due to the use of our wide cornering, driving combo and spot lenses illuminating zones 1, 2, 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your vehicle’s bumper or roofline. The wiring comes fully crimped and trimmed, allowing for easy installation and the ability to add links down the road, and black rock guards are included to protect the lights when not in use. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!
  • 5000K Daylight – Less Driver Fatigue, Natural Color
  • Built around our popular XL Sport shallow moto housing, each light offers up 3,162 raw lumens each from our next generation LEDs, the XL Linkable can be built with 3 up to 8 forward projecting lights that provide a smooth blend due to the use of our wide cornering, driving combo and spot lenses illuminating zones 1, 2, 3 and 4 simultaneously
  • ClearView – All The Light, Right Where You Need It

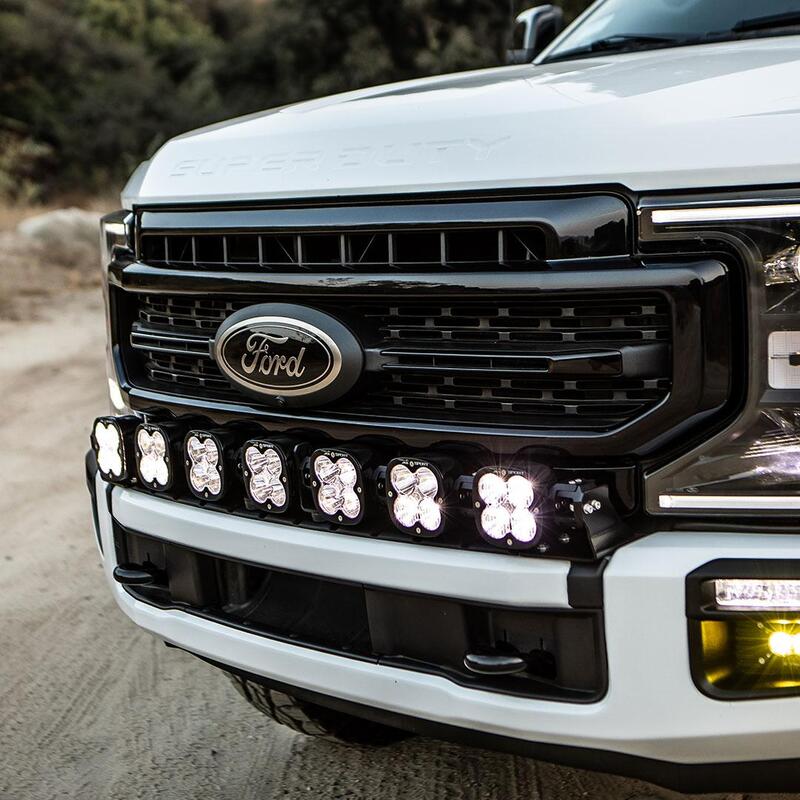

  • Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your vehicle’s bumper or roofline
  • CopperDrive – Only LED Driven At 100 Percent
  • Limited Lifetime Warranty – Complete Purchase Protection
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • NOTE: This light does not come with mounting brackets. The applicable mounting brackets are 748005
  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit
  • uService – Replaceable Lenses And Optics
Retail price
  • $1,802.95
Features
  • SKU
    740006
  • Brand
    Baja Designs
  • Beam Pattern
    Beam
  • Beam Pattern
    Combo
  • Bezel Material
    Billet Machined Aluminum
  • Bulb Style
    LED
  • Depth
    2.8 in.
  • Feature Note
    Waterproof up to 9ft and Pressure Washable
  • Finish
    Hard Anodized and Powder Coated
  • Hardware Material
    Stainless Steel
  • Height
    4.43 in.
  • Housing Color
    Black
  • IP Rating
    IP69K
  • Included Mounting Hardware
    Pre-Load Kit, Links, Rock Guards
  • Includes Mounting Hardware
    Yes
  • Includes Wiring Harness
    Yes

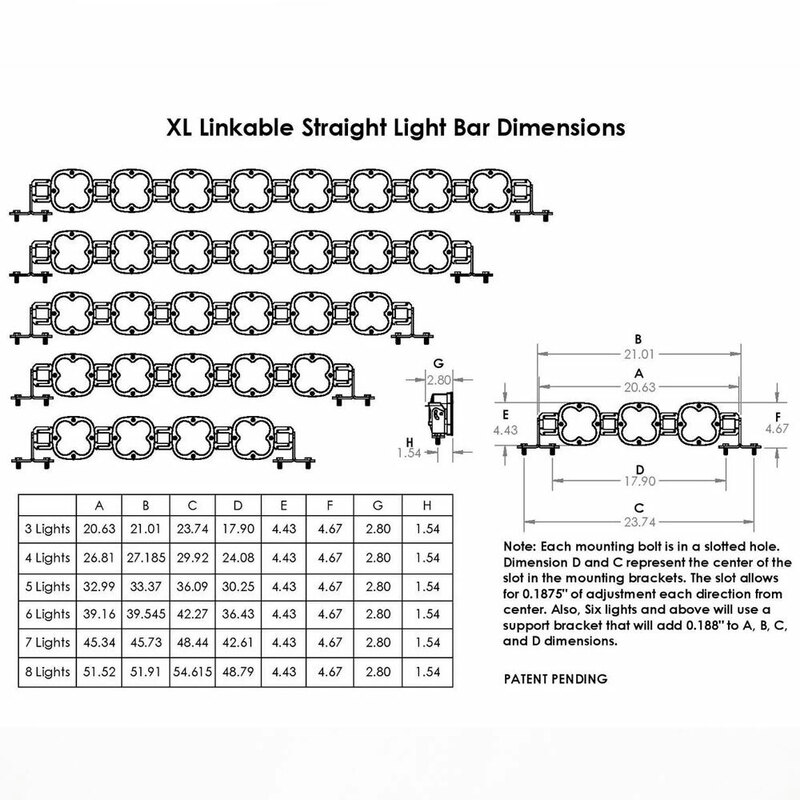

  • Length
    51.52 in.
  • Lens Color
    Clear
  • Lens Material
    Hardcoated Polycarbonate
  • Life Expectancy
    49,930 hrs.
  • Light Quantity
    32
  • Light Quantity
    8
  • Lumens
    25,200 lm
  • Material
    Cast Aluminum
  • Mechanical Impact Testing
    IK10 Compliant
  • Mil-Spec Testing
    Exceeds MIL-STD810G
  • Product Note
    8XL Sport; Multi-Pattern; Clear
  • Product Type
    XL Linkable LED Light Bar
  • Projection Direction
    Forward
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Protection
    Built-In Overvoltage Protection
  • Recommended Additional Part
    Accessories-660104-Lens Kit (Driving/Combo; Clear)
  • Recommended Additional Part
    Accessories-660105-Lens Kit (Wide Cornering; Clear)
  • Recommended Additional Part
    Accessories-660106-Lens Kit (Spot; Clear)
  • Recommended Additional Part
    Accessories-660107-Lens Kit (Wide Cornering; Amber)
  • Recommended Additional Part
    Accessories-660115-Lens Kit (Driving/Combo; Amber)
  • Recommended Additional Part
    Accessories-668003-Rock Guard (Black)
  • Recommended Additional Part
    Accessories-668004-Light Cover (Amber)
  • Recommended Additional Part
    Accessories-668005-Light Cover (Clear)
  • Recommended Additional Part
    Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts
  • Recommended Additional Part
    Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
  • Recommended Additional Part
    Associated Products-748000-Brackets
  • Recommended Additional Part
    Associated Products-748002-Pre-Load Mount
  • Recommended Additional Part
    Compatible Products-640094-Upfitter Harness
  • Universal Or Specific Fit
    Universal
  • Wattage
    208.0W
