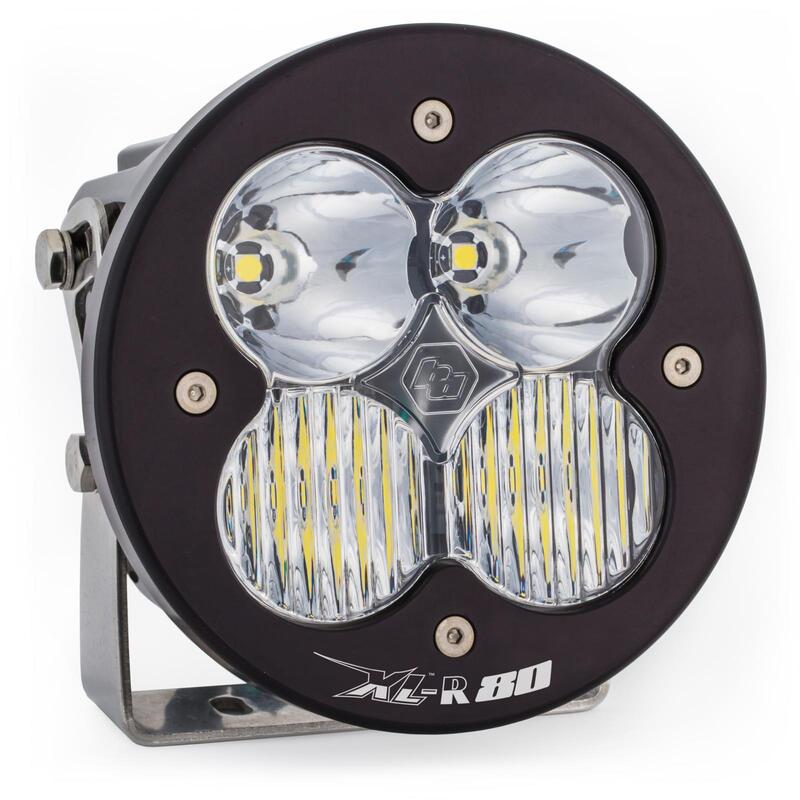

XL-R 80 LED Light Pod (Driving/Combo; Clear)
Baja Designs

XL-R 80 LED Light Pod (Driving/Combo; Clear)

Part Number:760003

XL-R 80 LED Light Pod (Driving/Combo; Clear)

The Baja Designs XL-R80 auxiliary LED light pod will take your off-road lighting to the next level with greater visibility and increased brightness. The XL-R80 uses Baja Designs trademarked high-speed spot reflectors providing for a longer and wider beam pattern with powerful next-generation LED technology that provides 18% greater distance and increased intensity over our previous generation model while pushing 9,022 raw lumens per light. Perfect for any off-road vehicle such as trucks, vans, UTVs and motorcycles. Similar to BD’s XL Pro model, the XL80 offers a 20 percent dimming feature,apowder coated housing and an anodized round bezel for that classic round look. Designed for users who want reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection.
  • 5000K Daylight – Less Driver Fatigue, Natural Color
  • ClearView – All The Light, Right Where You Need It
  • CopperDrive – Only LED Driven At 100 Percent
  • Limited Lifetime Warranty – Complete Purchase Protection
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • Perfect for any off-road vehicle such as trucks, vans, UTVs and motorcycles
  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • Similar to BD’s XL Pro model, the XL80 offers a 20 percent dimming feature,apowder coated housing and an anodized round bezel for that classic round look
  • The XL-R80 uses Baja Designs trademarked high-speed spot reflectors providing for a longer and wider beam pattern with powerful next-generation LED technology that provides 18% greater distance and increased intensity over our previous generation model while pushing 9,022 raw lumens per light
  • uService – Replaceable Lenses And Optics

Retail price
  • $411.95
Features
  • SKU
    760003
  • Brand
    Baja Designs
  • Amperage Rating
    5.5A
  • Beam Pattern
    Combo
  • Bezel Material
    Billet Machined Aluminum
  • Chip Type
    CREE LED
  • Depth
    3.65 in.
  • Hardware Material
    Stainless Steel
  • Height
    5.24 in.
  • Housing Color
    Black
  • Housing Finish
    Hard Anodized and Powder Coated
  • Includes Mounting Hardware
    Yes
  • Includes Wiring Harness
    No
  • Length
    5.24 in.
  • Lens Color
    Clear
  • Lens Material
    Hardcoated Polycarbonate
  • Life Expectancy
    49,930 hrs.
  • Light Quantity
    1
  • Light Quantity
    4
  • Lumens
    9,500 lm
  • Material
    Cast Aluminum
  • Mechanical Impact Testing
    IK10 Compliant
  • Mil-Spec Testing
    Exceeds MIL-STD810G
  • Product Note
    Round; Driving/Combo; Clear
  • Product Type
    XL-R 80 LED Light Pod
  • Projection Direction
    Forward
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Protection
    Built-In Overvoltage Protection
  • Recommended Additional Part
    Accessories-660104-Lens Kit (Driving/Combo; Clear)
  • Recommended Additional Part
    Accessories-660105-Lens Kit (Wide Cornering; Clear)
  • Recommended Additional Part
    Accessories-660106-Lens Kit (Spot; Clear)
  • Recommended Additional Part
    Accessories-660107-Lens Kit (Wide Cornering; Amber)
  • Recommended Additional Part
    Accessories-660115-Lens Kit (Driving/Combo; Amber)
  • Recommended Additional Part
    Accessories-668010-Light Cover (Clear)
  • Recommended Additional Part
    Accessories-668011-Rock Guard (Black)
  • Recommended Additional Part
    Accessories-668012-Light Cover (Amber)
  • Recommended Additional Part
    Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts
  • Recommended Additional Part
    Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
  • Recommended Additional Part
    Compatible Products-613608-Harness Splitter
  • Recommended Additional Part
    Compatible Products-613609-Harness/Splitter (55 Inch)
  • Recommended Additional Part
    Compatible Products-640094-Upfitter Harness
  • Recommended Additional Part
    Compatible Products-640119-Wiring Harness (Hi/Low)
  • Recommended Additional Part
    Compatible Products-660060-Wiring Harness (Off Road Mode Switch)
  • Universal Or Specific Fit
    Universal
  • Wattage
    80.0W
  • Weight
    2.5 lbs. (1.1 kg)
