        Richmond Gear

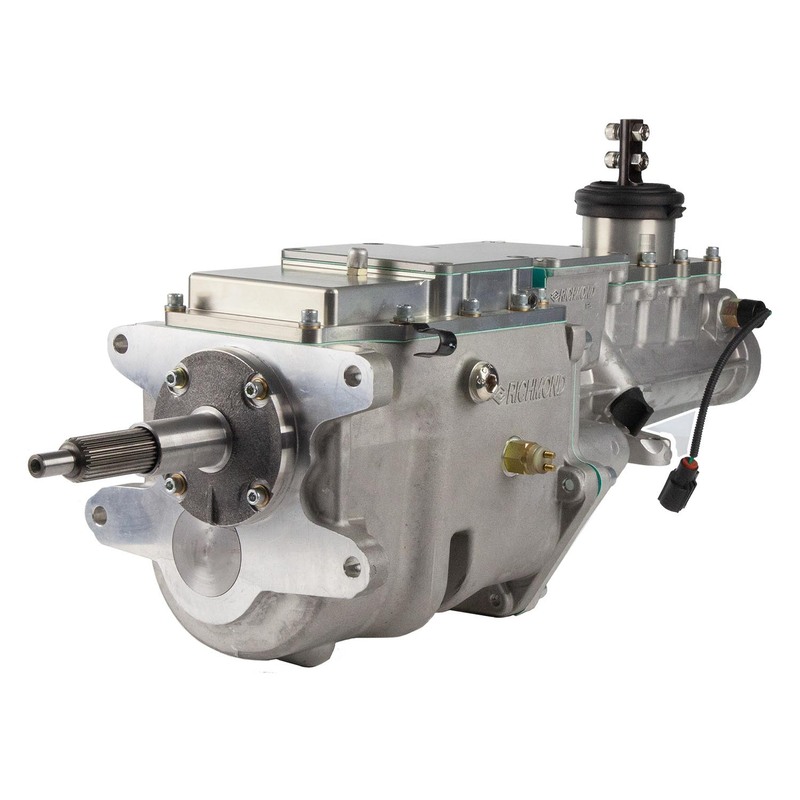

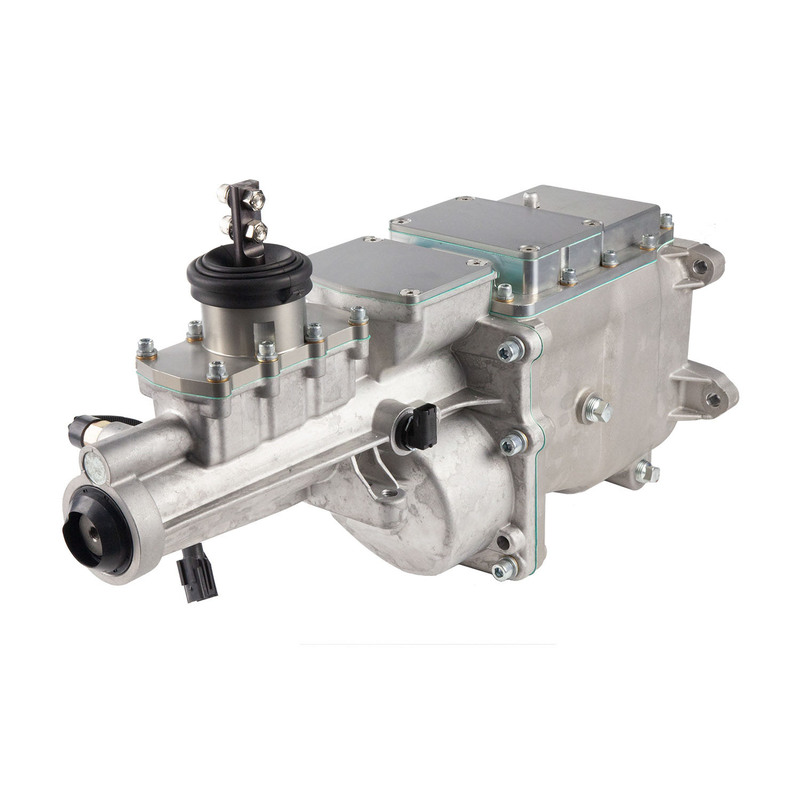

        Manual Transmission Assembly

        Part Number:R502064C
        Richmond Gear is the leading manufacturer of professional quality, high-performance drivetrain products. Our complete line of products ranges from high performance ring-and-pinion sets for serious street and racing applications to torque-hungry manual transmissions and components. Richmond Gear products have been winners both at the Daytona 500 and U.S. Nationals for decades. WINNERS RUN RICHMOND!
        • For over 80-years, the Richmond Double-Diamond logo has represented some of the highest quality gears in the racing industry. Winners Run Richmond!
        • The superior quality of Richmond gearsets is a result of outstanding design, world class manufacturing and an extensive testing process that is performed on all products.
        • Richmond performance gearsets have been winners for decades at: NHRA, NMRA, NMCA, Daytona 500, WISSOTA and U.S. Nationals.
        • Richmond Gear is a leading manufacturer of high performance ring and pinion gearsets and drivetrain components, backed by a two year warranty.
        • Engineered to perform faster and be more reliable, Richmond performance drivetrain products are the result of a continuous research and development program combined with state-of-the-art manufacturing capabilities.
        Features
        • SKU
          R502064C
        • Brand
          Richmond Gear
        • Bellhousing Pilot Diameter
          4.68
        • Bolt Pattern
          GM
        • Case Material
          Aluminum
        • Fifth Gear Ratio
          .64
        • First Gear Ratio
          2.87
        • Fourth Gear Ratio
          1.00
        • Input Pilot Diameter
          .59
        • Input Pilot Length
          1.06
        • Input Retainer Diameter
          1.378
        • Input Retainer Length
          3.19
        • Input Shaft Diameter
          1.125 in.
        • Input Shaft Length
          6.71
        • Input Shaft Spline Quantity
          26
        • Maximum Torque
          600
        • Output Shaft Diameter
          1.389
        • Output Shaft Spline Quantity
          31
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Reverse First Gear Ratio
          2.56
        • Second Gear Ratio
          1.89
        • Shifter Location
          Center
        • Speedometer Type
          Cable
        • Speedometer Type
          Electric
        • Third Gear Ratio
          1.28
