Diode Dynamics - Bronco SS5 Sport CrossLink Windshield White Combo Lightbar Kit
Diode Dynamics

Diode Dynamics - Bronco SS5 Sport CrossLink Windshield White Combo Lightbar Kit

Part Number:DD7232

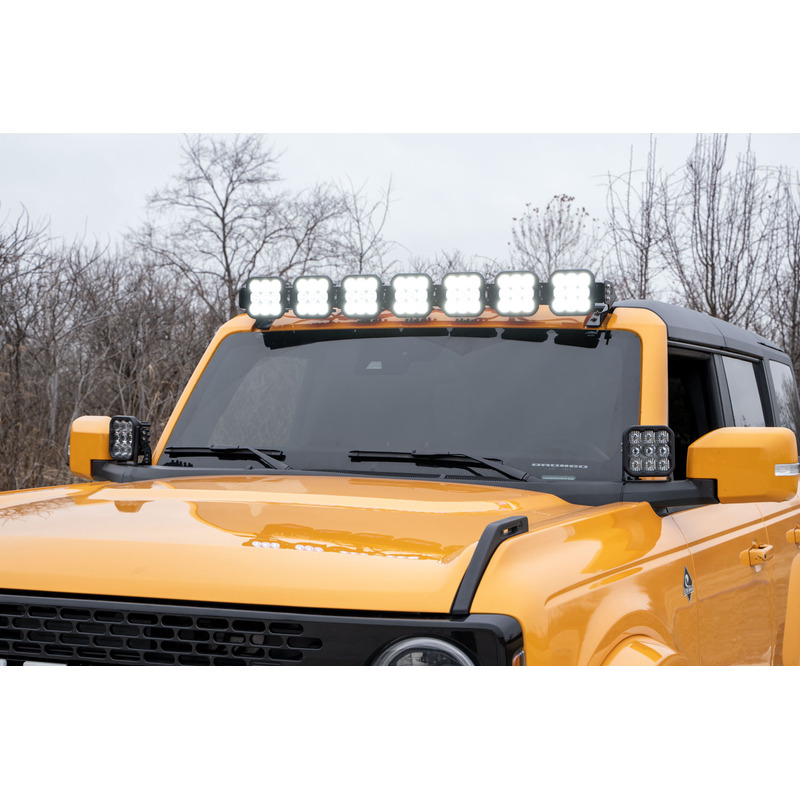

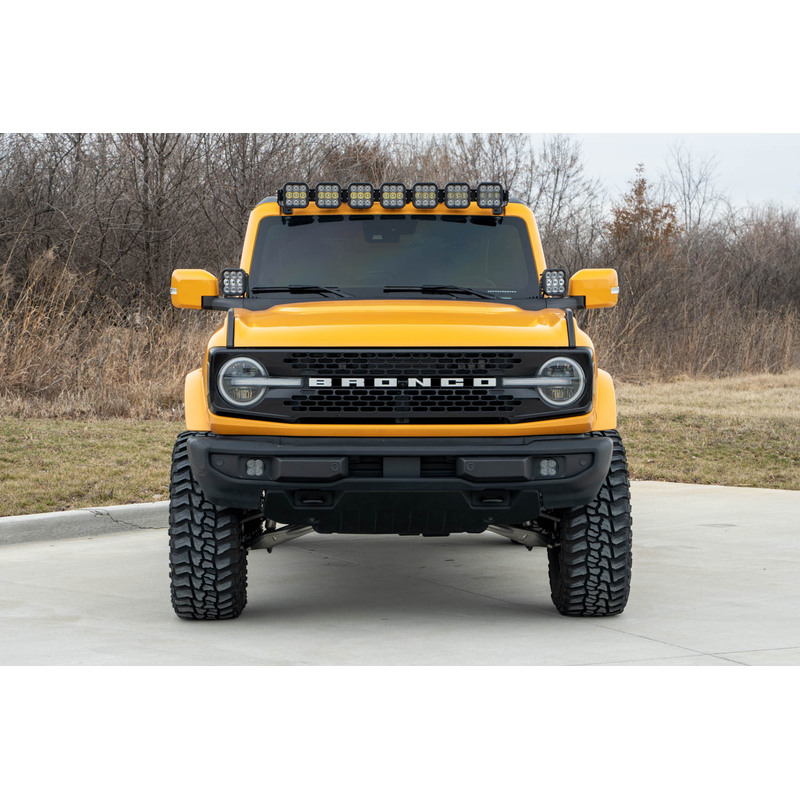

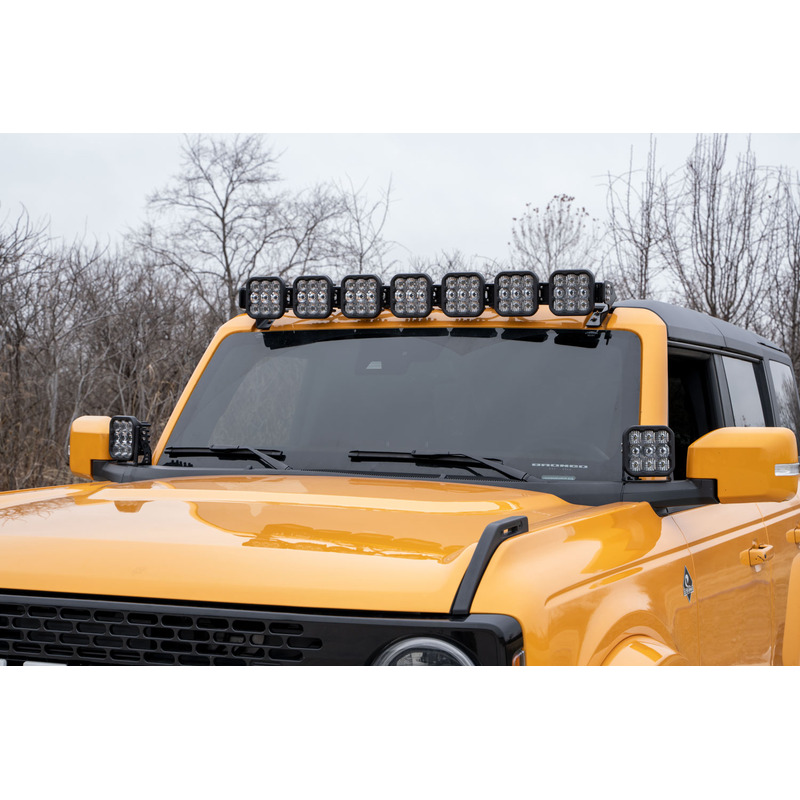

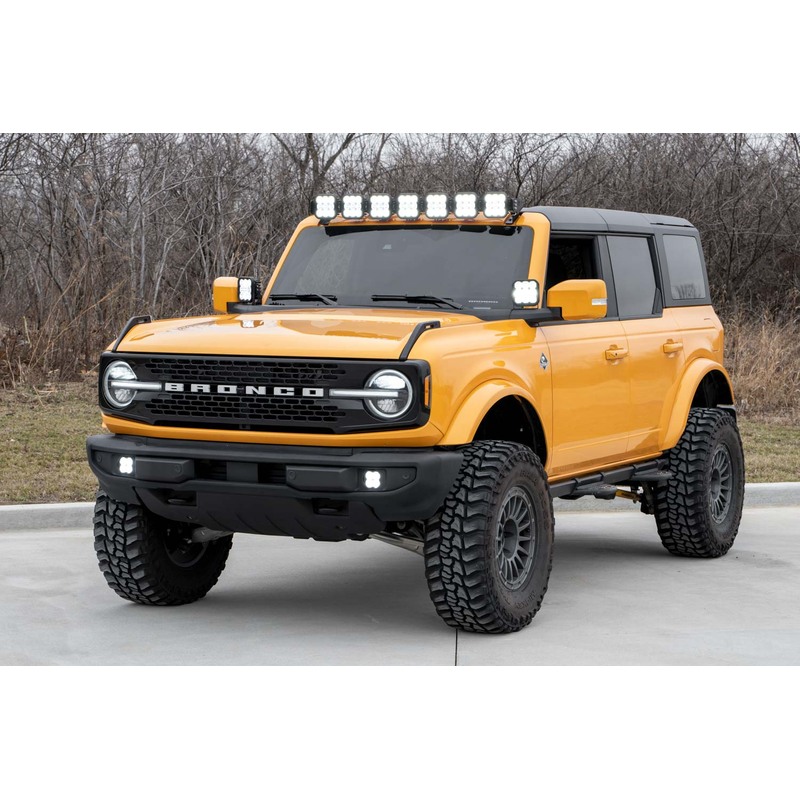

The Windshield CrossLink Lightbar Kit compatible with Ford Bronco 2021 from Diode Dynamics allows you to mount seven linked SS5 LED pods above the factory windshield.

Features

  • Bolt-on fitment compatible with Ford Bronco 2021
  • Ultra-high intensity with custom-engineered TIR optics
  • Selectable backlight color with eight color options
  • Torture-tested heavy-duty construction
  • Control through factory aux switch bank using the included harness
  • Assembled in USA

Overview

Perfect Fitment. The Windshield CrossLink Lightbar Kit compatible with Ford Bronco 2021 from Diode Dynamics allows you to mount seven linked SS5 LED pods above the factory windshield. These application-specific brackets were CAD-designed to bolt into place using factory mounting points above the factory windshield. No cutting or drilling required!

Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.

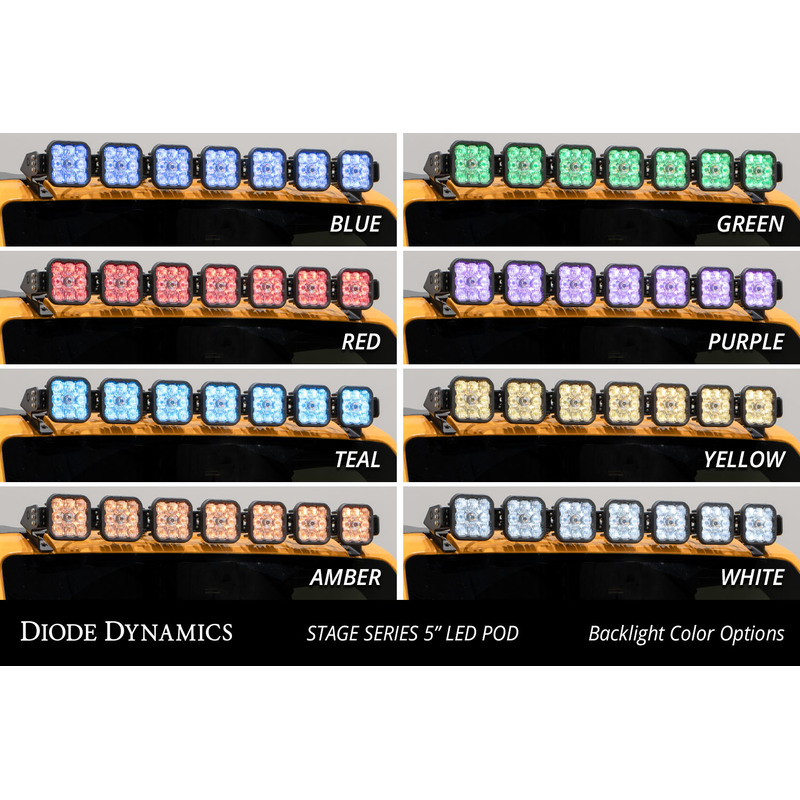

Selectable Backlight. The SS5 LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for extra styling or for more visibility when you(TM) re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There(TM) s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight.

CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable for both straight and curved configurations.

  • Advanced TIR optics provide high efficiency and focus
  • Intense Focus on Quality
  • High-intensity automotive-type LEDs
  • US-Based Company
  • Pin-fin heatsink design
  • Industry Leading Warranties
  • Integrated Deutsch-style connector
  • Durable powdercoated aluminum construction

Retail price
  • $2,655.00
Features
  • SKU
    DD7232
  • Brand
    Diode Dynamics
  • Base Color
    Black
  • Color Temperature
    6,000K
  • Compliance Description
    Driving/Auxiliary High Beam Pattern
  • Compliance Rating
    SAE J581

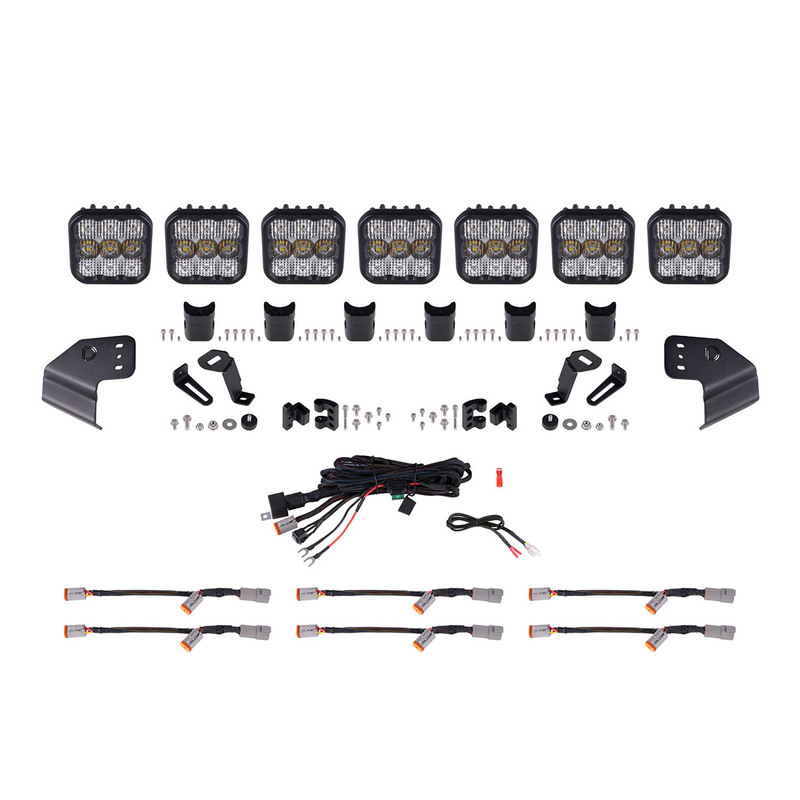

  • Includes Mounting Hardware
    Yes
  • Input Power
    40.0W
  • Installation Method
    Bolt-On
  • Lumens
    3,700 lm
  • Operating Temperature
    -40C to +80C (-40F to +185F)
  • Prop 65 - Required to list in California with Warning
    No
  • Universal Or Specific Fit
    Specific
  • Voltage
    9.0-16.0V DC
Fitment
