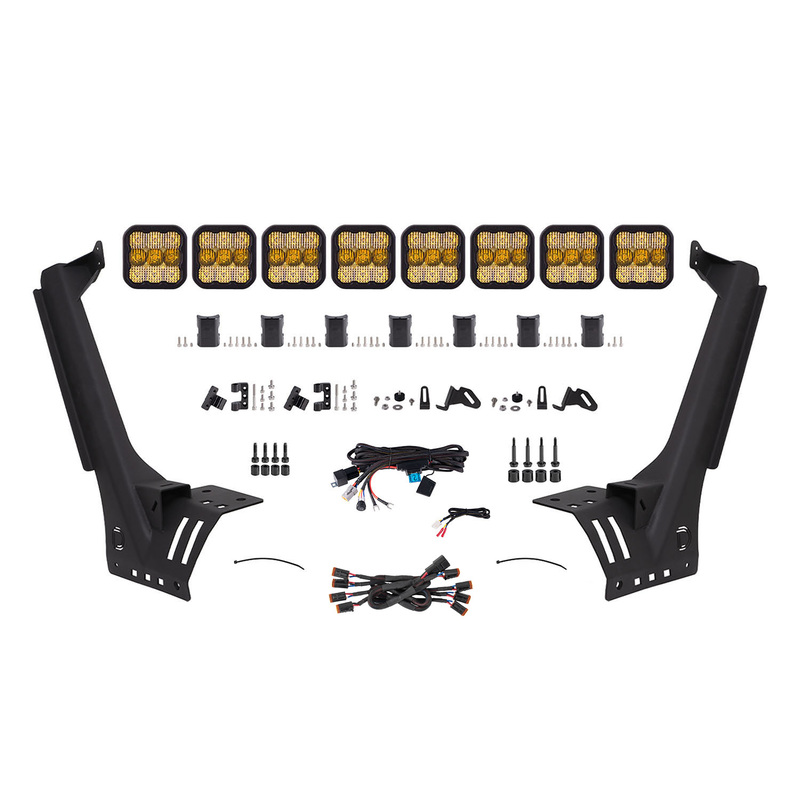

Diode Dynamics - Jeep JL SS5 Pro CrossLink Windshield Yellow Combo Lightbar Kit
Diode Dynamics

Diode Dynamics - Jeep JL SS5 Pro CrossLink Windshield Yellow Combo Lightbar Kit

Part Number:DD7263

Features

  • Bolt-on fitment compatible with Jeep JL Wrangler 2018-2021
  • Ultra-high intensity with custom-engineered TIR optics
  • Selectable backlight color with eight color options
  • Torture-tested heavy-duty construction
  • Control through factory aux switch bank using the included harness
  • Assembled in USA

Overview

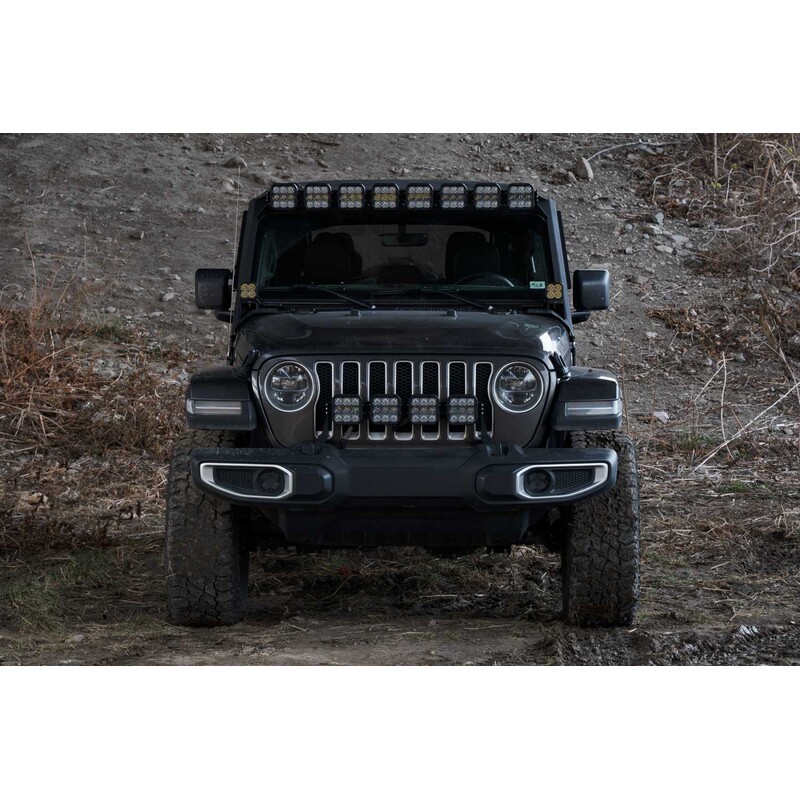

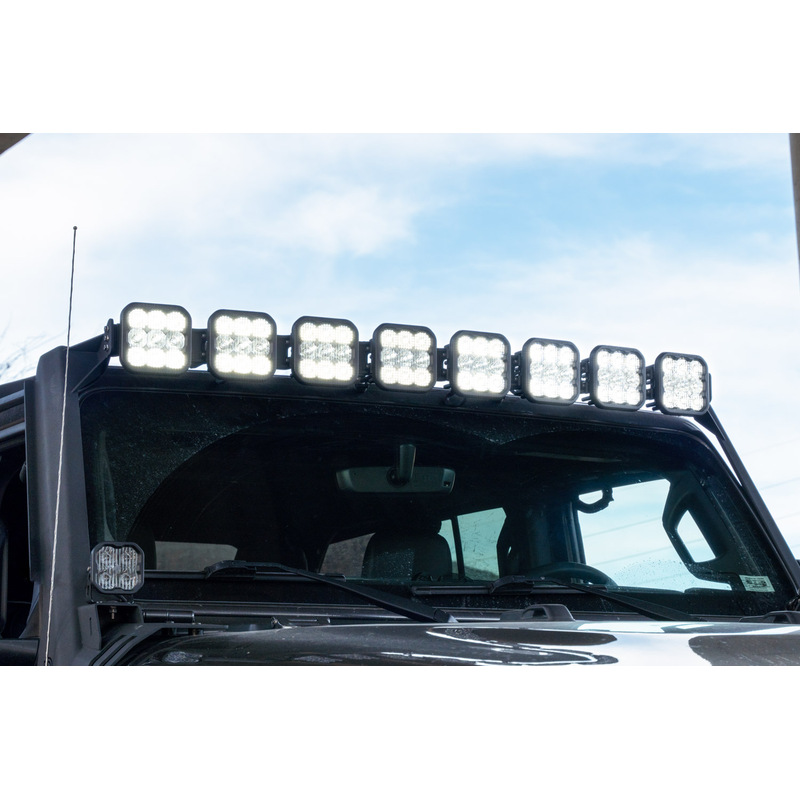

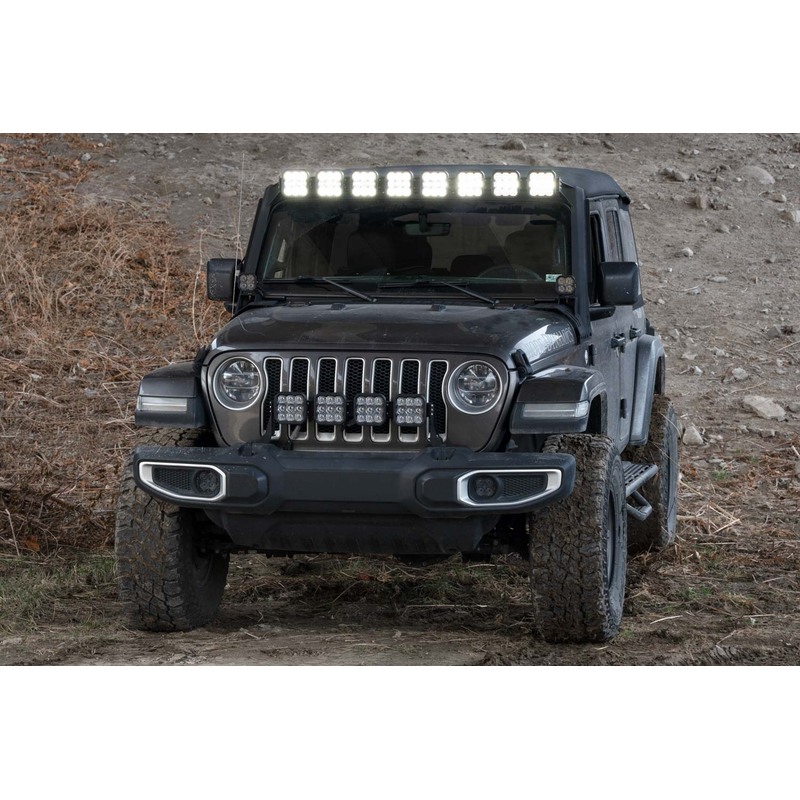

Perfect Fitment. The Windshield CrossLink Lightbar Kit compatible with Jeep JL Wrangler 2018-2021 from Diode Dynamics allows you to mount eight linked SS5 LED pods above the factory windshield. These application-specific brackets were CAD-designed to bolt into place using factory mounting points above the factory windshield. No cutting or drilling required!

Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.

Selectable Backlight. The SS5 LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for extra styling or for more visibility when you(TM) re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There(TM) s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight.

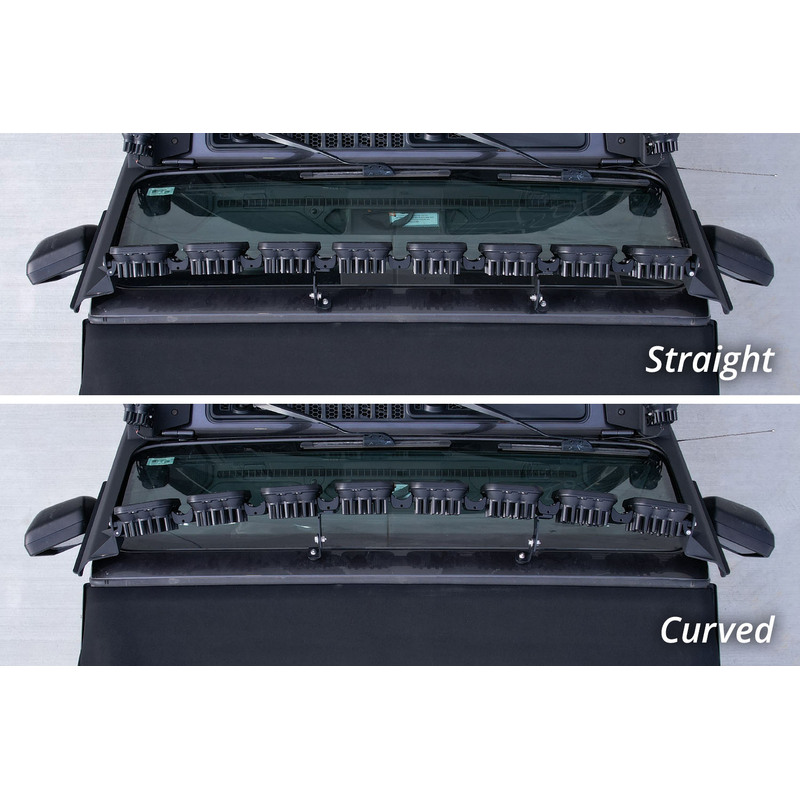

CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable for both straight and curved configurations.

  • Advanced TIR optics provide high efficiency and focus
  • Intense Focus on Quality
  • High-intensity automotive-type LEDs
  • US-Based Company
  • Pin-fin heatsink design
  • Industry Leading Warranties
  • Integrated Deutsch-style connector
  • Durable powdercoated aluminum construction
Retail price
  • $5,004.00
Features
  • SKU
    DD7263
  • Brand
    Diode Dynamics
  • Base Color
    Black
  • Color Temperature
    3,000K
  • Compliance Description
    Durability Test
  • Compliance Rating
    SAE J575
  • Includes Mounting Hardware
    Yes
  • Input Power
    90.0W
  • Installation Method
    Bolt-On
  • Lumens
    7,900 lm
  • Operating Temperature
    -40C to +80C (-40F to +185F)
  • Prop 65 - Required to list in California with Warning
    No
  • Universal Or Specific Fit
    Specific
  • Voltage
    9.0-16.0V DC
Fitment
