        IAG 750 Closed Deck Long Block Engine w/ IAG 750 Heads for 2008-18 STI

        Part Number:IAG-ENG-L750W

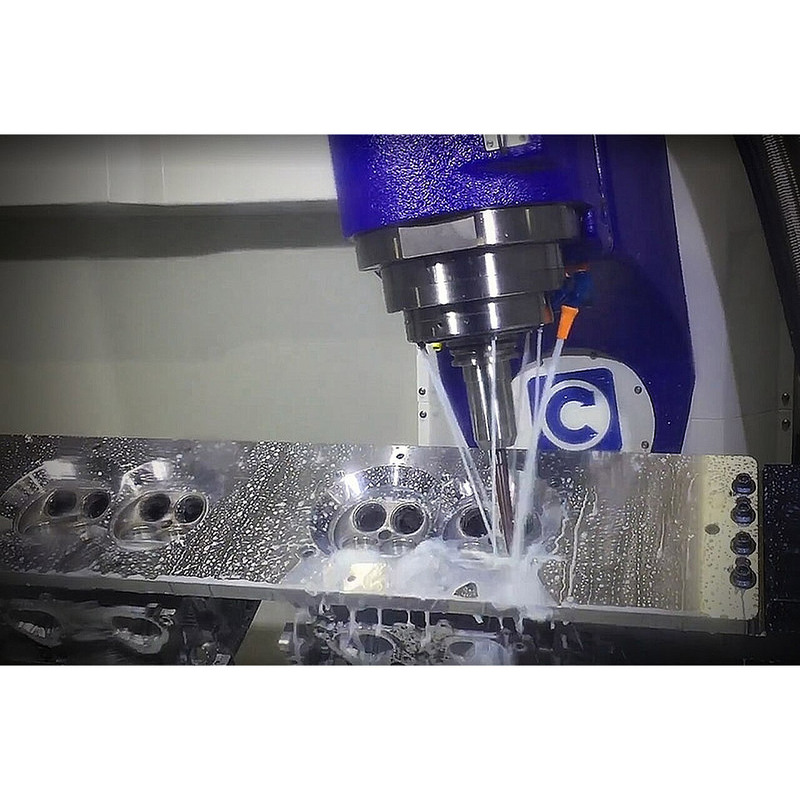

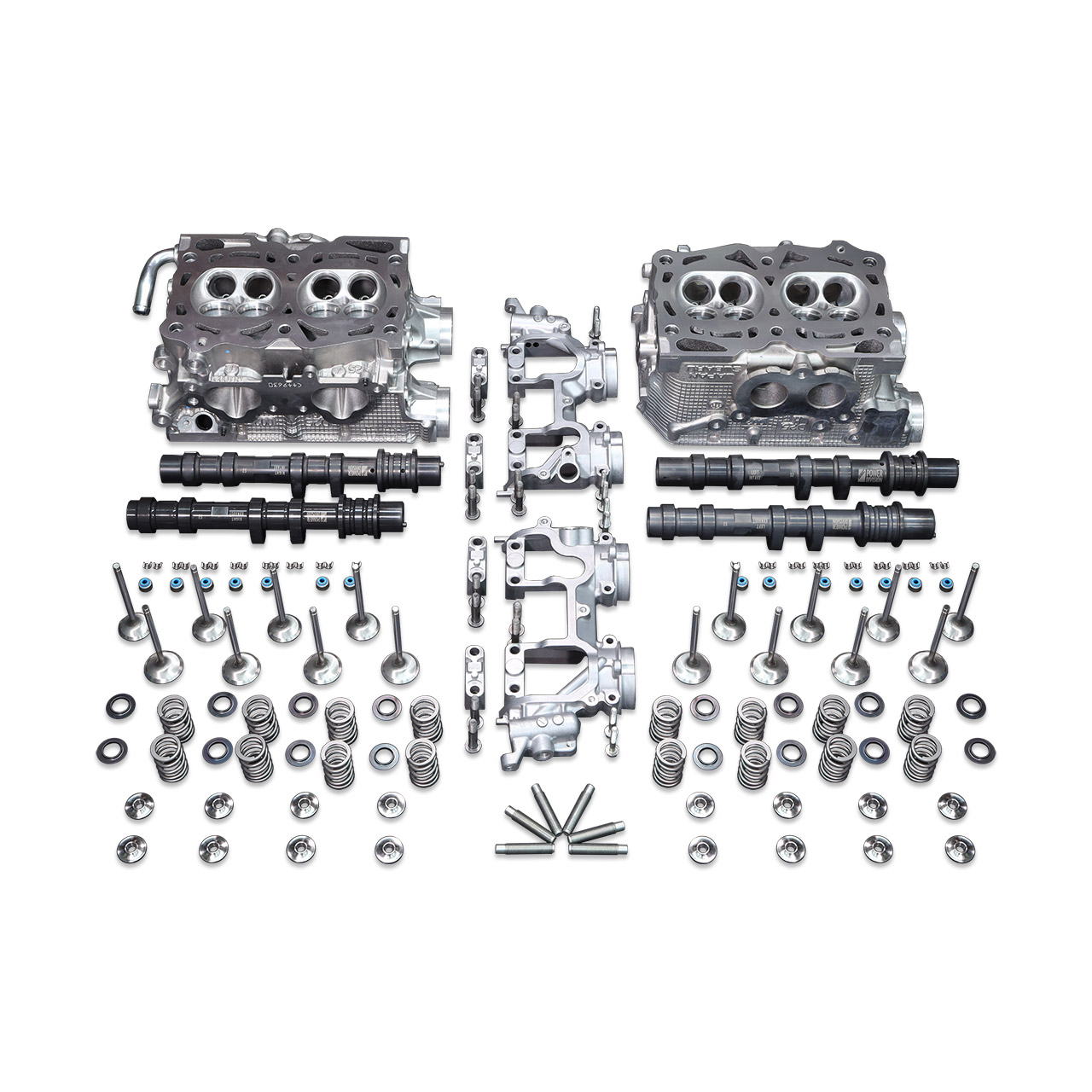

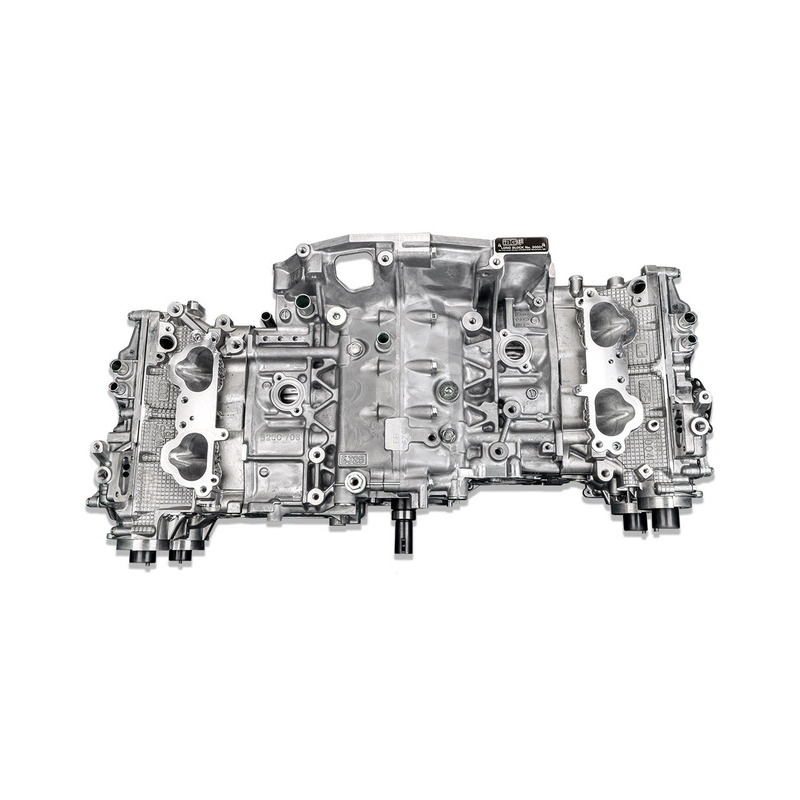

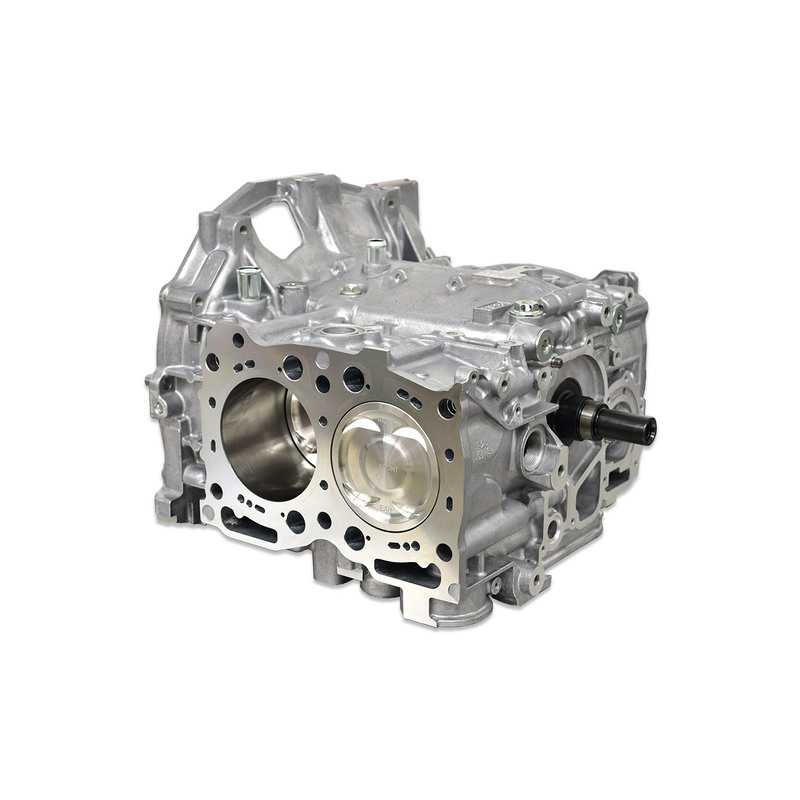

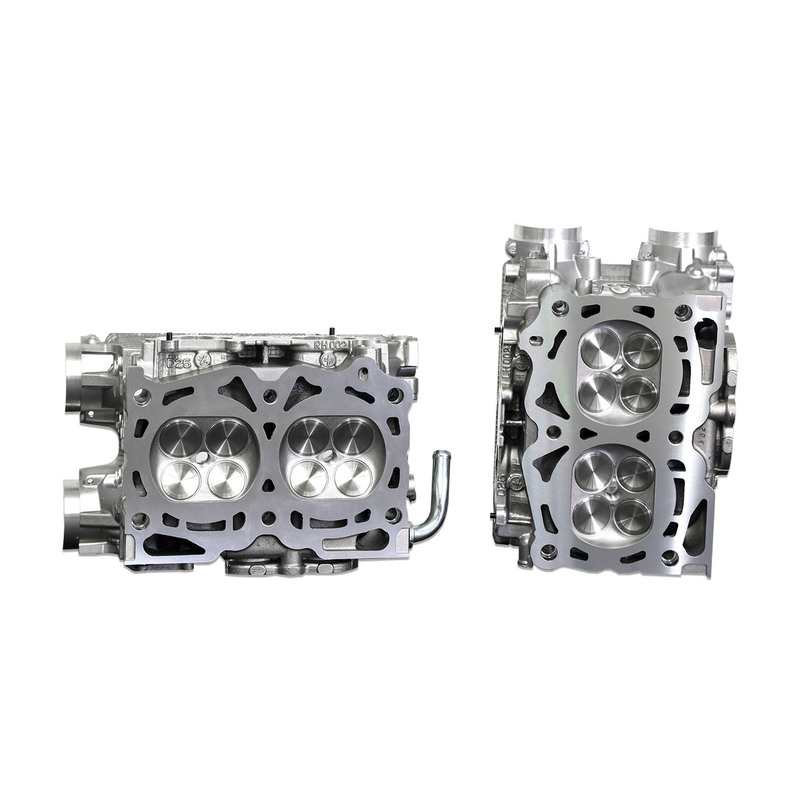

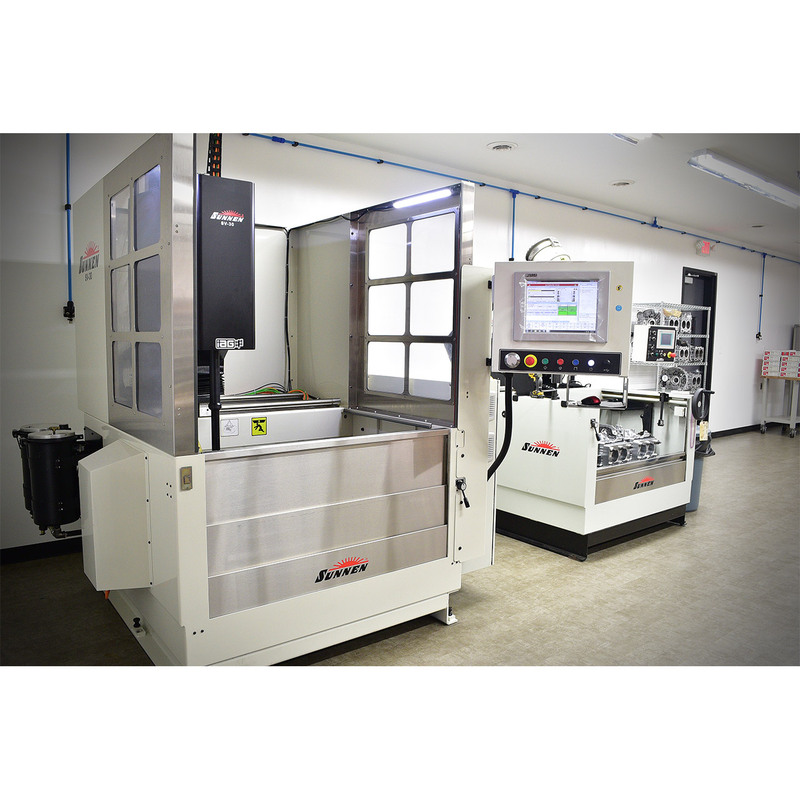

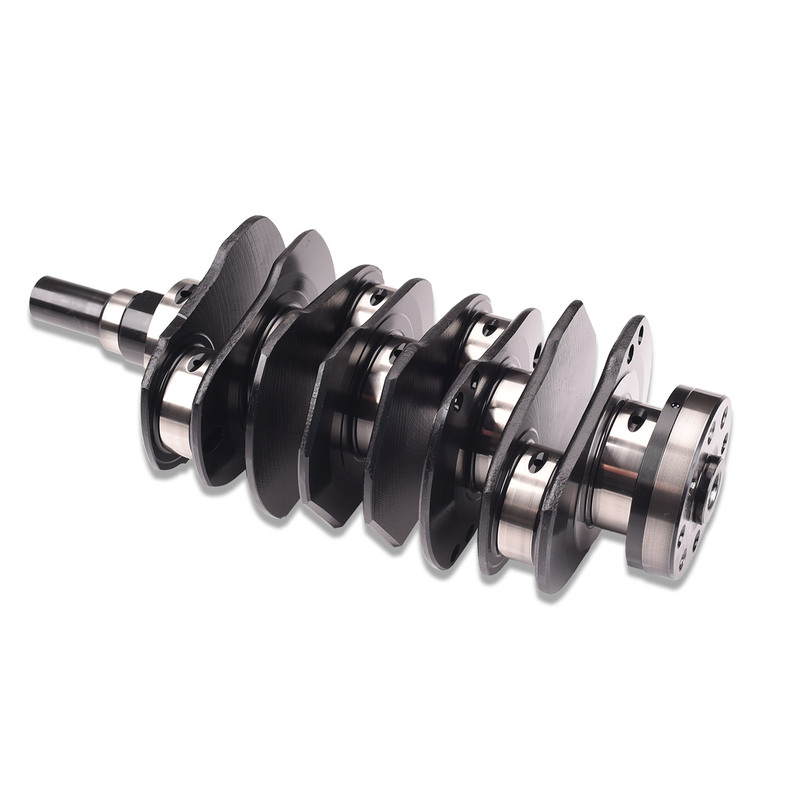

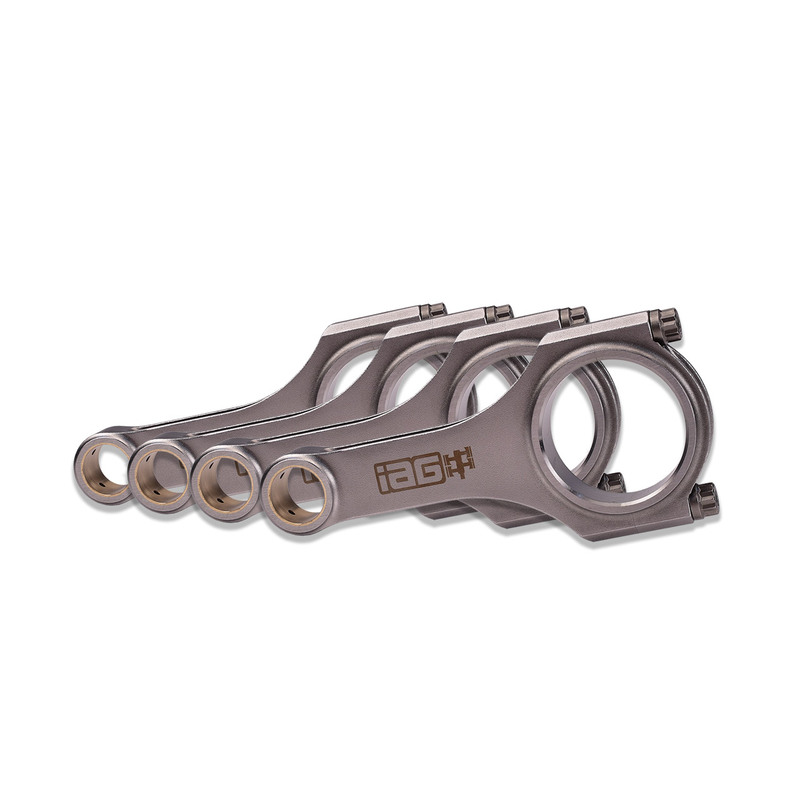

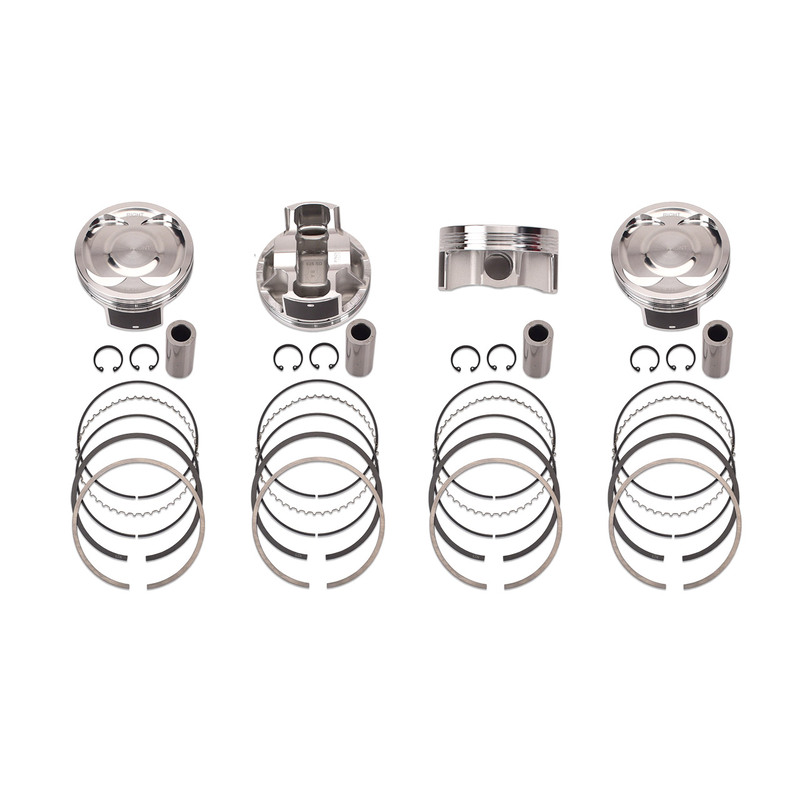

        The IAG Performance Hand-Built Subaru EJ25 Closed Deck Long Block Engine Packages are a complete, valve cover to valve cover, crate engine. The Long Blocks feature a combination of our proven IAG Performance 750 Closed Deck Short Block and IAG 750 Cylinder Head packages, along with other race-proven components to complete the assembly. When paired with our Long Block Installation Packages, you have a true plug-and-play solution to get you back on the road, FAST! All components included are BRAND NEW and there is NEVER A CORE CHARGE required. The IAG 750 Long Block package is ideal for clients looking for an engine package to support up to 750 BHP applications. The IAG 750 long block features our 750 Closed Deck Short Block that utilizes a brand new EJ25 Subaru case that is converted to closed deck and is bored and honed to 99.75mm. The IAG 750 short block internals include IAG-Spec JE FSR 2618 forged pistons, .210" 9130 pins, IAG-Spec Tuff H-Beam connecting rods with ARP 2000 rods bolts and an OEM STI crankshaft. The block is then paired up with our IAG 750 Pocket Ported Cylinder Heads to increase flow, but maintain spool. The heads start as brand new Subaru OEM cylinder head castings that are CNC machined and resurfaced. The heads are outfitted with GSC Standard Size Valves, GSC Viton Valve Stem Seals, GSC Valve Guides, IAG Stage 1 Valve Springs with Titanium Retainers, and OEM Keepers as well as GSC Billet Stage 1 camshafts. To complete the package, we add an 11mm ARP 625+ head stud set and all required gaskets for the final valve cover-to-valve cover assembly. IAG's Standard Long Block Workmanship Warranty covers your long block for 12 months or 12,000 miles. We have also teamed up with IAG Certified Installation Facilities which offer a 24 month/24,000 mile workmanship warranty when the engine is purchased, installed, and tuned by that IAG Certified Installer.
        • These engines offer significant ease of installation for customers seeking a complete "drop-in" engine package for their Subaru WRX, STI, Forester XT or Legacy GT.
        Retail price
        • $12,499.99
        Features
        • SKU
          IAG-ENG-L750W
        • Brand
          IAG Performance
        • Assembled
          Yes
        • Assembly Lubricant Included
          No
        • Bore Diameter
          99.75 mm
        • CNC-Machined Combustion Chamber
          Yes
        • CNC-Machined Exhaust Runner
          Yes
        • CNC-Machined Intake Runner
          Yes
        • Connecting Rod Beam Style
          H Beam
        • Connecting Rod Material
          Forged Steel
        • Crankshaft Material
          Aluminum
        • Cylinder Head Material
          Aluminum
        • Engine Block Material
          Aluminum
        • Engine Oil Pump Included
          No
        • Engine Water Pump Included
          No
        • Exhaust Valve Diameter
          32
        • Exhaust Valve Length
          104.37
        • Exhaust Valve Material
          Stainless Steel
        • Exhaust Valve Stem Diameter
          6
        • Flexplate Included
          No
        • Flywheel Included
          No
        • Fuel Injectors Included
          No
        • Fuel Type
          All
        • Grade Type
          Performance
        • Intake Valve Length
          104.40
        • Intake Valve Material
          Stainless Steel
        • Intake Valve Stem Diameter
          6
        • Oil Pan Included
          No
        • Piston Material
          Aluminum
        • Piston Rings Included
          Yes
        • Piston Style
          Dome
        • Power Rating
          750 BHP
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Prop 65 - Type
          Cancer and Reproductive
        • Timing Set Included
          No
        • Title
          IAG 750 Closed Deck Long Block Engine w/ IAG 750 Heads for 2008-18 STI
        • Valve Seal Material
          Viton
        • Valve Seals Included
          Yes
        • Valve Spring Retainer Material
          Titanium
        • Valves Included
          Yes
        • Wrist Pin Style
          Full Floating
