IAG 950 CNC Ported Race D25 Cylinder Heads Package (No Cams & Lifters) for 06-14 WRX, 06-13 FXT, 07-09 LGT
        IAG Performance

        IAG 950 CNC Ported Race D25 Cylinder Heads Package (No Cams & Lifters) for 06-14 WRX, 06-13 FXT, 07-09 LGT

        Part Number:IAG-ENG-H950DE

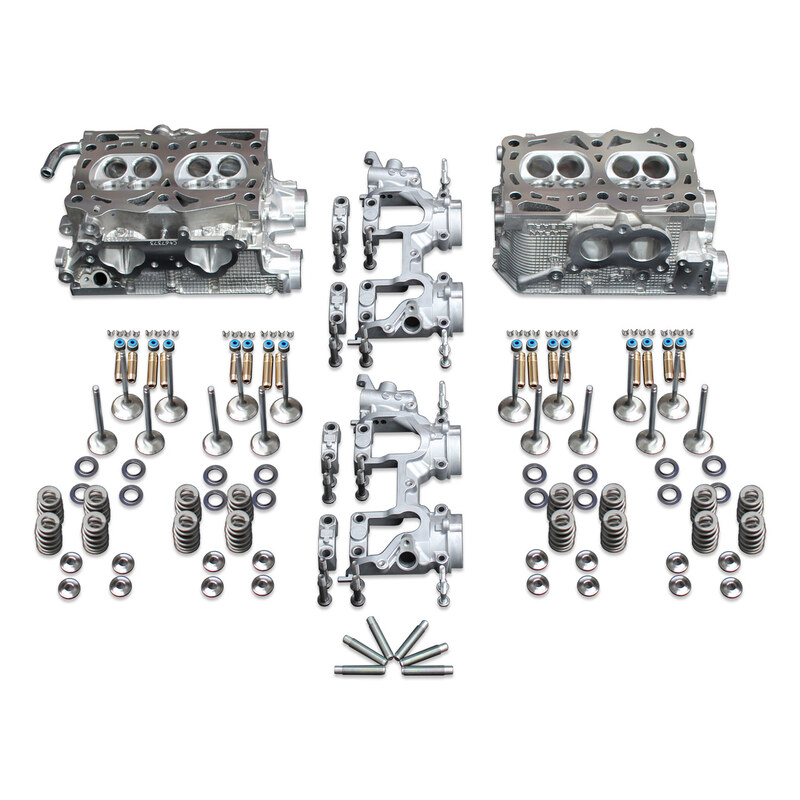

        The IAG 950 CNC Ported Race Cylinder Heads are designed for racing and competition. These fully CNC ported heads provide a significant upgrade in flow over the IAG 750 heads. These heads work great for cars where getting more power might be the difference between winning or losing that big race. The IAG 950 heads work great for drag racing, as well as high horsepower time attack or hill climb, and are designed to support up to 950 BHP with supporting mods. These heads include upgraded GSC +1MM Superalloy Valves, GSC Viton Valve Stem Seals, Upgraded GSC Valve Guides, IAG-Spec Beehive Valve Springs with Titanium Retainers, and OEM Keepers. GSC S2 Camshafts are available with OEM valve lifter buckets. We also offer an optional chamber modification service (see below) for EJ20 heads to allow use on EJ25 short blocks. Each IAG 950 Cylinder Head Set starts with new OEM castings from Subaru of America. The first step is to select your Year and Model of vehicle so that we may provide you with the right castings to fit your project. Next, you'll select whether or not you want to include our optional GSC camshaft package. If selected, these heads will include new GSC S2 Camshafts and OEM Lifter Buckets for valve adjustment.

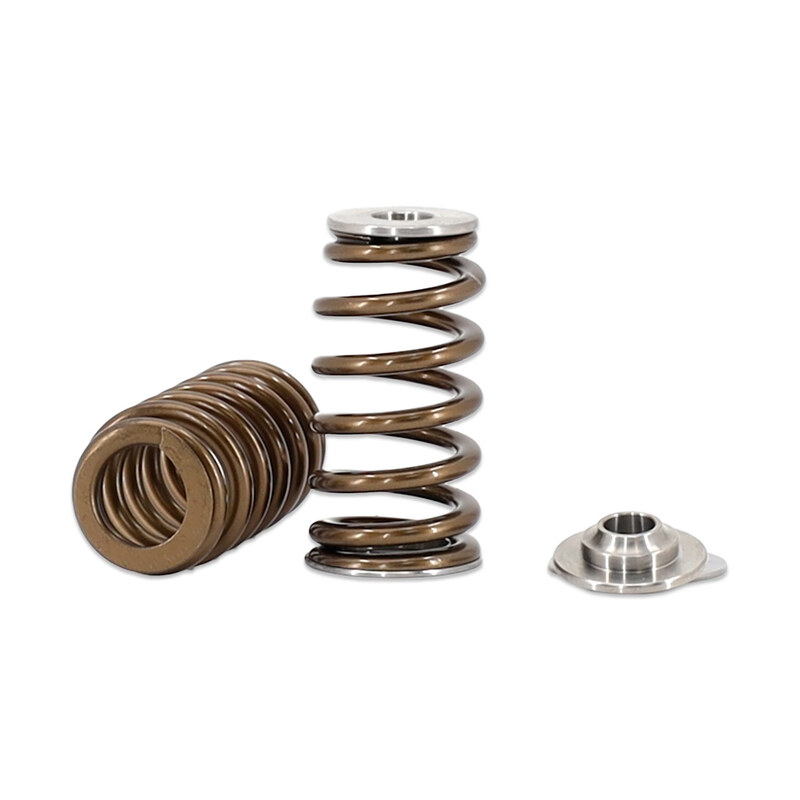

        • New Head Castings with Upgraded GSC +1MM Superalloy Valves, IAG Beehive Valve Springs
        • Power: The IAG 950 Cylinder Head Package has a power output rating of 950 BHP.
        Retail price
        • $4,899.99
        Features
        • SKU
          IAG-ENG-H950DE
        • Brand
          IAG Performance
        • Assembled
          Yes
        • CNC-Machined Combustion Chamber
          Yes
        • CNC-Machined Exhaust Runner
          Yes
        • CNC-Machined Intake Runner
          Yes
        • Cylinder Head Gasket Included
          No
        • Exhaust Valve Diameter
          33.0 mm
        • Exhaust Valve Length
          104.25
        • Exhaust Valve Material
          Stainless Steel
        • Exhaust Valve Stem Diameter
          6
        • Grade Type
          Performance
        • Intake Valve Diameter
          37.0 mm
        • Intake Valve Length
          104
        • Intake Valve Material
          Stainless Steel
        • Intake Valve Stem Diameter
          6
        • Length
          20
        • Material
          Aluminum
        • Mounting Hardware Included
          Yes
        • Power Rating
          950 BHP
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Prop 65 - Type
          Cancer and Reproductive
        • Title
          IAG 950 CNC Ported Race D25 Cylinder Heads Package (No Cams & Lifters) for 06-14 WRX, 06-13 FXT, 07-09 LGT
        • Valve Covers Included
          No
        • Valve Seal Material
          Viton
        • Valve Seals Included
          Yes
        • Valve Spring Retainer Material
          Titanium
        • Valve Spring Retainers Included
          Yes
        • Valve Springs Included
          Yes
        • Valves Included
          Yes
        • Weight
          72
        • Width
          16
