HEDMAN HEDDERS BOLT-ON STYLE, UNIVERSAL EXHAUST HANGER BRACKET FOR 2-1/2 IN. EXHAUST SYSTEMS; LASER-CUT, MILD STEEL CONSTRUCTION; INCLUDES ADJUSTABLE
Hedman Hedders

HEDMAN HEDDERS BOLT-ON STYLE, UNIVERSAL EXHAUST HANGER BRACKET FOR 2-1/2 IN. EXHAUST SYSTEMS; LASER-CUT, MILD STEEL CONSTRUCTION; INCLUDES ADJUSTABLE

Part Number:20033
Discontinued

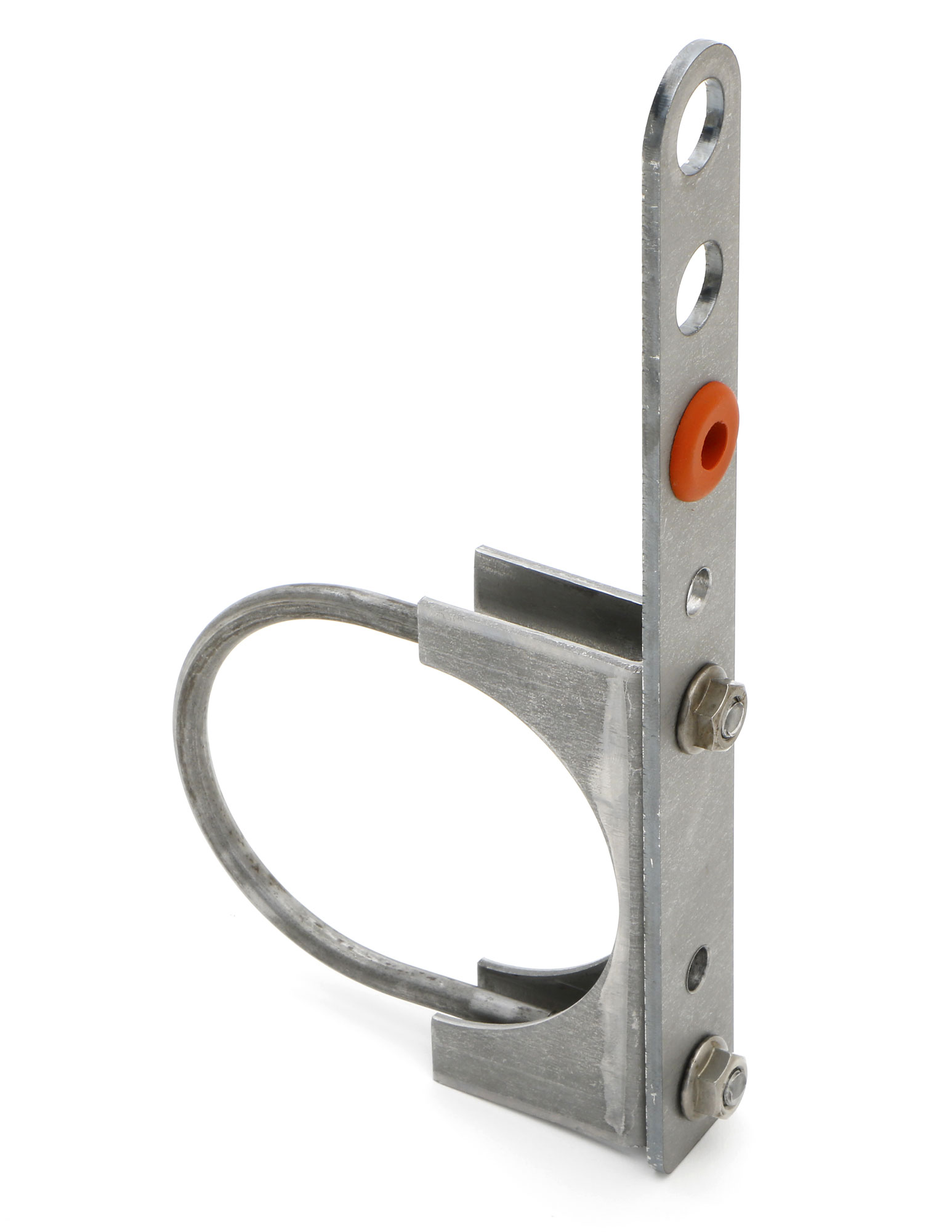

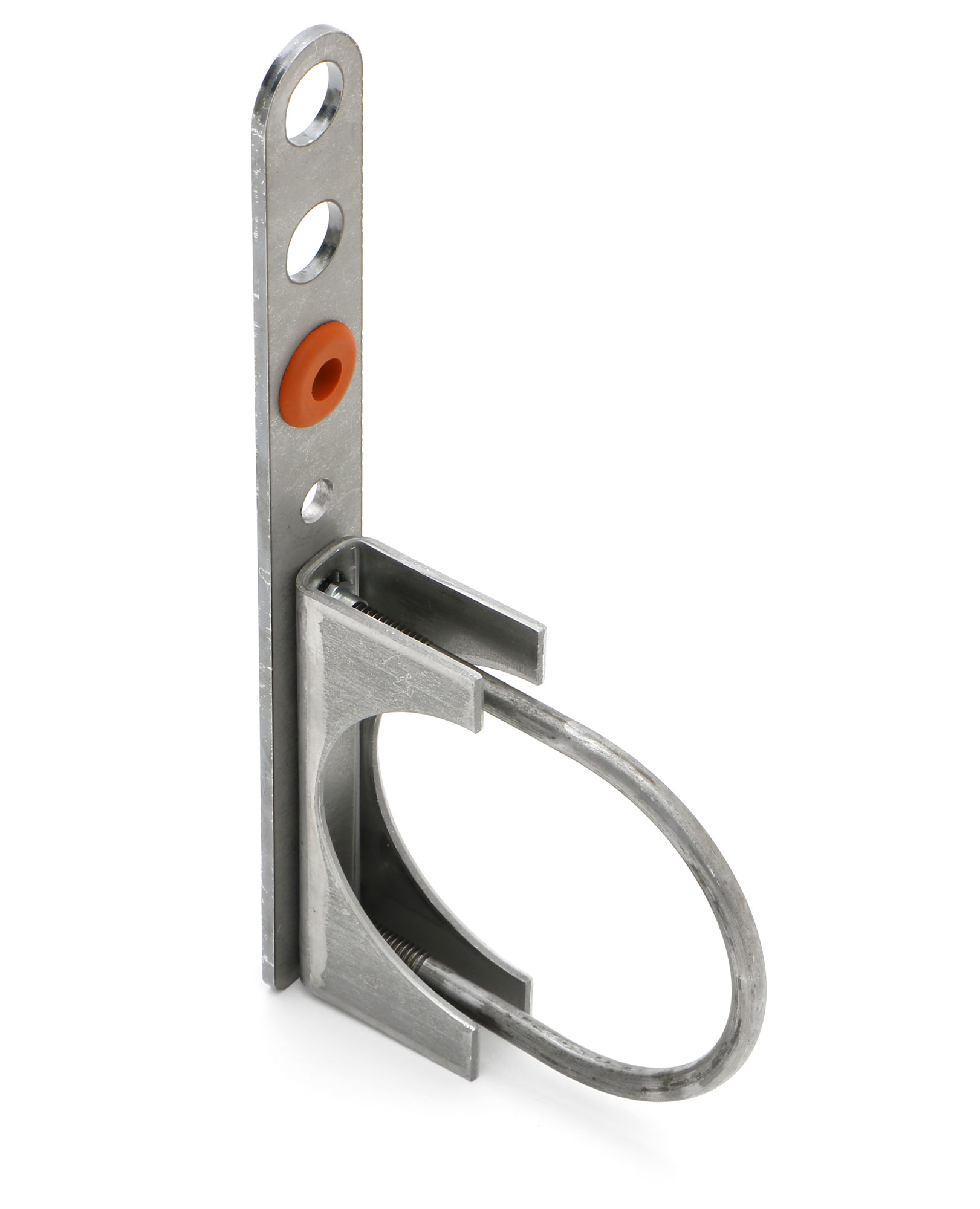

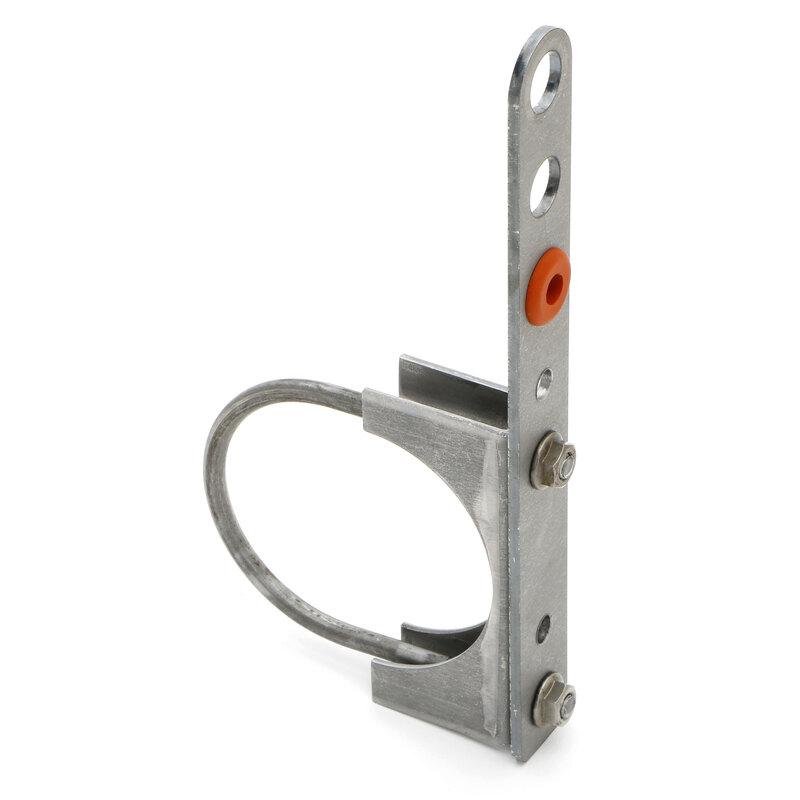

Universal BOLT-ON Exhaust Hanger Bracket For 2-1/2 in. Exhaust Pipe; Laser-Cut, Mild Steel Construction; Includes Pipe-Clamp and High Temperature Rubber Grommet.

Properly hanging your vehicle?s exhaust system is crucial to the system?s longevity. In fact, missing or improperly located exhaust hangers don?t just shorten the life of your exhaust system, they increase the forces generated on your vehicles headers, and can lead to cracked welds near the header collectors, as well as, cracks where the header tubes are welded to the head flange. Hedman?s Universal, bolt-on exhaust hanger brackets allow you to correctly position the exhaust hangers on your exhaust to ensure a secure installation, and reduce the risk of header or exhaust damage. The totally bolt-on design means you dont need to hit up a buddy, or own a welder to install. This 90 degree style of this bracket is for use with 2-1/2 in. exhaust systems. The included higg-temperature grommet can be installed in one of three different heights. This hanger bracket is for use with hanger rods or bolts that are perpendicular to the exhaust tubing. Once bolted to the exhaust system, the brackets are attached to the vehicle using standard 3/8 in. diameter exhaust hanger rods (not included), or 3/8 in. diameter bolts (not included).
Retail price
  • $61.44
Features
  • SKU
    20033
  • Brand
    Hedman Hedders
  • Bushing Color
    Red
  • Bushing Material
    Rubber
  • Exhaust Hanger Rod Diameter
    0.375 in.
  • Exhaust System Diameter
    2.5 in.
  • Finish
    Raw
  • Includes Bolts/Studs
    Yes
  • Includes Brackets
    Yes
  • Includes Exhaust Hanger Rod
    No
  • Includes Fasteners
    Yes
  • Includes Grommets
    Yes
  • Includes Hangers
    No
  • Includes Mounting Hardware
    Yes
  • Installation Method
    Bolt-On
  • Length
    9.25 in.
  • Material
    Mild Steel
  • Material
    Mild Steel, Rubber
  • Material
    Steel
  • Material Thickness
    0.125 in.
  • Package Contents
    Laser Cut, Bolt-On Bracket, U-bolt/Nuts, Rubber Grommet
  • Pipe Size
    2.5 in.
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Tube Outside Diameter
    2.5 in.
  • Tube Size
    2.5 in.
  • Width
    1.125 in.
